LinsnTS802D sending card controller China Linsn Synchronous TS802D sending card on led screen
- Category: >>>
- Supplier: Shenzhen Ledstore Technology Co.Ltd
Share on (1600467131701):
Product Overview
Description
Hello, boss! Welcome to our shop. What can I do for you?
Dear customer :
Thank you for your visit to Shenzhen Ledstore technology Co.Ltd Alibaba International station! Nice to meet you~
We are a LED display control solution integration provider, located in Shenzhen,specializing in the production of LED video processor and LED control system supporting products.
The company has a professional R & D team, most of them have more than 15 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
The company has a professional R & D team, most of them have more than 15 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
After Sales Service
★ 24 hours around clock & 12 months warranty
★ life-long technical support for the product Quality Control
★ 5 times testing during production
★ our product have got CE FCC ROSH certification
Shenzhen Ledstore technology Co.Ltd
Product Description

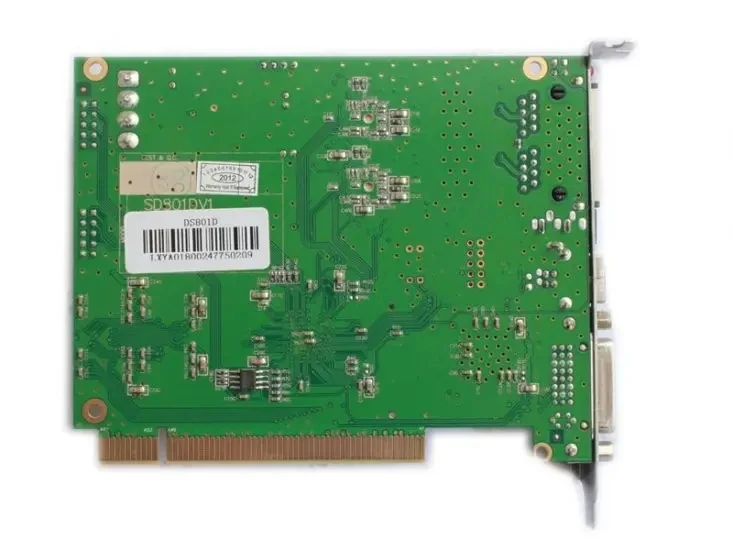

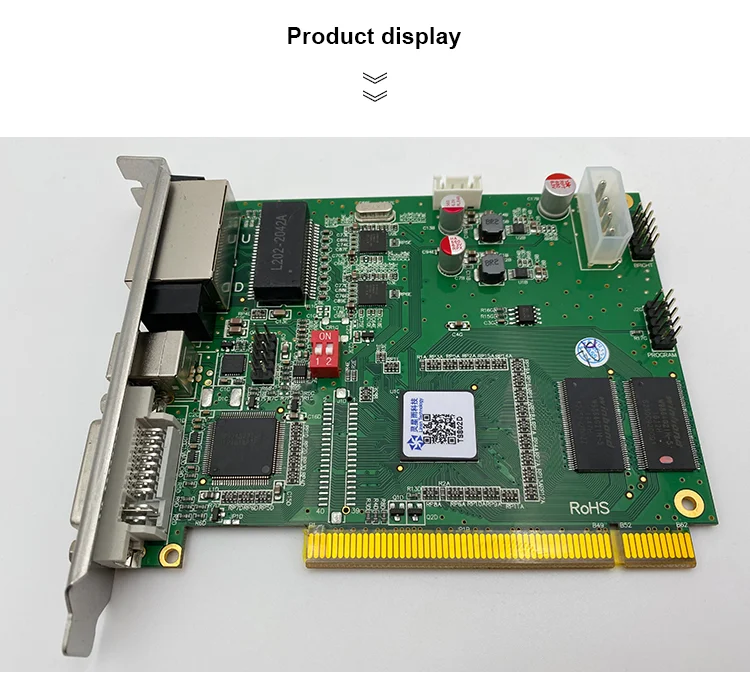

TS802D is a full-color sending card of Lingxingyu, supporting single color, dual color, full color display Show screen. Single card supports 1310720 points, the longest support 4032 points, the highest 2048 points point. Has the following functions:
Key Features
TS802D is a standardmodel of Linsn’s sending card. It has the following features.
● 802 sending card max supports 2048*640
● Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
● Audio Transmission Function802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits 64KHZ hifi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.
● Cascade functionThrough the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led display
● Sending card U/D port flexibility for carrying half width or half heightFor example, TS801 can max support 1280*1024 with two portsA single network output port supports 1280*512 or 640*1024
● Sending card rotation functionIn Sender setting, sending card has 0, 90, 180, 270 degree rotation function
● Sending card zoom in/out functionIn Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
● Supporting 10-bit colors The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors. The eighth supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
●Multi-display synchronous and combination functions.One sending card can control multidisplays, realizing displays combination, synchronous display, and independent play.
Working conditions | ||||||||||
Rated voltage（V） | 5 | maximum | 5.5 | minimum | 4.5 | |||||
Rated current（A） | 0.50 | maximum | 0.57 | minimum | 0.46 | |||||
Rated power consumption（W） | 2.5 | maximum | 3.1 | minimum | 2.1 | |||||
Working temperature （℃） | -20℃ ~ 75℃ | |||||||||
Working humidity（%） | 0%~95% | |||||||||
Note,
1. The above modes require graphics card or video processor support (GTX 1050 and above are recommended for ultra-long and ultra-high resolution).
2. Pay attention to the network port allocation of the sending card. The single network cable of the sending card must be strictly controlled and cannot exceed half of the total points.

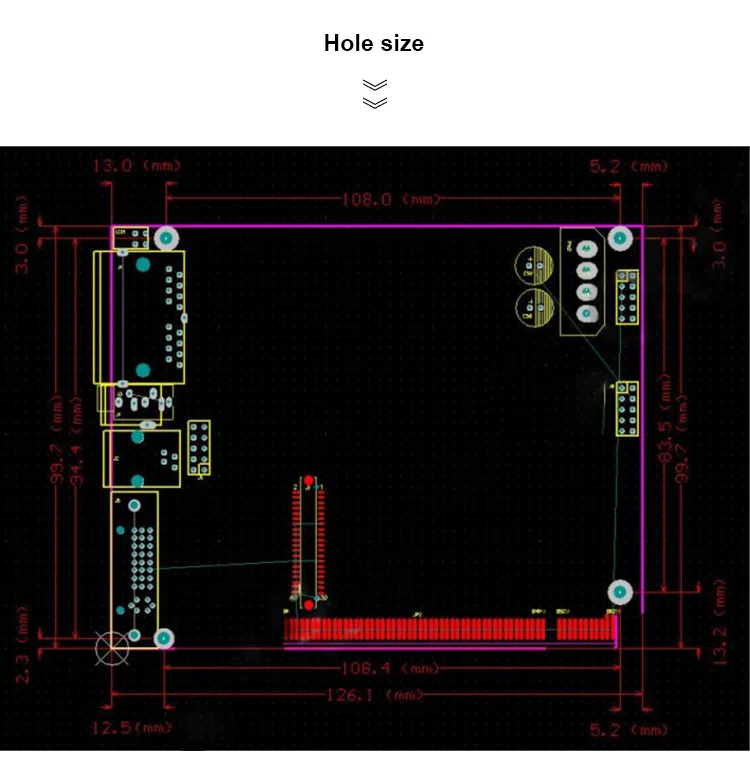

Product size

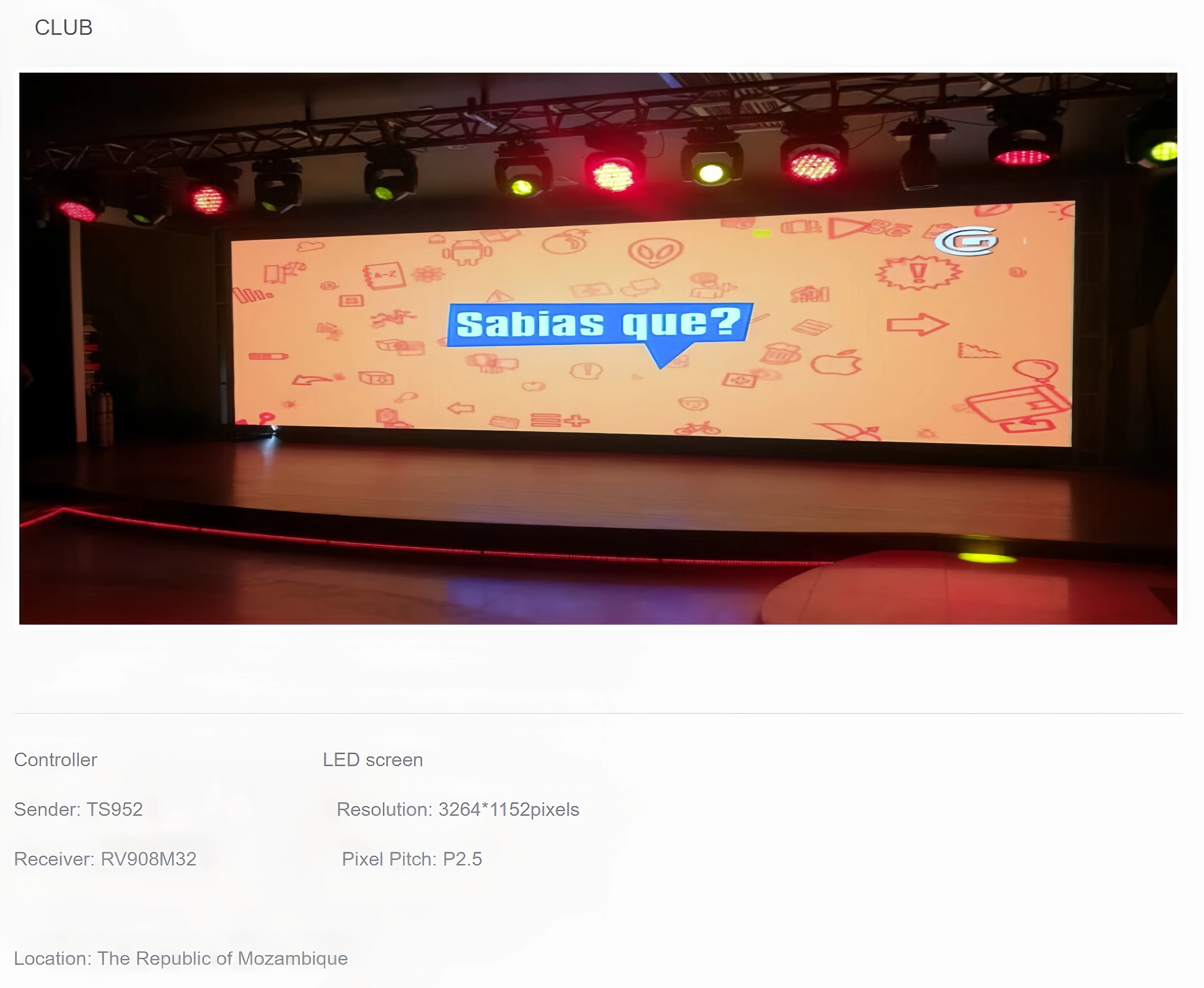

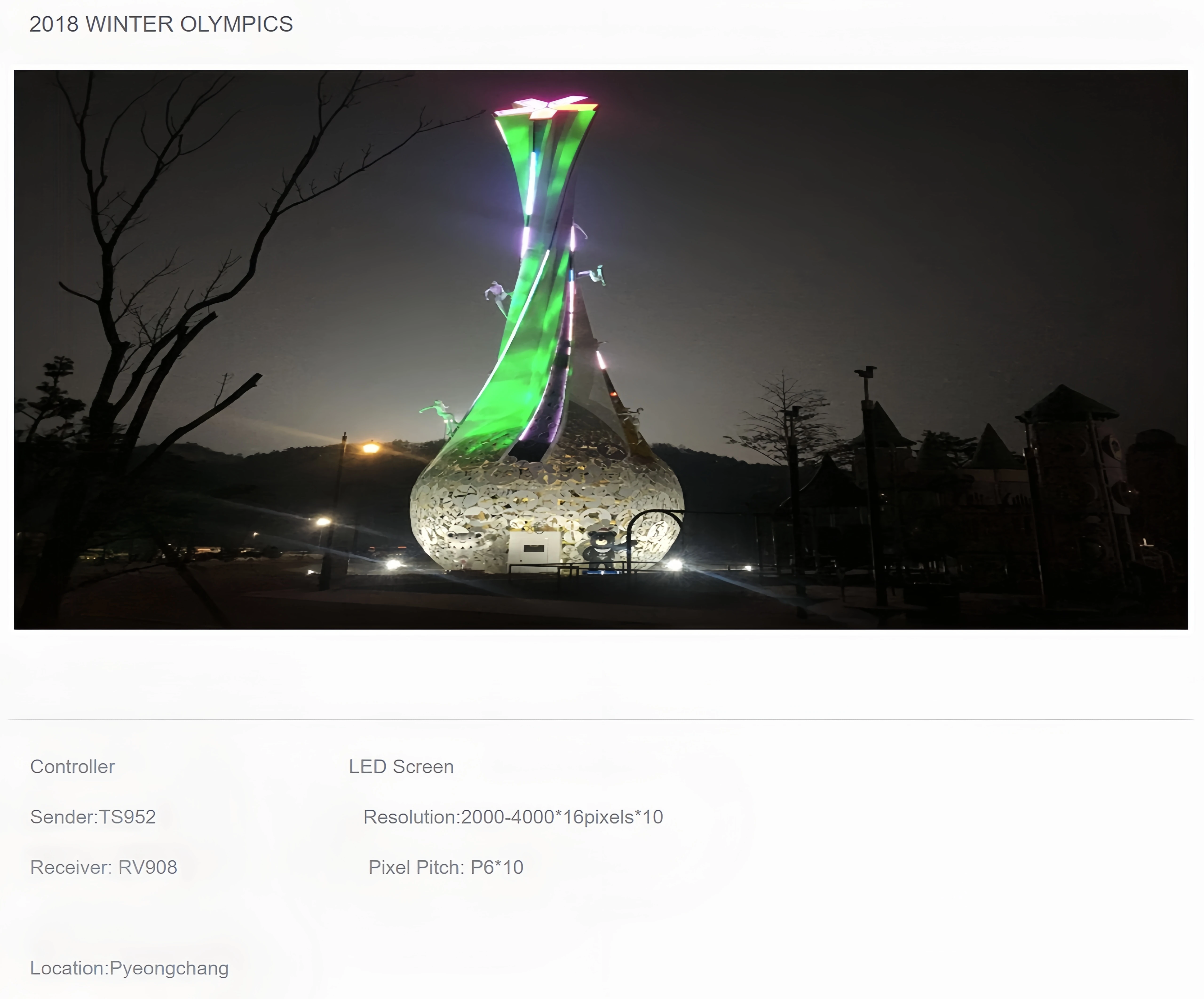

Application program
Recommend Products
FAQ
FAQ
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer of display power supply and LED control system.
Q:Why must full color LED display use video processor?
A: Yes, we are a professional manufacturer of display power supply and LED control system.
Q:Why must full color LED display use video processor?
A:The video processor is a full-scale witness and iconic device for the birth, growth and maturity of LED full-color displays. The dedicated video processing equipment for LEDs has gradually matured in this process. The pros and cons of the video processor directly affect the display effect of the LED display。
Q:What is your current lead time?
A: usually no more than 10 days; and some products are in stock for quick delivery
A: usually no more than 10 days; and some products are in stock for quick delivery
Q. Is this video processor support Nova control system?
A: Yes, our video processor is a universal mode, support most control system such as Linsn/ Colorlight/ Nova/Dbstar and so on.
Q.How can i pay for the order? Is safe enough?
A: Yes, we provide a written guarantee order until you confirm receipt of the goods.
Q. The display will come to me in panel? How to instal them to be one whole led screen?
A: Yes, but it's very easy. We will provide structure drawing, installation diagram and the data connectdiagram. and, we also can arrange engineer to your site if you need.
Q.Can we make any size we want? And What's the best size of led screen?
A:Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen.The best aspect ratio of LED display are W16:H9 or W4:H3
Q.What's the function of video processor?
A:lt can tranfter the video source to make the screen performance more clearAnd, normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if wantplay other kind video source, such as HDMl, SDIVGA signal port. that will need.Or. the HD led screen. its resolution is high, need more than 2pcs sending card. also need videoprocessor.
A: Yes, our video processor is a universal mode, support most control system such as Linsn/ Colorlight/ Nova/Dbstar and so on.
Q.How can i pay for the order? Is safe enough?
A: Yes, we provide a written guarantee order until you confirm receipt of the goods.
Q. The display will come to me in panel? How to instal them to be one whole led screen?
A: Yes, but it's very easy. We will provide structure drawing, installation diagram and the data connectdiagram. and, we also can arrange engineer to your site if you need.
Q.Can we make any size we want? And What's the best size of led screen?
A:Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen.The best aspect ratio of LED display are W16:H9 or W4:H3
Q.What's the function of video processor?
A:lt can tranfter the video source to make the screen performance more clearAnd, normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if wantplay other kind video source, such as HDMl, SDIVGA signal port. that will need.Or. the HD led screen. its resolution is high, need more than 2pcs sending card. also need videoprocessor.
