Product Overview
Description
Products Description

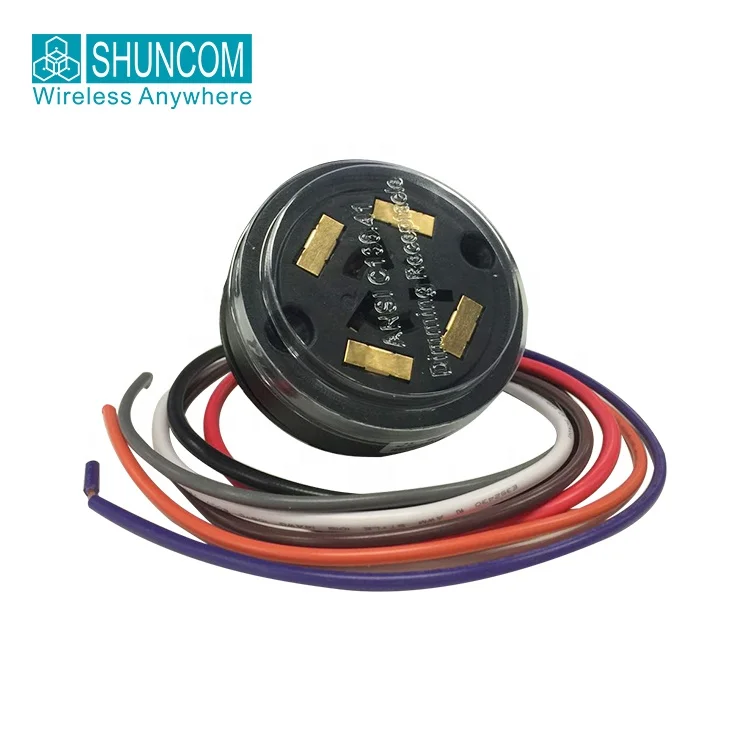

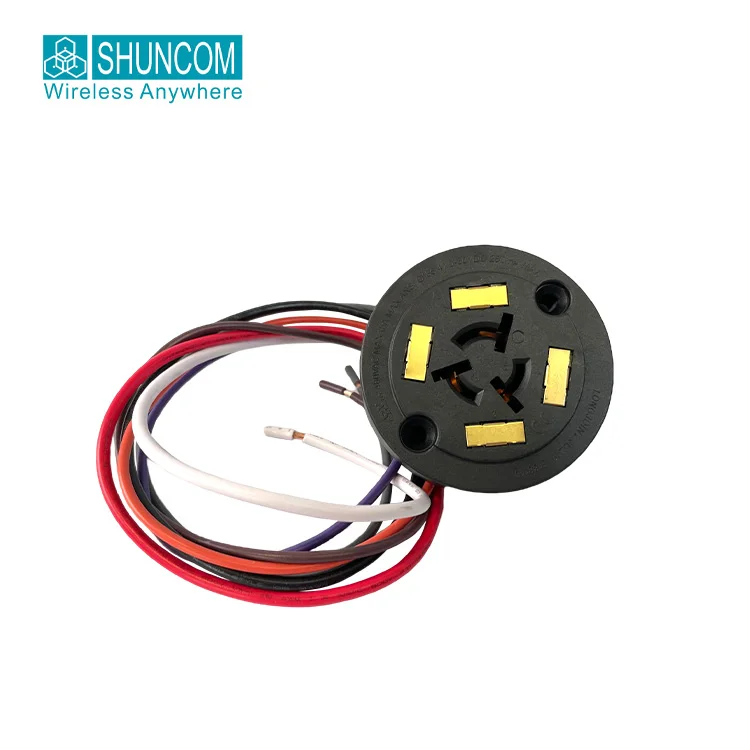

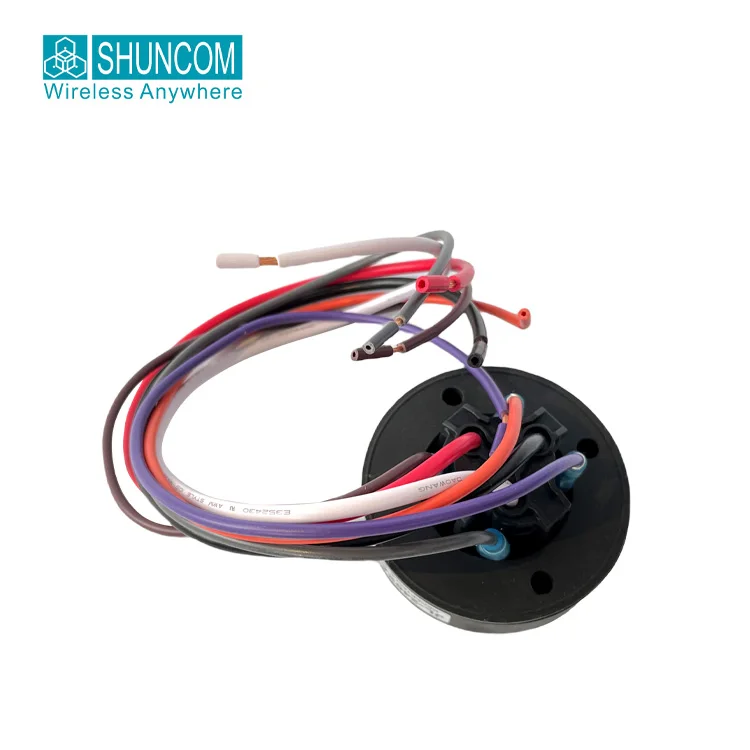

SZ10-N7 7pin NEMA receptacle
This SZ10-N7 NEMA socket conforms newly published ANSI C136.41-2013 to allow a LED lamp multi-controlled through the receptacle.
It offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
In addition, it offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
It offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
In addition, it offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
Specification
Parameter | Value |
Applicable Voltage Range | AC 0-480V |
Power Loading | 15A max. |
Rated Frequency | 50/60Hz |
Signal Port Operating Load | DC 30V, 0.25A max. |
Dielectric Strength | AC 3000V, 1s |
Maximum Workload | 1000W 1800VA |

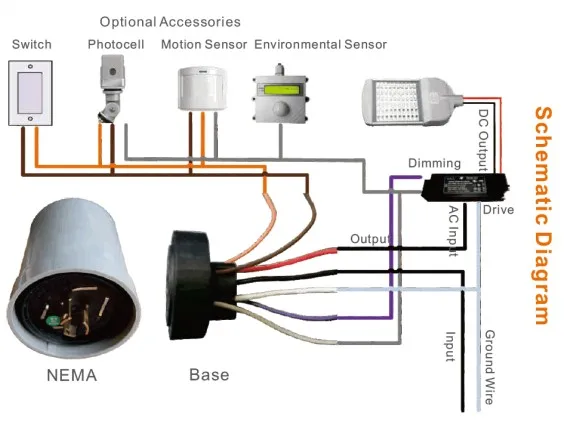

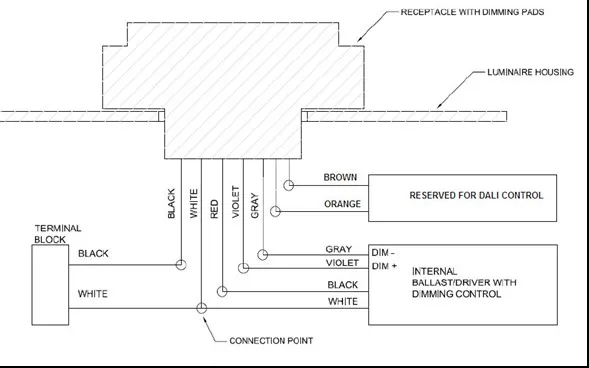

Installation

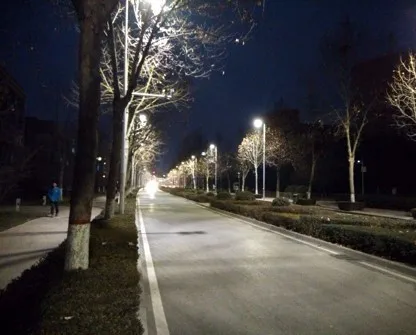

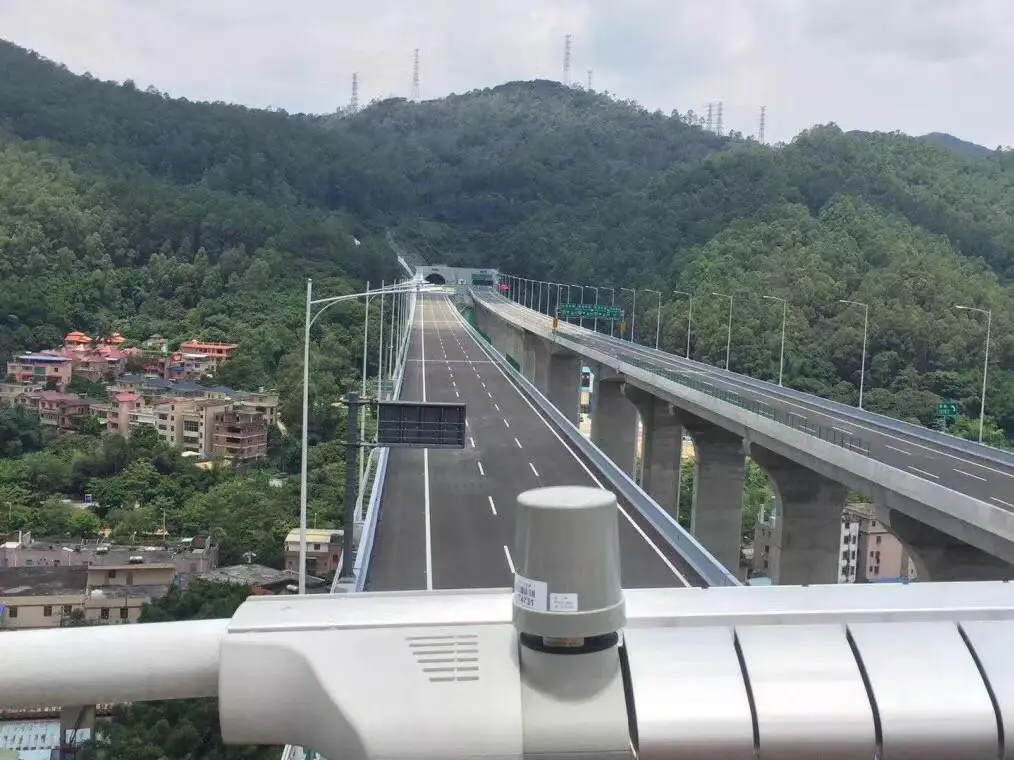

Application
FAQ
Q1. What is the MOQ, and can I place a sample order for the NEMA receptacles?
A: 10 pcs of samples are available to be ordered for quality checking, which is also the MOQ.
Q2. How to get a quotation?
A: Please contact us and let us know the product model, quantity and other requirements, we will then provide the quotation shortly.
Q3. Can I print my own Logo on the products?
A: Yes, the logo customization service is available. Please confirm details with us before you order.
