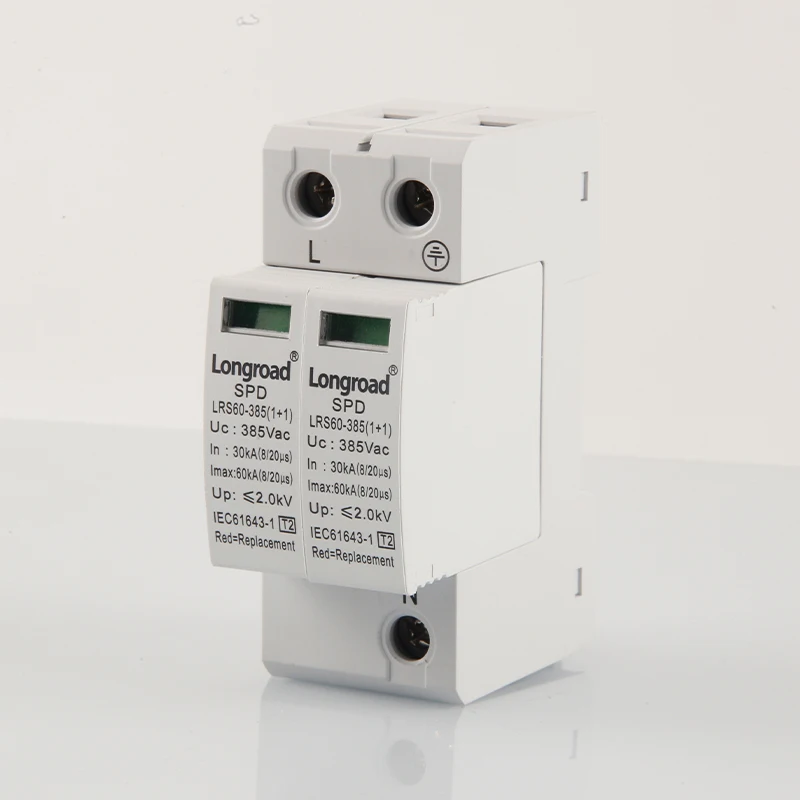

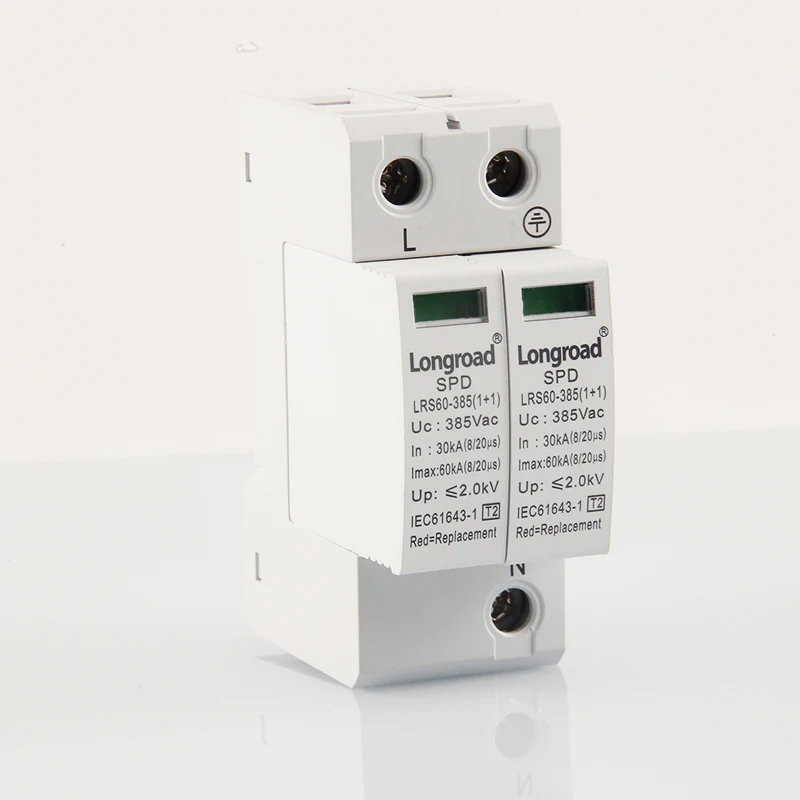

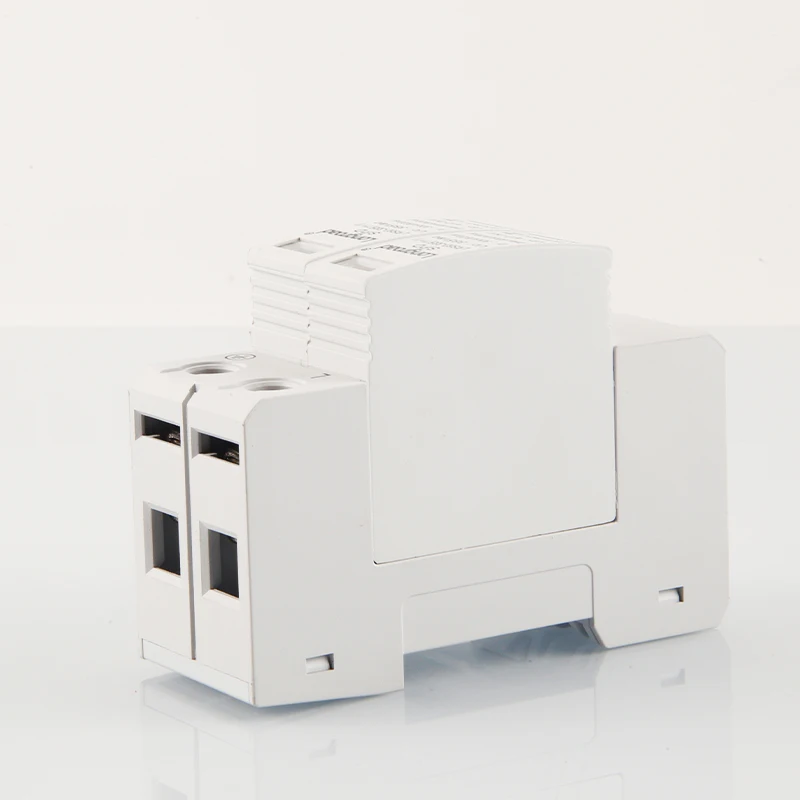

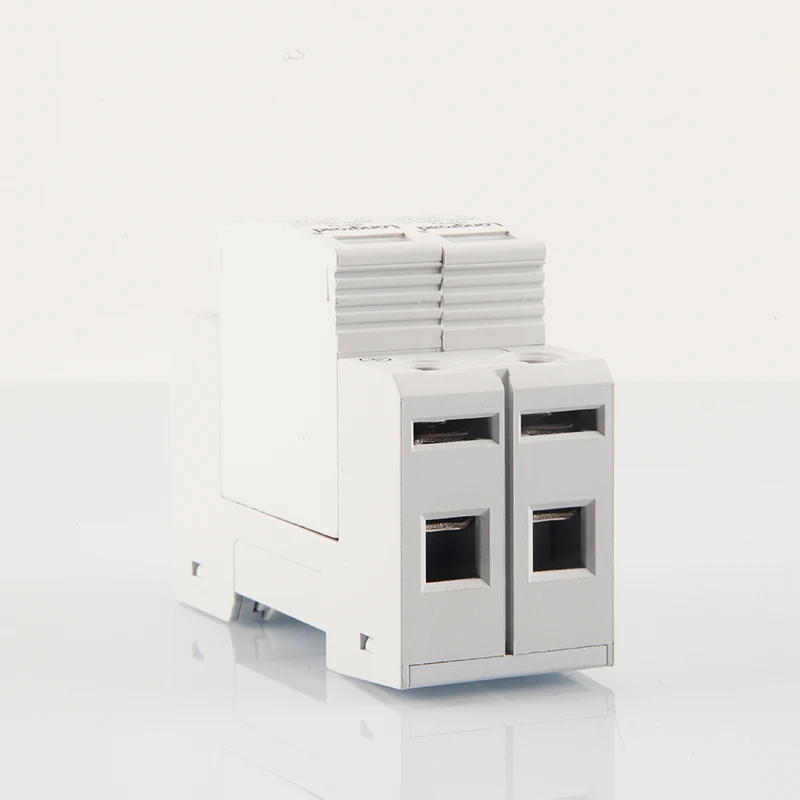

Solar Dc Surge Protective Device Spd Surge Arrester 30kA 60kA
- Category: >>>
- Supplier: Yueqing Long Road Electric Co. Ltd.
Share on (1600467168518):
Product Overview
Description
Product Paramenters
Model | LRS60-385(1+1) |
Number of poles | 2P |
SPD Classification according to IEC61643-1 | T2 |
Maximum Continuous Operating a.c.Voltage (Uc) | 385Vac |
Nominal Discharge Current (In) (8/20)µs | 30kA |
Max Discharge Current (In) (8/20)µs | 60kA |
Voltage protection level (Up) | ≤2.0kV |
Max backup fuse (L) | 125A gL |
Response time (tA) | ≤25ns |
Operating state/fault indication | Green/red |
Operating temperature range (Tu) | -40℃~+80℃ |
Cross-section area | 35mm² solid/50mm² flexible |
Mounting on | On DIN rail EN 60715 (35mm) by means of fast clip device |
Enclosure materials | Thermalplastic UL94-V0 |
Products Description
Application Scenarios
Recommend Products
Company Profile
Packaging And Shipping
FAQ
Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
Q:What advantages do you have?
A:LONGROAD is a direct Manufacturer in Wenzhou China, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q:What’s your main product?
A:We have two product project, low voltage electrical.
Q:Could you print our own logo?
A:Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q:How long is the quality guarantee?
A:24 month warranty, our products are 100% inspection.
Q:How long is the deliver time?
A:It usually takes about 3 - 5 working days for sample order and 15 - 30 days for big order.
Q:What is your payment terms?
A:Our Payment term is T/T, Aliexpress, Western Union, L/C at sight.
Q:Any certification of your company or product?
A:We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
