Sjg 2083 dilute concentrated sulfuric acid chemical industry water Digital Acid and Alkali Concentration Meter
- Category: >>>
- Supplier: Shanghai Boqu Instrument Co. Ltd.
Share on (1600467235052):
Product Overview
Description
Acid and Alkali Meter dilute concentrated sulfuric acid chemical industry water Digital Acid and Alkali Concentration Meter
BOQU Industrial analyzer can measure water total hardness or carbonate hardness and total alkali fully automaticlly via titration. This instrument is suitable for recognising levels of hardness, quality control of water softening facilities and monitoring of water blending facilities. The instrument allows two different limit values to be defined and checks the water quality by determining the absorbtion of the sample during titration of the reagent. The configuration of the many applications is supported by a configuration assistant.
Product Description

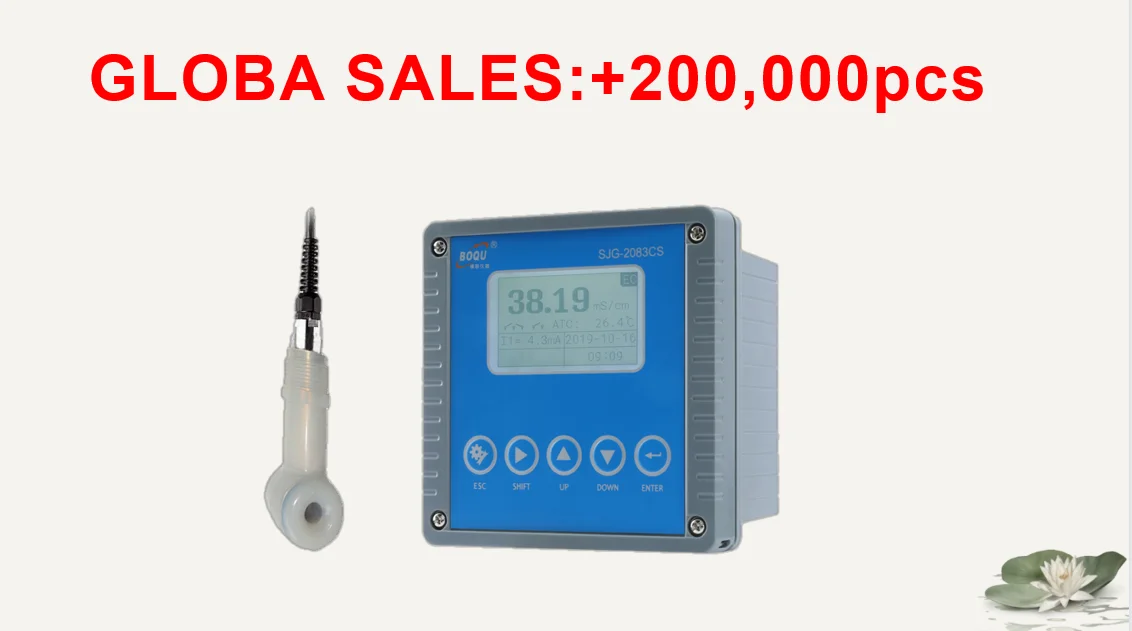

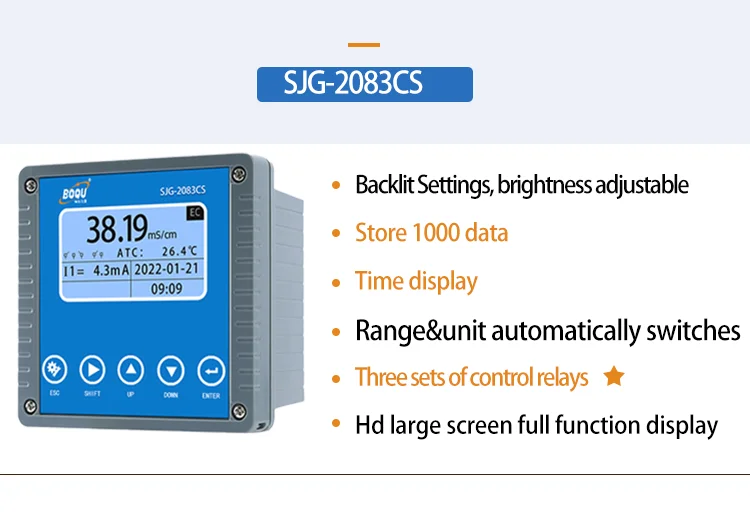

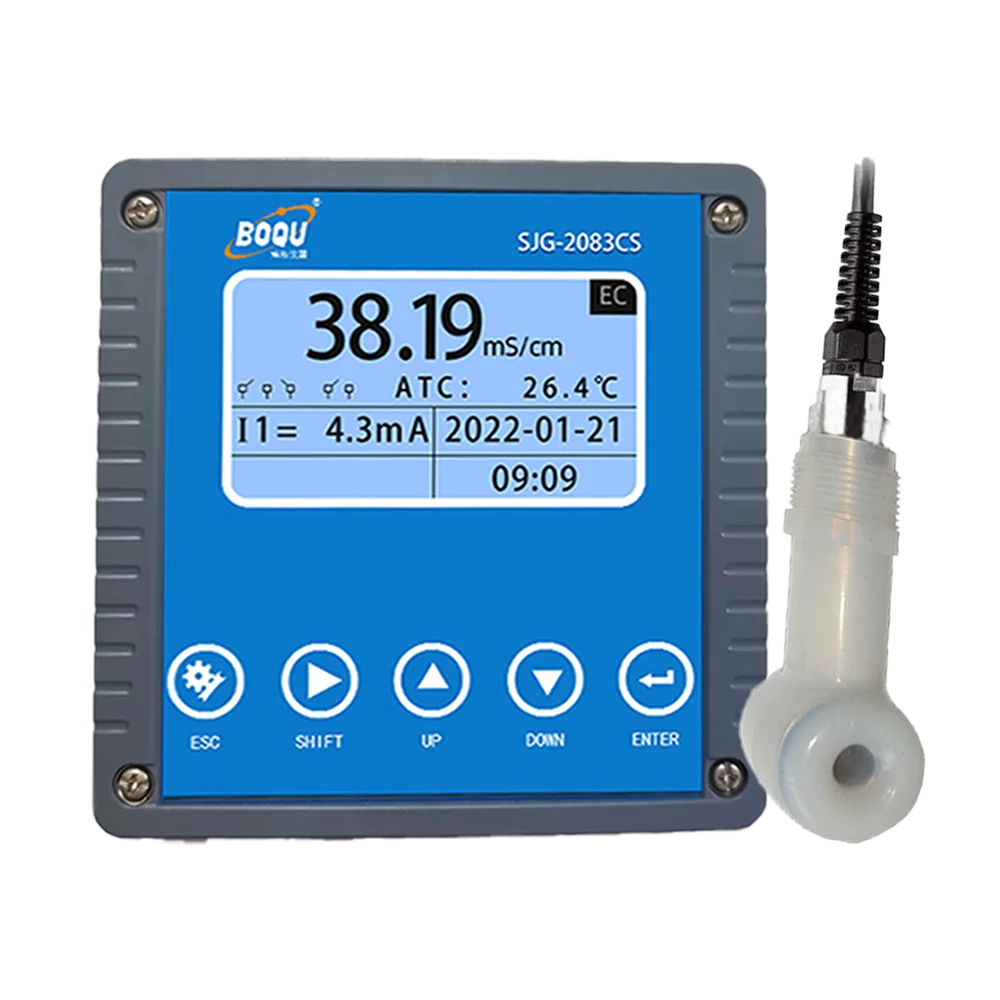

SJG-2083CS Online Acid and Alkali Concentration Meter
Product name | SJG-2083CS Online Acid and Alkali Concentration Meter | |
| Principle | Inductive Conductivity Sensor | |
| Range | Conductivity | |
| NaCl | ||
| HCl | ||
| NHO3 | ||
| NaOH | ||
| H2SO4 | ||
| KOH | ||
| Temperature | ||
Accuracy | ±0.1%FS,±0.5ºC | |
Power | 90 - 260V AC 50;60Hz | |
Communication | RS485 | |
Output | Two ways of 4-20mA | |
Relays | Two relays, 5A;250V AC,5A;30V DC | |

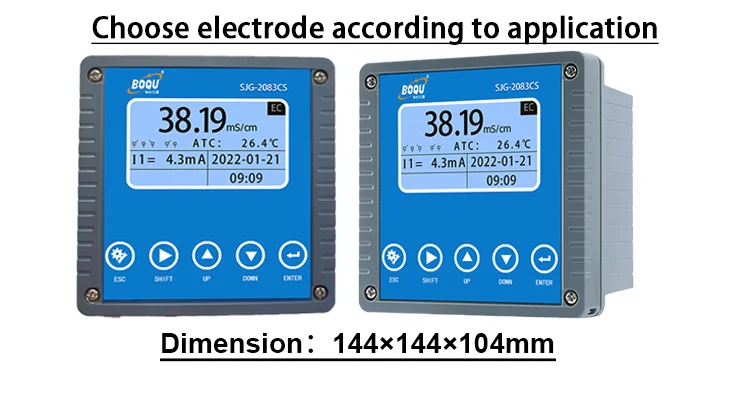

Size | 144×144×104mm | |

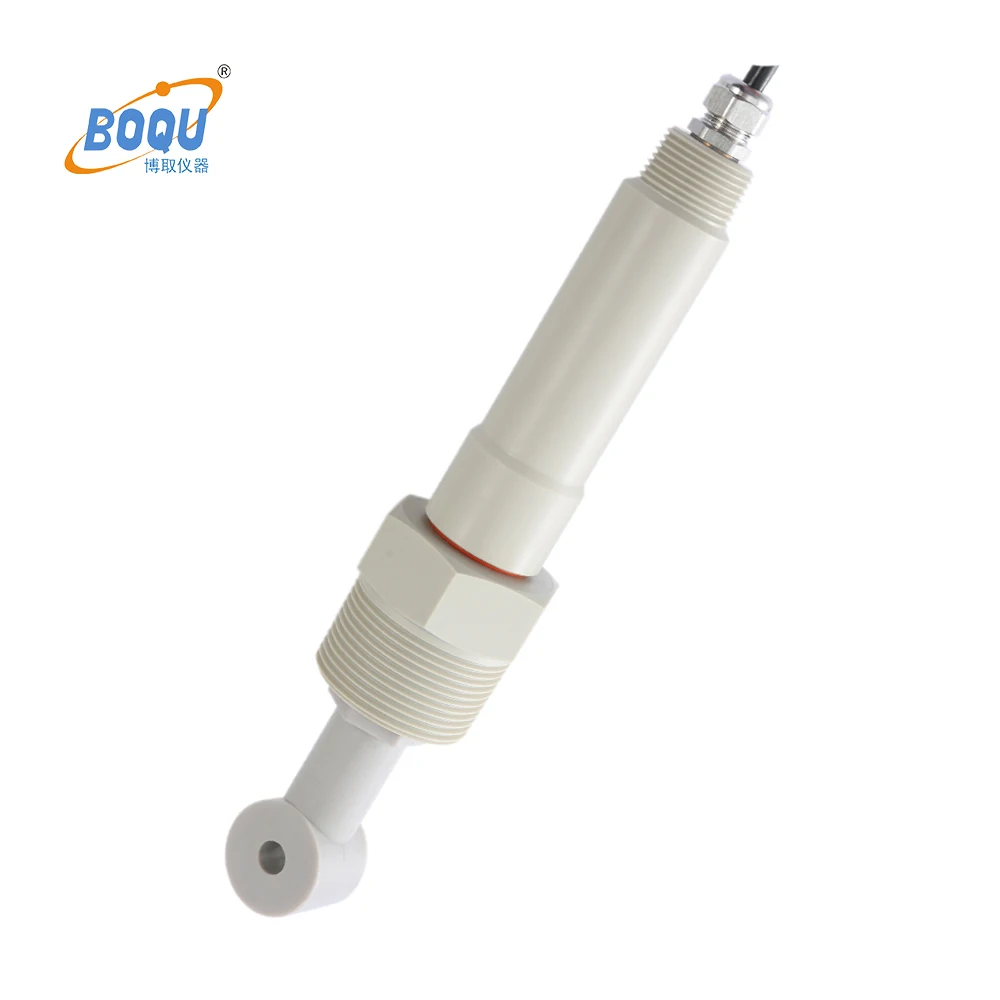

Features of Inductive Conductivity Sensor
| Measuring range | 0-2ms/cm,0-20ms/cm,0-200ms/cm,0-2000ms/cm Conductivity 0.00%~25.00% NaCL 0.00%~17.98% ; 20.01%~39.07% HCL, 0.00%~25.99% ; 15.13%~50.00% NaOH, 0.00%~30.00% NHO3; 0.00%~30.25% ; 91.91%~100.00% H2SO4 0~26% KOH |
| Accuracy | ±0.1%FS,±0.5℃ |
| Sensor material | PP,PFA(Optional) |
| Max pressure | 1.6Mpa |
| Connection | 1 1/2 or 3/4NPT |
| Installation | Flow cell,pipe line ,submerged |
Related Products
BOQU Instrument is a leader manufacturer in water quality analyzers, BOQU Instrument will use all technologies to solve problems related to human and earth survival and always to be the guardians of the earth's water quality.BOQU Instrument’s online water quality analyzer mainly for pH, conductivity, TDS, dissolved oxygen, turbidity, residual chlorine, suspended solid, ammonia, hardness, silica, phosphate, sodium, BOD, COD, heavy metals etc. We are committed to providing best water quality monitoring solutions for users in all areas of pure water,ultra-pure water, drinking water, municipal waste water, industrial waste water, industrial circulating water, environmental monitoring, and university research etc.
Installation
Applicaiton of Best 4 tank tds or ph EC monitoring tds meter, Power Plant water treatment; water plant and sewage treatment plant ;wastewater treatment; paper making production process, paper slurry, chemical refining; metallurgy and mining;Food and beverage;pharmaceutical industry biological reaction and fermentation;Semiconductor production process;high purity water production.Conductivity meter
Why to choose BOQU?
Why choose BOQU Best 4 tank tds or ph EC monitoring tds meter?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
Factory Show
BOQU Instrument only focus on development and production Water Quality Sensors and water quality Analyzers since found, now staff is over 100 production engineers and with an annual growth rate of 35%. we have own R & D center,many senior engineers has over 10 years R&D experience in water quality anlyzers and water quality sensors.Now our company has got more than 50 technical certificates for controller software and 23 technical patents,therefore we won the National High-tech Enterprise Certificate in 2010. At present, the annual quantity of water quality sensors and meters is over 100,000pcs, it’s the biggest factory in Shanghai.
Certifications
BOQU Instrument was found since 2007, now has more 100 production,R&D engineers,BOQU instruments has be exported to over 75 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.
Exhibitions
The BOQU Instrument is a young, energetic and professional team. We will continue to focus on R&D and manufacturing of high-end water quality monitoring instruments and sensors.we keep to create benefits for our customers,We work hard for the material and spiritual aspects of all employees,and contribute to the progress and development of humanity. forever to guard the earth's water quality.
