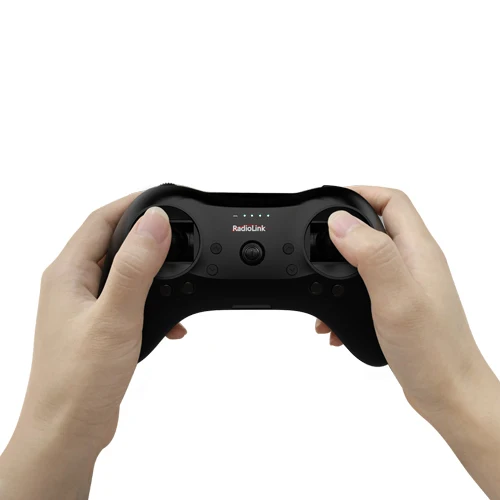

Radiolink Factory T8S 8 Channels 2.4GHz RC Transmitter For Sailboat Fishing Boat Agricultural Boat Remote Controller Radio Toys
- Category: >>>
- Supplier: Radiolink Electronic Limited
Share on (1600467238236):
Product Overview
Description
Factory Profile

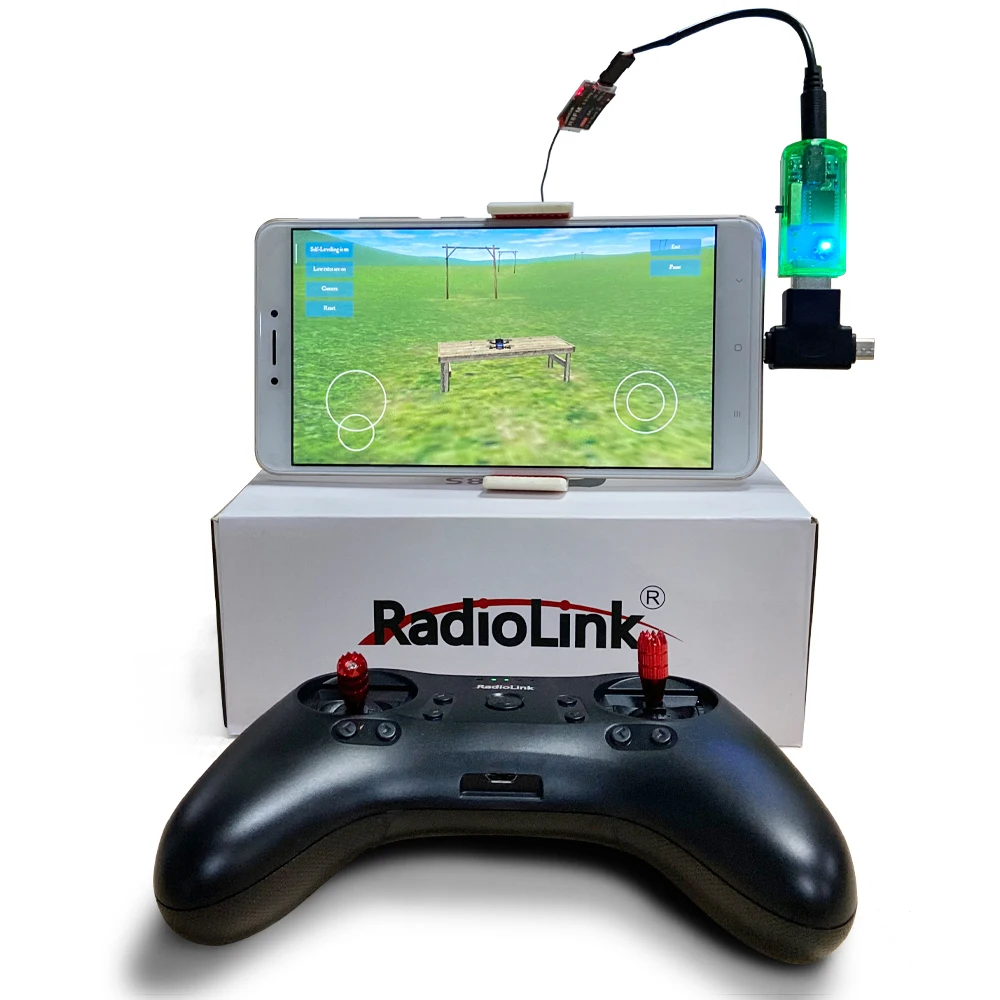

Play T8S Transmitter with Simulator
Radiolink T8S 8 channels Transmitter is supported to play with simulator in phone and computer.

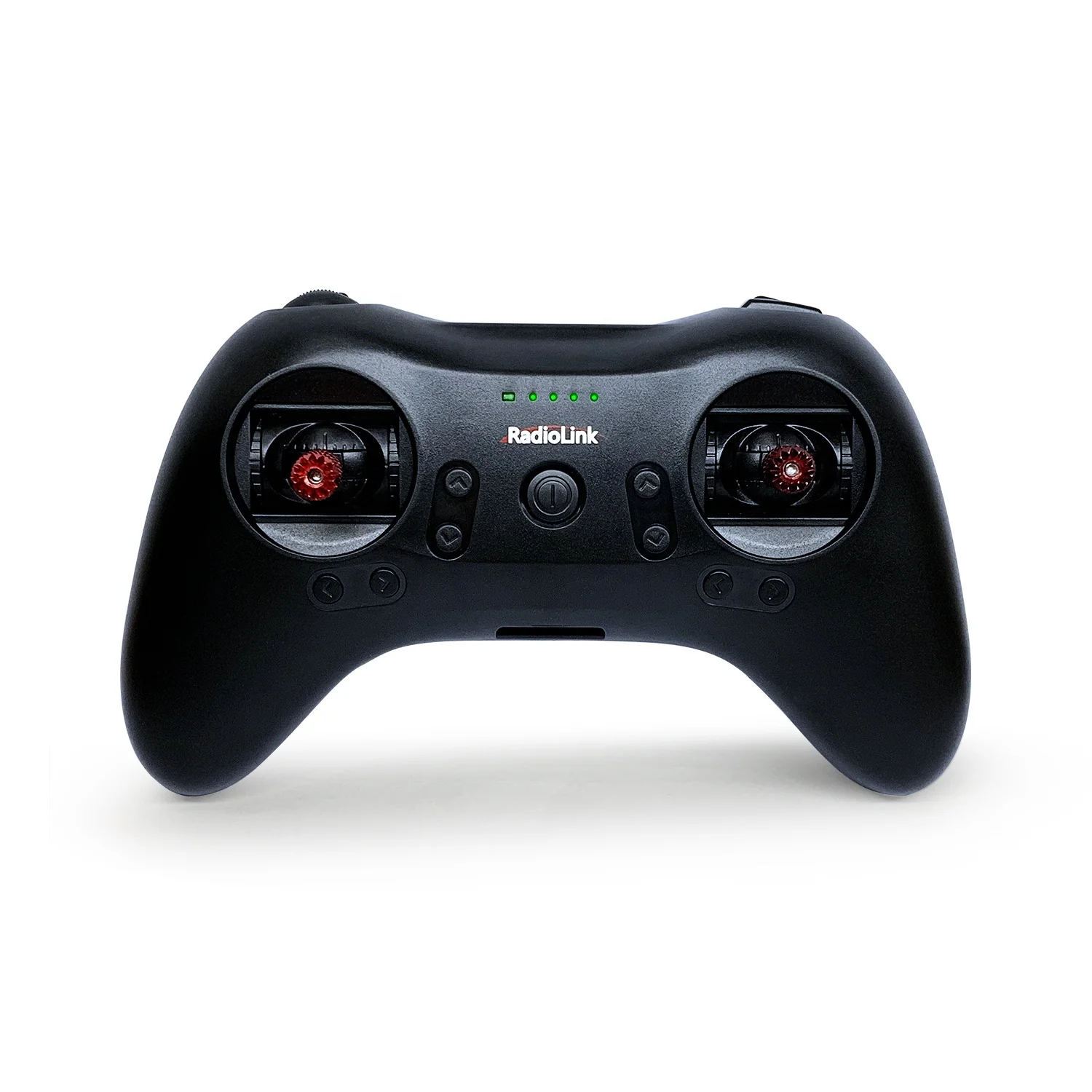

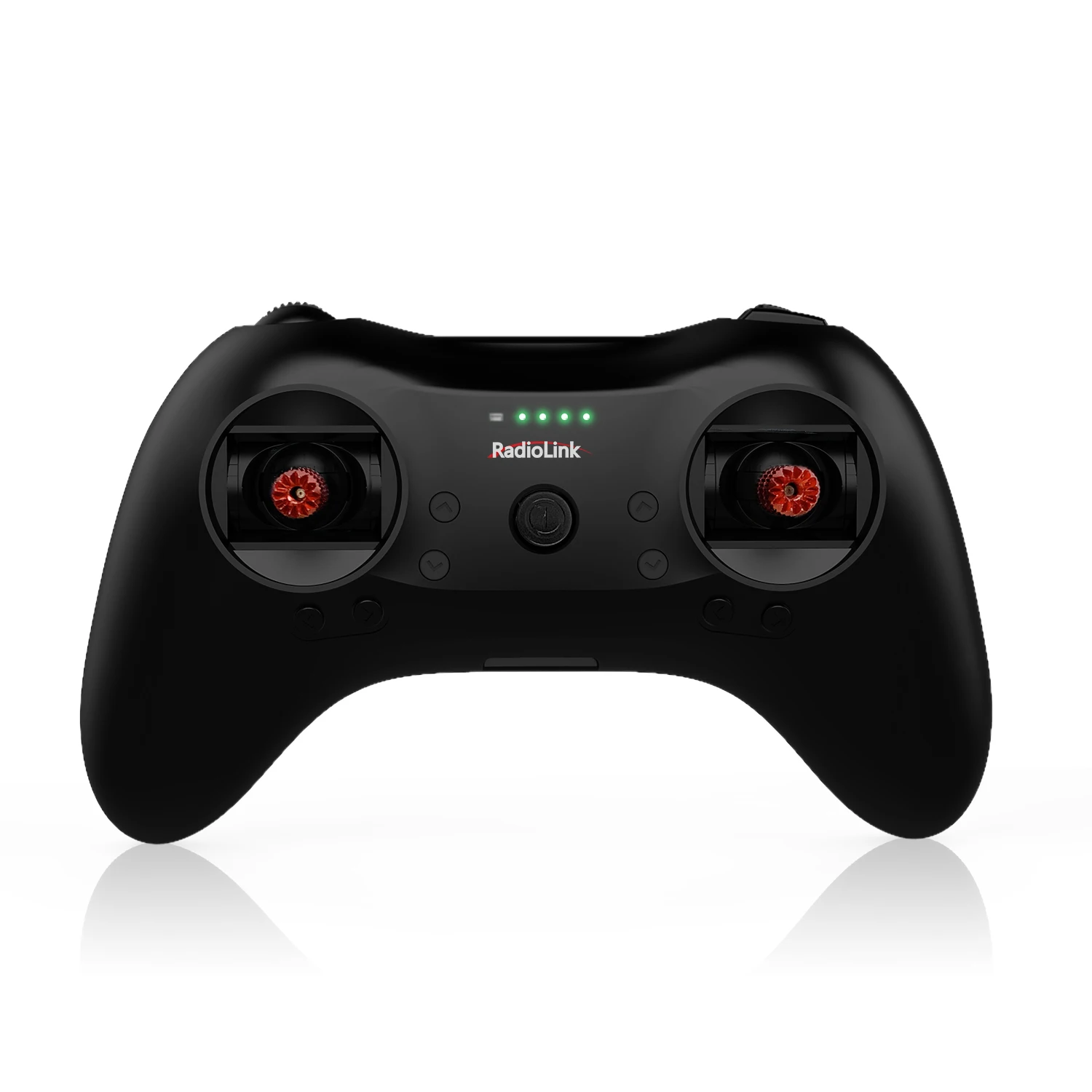

T8S BT Transmitters Specifications

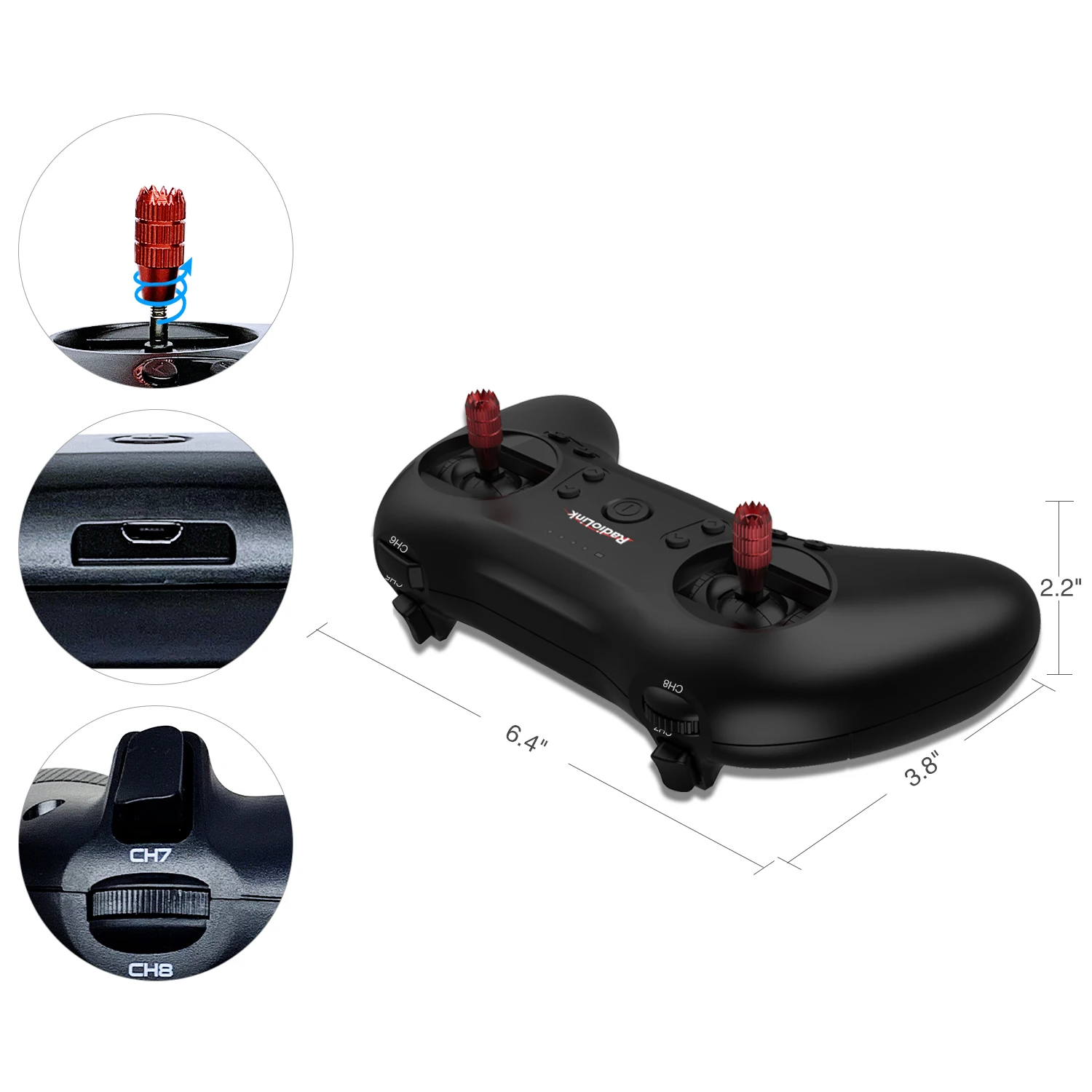

Dimension | 162.5*95.5*57mm(6.4 “*3.76“* 2.24”) |
Weight | 142g(5.0oz) |
Output Frequency | 2.4GHz ISM band(2400MHz~2483.5MHz) |
Modulation Mode | GFSK |
Channel Band Width | 400KHz |
Channel Pacing | 1200KHz |
Transmitter Power | <100mW(20dBM) |
Reception Sensitivity | -104dBM |
Control Distance | about 2000 meters in the air (actual distance depends on the flight environment) |
Spread Spectrum | FHSS 67 channels pseudo-random frequency hopping |
Adjacent Channel Rejection | >36dBM |
Transmission rate | 38kbps |
PWM Output Range | 1.0ms~2.0ms |
Section Precision | 4096, 0.5us/section |
Cycle | 15ms/ frame |
Operating Voltage | 3.7- 4.2V |
Operating Current | <150(±5)mA |
Receivers supported | R8EF(Standard), R8SM, R8FM, R8F, R7FG, R6FG, R6F, R4FGM, R4F |
Simulator supported | YES |

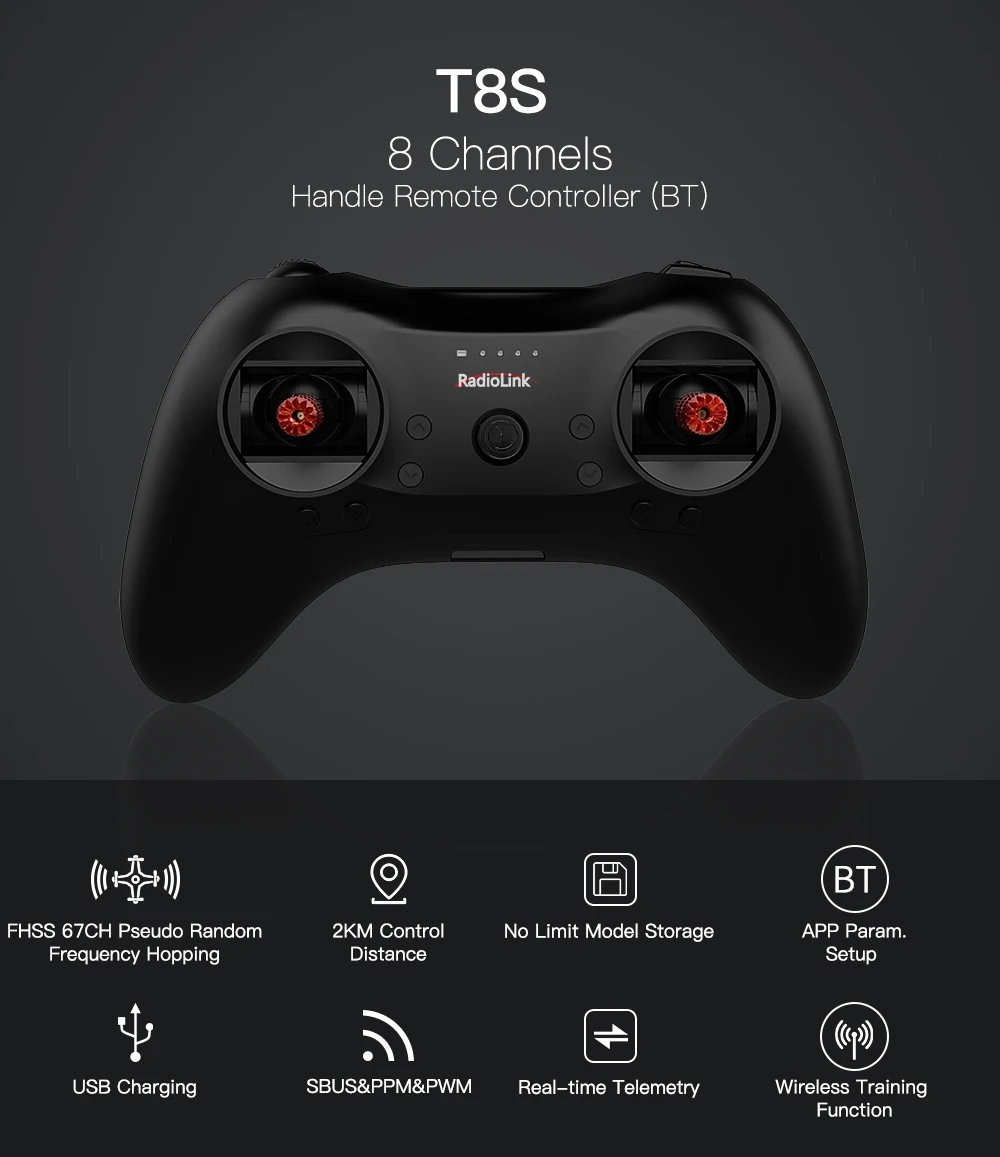

*Excellent Anti-interference: Real pseudo random algorithm FHSS communication technology makes T8S with stable signal and control distance up to 1.3 miles(2000m) in the air.

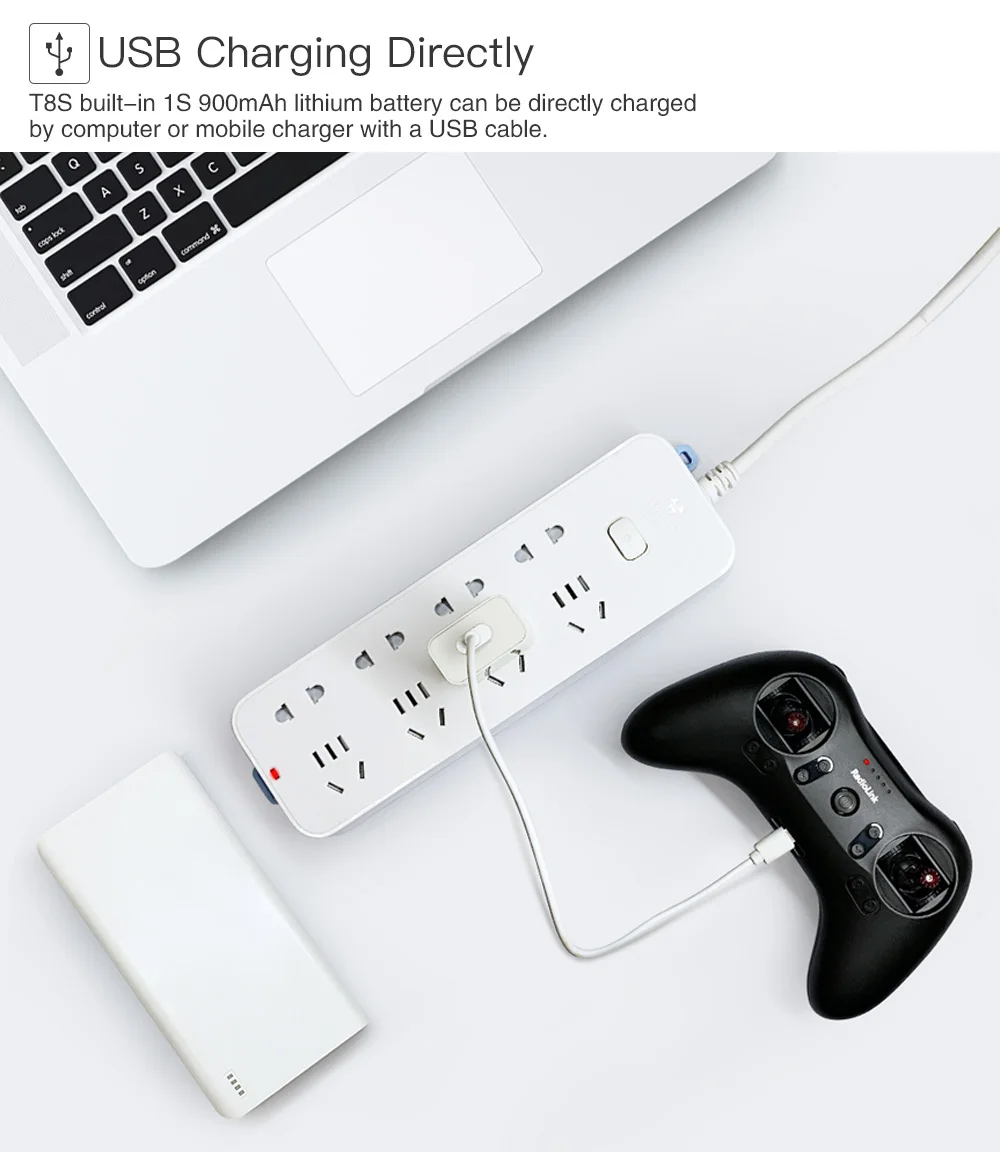

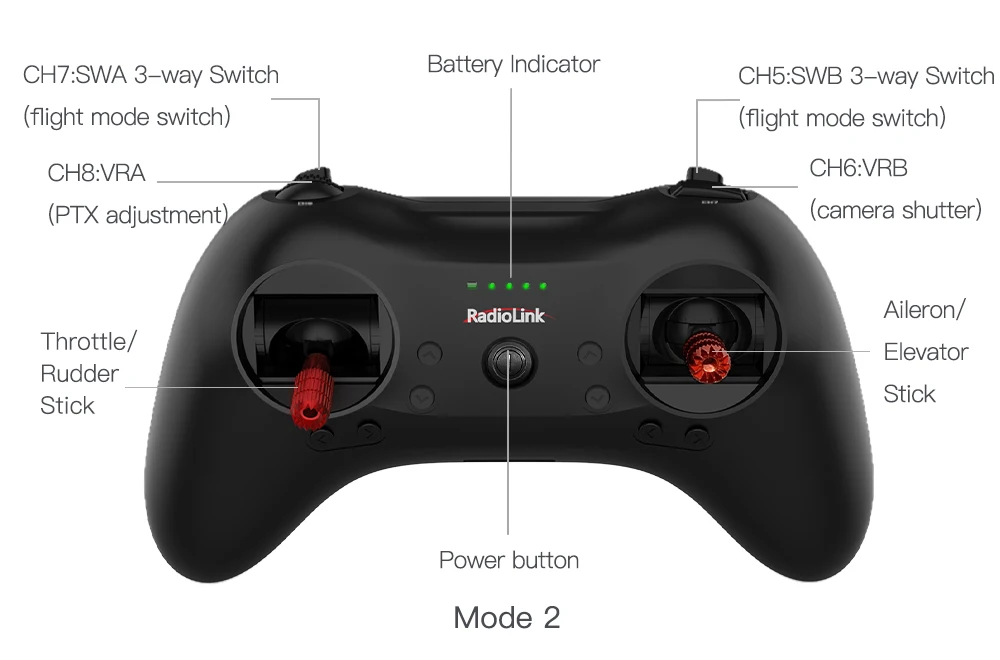

*Features: 8 Channels/Low latency/Dual Rate/Fail-safe/Build-in Rechargeable Battery - micro USB port(come with charge cable)/Wireless Training Function/Low Consumption(5 hours of standby time)/Bluetooth connect

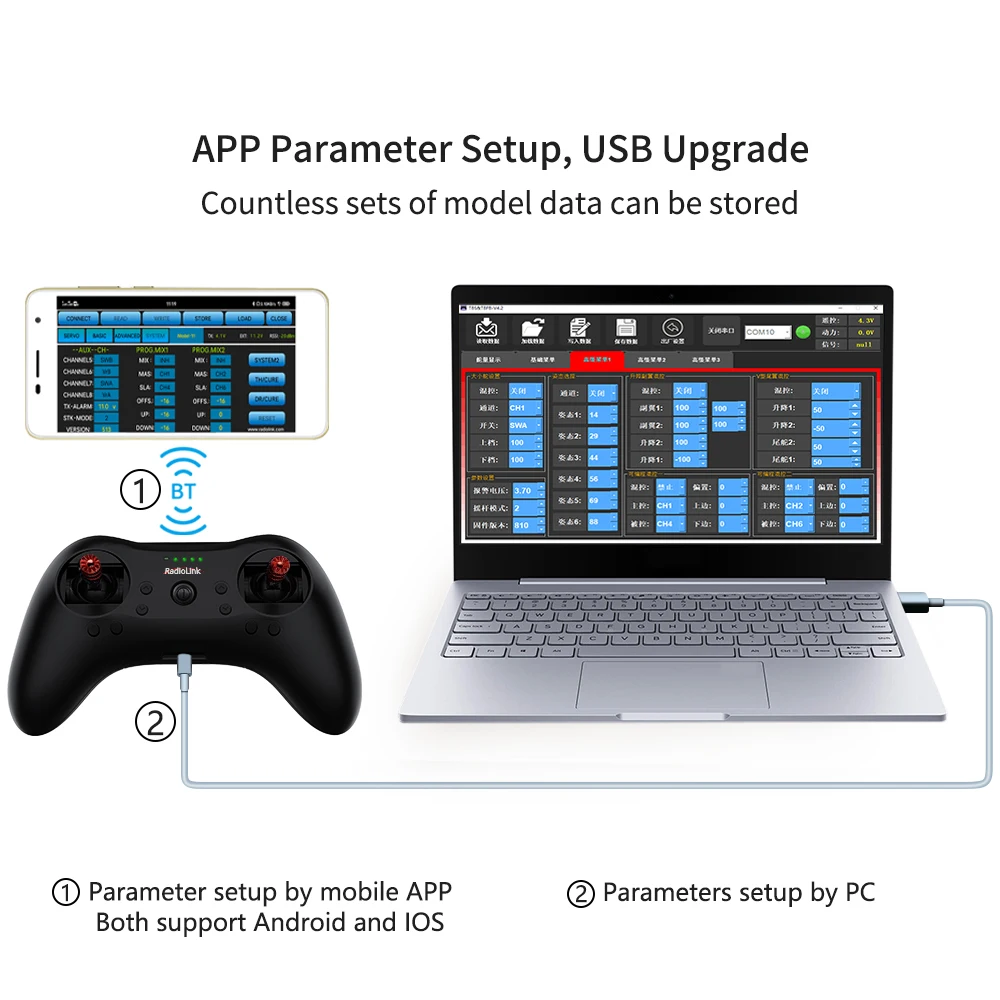

*APP Setups: Easy to set up, wireless connect T8S with iOS/Android app and PC programs(Need cable) to parameter setting, like Fail-safe value, EPA, Dual Rate, 4 Programmable Mixing control, etc. Update firmware through PC to get the latest function.

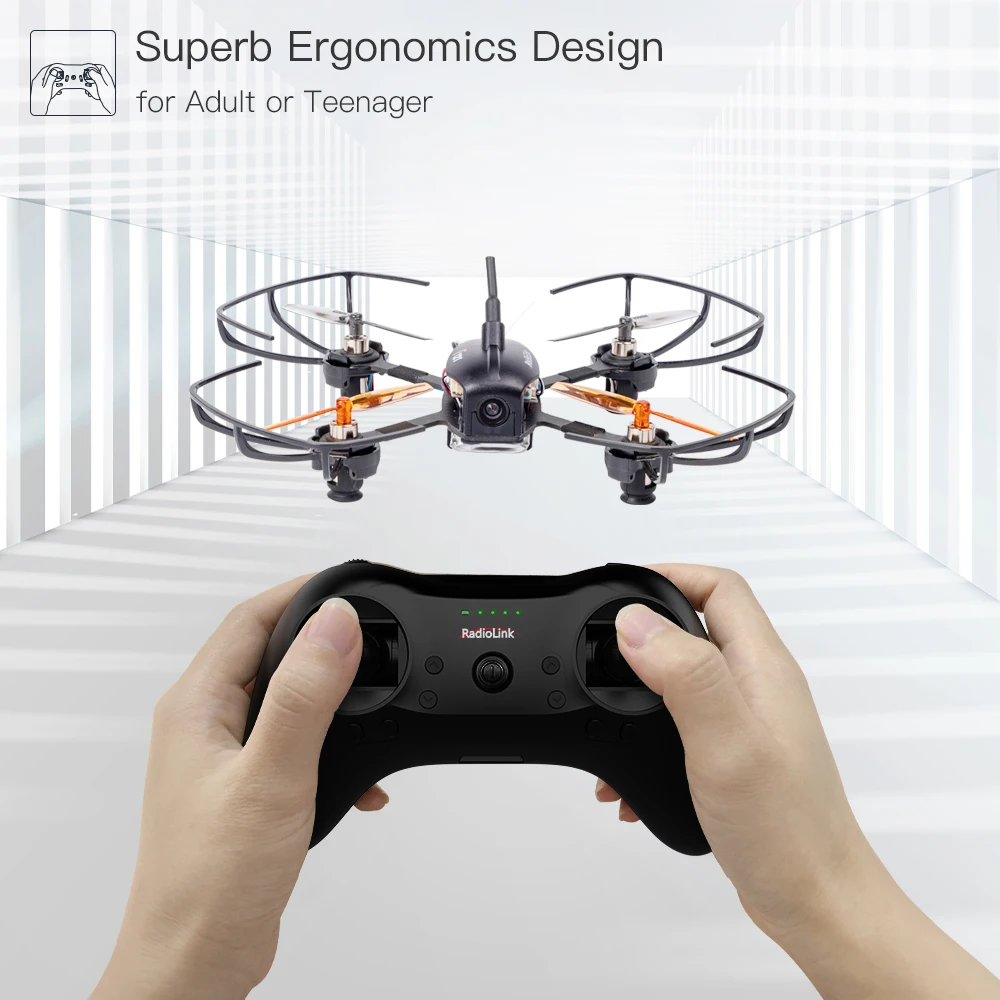

*Come with 8 channels receiver R8EF, press the side button for 1 second to bind and don't need any radio settings. Both small but versatile RC remote and receiver(Total 5.0 ozs), plus Superb Ergonomics provides you with the comfy operation feeling, handy for both teenagers and adults.

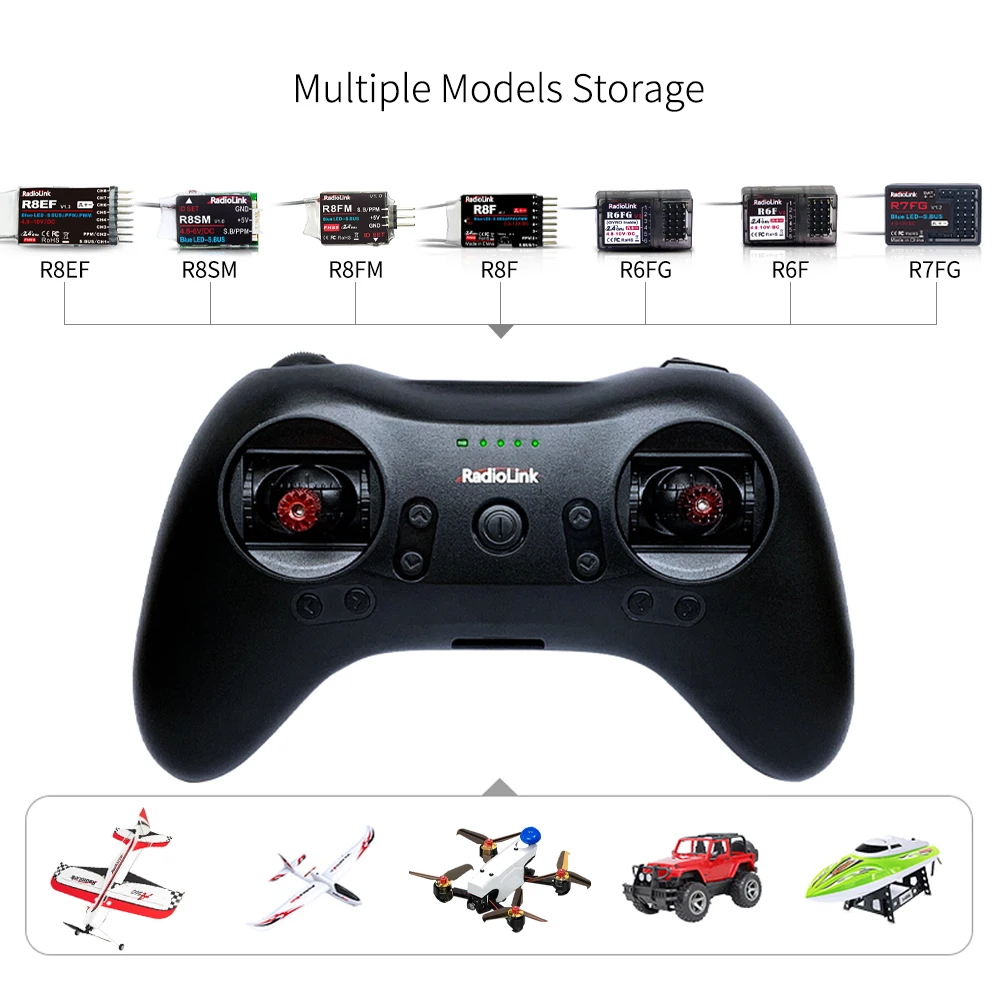

*Multiple Models Storage: No limit model storage. Compatible with receivers: R8SM/R8FM/R8EF/R8F/R7FG/R6FG/R6F/R4FGM, applicable to Multirotor, Airplane, Robot, RC Tank, RC Car&Boat and more.
*Features: 8 Channels/Low latency/Dual Rate/Fail-safe/Build-in Rechargeable Battery - micro USB port(come with charge cable)/Wireless Training Function/Low Consumption(5 hours of standby time)/Bluetooth connect
*APP Setups: Easy to set up, wireless connect T8S with iOS/Android app and PC programs(Need cable) to parameter setting, like Fail-safe value, EPA, Dual Rate, 4 Programmable Mixing control, etc. Update firmware through PC to get the latest function.
*Come with 8 channels receiver R8EF, press the side button for 1 second to bind and don't need any radio settings. Both small but versatile RC remote and receiver(Total 5.0 ozs), plus Superb Ergonomics provides you with the comfy operation feeling, handy for both teenagers and adults.
*Multiple Models Storage: No limit model storage. Compatible with receivers: R8SM/R8FM/R8EF/R8F/R7FG/R6FG/R6F/R4FGM, applicable to Multirotor, Airplane, Robot, RC Tank, RC Car&Boat and more.

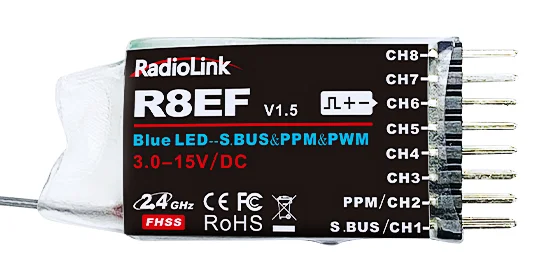

R8EF 8 Channels Receiver Specifications
Size | 41.5*21.5*11.5mm (1.63” *0.85” *0.45”) |
Weight | 7g (0.25oz) |
Channels Qty | 8 channels |
Signals | SBUS/PPM&PWM |
Operating Voltage | 3.0~12V |
Operating Current | 38-45mA@5V |
Section Precision | 4096, 0.25us per section |
Control distance | 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations). |
Compatible transmitter | T8S/T8FB/RC6GS V3/RC4GS V3/RC6GS/RC4GS |
Excellent Anti-interference: with pseudo random FHSS algorithm, which makes R8EF with excellent anti-interference ability, long control range up to 1.2 mile(2Km).
8 Channels: with standard SBUS/PPM/PWM/signal output, ideal for most aircraft, high resolution ratio of 4096, fast Respone for all channels.
Press to Bind: No need old bind plug and any radio setting, only press bind button for 1 second after power up radio and receiver. High resolution ratio of 4096, stable signal and fast response.
Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3.0-12V DC support high voltage servo.
Works with transmitter T8S T8FB RC4GS RC4GS V3 RC6GS RC6GS V3.
8 Channels: with standard SBUS/PPM/PWM/signal output, ideal for most aircraft, high resolution ratio of 4096, fast Respone for all channels.
Press to Bind: No need old bind plug and any radio setting, only press bind button for 1 second after power up radio and receiver. High resolution ratio of 4096, stable signal and fast response.
Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3.0-12V DC support high voltage servo.
Works with transmitter T8S T8FB RC4GS RC4GS V3 RC6GS RC6GS V3.
AT10II | AT9S Pro | T8FB BT | T8S BT | |
Channels | 12 Channels | 10/12 Channels | 8 Channels | 8 Channels |
Signal Output | PWM/PPM/SBUS | PWM/PPM/SBUS | PWM/PPM/SBUS | PWM/PPM/SBUS |
Control Range | 2.5 Miles | 2.1 Miles | 1.2 Miles | 1.2 Miles |
Dimensions(L*W*H) | 7.1*3.7*8.7 in | 7.2*3.9*7.6 in | 6.8*4*8.1 in | 6.4*3.7*2.2 in |
Weight | 33.5 oz | 31 oz | 16.6 oz | 5.0 oz |
Package | AT10II/R12DS/PRM-01 | AT9S Pro/R9DS/Strap | T8FB/R8EF | T8S/R8EF |
Model Support | Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc | Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc | Glider, Airplane, Multirotor, Car, Boat, Robot etc | Glider, Airplane, Multirotor, Car, Boat, Robot etc |

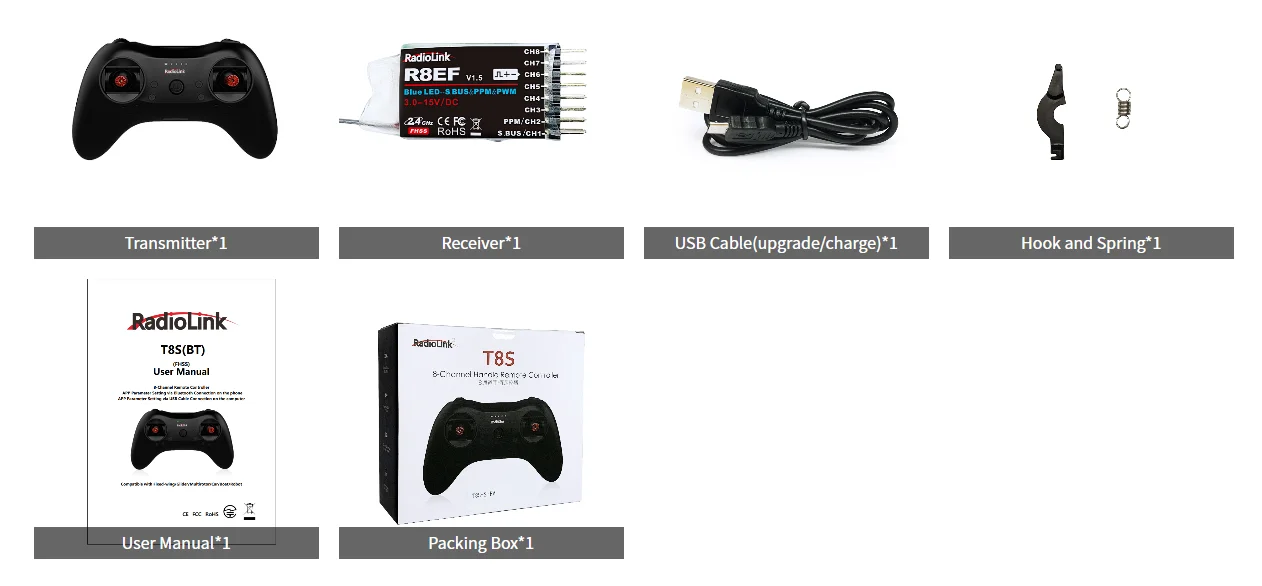

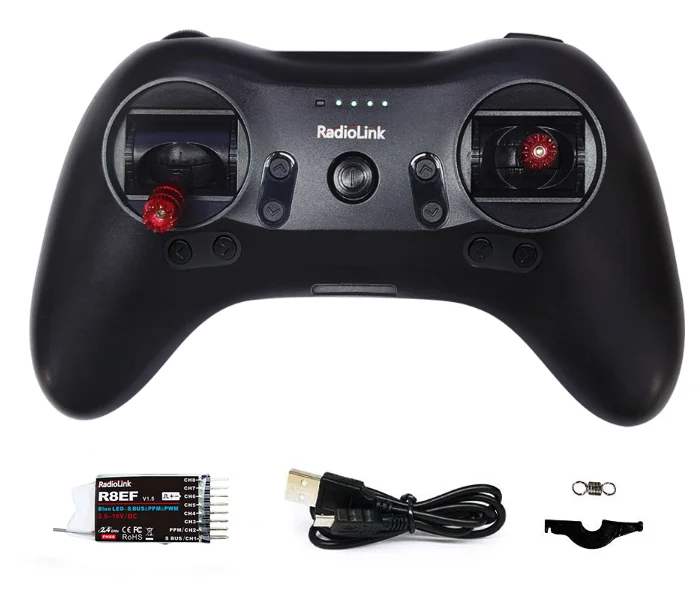

What Can You Get Out Of Each T8S BT Set?
Trademark registration
Honor&Awards
AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.
Certifications

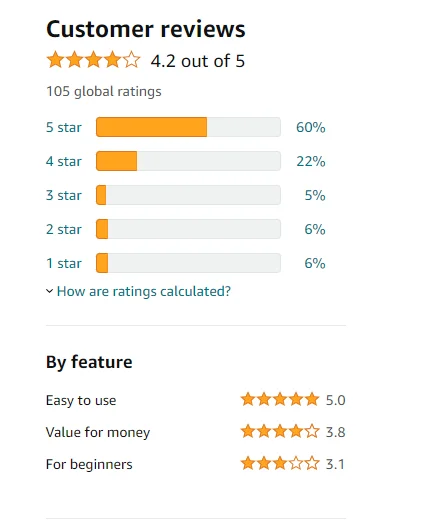

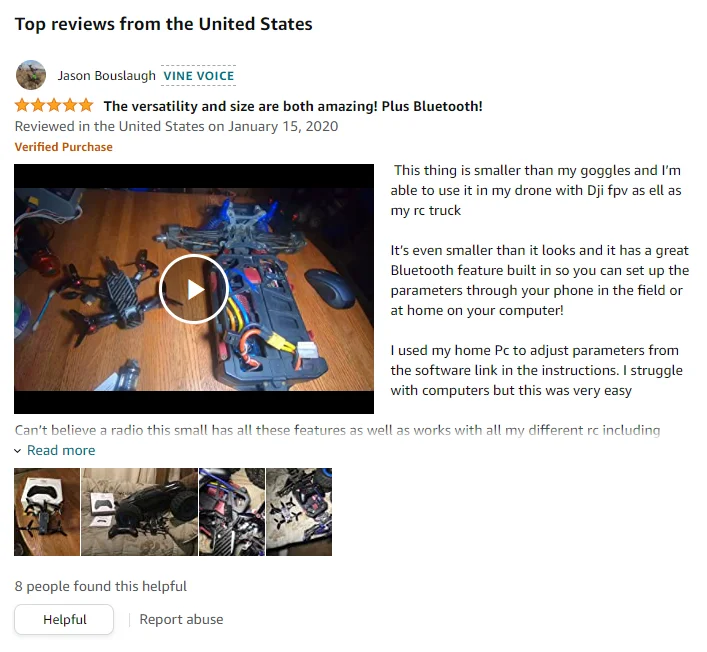

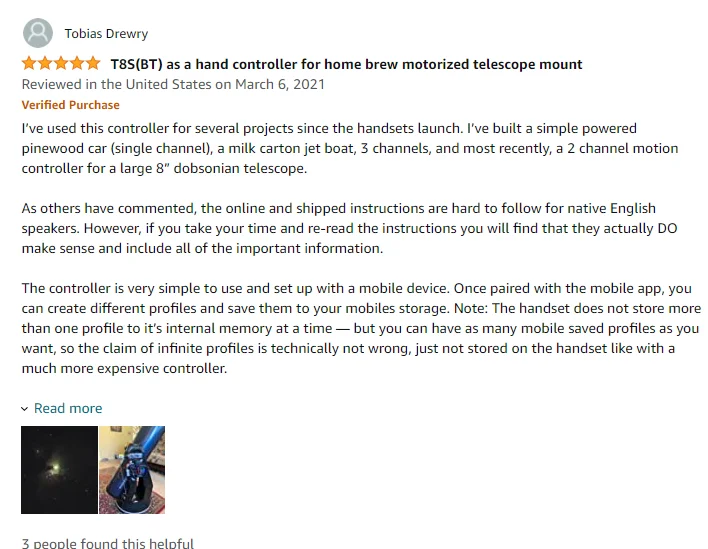

Good Reviews From Amazon
FAQ
Q1.Why can you choose us?
We are professional RC brand manufacturer and we have been in this field for more than 20 years. There are good engineers ,skilled pilots, technicians and after sale support.
Q2. Do you accept the Paypal?
For payment, We accept payment by T/T, Paypal.
If you want any payment terms please let us know before when you order.
Q3. What’s your MOQ and delivery time?
A. The MOQ of the standard product is 10 sets, and the MOQ of the customized product is 300-1000 sets. The specific quantity depends on which product model and customization requirements.
B. Samples usually take 1-2 working days. We have stocks of all products on sale. OEM orders need to be confirmed by both parties.
Q4. What’s your warranty details?
All goods are inspected before shipment. AT9S Pro, AT10II, RC4GS V3, RC6GS V3 are guaranteed for two years, and others are guaranteed for one year.
Shipping and handling fees are not refundable, and the customer shall be responsible for all costs of return and re-shipment. All returned goods must remain in their original condition, including the box and accessories. Men's clothing defects are not guaranteed, such as damage, scratches, etc.
Q5. About our feedback?
A:Buyer's early confirmation will be highly appreciated after receiving the items.
B: Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us.
if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital
significance to us.
C:Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems. Thank you for your understanding!
Q6. Which shipping ways is better?
For shipping ways, there is many shipping ways that you can choose. For example, sea shipping, China post, China airmail, EMS.DHL,FedEx, Ups, and TNT etc .Different shipping ways have different delivery time.
It is that according to what shipping ways you want. Any question please contact us!
We are professional RC brand manufacturer and we have been in this field for more than 20 years. There are good engineers ,skilled pilots, technicians and after sale support.
Q2. Do you accept the Paypal?
For payment, We accept payment by T/T, Paypal.
If you want any payment terms please let us know before when you order.
Q3. What’s your MOQ and delivery time?
A. The MOQ of the standard product is 10 sets, and the MOQ of the customized product is 300-1000 sets. The specific quantity depends on which product model and customization requirements.
B. Samples usually take 1-2 working days. We have stocks of all products on sale. OEM orders need to be confirmed by both parties.
Q4. What’s your warranty details?
All goods are inspected before shipment. AT9S Pro, AT10II, RC4GS V3, RC6GS V3 are guaranteed for two years, and others are guaranteed for one year.
Shipping and handling fees are not refundable, and the customer shall be responsible for all costs of return and re-shipment. All returned goods must remain in their original condition, including the box and accessories. Men's clothing defects are not guaranteed, such as damage, scratches, etc.
Q5. About our feedback?
A:Buyer's early confirmation will be highly appreciated after receiving the items.
B: Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us.
if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital
significance to us.
C:Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems. Thank you for your understanding!
Q6. Which shipping ways is better?
For shipping ways, there is many shipping ways that you can choose. For example, sea shipping, China post, China airmail, EMS.DHL,FedEx, Ups, and TNT etc .Different shipping ways have different delivery time.
It is that according to what shipping ways you want. Any question please contact us!
