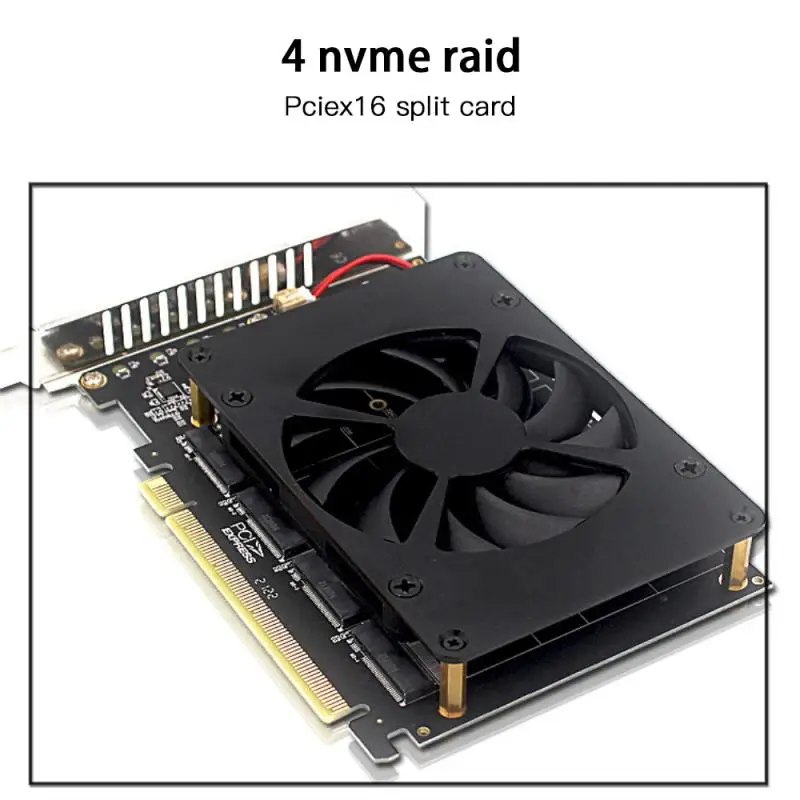

PCI EX16 NVME M.2 MKEY SSD RAID Array Expansion Adapter Motherboard PCI E Split Card 4 disk SSD Array Card With Cooling Fan

Description:

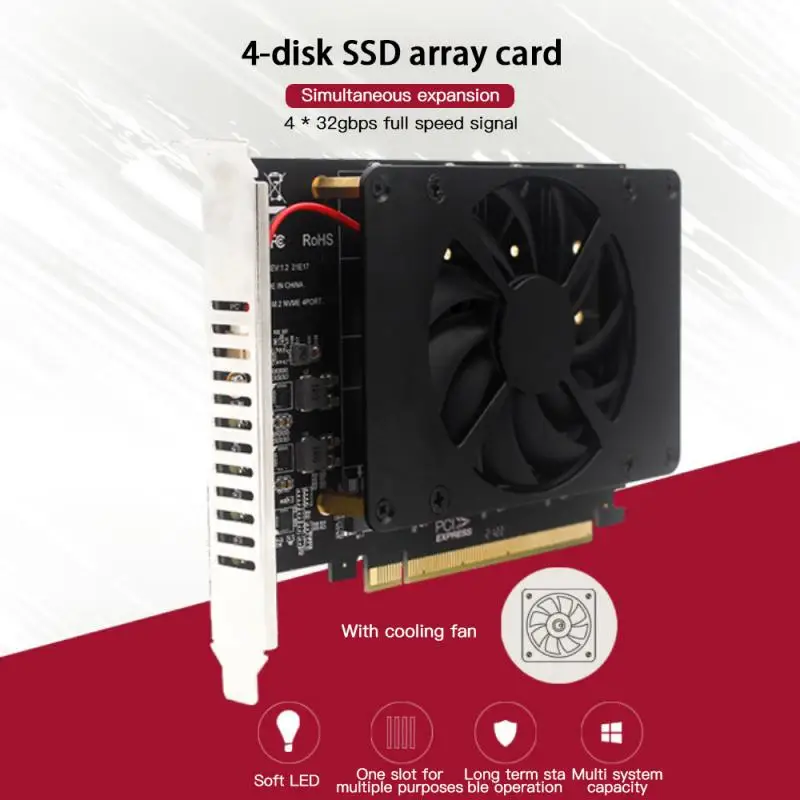

4-disk SSD array card, extended at the same time, 4*32Gbps full-speed signal, with cooling fan.

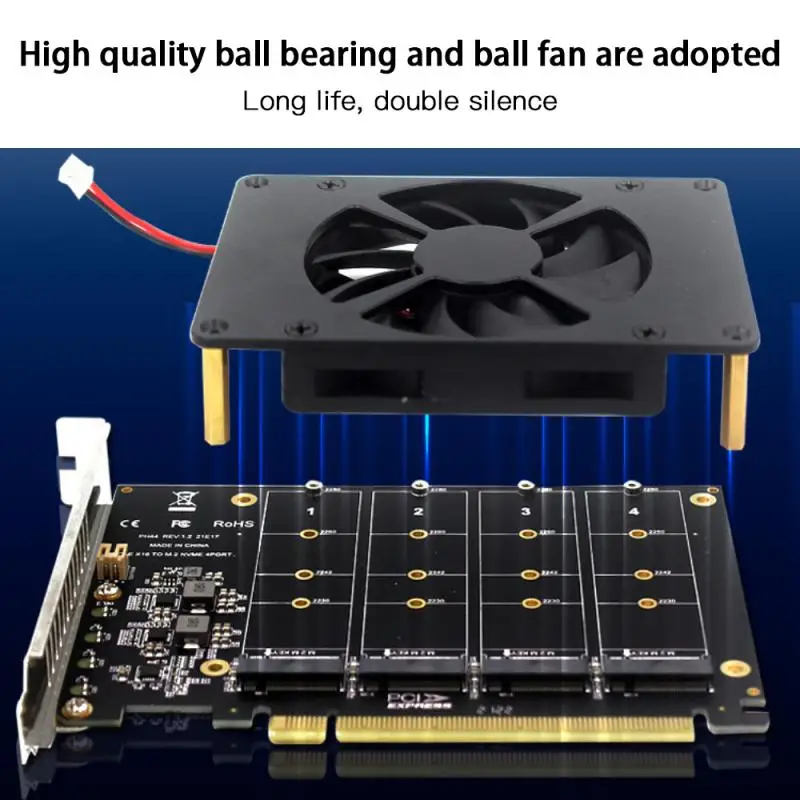

Adopt high-quality ball bearing ball fan, with long service life, high efficiency and silence.

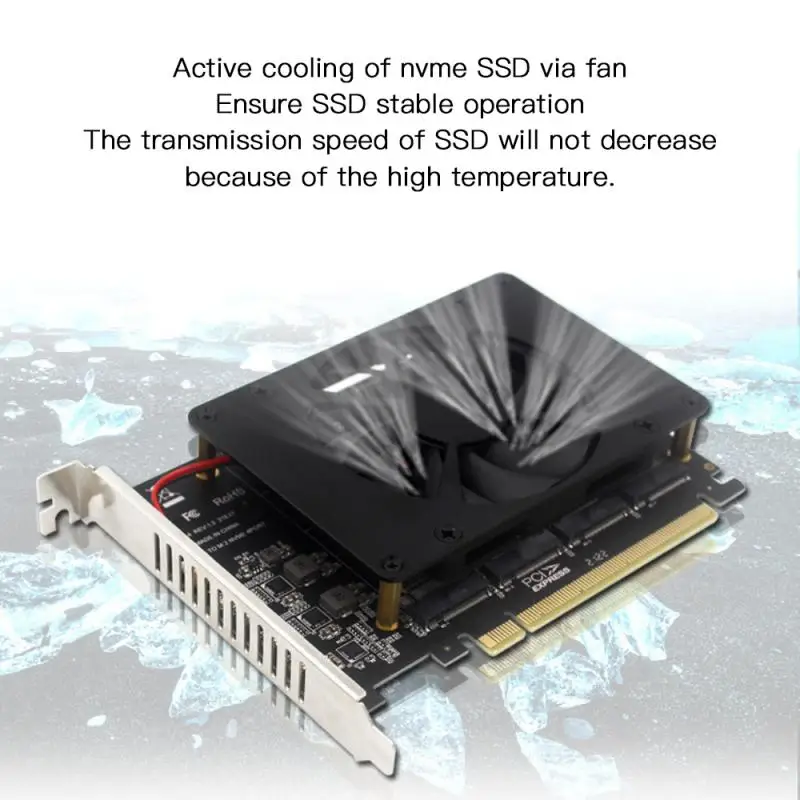

Active cooling of NVME SSD by fan ensures stable operation of SSD, and the transmission speed of SSD will not decrease due to excessive temperature.

Support 4-disk soft RAID, and realize soft RAID under WIN10. 4-disk has good performance and RAID stability.

Give you a full-speed experience, and use imported high-power DC chips to ensure the stable operation of SSD and M.2 PCI-E devices.

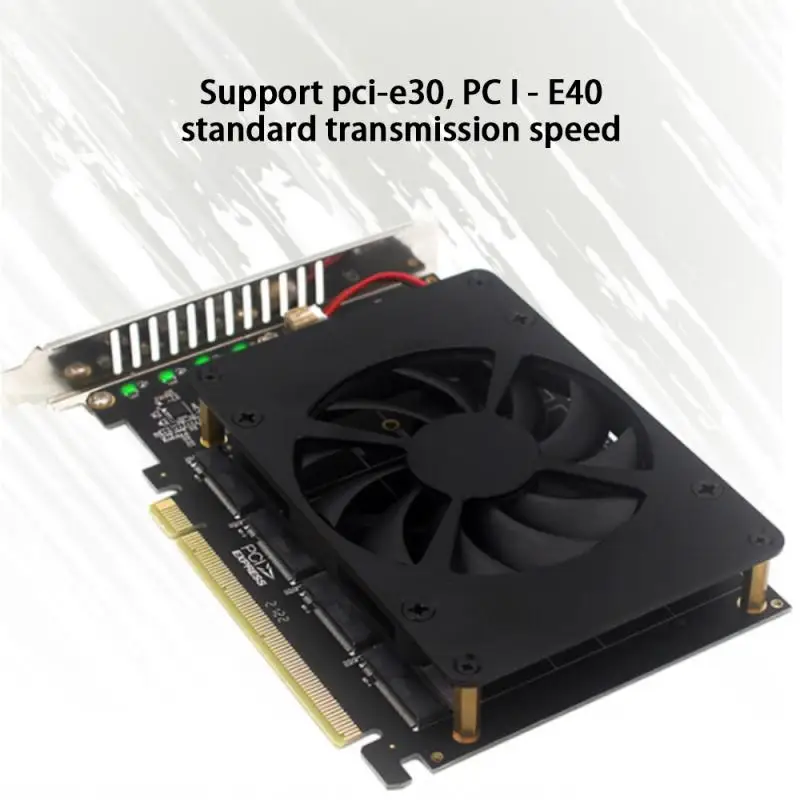

Pci-e3.0 and PCI-e4.0 standard transmission speeds are supported.

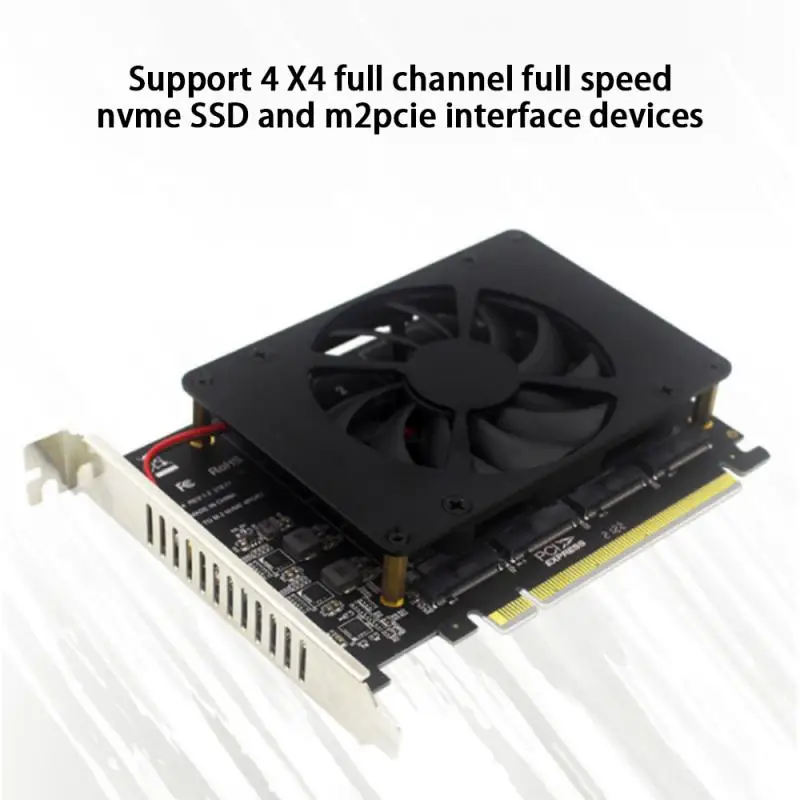

It supports four X4 full-channel full-speed NVME SSD and M.2 PCI-E interface devices.

Adopt high-end PCB circuit board, surface gold plating process, with good conductivity, strong wear resistance, oxidation resistance and high fire protection level.

Specifications:

Specifications:

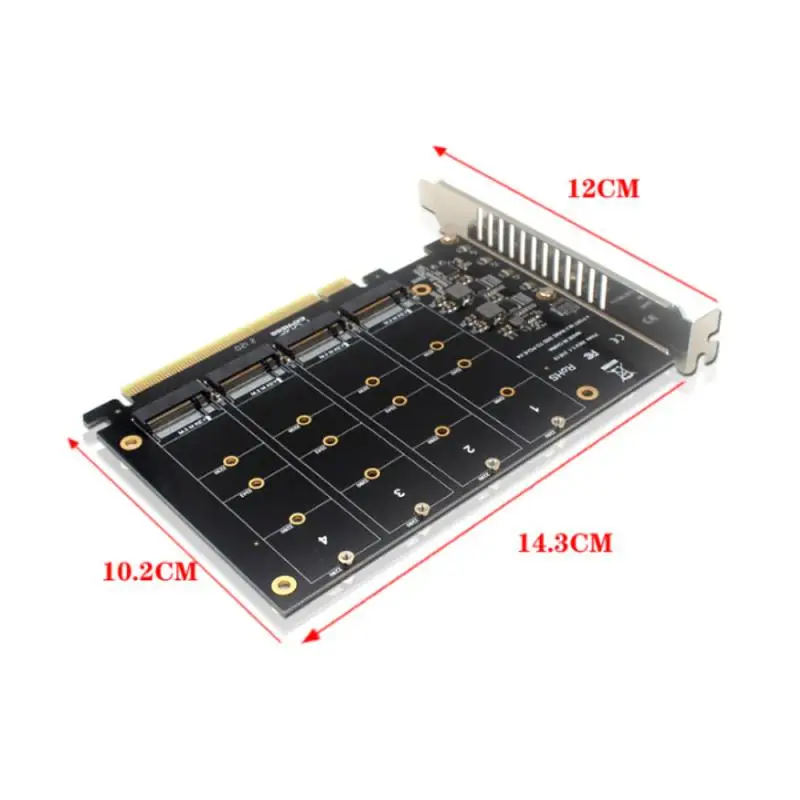

Name: 4 sets of NVME RAID PCI-E X16 split card

Type: PH44F

Hard disk support: SSD/M.2 PCI-E device of M. 2 NVME protocol

Transmission speed: 4*32Gbps

Packing: packed in neutral cowhide box

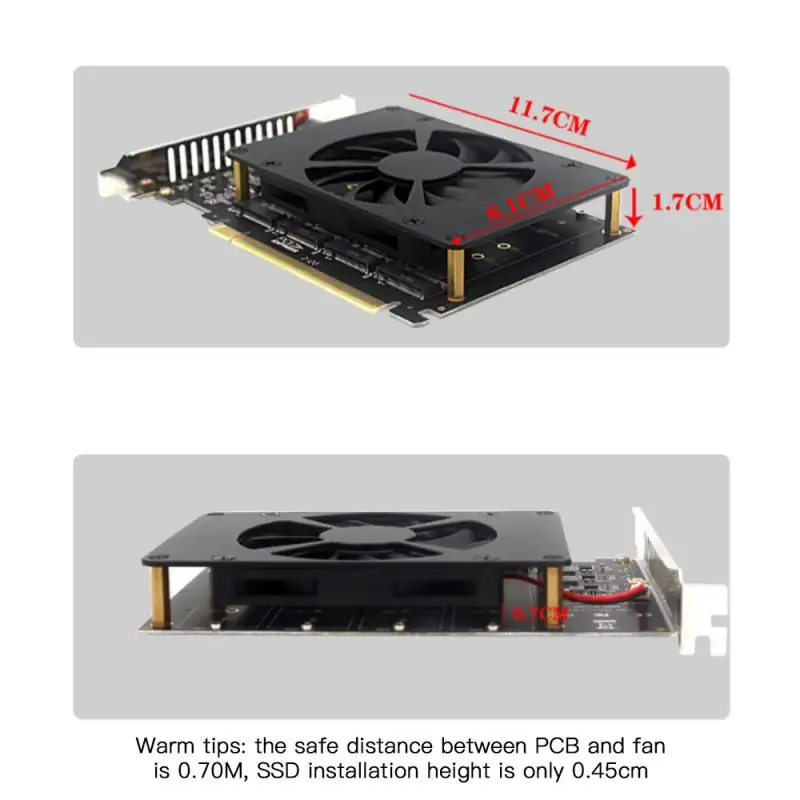

Packing size: 19.5*13*3.2CM

Product weight: product+fan+baffle 148.8G

Package Included:

1*4 sets of NVME RAID PCI-E X16 split card

Notes:

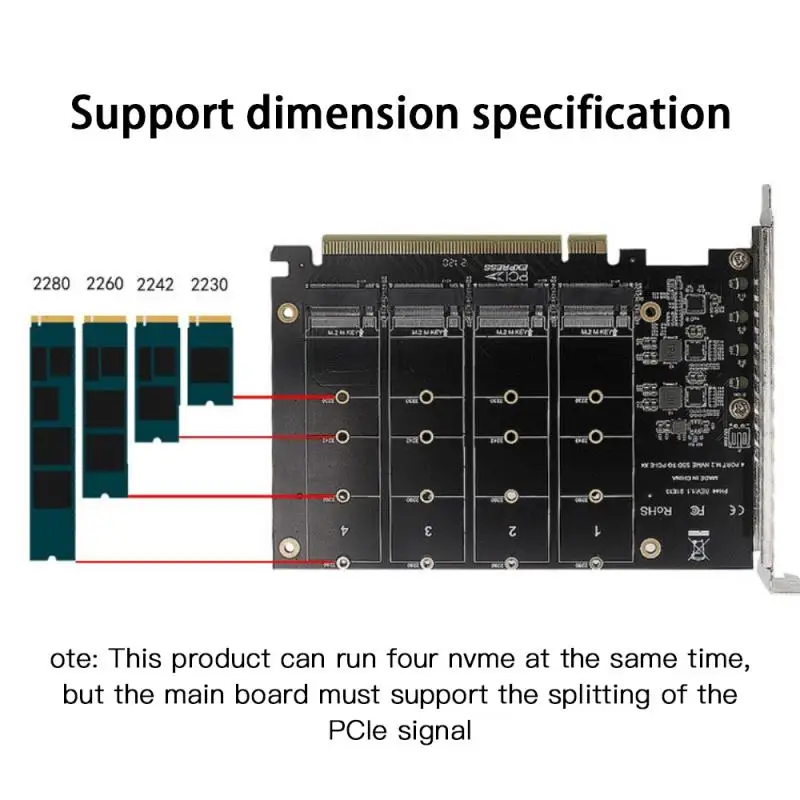

Note: This product can run 4 NVME at the same time, but the motherboard must support PCIE signal splitting.

Instructions for use:

1. the motherboard must support

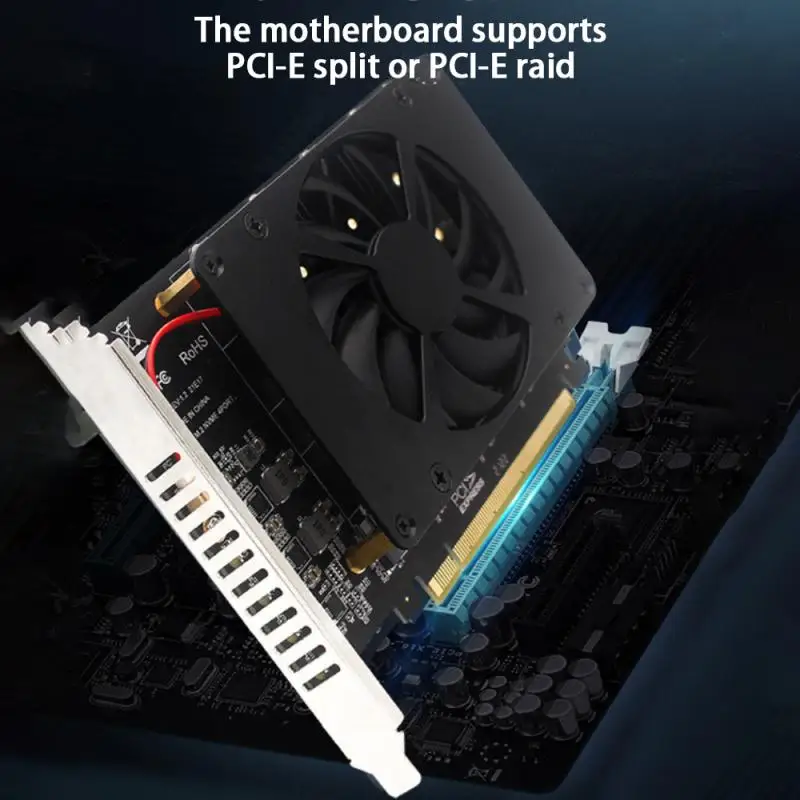

The main board supports PCI-E split function and can set PCI-E X4X4X4 or 4X4 mode;

The main board supports PCI-E RAID function;

ASUS motherboard supports the function of HyperM.2X16 expansion card;

Different motherboards have different PCI-E split channels, and some motherboards have a PCI-E RAID of X8+X4+X4. This motherboard 4-bit M.2 card can o
