Product Overview
Description
Product Description

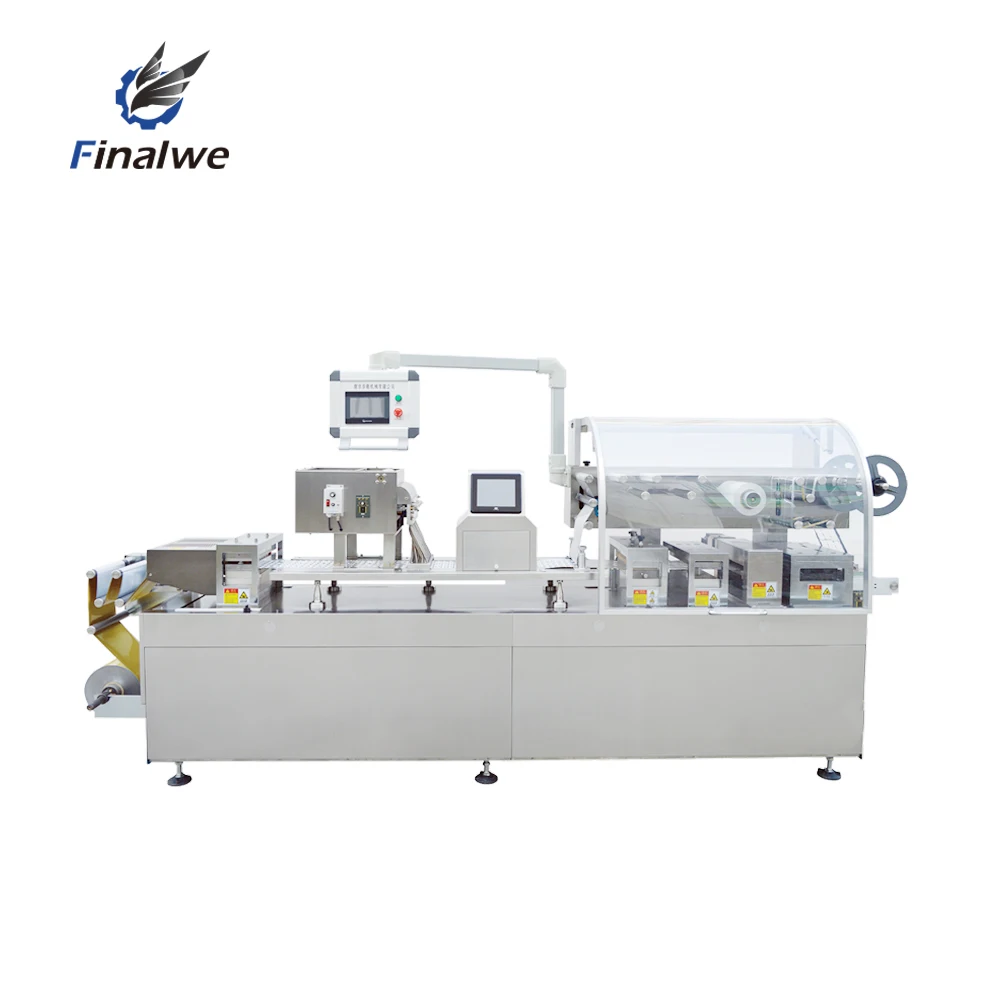

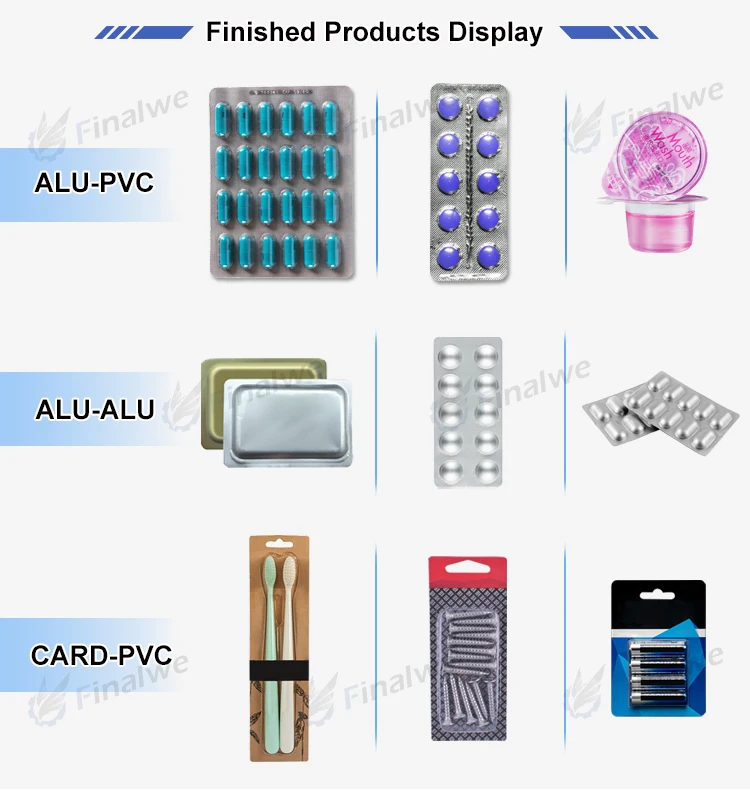

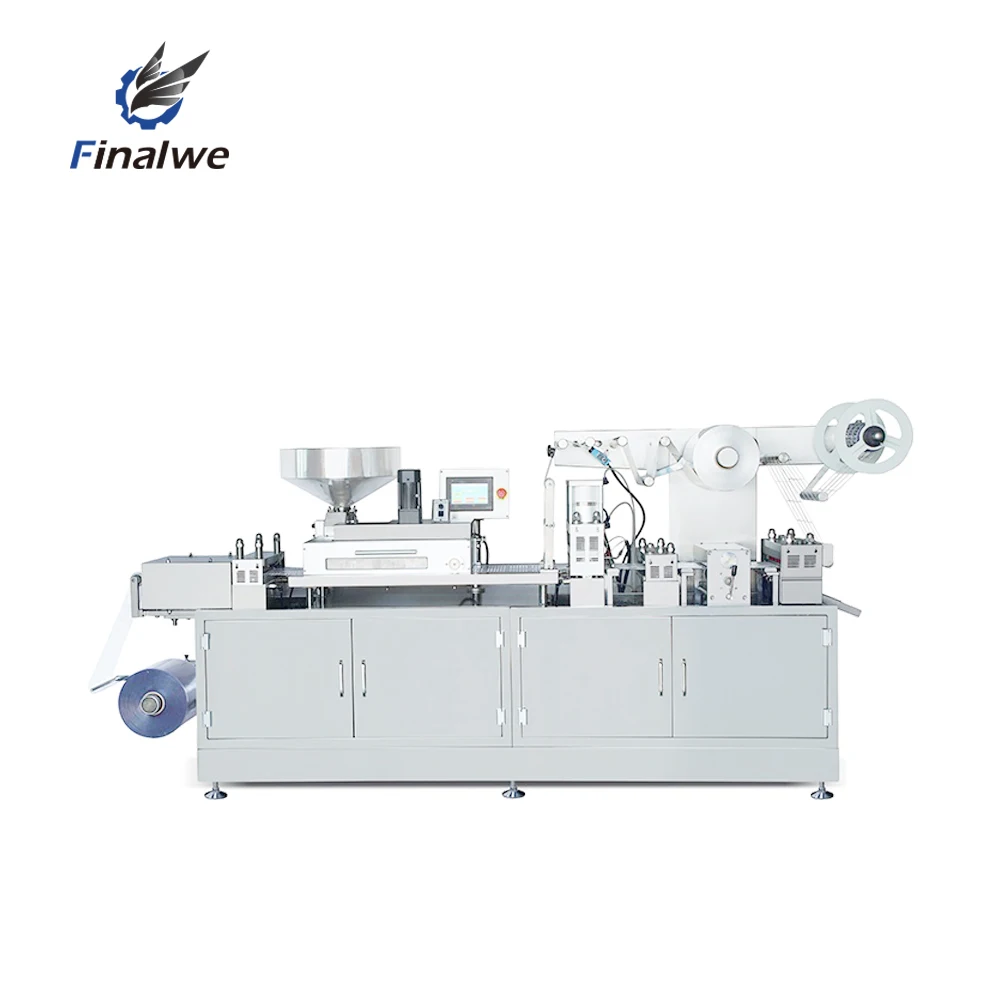

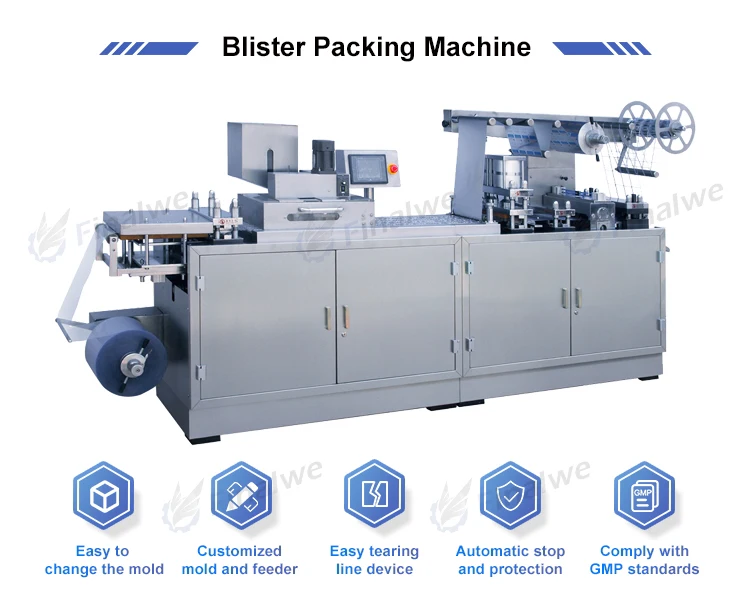

The Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
Feature
◆ Faster Speed-Double heater plate and roller type sealing, .
◆ Easier Operation-Adopts top brand PLC controller displayed in Chinese and English, speed control, the length of blister traction adjustable
◆ Thermal temperature control and test, over loading protect, PVC and PTP packing material position test, feeder, material position test, failure automatic debug and alarm, automatic protection and stop running.
◆ Ensuring accurate registration -Adopts auto photoelectric register device for patterns and words of Al foil driven by step motor, perfect performance.
◆ Discharging finished product in right order -automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
◆ Auto close and opening of forming plate helps delay the running time after dropping down the heat plate and also makes packing material efficiently used.
◆ High Feeding efficiency, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
◆ Auto alarm and stop of machine when PVC finds in lack or ruptured, provides much convenience to operator for timely PVC replacement or joint PVC.
◆ "GMP" requirements -All parts contact with material including hopper adopt high level stainless steel.
◆ Easier Operation-Adopts top brand PLC controller displayed in Chinese and English, speed control, the length of blister traction adjustable
◆ Thermal temperature control and test, over loading protect, PVC and PTP packing material position test, feeder, material position test, failure automatic debug and alarm, automatic protection and stop running.
◆ Ensuring accurate registration -Adopts auto photoelectric register device for patterns and words of Al foil driven by step motor, perfect performance.
◆ Discharging finished product in right order -automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
◆ Auto close and opening of forming plate helps delay the running time after dropping down the heat plate and also makes packing material efficiently used.
◆ High Feeding efficiency, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
◆ Auto alarm and stop of machine when PVC finds in lack or ruptured, provides much convenience to operator for timely PVC replacement or joint PVC.
◆ "GMP" requirements -All parts contact with material including hopper adopt high level stainless steel.
Specification
Product Model | DPP-80 | DPP-140 | DPP-260 |
Application | Tablet /Pill /Capsule | Tablet /Pill /Capsule | Tablet /Pill /Capsule |
Cutting Frequency | 10-40Times/min | 15-45 times / min | 25-50 time/min |
Production Capacity | 2400Plates/h | 4800Plates/h | 6000-12000 plate/h |
Max. Forming Area And Depth | 80*110*26mm Can Be Customized | 140*110*15 mmCan Be Customized | 250*100*13mmCan Be Customized |
Range Of Standard Stroke | 20-70mm (adjustable) | 30-120mm (adjustable) | 10-120mm (adjustable) |
Medicinal PVC specification | 0.15-0.5×80mm | 0.15-0.5*140mm | 0.25-0.5×260mm |
Air Pressure | 0.4-0.6Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Voltage | 380/220V 50Hz | 380/220V 50Hz | 380V/220V 50Hz |
Power | 3.2kw | 5.5kw | 7kw |
Machine Dimensions | 1600*600*1100mm | 2150*550*1370mm | 3500*900*1620mm |
Machine Weight | 450kg | 900kg | 2000kg |

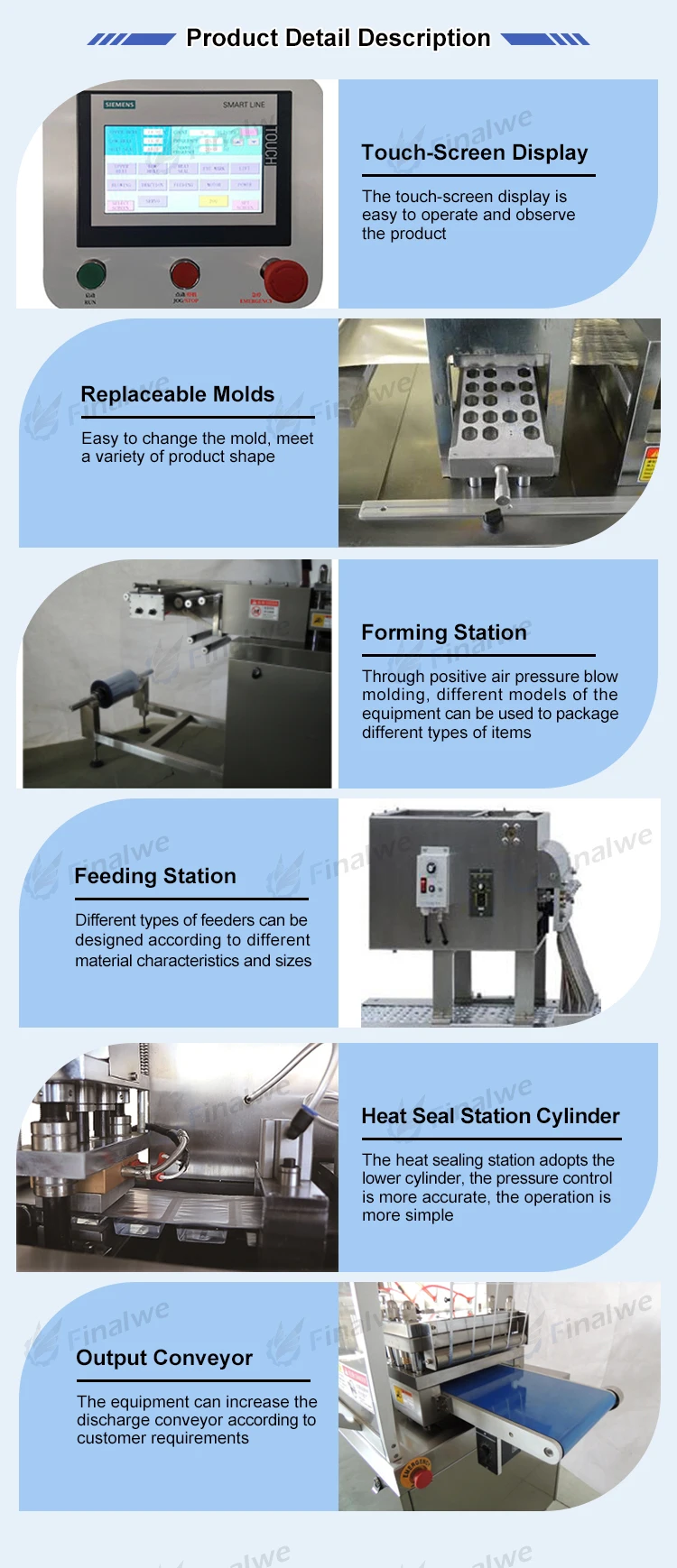

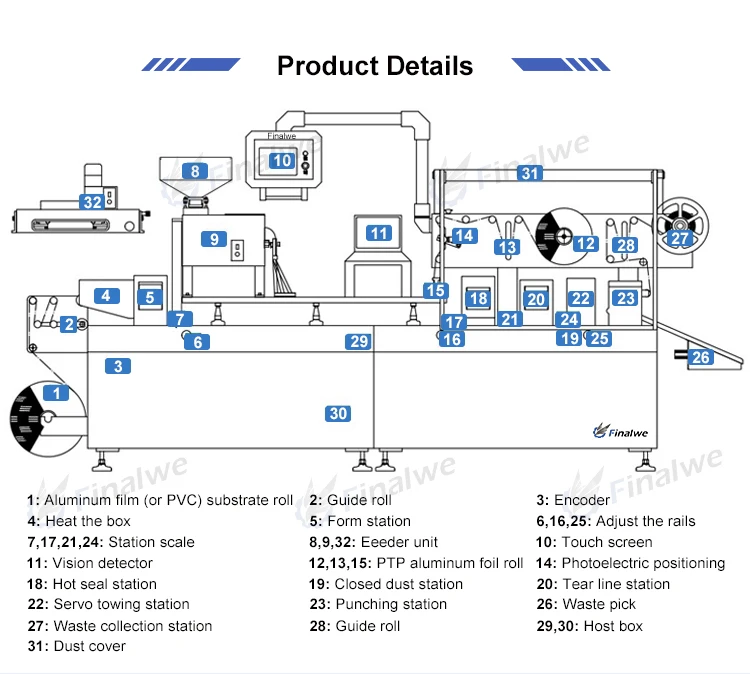

Product Details
