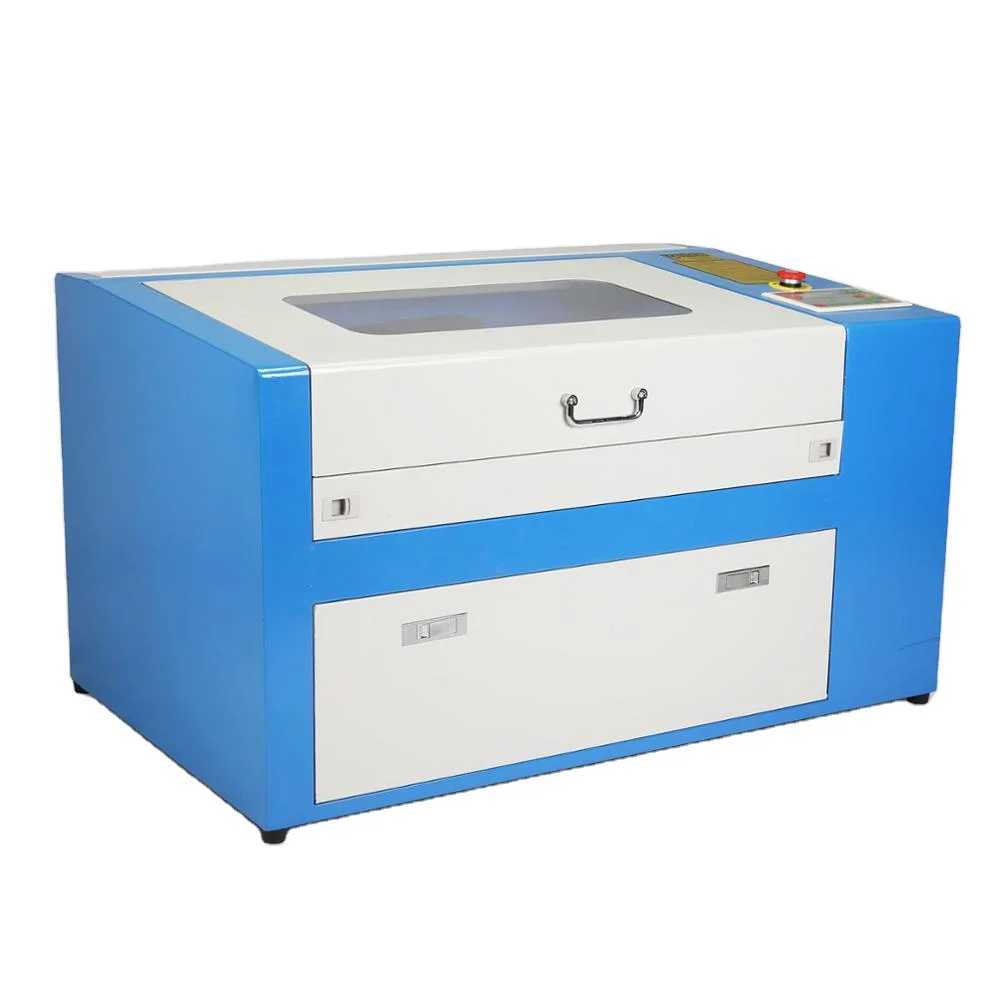

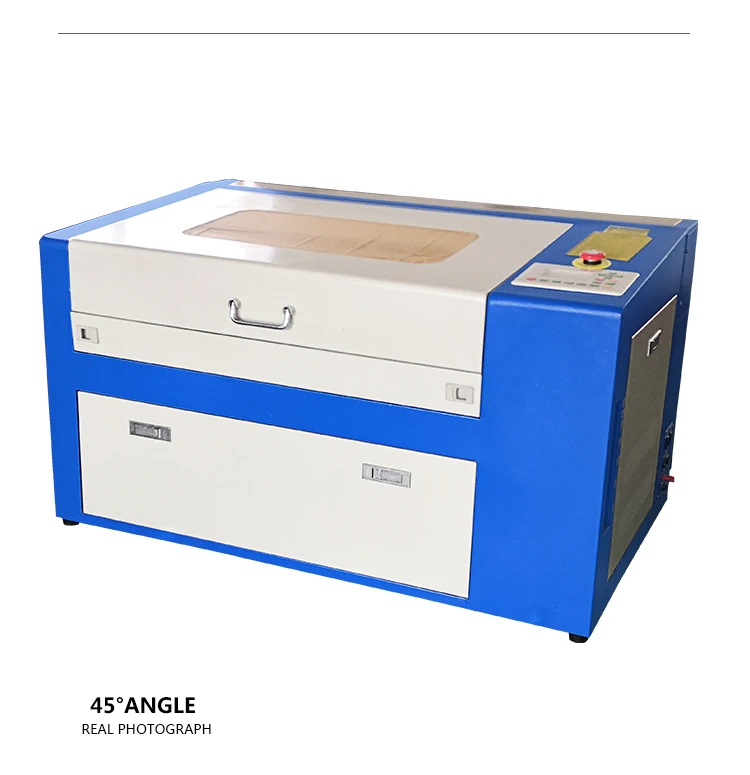

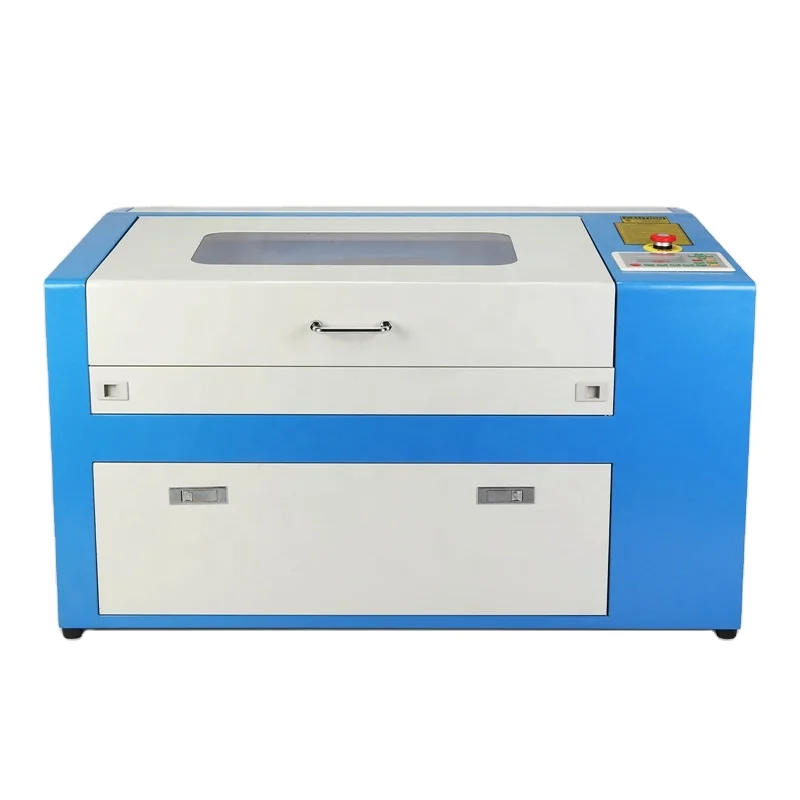

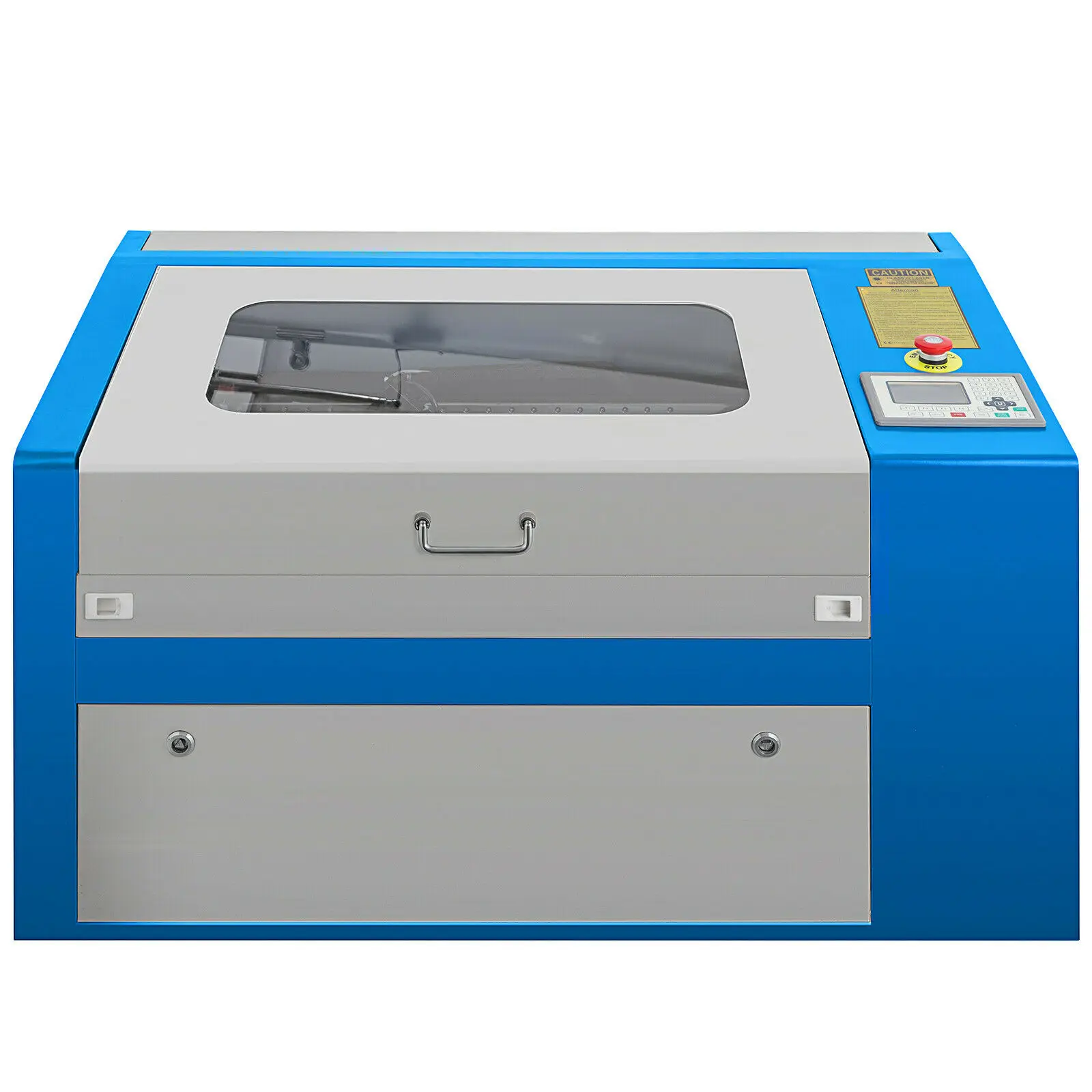

Promotion Engraving Engraver And Cutter Laser Cutting Machine For Acetate

Product Overview

Description

Promotion Engraving Engraver And Cutter Laser Cutting Machine For Acetate



High Quantity New Laser Engraving and Cutting Machine  Machine  Equipmentt

· Laser power: 50W

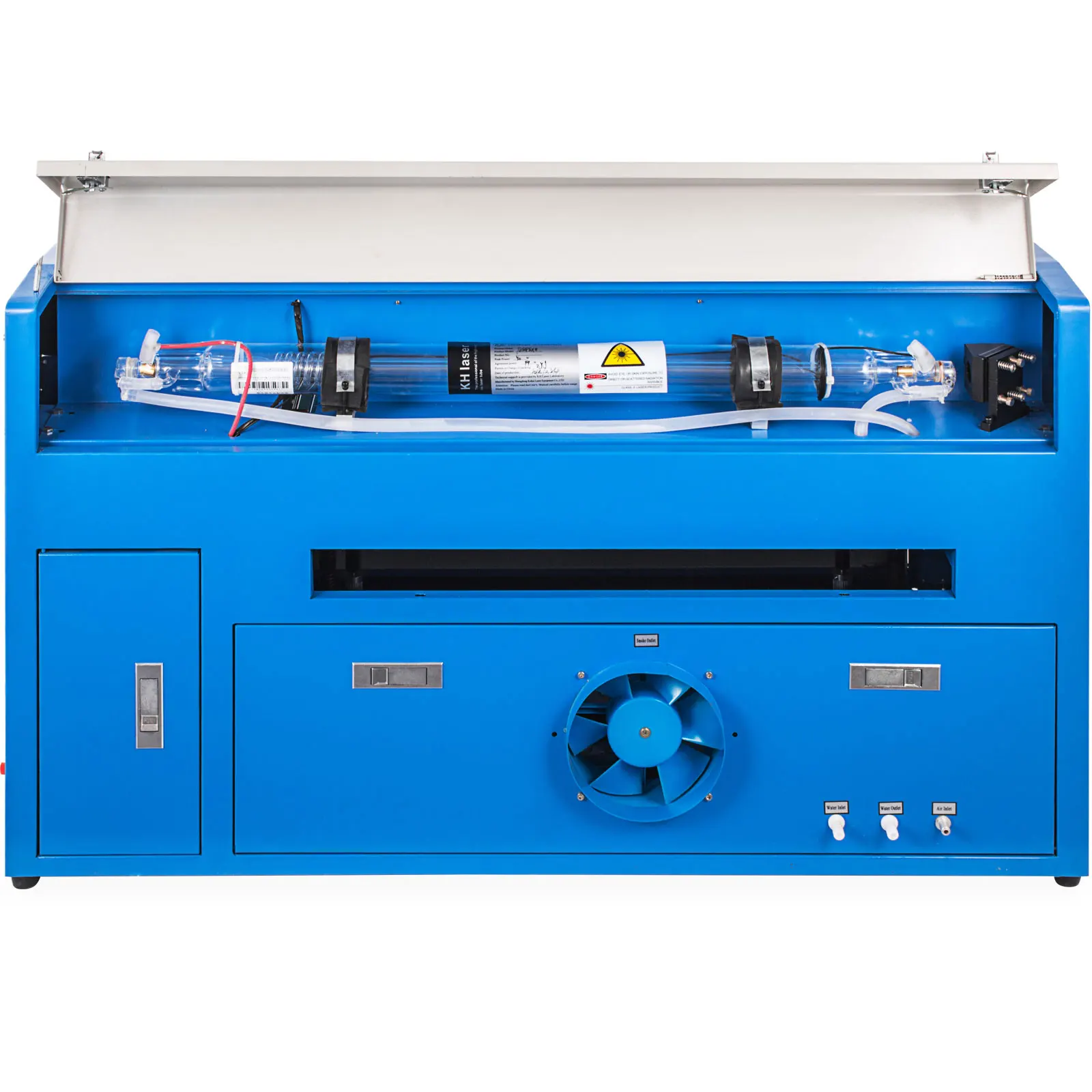

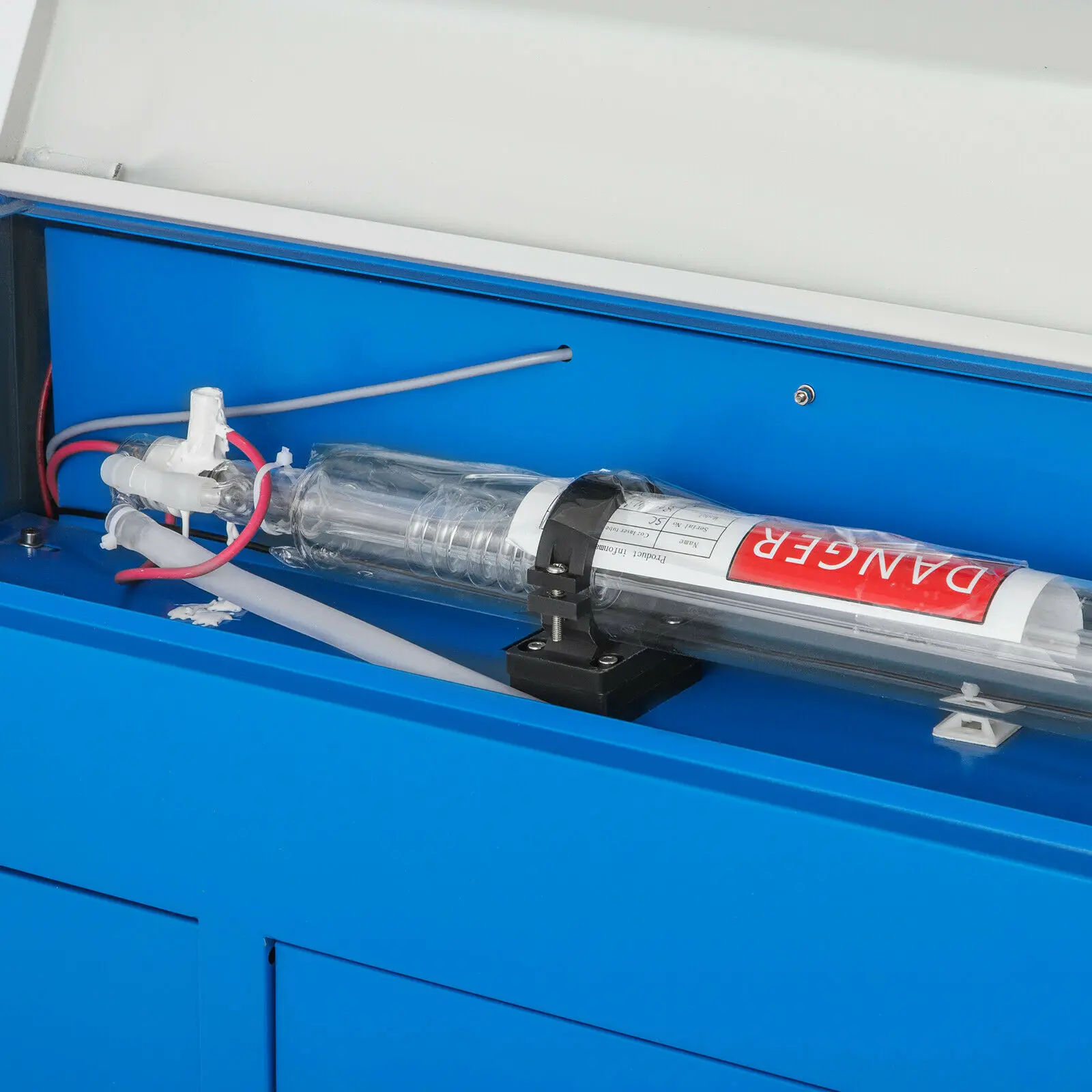

· Laser type: Hermetic CO2 glass tube

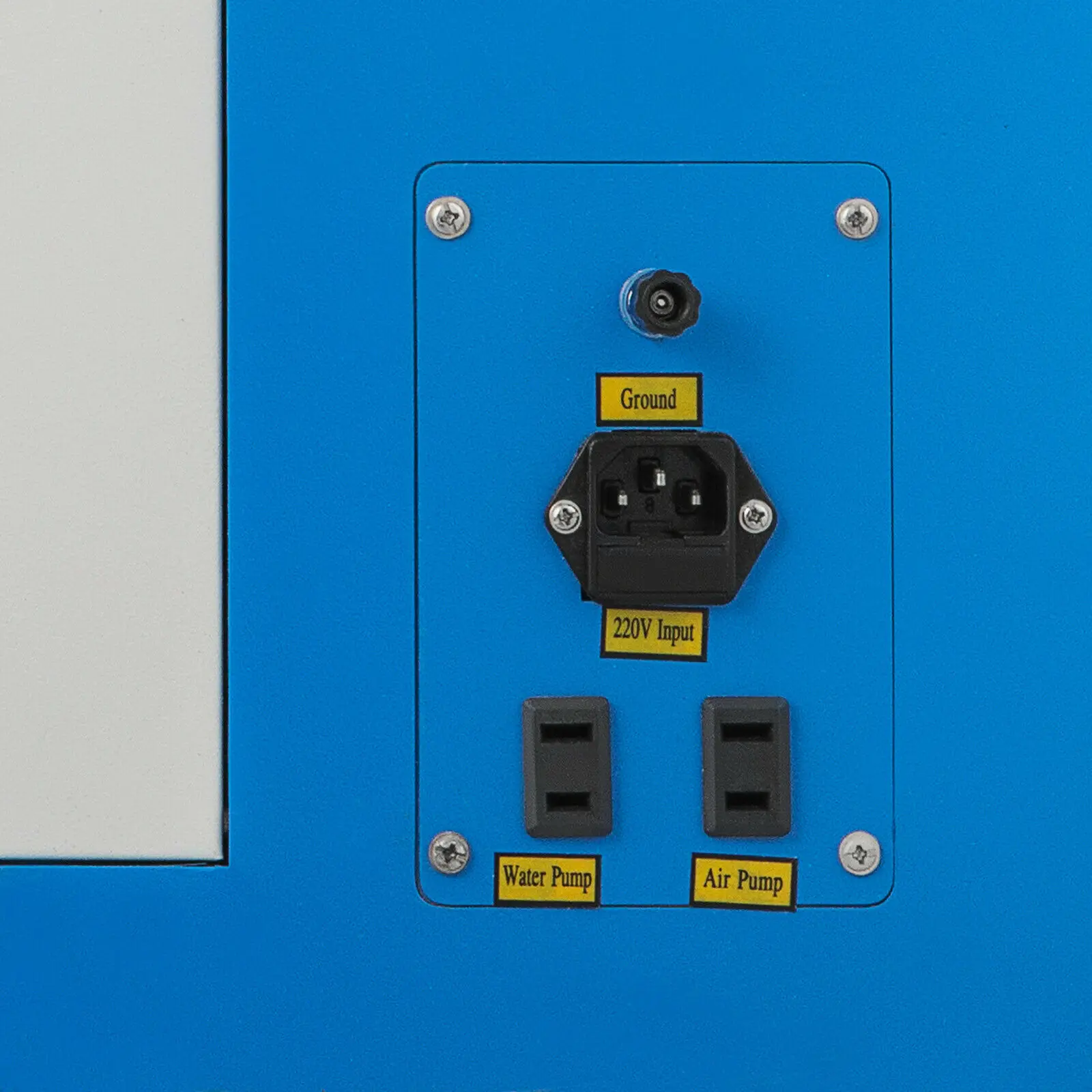

· Power supply: AC220±10% 50HZ/ AC110±10% 50HZ

· Working area: 300mm X 500mm

· Max moving speed: 500mm/s

· Locating precision: <0.01mm

· Min shaping character: Character: 2x2mm, Letter: 1x1mm

· Operating temperature: 5℃-40℃

· Resolution ratio: ≤4500dpi

· Control configuration: DSP

· Data transfer interface: USB(offline)

· Worktable: DC-G350D –up&down table

· System environment: WINDOWS 2000/WINDOWS XP/ WIN7/VISTA

· Cooling way: Water Cooling and protection system

· Graphic Format Supported: The Files which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)

· Compatible software: RDdraw (also support CorelDraw & AutoCAD but Not Included in this item.)

· Cutting thickness: 0-10mm (depends on different materials)

· Color separation: Separation of cutting up to 256 colors

· Sloping engraving: Yes,slope can be designed discretionarily

· Cuts off the water supply the protection: Yes

· Packing: Plywood case

· Parts: Cylinder Rotary Attachment

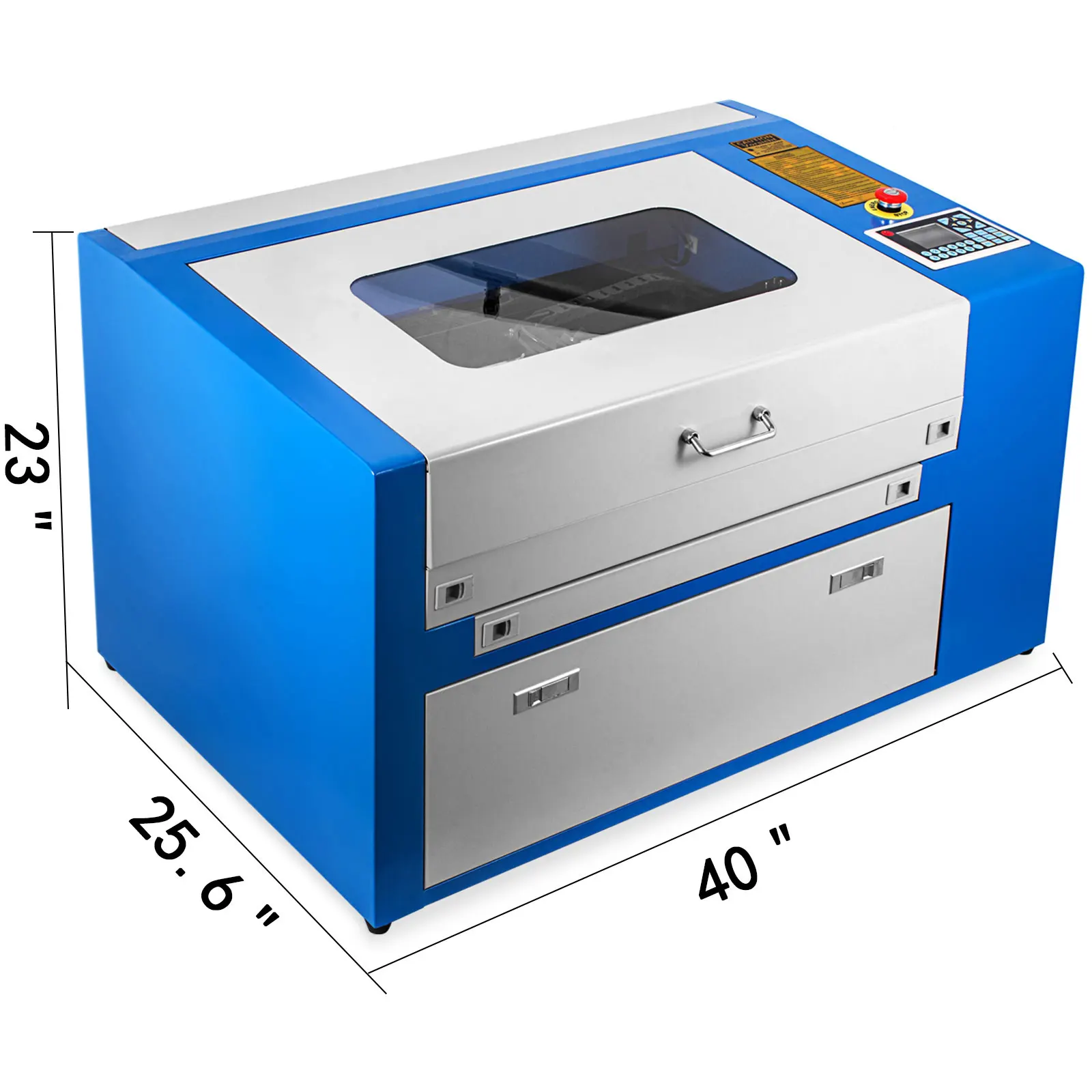

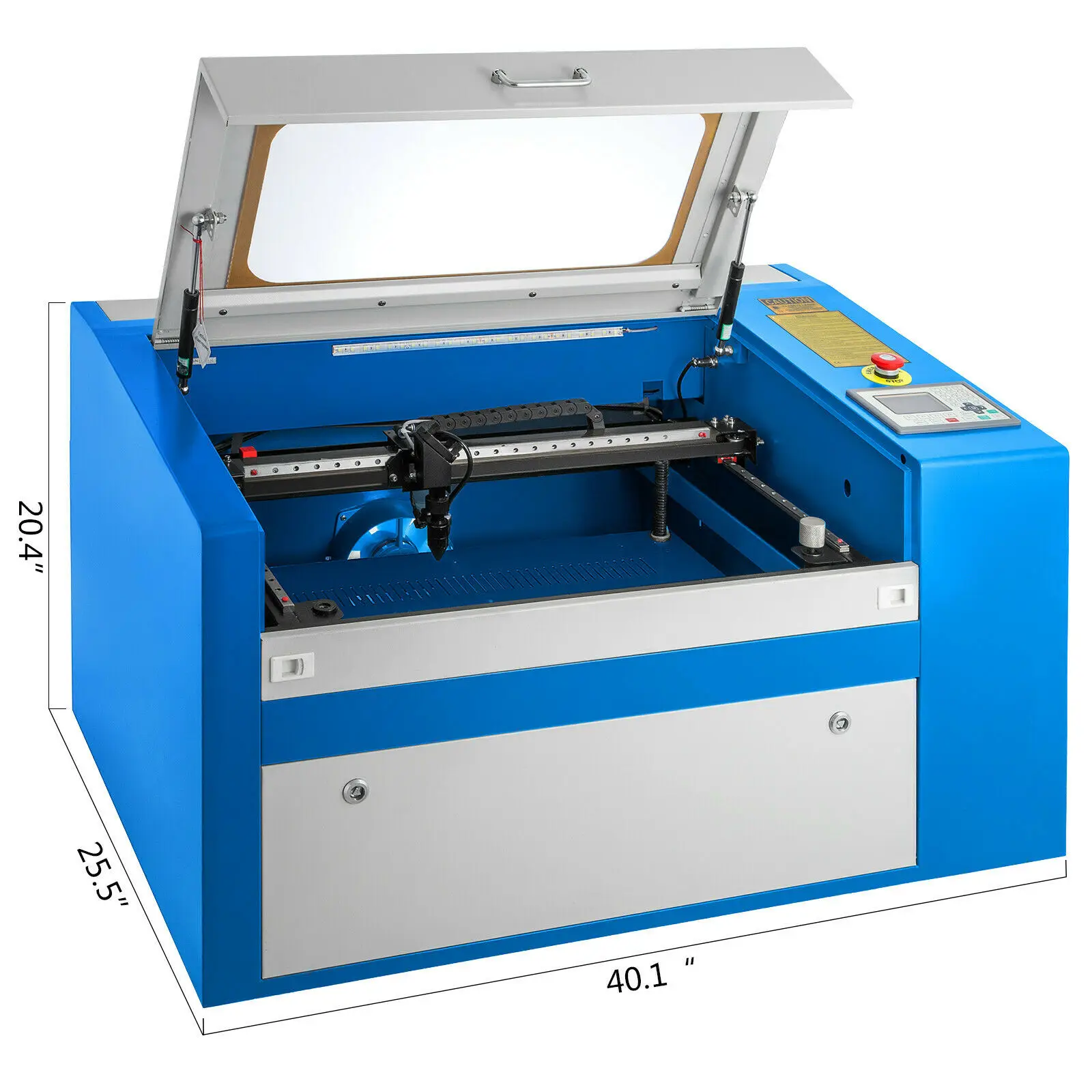

· Machine Dimension: 1020×650×630 mm

· Net Weight: 65KG

Features:

· CE Certification, ISO9001 Quality Certification.

· USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.

· Smooth and Precise Engraving and Cutting.

· Manual up/down table.

· Red Dot Pointer.Provides a visible means of determing engraving location.

· Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.

· Air Assist,Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

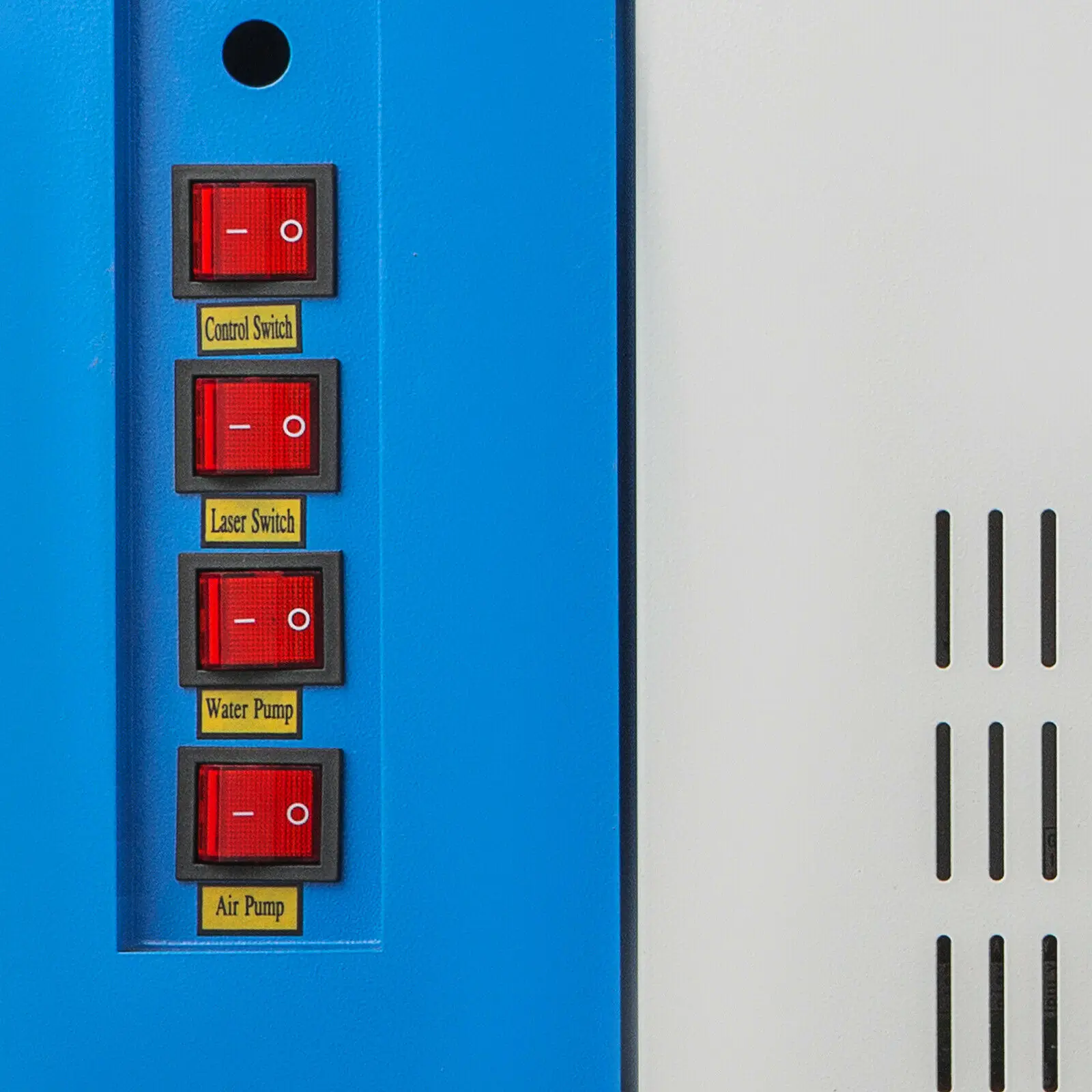

· Adjustable Speed and Power.Intuitive Control Panel,Set Speed, power and more controls directly from the laser.

· Exhaust Fan system included.

· Reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

· Cylinder Rotary Attachment,Engrave any cylindrical object.Process the cylinder object such as cup,brush pot,musical instrument and so on.

· Separation of cutting up to 256 Colors.

· Engrave almost anything on almost any surface.

· 3 years free warranty and life time free maintenance service.





Engrave Material:

Material	Engrave	Cut
Wood	Yes	Yes
Jade	Yes
Acrylic	Yes	Yes
Delrin	Yes	Yes
Cloth	Yes	Yes
Leather	Yes	Yes
Marble	Yes
Matte Board	Yes	Yes
Melamine	Yes	Yes
Paper	Yes	Yes
Mylar	Yes	Yes
Press Board	Yes	Yes
Rubber	Yes	Yes
Wood Veneer	Yes	Yes
Fiberglass	Yes	Yes
Tile	Yes
Plastic	Yes	Yes
Cork	Yes	Yes
Corian	Yes	Yes
Stainless Steel	*
Brass	*

"*"means you have to use a spray called "thermark" to spray the surface of the material and then you can mark on it.

Why our product better than other similar product?

· CE Certification, ISO9001 Quality Certification.

· USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.

· Smooth and Precise Engraving and Cutting.

· Manual up/down table.

· Red Dot Pointer.Provides a visible means of determing engraving location.

· Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.

· Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

· Adjustable Speed and Power. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

· Exhaust Fan system included.

· Reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

· Cylinder Rotary Attachment, Engrave any cylindrical object.Process the cylinder object such as cup, brush pot, musical instrument and so on.

· Engrave almost anything on almost any surface.

Note:

1. We prefer to delivery item to  commercial address; If your delivery address is private residence address, please contact us before you place an order.

2. Please leave us message if your address has loading platform to load your item.



Friendly

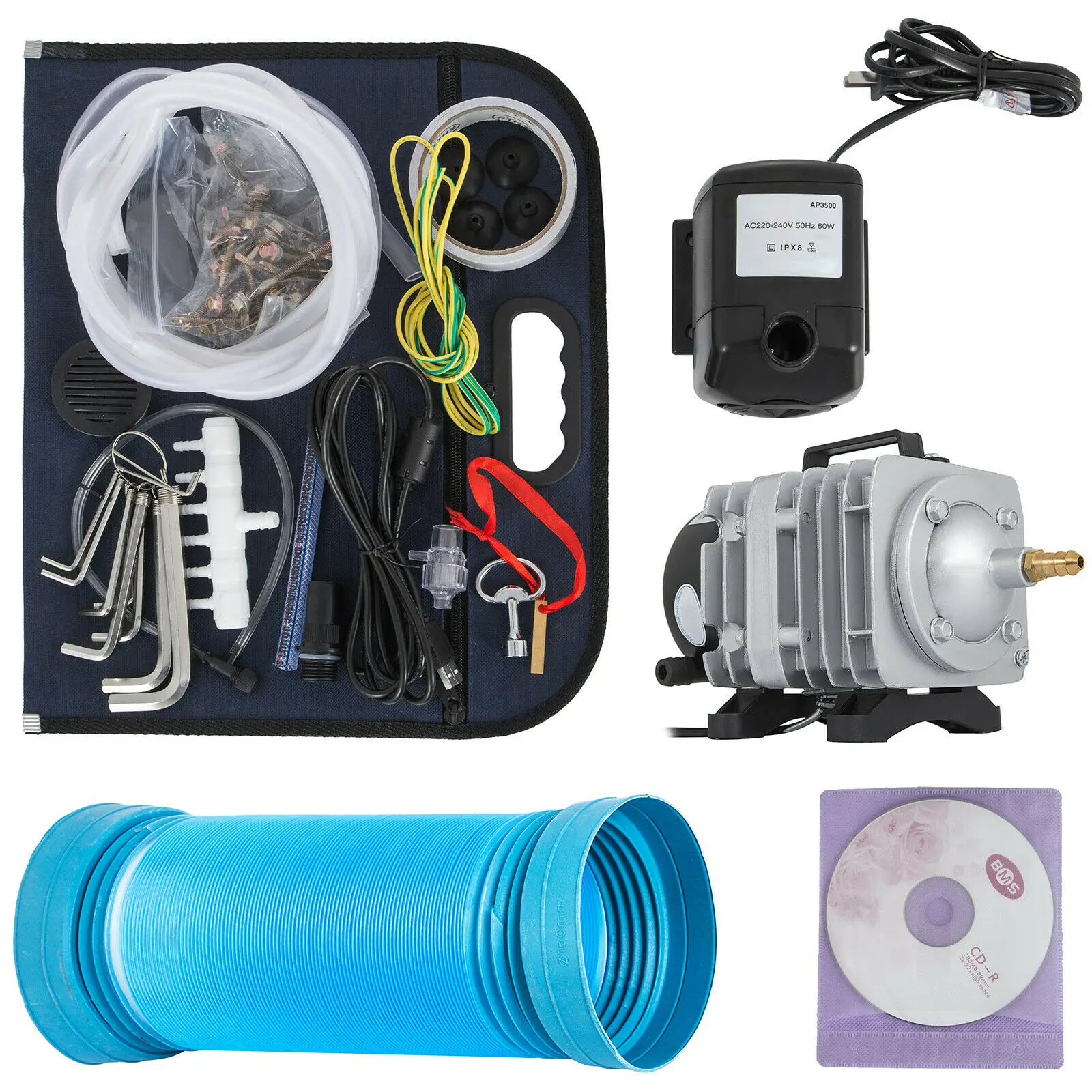

· 1 X Main Body

· 1 X Cylinder Rotary Attachment

· 1 X Air Pump

· 1 X Water Pump

· 1 X Exhaust Fan

· 1 X Smoke Pipe

· 1 X Laser Tube

· 1 X USB Cable

· 1 X CD

· 1 X Power Line (we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world.)

· 1 X Wrench

· 1 X Key

· 1 X Manual/Accessory Bag
