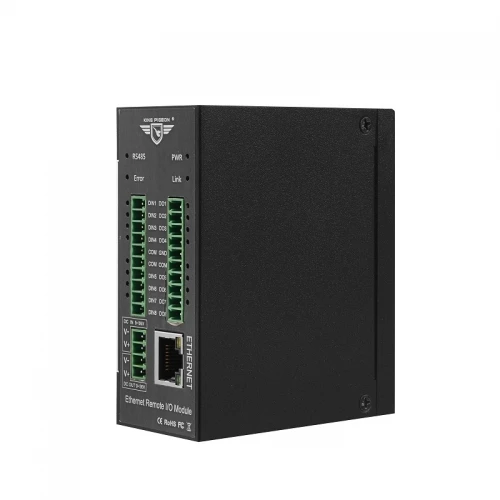

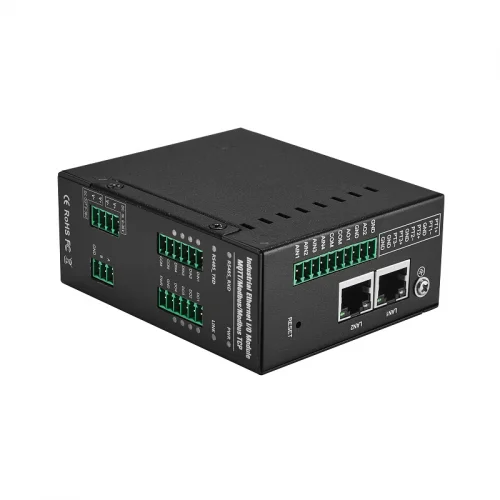

M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus
M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus

M120T Serial To Ethernet Converter Module Industrial Digital I/O Module With Modbus

Share on (1600467399994):


Price:$90.00 - $120.00

Quantity:


Product Overview

Description







Products Description




Specifications


Ethernet Remote I/O Module Specifications
• Digital Input
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
I/O Mode
DI or Event Counter
Dry Contact
• On: short to GND=1
• Off: open=0
Wet Contact (DI to COM)
• On: 10 to 30 VDC =1
• Off: 0 to 3 VDC=0
Counter Frequency
700KHz(Only the 1st Channel can be used as high speed pulse counter)
Digital sampling frequency
500Hz
Digital filtering strategy
Continues 3 times
Isolation
Optical Isolated,3k VDC or 2k Vrms
• Digital Output
Type
Sink
I/O Mode
DO or Pulse Output
Pulse Output Frequency
10Hz~300KHz(Only the 1st Channel can be used as high speed pulse outputs)
Over-Voltage Protection
50 VDC
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Load Current
Max. 500 mA per channel
Digital sampling frequency
500Hz
• Analog Input
Type
Differential input
Resolution
12 bits
I/O Mode
Voltage / Current (jumper selectable)
Input Range
0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Sampling frequency
20Hz
Isolation
Electrical isolation
• Analog Output
Type
Differential input
Resolution
12 bits
Output Range
0 to 10 VDC
Drive Current
1A (max.)
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Isolation
No
• Working Power Requirements
Input Voltage
24 to 36 VDC, Peak Voltage:+40VDC, Power consumption: Less than 3W;
Input Current
139 mA @ 24 VDC
• Power Output
Output Voltage
24 to 36 VDC
Output Current
139 mA @ 24 VDC
• LAN
Ethernet
10/100 Mbps RJ45 ports
Protection
15KV ESD Protection
Protocols
Modbus TCP, TCP/IP,MQTT, TCP Server, TCP Client
Max. TCP Connection
5
• Serial Port
RS485
MODBUS- RTU Protocol, Modbus-ASCII Protocol
Protection
15KV ESD Protection
Modbus Slave address
1~255
Baud Rate
1200,2400,4800,9600,19200,38400,57600,115200,128000Bps;
Mapping registers
Bit Type: 300 Registers, 16-Bit Type: 300 Registers.
• Physical Characteristics
Wiring
I/O cable max. 14 AWG
Dimensions
105 x 88 x 30 mm
Weight
Under 205 g

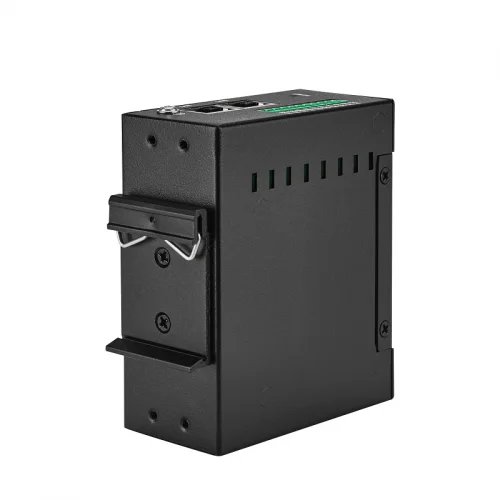

Mounting
DIN rail or wall
• Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 3000 m
