Lithium lead acid battery multi power consumption display power module

Product Overview

Description

Product name

Lithium lead acid battery multi power consumption display power module



Product parameters

Name	Battery capacity tester
Display range	5~73V
Display mode	LCD
Working current	<5mA
Sleep current	12ua (12V test)

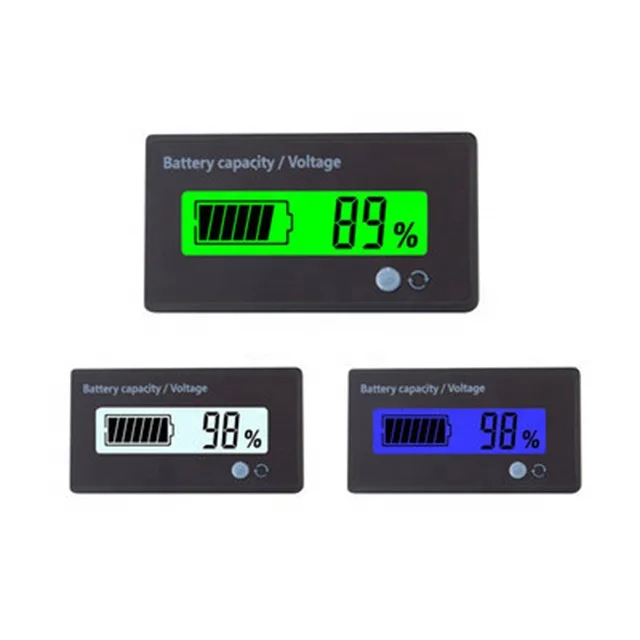

Light color	Green / Blue / white

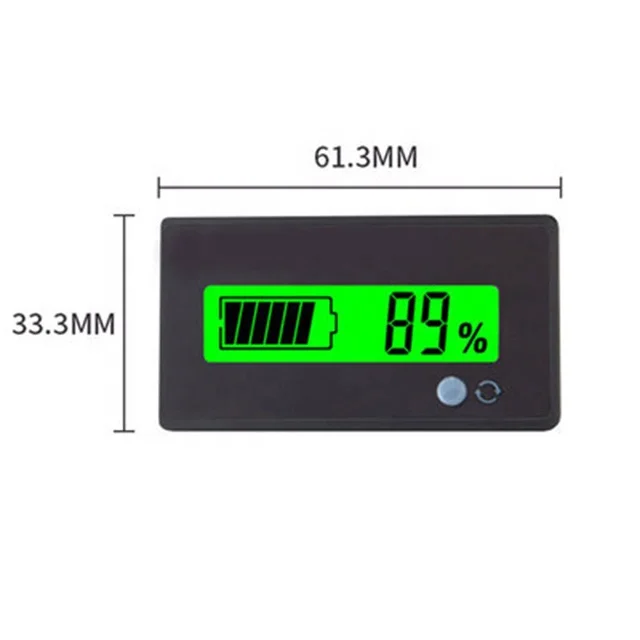

Product size	61.3 * 33.3 * 13.5mm
Opening size	58.3 * 28.5mm



Scope of application

Lead acid battery supports 12V - 48V and can be used

Lithium battery supports 2-17 strings

Lithium iron battery supports 3-17 series use



Setting steps

1. Press and hold the setting key to supply power and enter the setting interface.

2. Briefly press the setting key to select the battery specification (P lead acid, l lithium battery, f lithium iron phosphate).

3. Short press the function key to select the number of battery strings (the setting key increases and the function key decreases).

4. Long press the function key to set the S mode, select the corresponding mode with the setting key, and turn on or cancel the function key.

5. Power on again after setting.

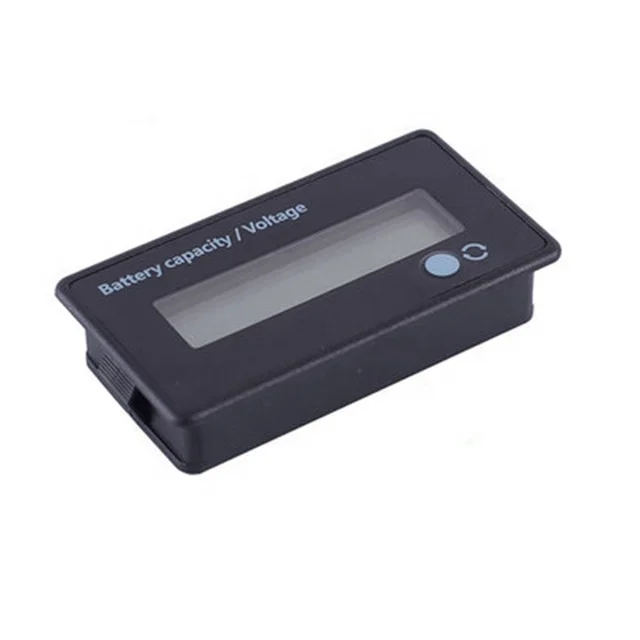

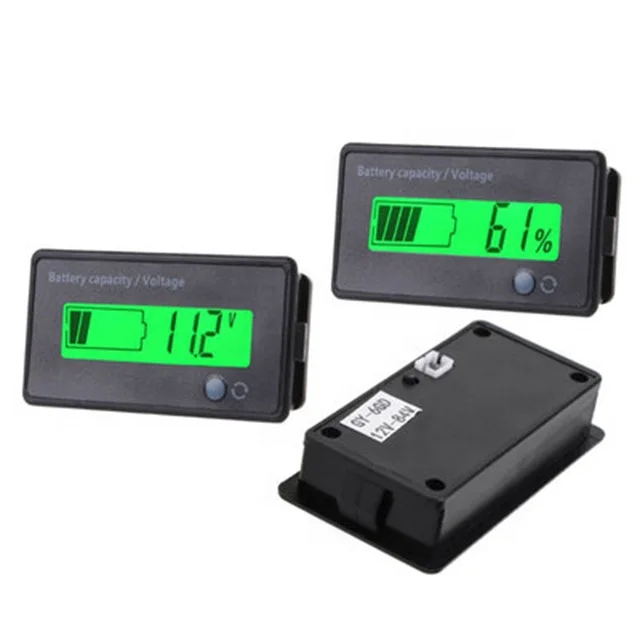

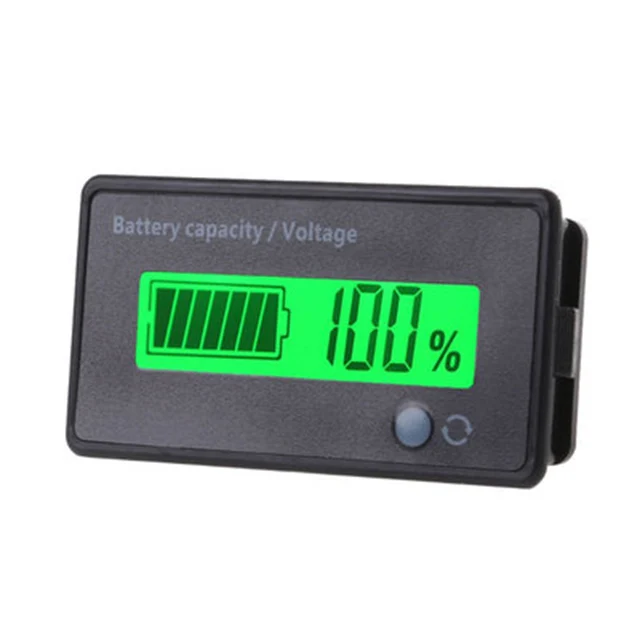

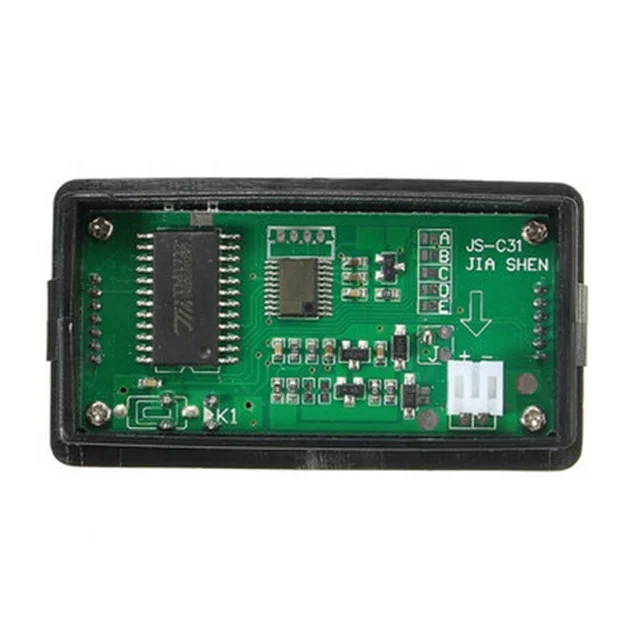

Product pictures
