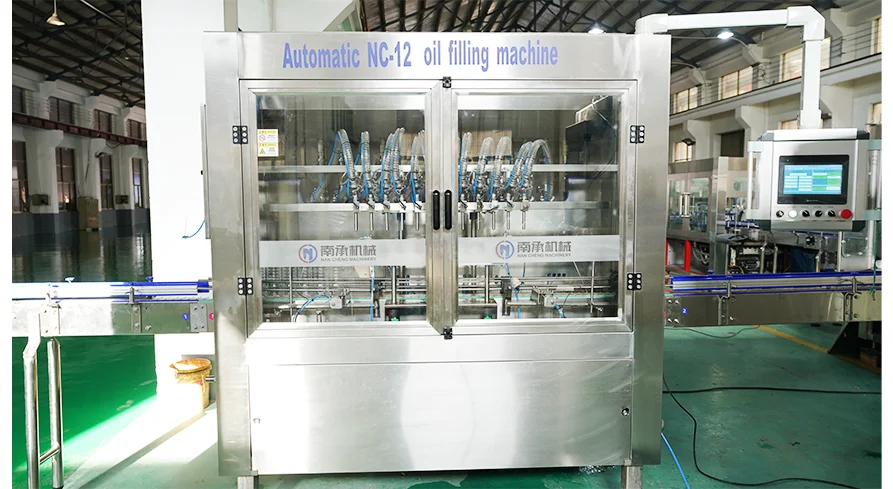

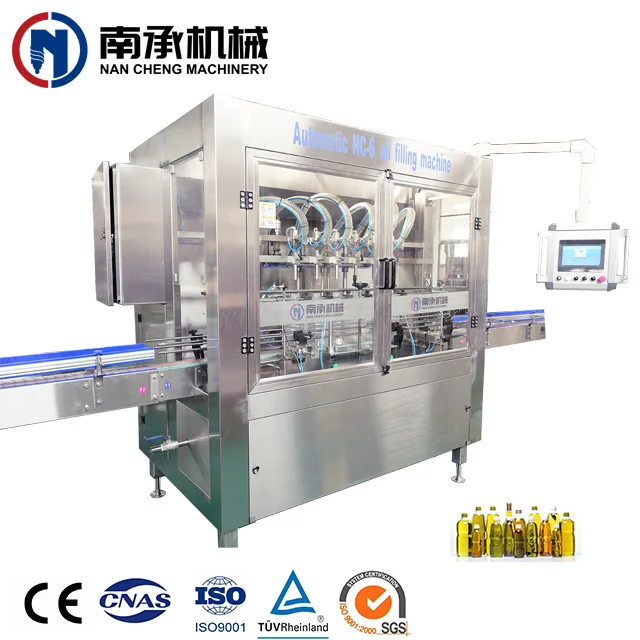

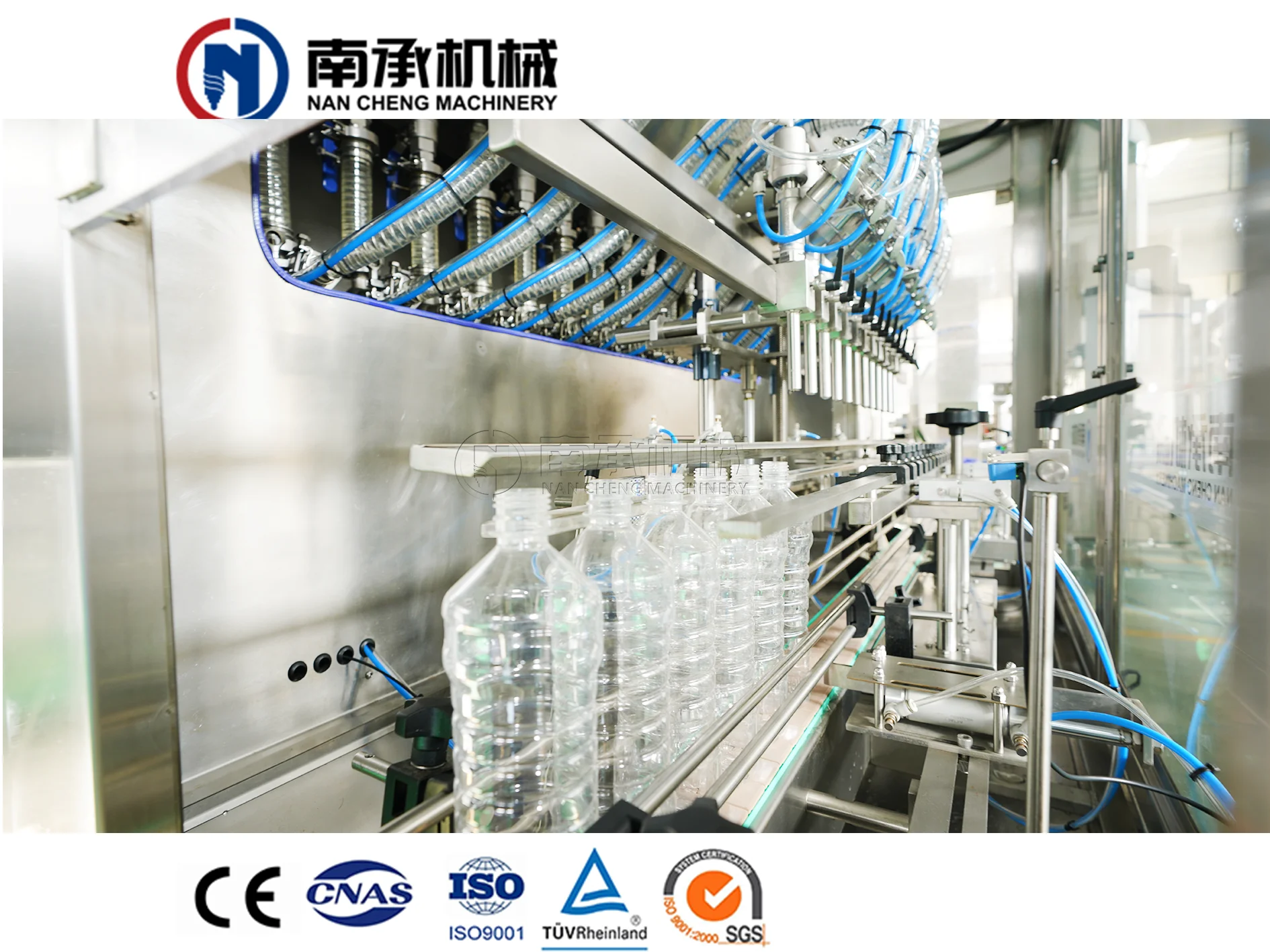

Automatic Liner Type Oil Filling Capping And Sealing Machine With Palm Linseed Canola Liquid Oil Price
- Category: >>>
- Supplier: Zhangjiagang City Nan Cheng Machinery Co. Ltd.
Share on (1600467412864):
Product Overview
Description
Low price Factory direct supplier automatic oil filling machine
1. Model NC-2,NC-4,NC-6,NC-8,NC-10,NC-12
2. Capacity : 1000BPH,2000BPH,3000BPH,4000BPH,5000BPH,6000BPH.
3. Suitable : Plastic bottle 500ML-5L all kinds of bottles.
4. Machine electric brand : SIEMENS , MITSUBISHI
5. Machine include function :filling capping, Anti-corrosion filling head,normal caps and spray caps.
6. Application: Oil, Detergent, Beverage, Mineral water, pure water, flavor water; Lubricant Oil filling line/oil filling
and packing machine
and packing machine
7. The machine is equipped with explosion-proof motor to protect the safety of employees.
Product Description
1)This machine has compact structure, flawless control system, and is convenient To operate with high grade automatism 2)All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed 3)Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling level The capping head has constant twisting movement, which ensures capping Quality, without damaging caps 4)Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation5)There is flawless equipment for overload protecting, which can protect effectively machine and operator safety
Application
We always provide high quality machines and perfect service.

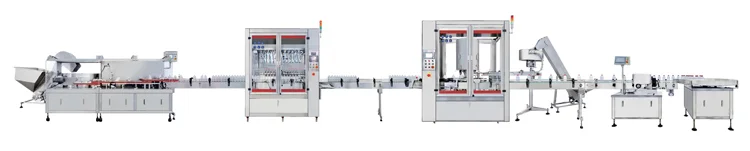

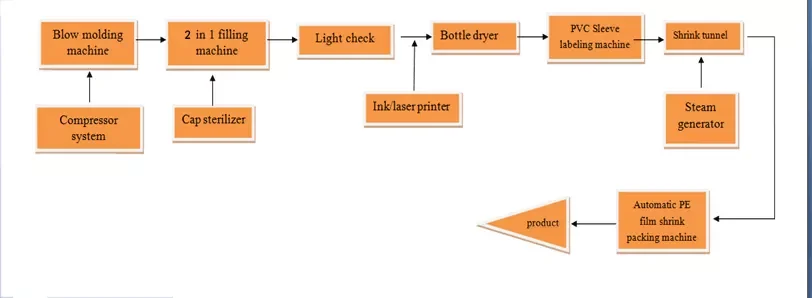

Production Process

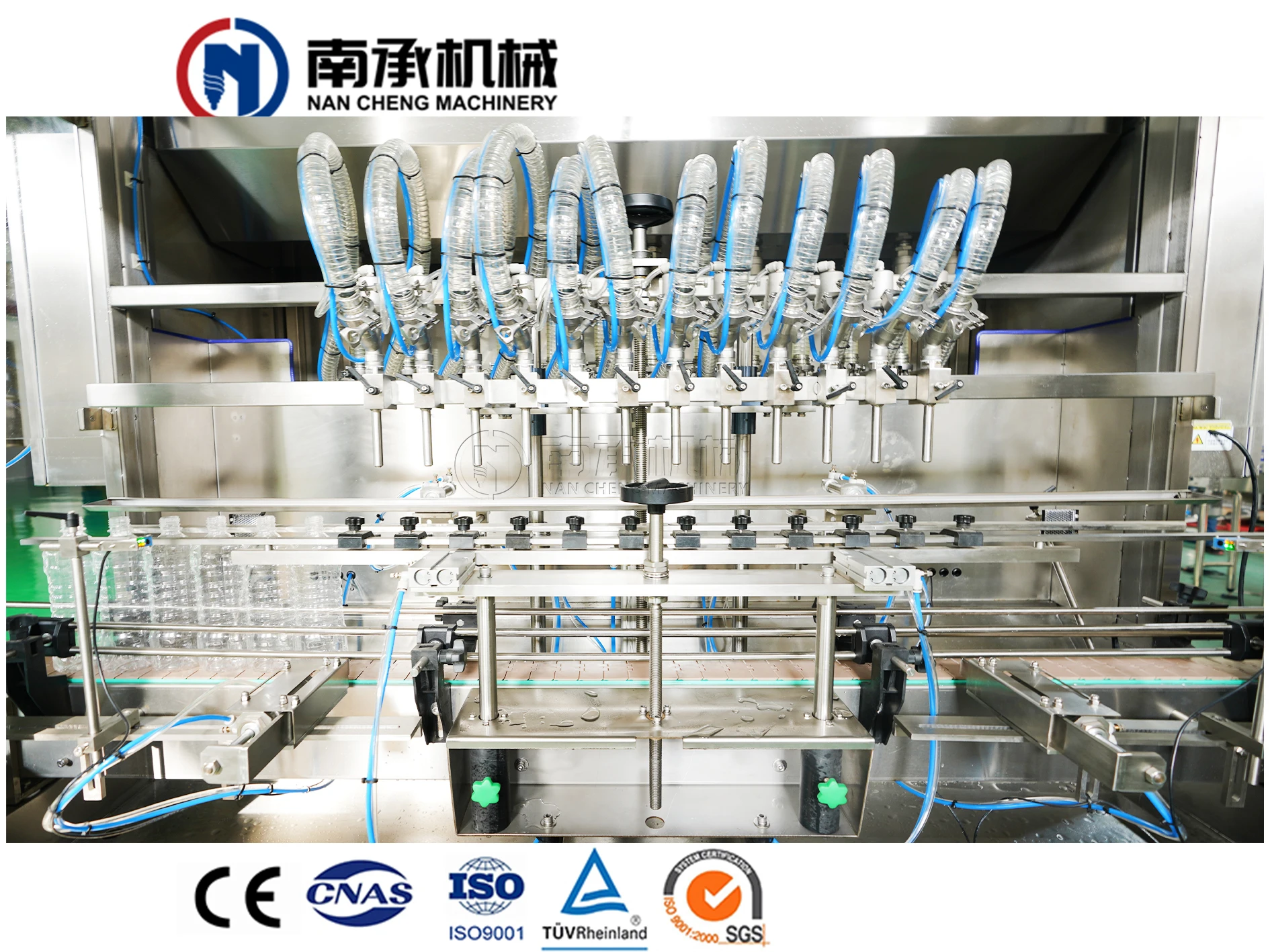

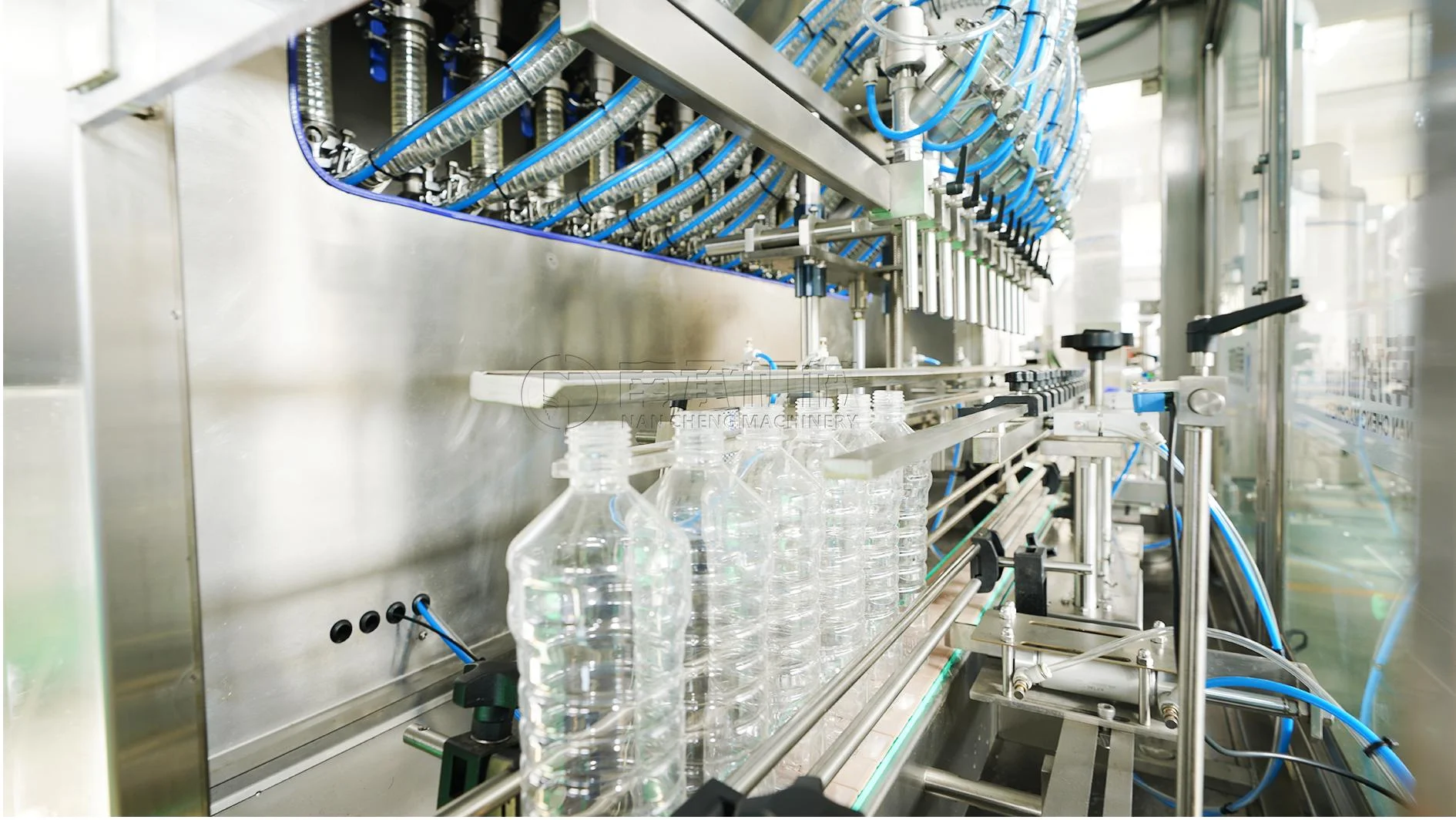

Filling part
1.According to different filling materials, we will use different quality of piston rings.2.White is usually used in filling edible oil products,the black one usually used in industry oil.3.Both these two kind of piston rings are made of Teflon material，inside the rings is a spring，it has the function of automatic adjust the gap caused by friction.So that the piston rings have a long-service time.

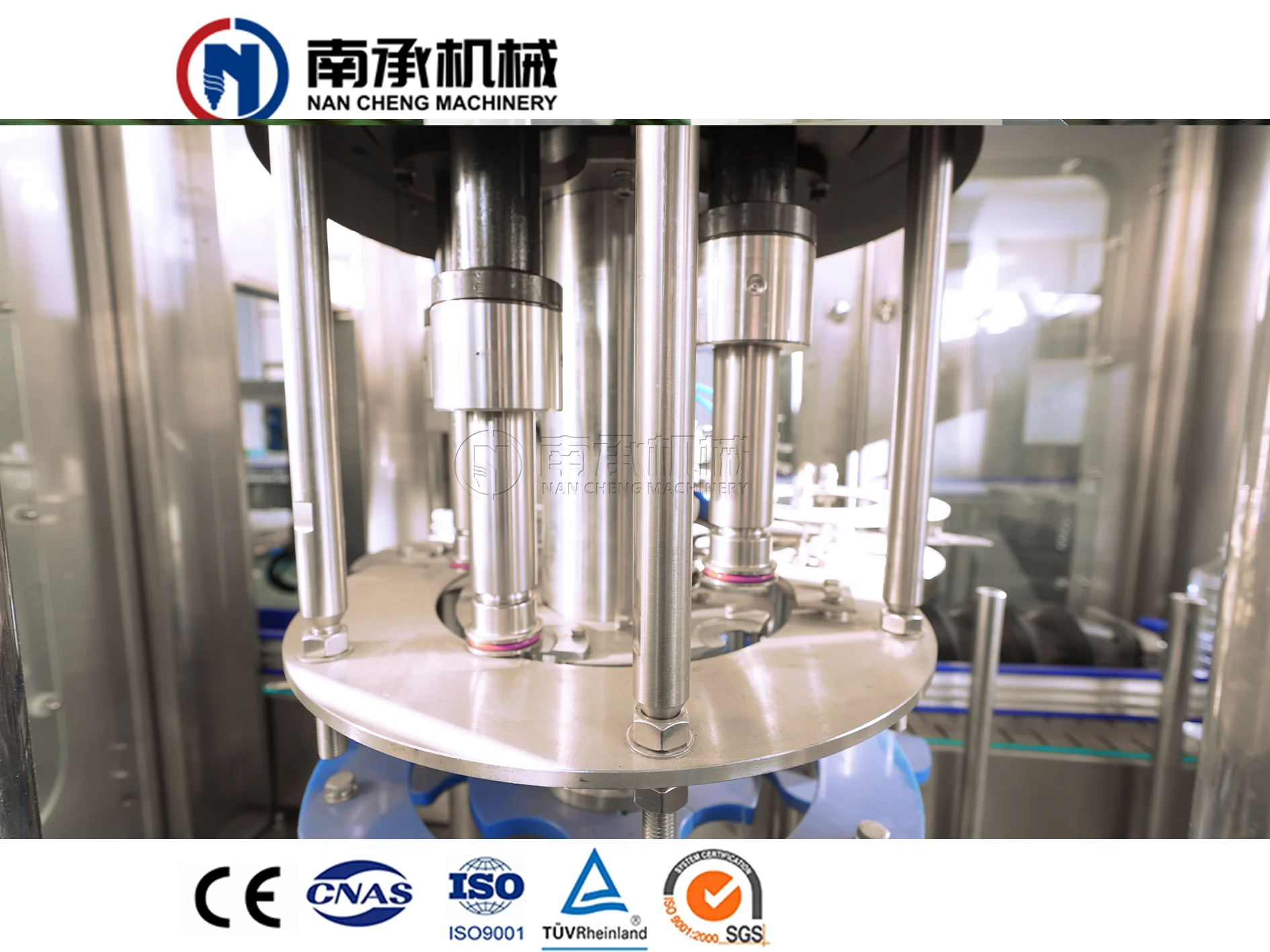

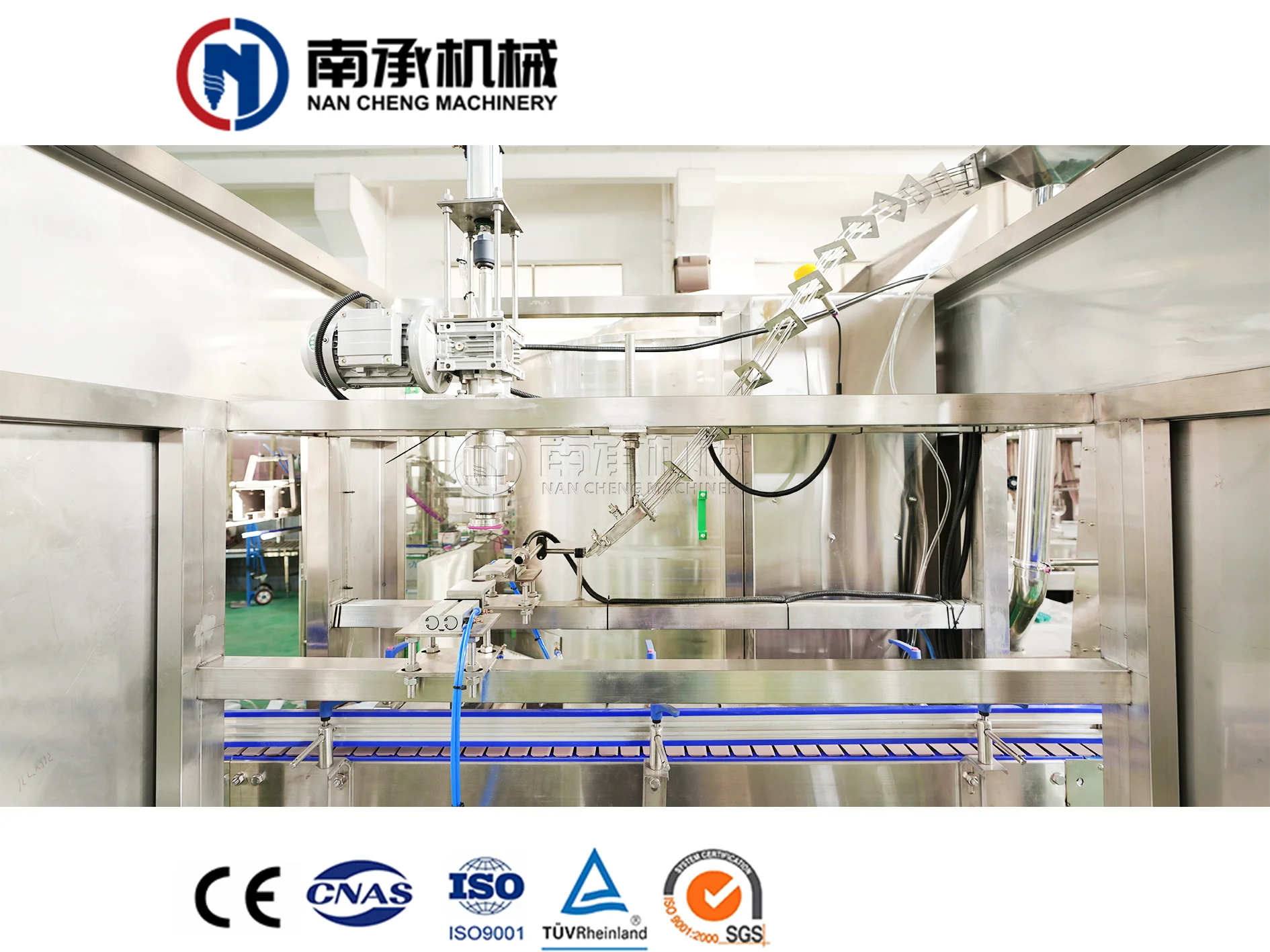

Capping part
1.Capping machine, integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together. 2.Bottle inlet by belt clamping and cap screwing by tracking capping head, during capping, the bottle will not stop, bottle moving and capping action at the same time.3.Avoid liquid spill, adopts servo control torque capping, harmless to bottle and cap, fast speed, safe and stable, high capping rate

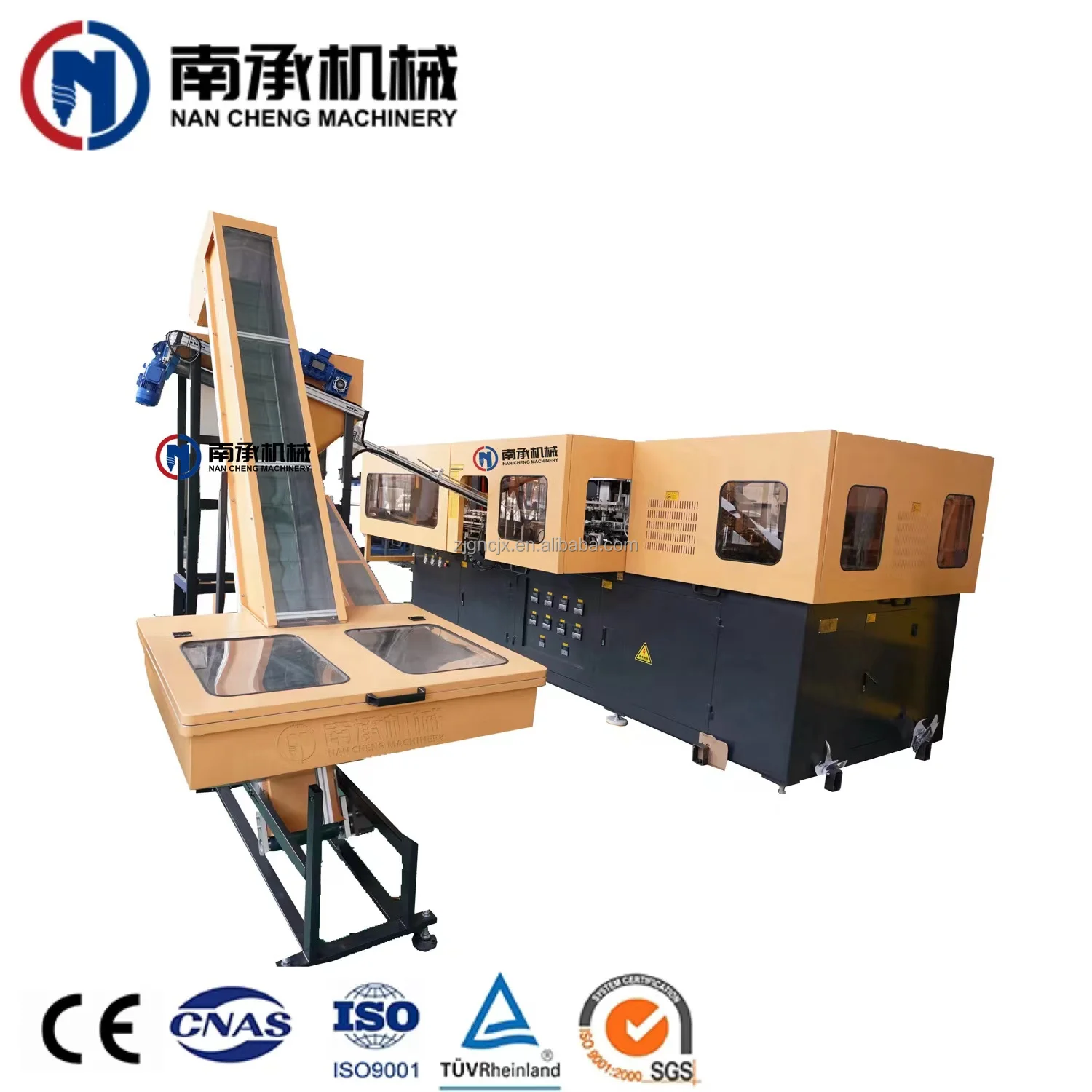

PET Bottle Making Machine.
1/Stable performance with advanced PLC.
2/No contamination and low noise with the air cylinder to drive the action instead of the oil pump.3/Strong clamping force with high pressure lock the mold.4/Two ways of operating: automatic and manual.
2/No contamination and low noise with the air cylinder to drive the action instead of the oil pump.3/Strong clamping force with high pressure lock the mold.4/Two ways of operating: automatic and manual.
5/Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
6/Low cost,high efficiency,easy operation,easy maintenance,etc,with automatic technological process.
6/Low cost,high efficiency,easy operation,easy maintenance,etc,with automatic technological process.

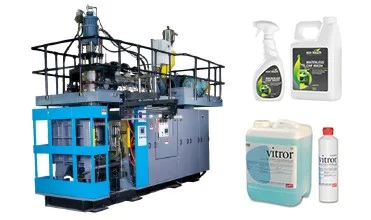

PE / PP Bottle Making Machine.
1/Extruding system:Various screw design for high efficiency of mixing and elasticizing the quality.2/Clamping device:Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well.
3/Hydraulic pattern and pneumatic system:adopt the oil circulation system from America Vickers or Japan YUKEN makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.
3/Hydraulic pattern and pneumatic system:adopt the oil circulation system from America Vickers or Japan YUKEN makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.

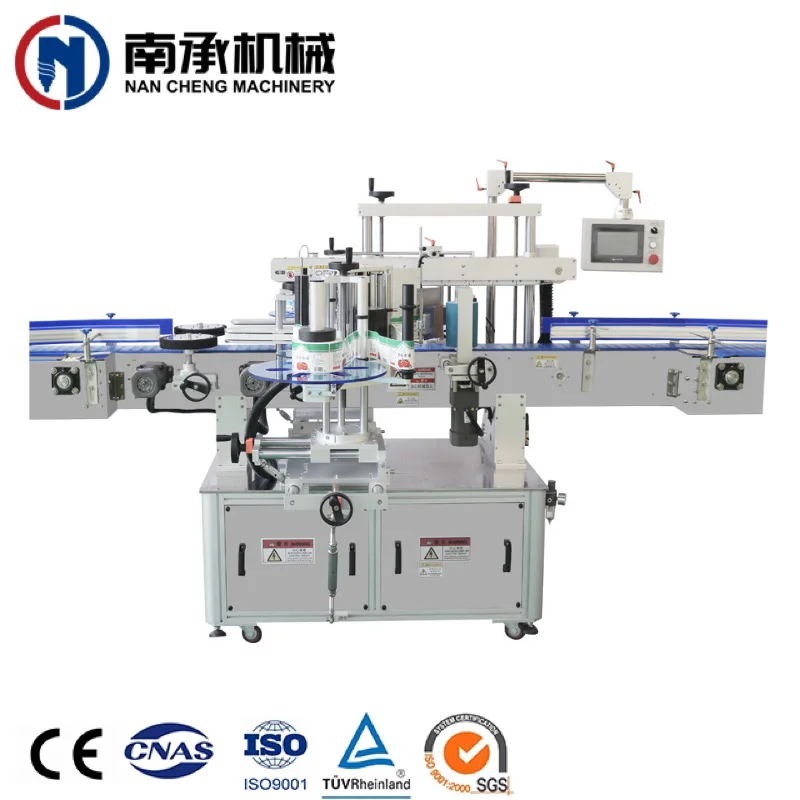

Automatic Double Side labeling machine.
1/Adopt mature PLC control technology, make the machine stable and high-speed
2/Can be suitable for square /round/oval flat bottles at the same time
3/Use touch screen control system, make operation simple, practical and efficient
4/Screw adjust the suppression mechanism, high accuracy
5/Tranparent label sensor is for optional
6/Can be customized according to your requirement
2/Can be suitable for square /round/oval flat bottles at the same time
3/Use touch screen control system, make operation simple, practical and efficient
4/Screw adjust the suppression mechanism, high accuracy
5/Tranparent label sensor is for optional
6/Can be customized according to your requirement
Technical Parameters
Model | NC-6A | NC-8A | NC-10A | NC-12A | NC-16A | ||||
Dimension | 2200*1100*2200 | 2300*1100*2200 | 2400*1100*2200 | ||||||
Filling heads | 6 | 8 | 10 | 12 | 16 | ||||
Capacity(1L) | 1800BPH | 2400BPH | 3000BPH | 3600BPH | 4800BPH | ||||
Power | 2.2KW | 2.2KW | 2.2KW | 3KW | 3KW | ||||
Suitable bottle | Diameter:Φ40mm-Φ100mm Height:80mm-280mm | ||||||||
Filling volume | 200ml-1000ml | ||||||||
Gas pressure | 0.55-0.8Mpa | ||||||||
Gas Pressure | 0.8m3/min | 1.2m3/min | 1.4m3/min | 1.6m3/min | 1.8m3/min | ||||
Voltage | 220V380+10%/-10% | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Certifications
FAQ
1.HOW TO FIND MACHINERY?
1/Search Alibaba,Google,Youtube,Facebook and find suppliers and manufacturer,not traders
2/Visit exhibition in different countries
3/Send Nancheng Machinery an request and tell your basic inquiry
4/Nancheng Machinery sales manager will reply you in short time and add instant chatting tool
2.YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
1/If we can full-fill your request and you interested in our products,you may pay a visit to Nancheng Machinery site
2/The meaning of visiting supplier,because seeing is believing,Nancheng Machinery with our own manufacture and developed&research team,we can send you engineers and make sure your after sales service.
3.HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1/Through Alibaba letter guarantee service,it will ensure the on time delivery and the quality of the equipment you want to buy.
2/By letter of credit,you can lock the delivery time easily.
3/After the factory visit,You can ensure the facticity of our bank account.
4.SEE Nancheng MACHINERY HOW TO ENSURE THE QUALITY!
1/In order to ensure the accuracy of each part,we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2/Each component before assembly needs strictly control by inspecting personnel.
3/Each assembly is in charged by a master who has working experience for more than 5 years
4/After all the equipment are completed,we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
5.THE AFTER-SALE SERVICE OF Nancheng MACHINERY!
1/After finish the production,we will debug the production line,take photos,videos and send them to customers via mail or instant tools
2/After the commissioning,we will package the equipment by standard export package for shipment.
3/According to the customer's request,we can arrange our engineers to customers' factory to do the installation and training.
4/Engineers,sales managers and after-sales service manager will form a after-sales team,online and off line,to follow the
customers' project.
1/Search Alibaba,Google,Youtube,Facebook and find suppliers and manufacturer,not traders
2/Visit exhibition in different countries
3/Send Nancheng Machinery an request and tell your basic inquiry
4/Nancheng Machinery sales manager will reply you in short time and add instant chatting tool
2.YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
1/If we can full-fill your request and you interested in our products,you may pay a visit to Nancheng Machinery site
2/The meaning of visiting supplier,because seeing is believing,Nancheng Machinery with our own manufacture and developed&research team,we can send you engineers and make sure your after sales service.
3.HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1/Through Alibaba letter guarantee service,it will ensure the on time delivery and the quality of the equipment you want to buy.
2/By letter of credit,you can lock the delivery time easily.
3/After the factory visit,You can ensure the facticity of our bank account.
4.SEE Nancheng MACHINERY HOW TO ENSURE THE QUALITY!
1/In order to ensure the accuracy of each part,we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2/Each component before assembly needs strictly control by inspecting personnel.
3/Each assembly is in charged by a master who has working experience for more than 5 years
4/After all the equipment are completed,we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
5.THE AFTER-SALE SERVICE OF Nancheng MACHINERY!
1/After finish the production,we will debug the production line,take photos,videos and send them to customers via mail or instant tools
2/After the commissioning,we will package the equipment by standard export package for shipment.
3/According to the customer's request,we can arrange our engineers to customers' factory to do the installation and training.
4/Engineers,sales managers and after-sales service manager will form a after-sales team,online and off line,to follow the
customers' project.
welcome to mail me,if you have any questions.
