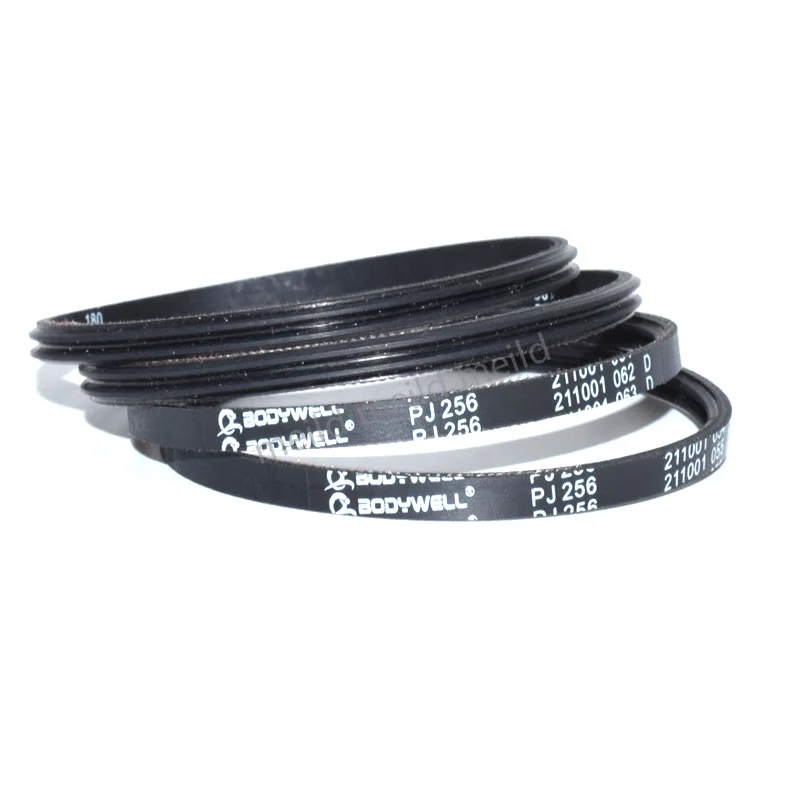

PJ multi groove belt special belt for washing machine 3pj256 for photovoltaic equipment
- Category: >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600467447753):
Product Overview
Description
Product introduction

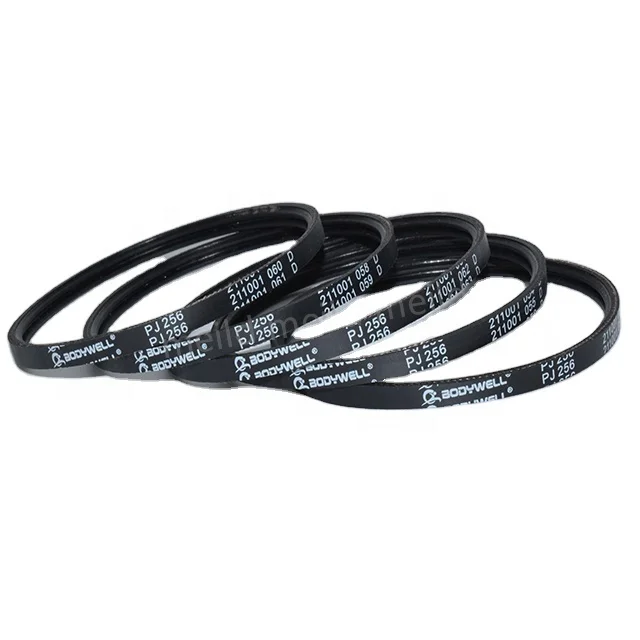

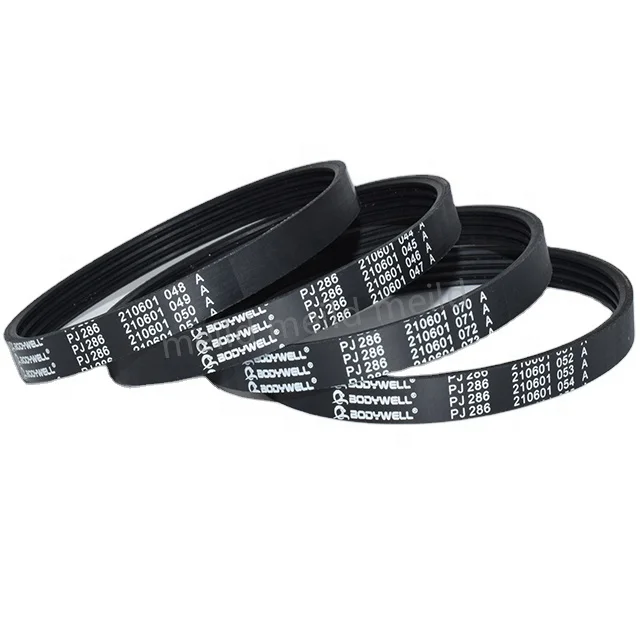

Grooved elastic belt with multiple longitudinal transmission----Bodywell elastic belt
High performance, long life, cost optimization, wide application
High performance, long life, cost optimization, wide application
product structure:
> uses high elastic polyamide resin core wire, belt elasticity increase > widely used, suitable for all kinds of transmission mechanisms and turning lines and other equipment > temperature adaptability range is: -35 ℃~ 120 ℃
product Features:
Because the belt body adopts high elastic material, it can absorb the vibration and external force impact of the equipment. The belt is added with antistatic material, in line with ISO 1813 standard.
Because the belt body adopts high elastic material, it can absorb the vibration and external force impact of the equipment. The belt is added with antistatic material, in line with ISO 1813 standard.
Product Paramenters
If you have special requirements, please contact us and we will meet your needs.
Technical parameters：
PJ type elastic polywedge belt | ||
The thickness of the belt | 3.0mm | |
Minimum pulley diameter | 16mm | |
Maximum linear velocity | 60m/s | |
Line weight | 0.008kg/rib | |
The tension value | 78±16N/rib/span | |
Installation and maintenance
BodyWell ® elastic belt is easy to install; The elastic belt can offset the errors of equipment parts, more practical; No cleaning, no maintenance, no tension, no lubrication, corrosion resistance.
Due to the elastic properties of the lateral tripod, the BodyWell ® belt effectively avoids belt pulsation and significantly reduces noise caused by percussion, vibration, and flapping. Not affected by the speed of operation, to ensure the quiet transmission; With an average life of up to 3 years, the BodyWell belt maintains constant tension without any special maintenance after a quick trial run. The belt can run continuously for 24 hours to improve working efficiency.
Application Advantages:
The > price is low cost
> structure is simple and compact, no tensioning system
> greatly reduces vibration and belt noise
> installed in the fixed center distance mechanism, no need to reverse the tension adjustment of the belt
> belt offsets vibration, reduces impact load on transmission system and improves system life
> structure is simple and compact, no tensioning system
> greatly reduces vibration and belt noise
> installed in the fixed center distance mechanism, no need to reverse the tension adjustment of the belt
> belt offsets vibration, reduces impact load on transmission system and improves system life

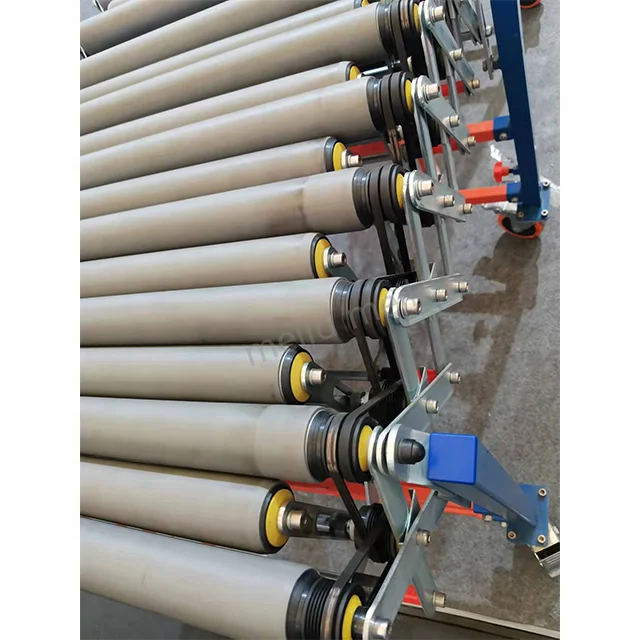

Light load, excellent mechanical properties of BodyWell ® belt, and up to 30 rollers driven by a single motor
Only one motor drives,
The diameter of the drum is 50mm, the pulley is 43mm, the load is 50kg, the power is 55W and the speed is 100RPM
BodyWell ® is a "six in one" type belt that can carry a load of 1kg ~ 400kg and can replace the six processes in the delivery system(Flat belt, round belt, timing belt, torsion belt, tangential belt and chain)
Only one motor drives,
The diameter of the drum is 50mm, the pulley is 43mm, the load is 50kg, the power is 55W and the speed is 100RPM
BodyWell ® is a "six in one" type belt that can carry a load of 1kg ~ 400kg and can replace the six processes in the delivery system(Flat belt, round belt, timing belt, torsion belt, tangential belt and chain)
Power range:
Power range from 55 to 550W and 0.1m /S to 3M/S
PJ2/3/4 teeth into 1 ~ 400kg light load roller (belt wheel diameter 43mm) conveyor design. It can completely replace the existing round polyurethane belt, and the transmission torque exceeds 4 times to ± O, which can be used in the 10% tilt range.
PJ2/3/4 teeth into 1 ~ 400kg light load roller (belt wheel diameter 43mm) conveyor design. It can completely replace the existing round polyurethane belt, and the transmission torque exceeds 4 times to ± O, which can be used in the 10% tilt range.
Company Profile
Company tenet:
1. Save costs for customers, only choose the right ones, not the expensive ones;
2. Provide design guidance and product upgrade for customers;
3. Guaranteed delivery time, free customers from worries;
4. Product quality assurance, "zero" after-sales service;
5. Win-win cooperation and mutual benefit;
1. Save costs for customers, only choose the right ones, not the expensive ones;
2. Provide design guidance and product upgrade for customers;
3. Guaranteed delivery time, free customers from worries;
4. Product quality assurance, "zero" after-sales service;
5. Win-win cooperation and mutual benefit;
Certifications
Logistics and Payment
Our Advantages
Q1: Can I order a small amount of samples?
----Yes it is. We can provide you with samples of bulk prices and send them to you via DHL, TNT. EMS, FEDEX or others according to
your requirements.
Q2: How do I know if the belt is suitable for my machine?
----You can tell me which product you are interested in, and I will provide you with its main dimensions. You can also send me
drawings or samples, and then we will put them into production according to your requirements.
Q3: I want to find a supplier of my new product. can you help me?
---- Yes it is. Please send me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
----It is usually 10-15 days for drawings and 7 days for samples.
Q5: Can we template (or print) the logo or company name on the belt or packaging?
---- Yes it is. Before mass production, please inform us of your logo or design.
Q 6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance before shipment.
Q7: What is your quotation?
----We will give you an FOB price. But EXW, CIF and CNF can also be given according to your presentation
----Yes it is. We can provide you with samples of bulk prices and send them to you via DHL, TNT. EMS, FEDEX or others according to
your requirements.
Q2: How do I know if the belt is suitable for my machine?
----You can tell me which product you are interested in, and I will provide you with its main dimensions. You can also send me
drawings or samples, and then we will put them into production according to your requirements.
Q3: I want to find a supplier of my new product. can you help me?
---- Yes it is. Please send me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
----It is usually 10-15 days for drawings and 7 days for samples.
Q5: Can we template (or print) the logo or company name on the belt or packaging?
---- Yes it is. Before mass production, please inform us of your logo or design.
Q 6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance before shipment.
Q7: What is your quotation?
----We will give you an FOB price. But EXW, CIF and CNF can also be given according to your presentation
