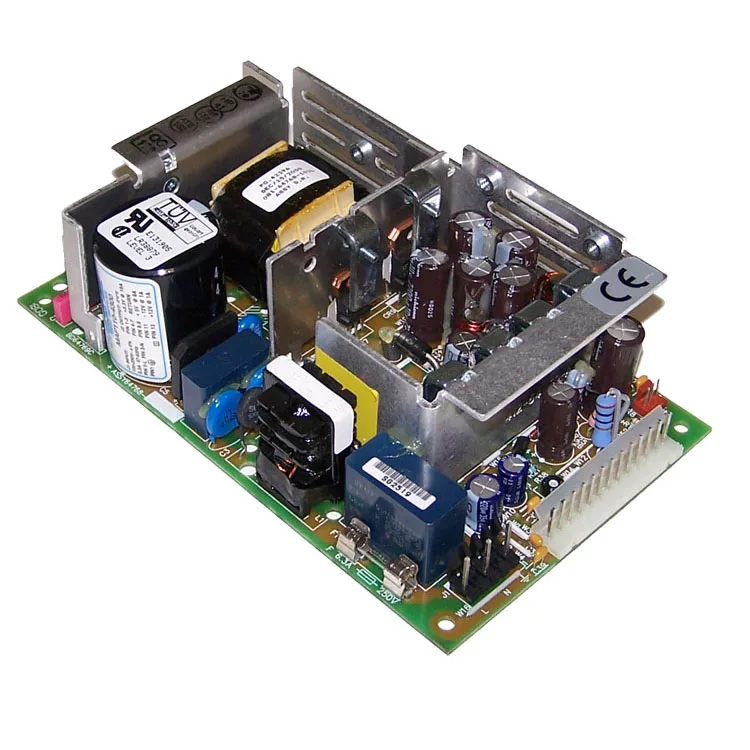

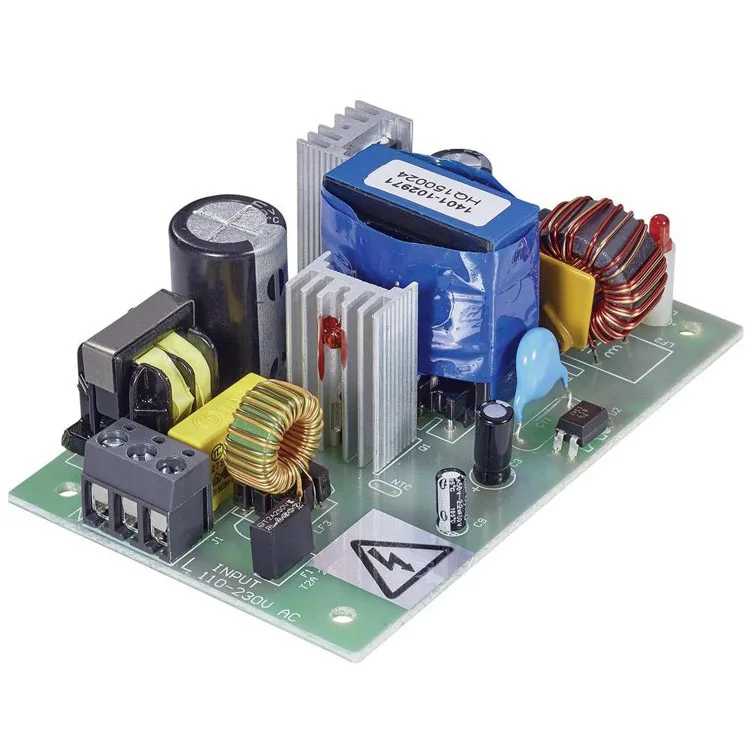

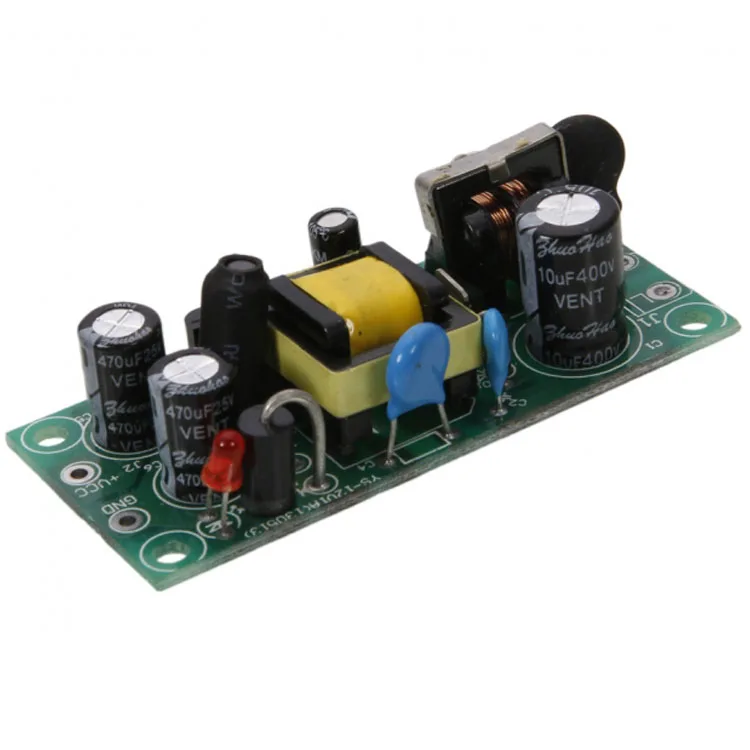

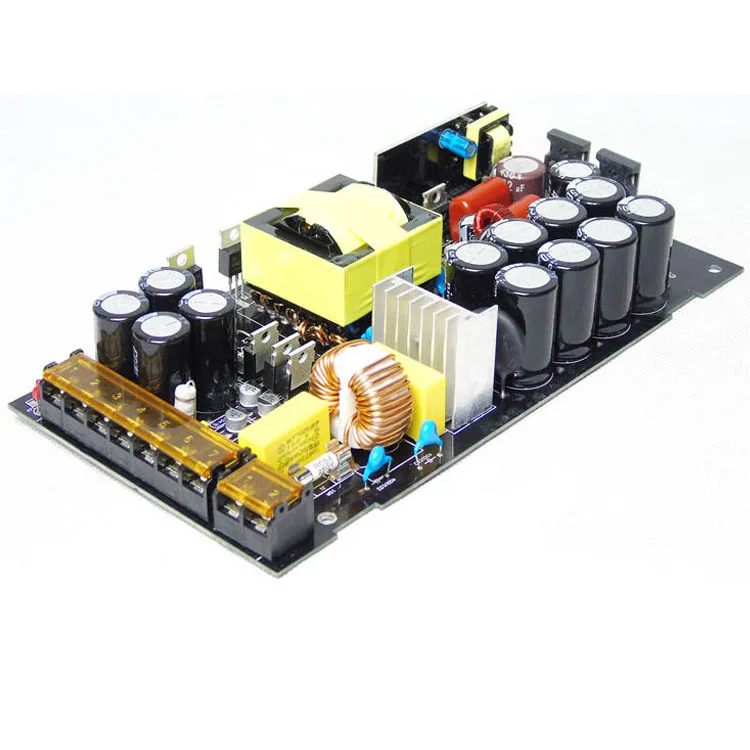

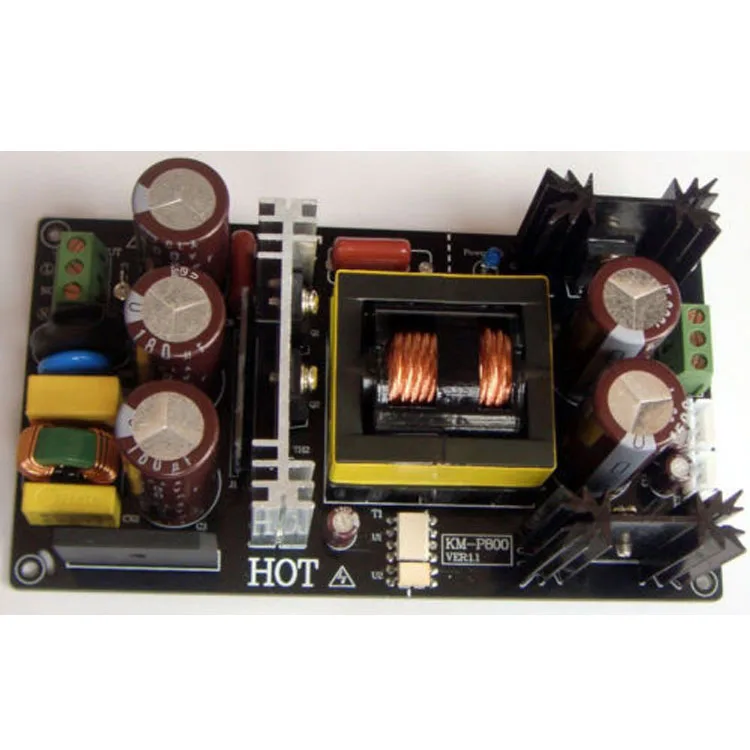

PCBA Printed Circuit Board Electronics Led Professional Audio, Video Switching Power Supply PCB
- Category: >>>
- Supplier: Gesp Technology (Dalian) Co. Ltd.
Share on (1600467466538):
Product Overview
Description
0 30v 0 5a mini 30v5a power supply switching 10 volume developer
Product Description
| Model No. | D-30A | D-30B | D-30C | ||||
| Output | DC output voltage | CH1:5V | CH2:12V | CH1:5V | CH2:24V | CH1:12V | CH2:24V |
Tolerance of output voltage | ±2% | +6%~-8% | ±2% | +4%~-6% | ±2% | +6%~-8% | |
| Rated output current | 4A | 1A | 2.2A | 1A | 1A | 1A | |
| Range of output current | 0.5-4A | 0.2-1A | 0.4-2.2A | 0.1-1A | 0.3-1A | 0.1-1A | |
| Output power | 30W | 30W | 30W | ||||
| Ripple wave and noise | 80mvp-p | 100mvp-p | 80mvp-p | 120mvp-p | 120mvp-p | 120mvp-p | |
| Voltage adjusted range | CH1:-9%~+10% | ||||||
| Input | Range of input voltage | 90-132vac/180-264vac(according to the switch),255-373VDC | |||||
| Frequency | 47-63HZ | ||||||
| AC input current | 0.8A/115VAC,0.45A/230VAC | ||||||
| Efficiency | 73% | 75% | 77% | ||||
| impulse current | cold boot current | ||||||
| Leakage Current | <3.5mA/240VAC | ||||||
| Protection | overload protection | Over rate output power 110%-150%, overload protection will be started | |||||
Protect type:cut out output, return to normal will started automaticly | |||||||
| overvoltage protection | CH2:115%-135% | ||||||
Protect type:cut out output, return to normal will started automaticly | |||||||
| environment | Working temperature and humidity | -10℃~+60℃,20%-90%RH | |||||
Storage Temperature and humidity | -20℃~+85℃,10%-95%RH, no condensation | ||||||
| antiknock characteristic | 10-500HZ,2G 10min/1 cycle, time:60 minutes | ||||||
| safety | resistance to pressure | Between input and output:1.5KVAC, between input and ground line:1.5KVAC, Between output and ground line:0.5KVAC | |||||
| insulation resistance | Between input and output,between input and ground line, between oupt and ground line:100M ohms/500VDC | ||||||
| standard | safety standards | 1012 | |||||
| EMC standards | EN55022,CLASSA | ||||||
| others | size | 129*98*38mm(L*W*H) | |||||
| weight/package | 0.4KG | ||||||
| remark | All character in 230VAC voltage input,25℃ condition.ripple wave and noise voltage measured under 20MHZ bandwidth oscilloscope and 0.1μand 47μ capacitance. | ||||||
Company Information
16 years experience in PCB manufacturing and PCB Assembly
ISO9001, TS16949, RoHS compliant
One-stop solution for PCB design, quick-turn prototyping, components sourcing, SMT & Through-hole assembly,
Functional testing, Enclosure assembly.
Full Range of Testing Services:Visual and AOI Inspection, In Circuit Testing, X-Ray for BGA and Functional Testing.
Our Services
Quality Compare
FAQ
Switch power supply mainly used for stepping motor,PLC control system,surveillance camera, LED light, led light box advertisement, computer,communication equipment,industrial control system,home appliance, traffic , building and so on.
