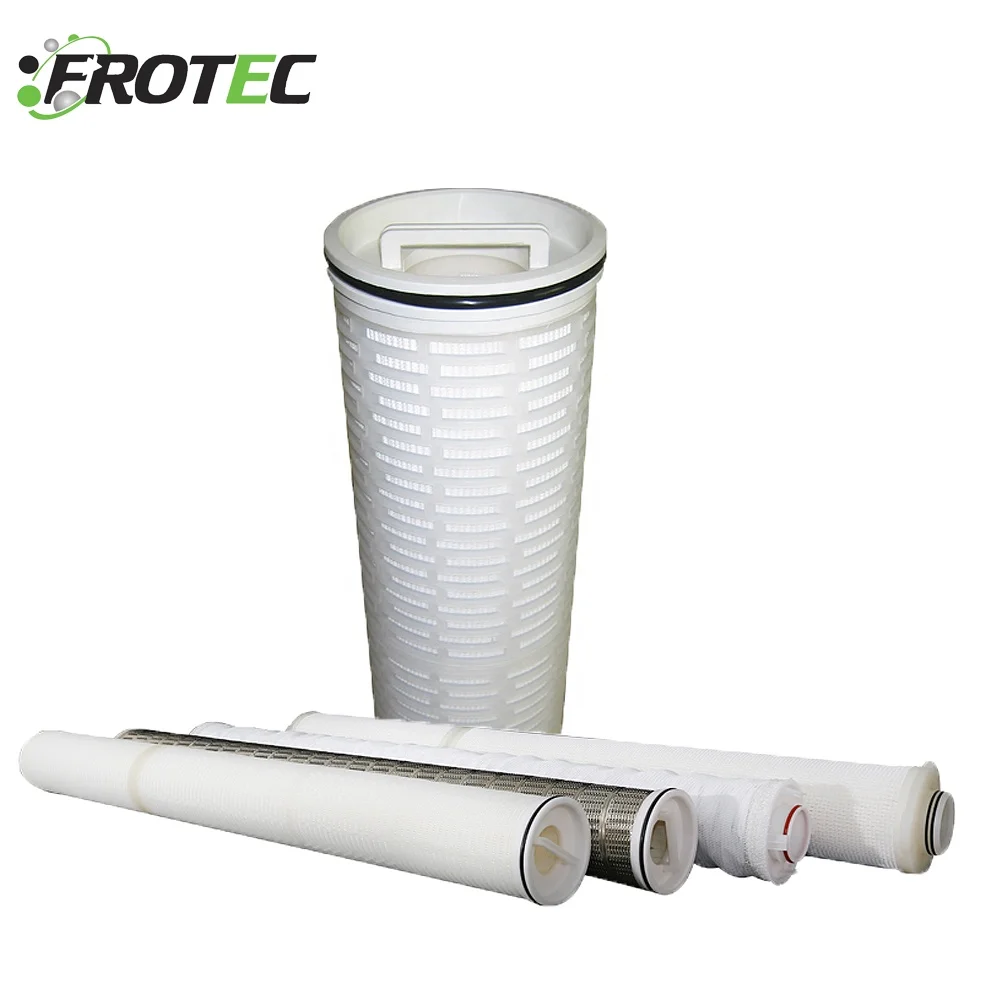

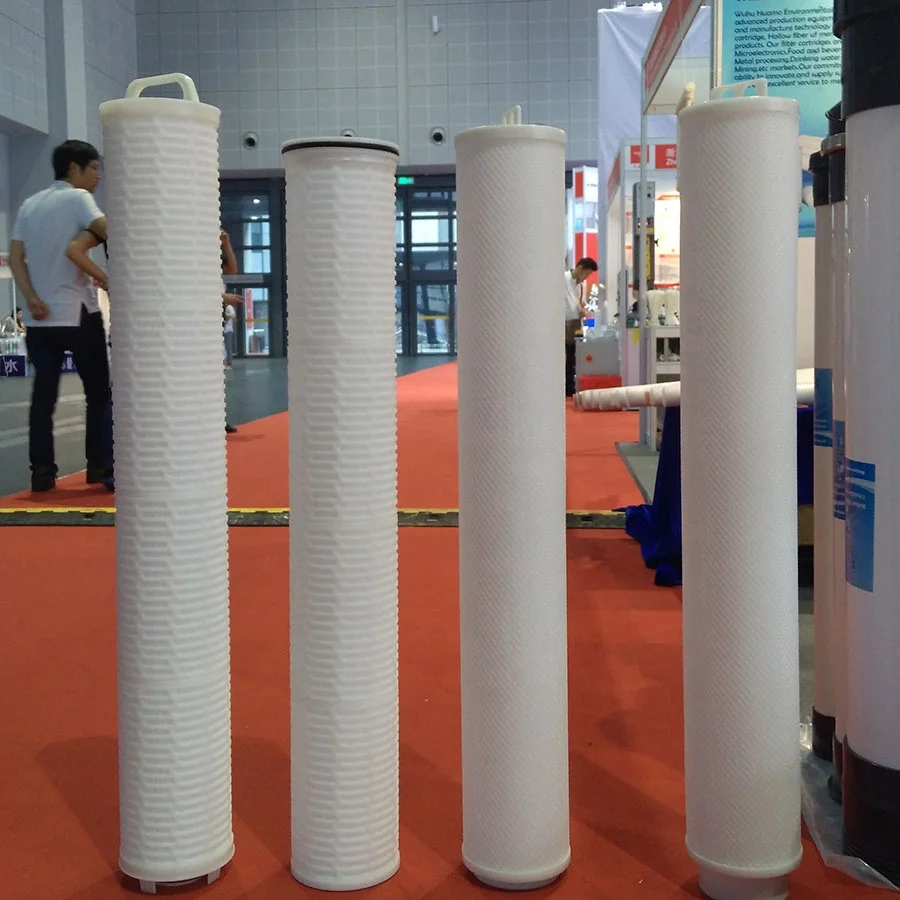

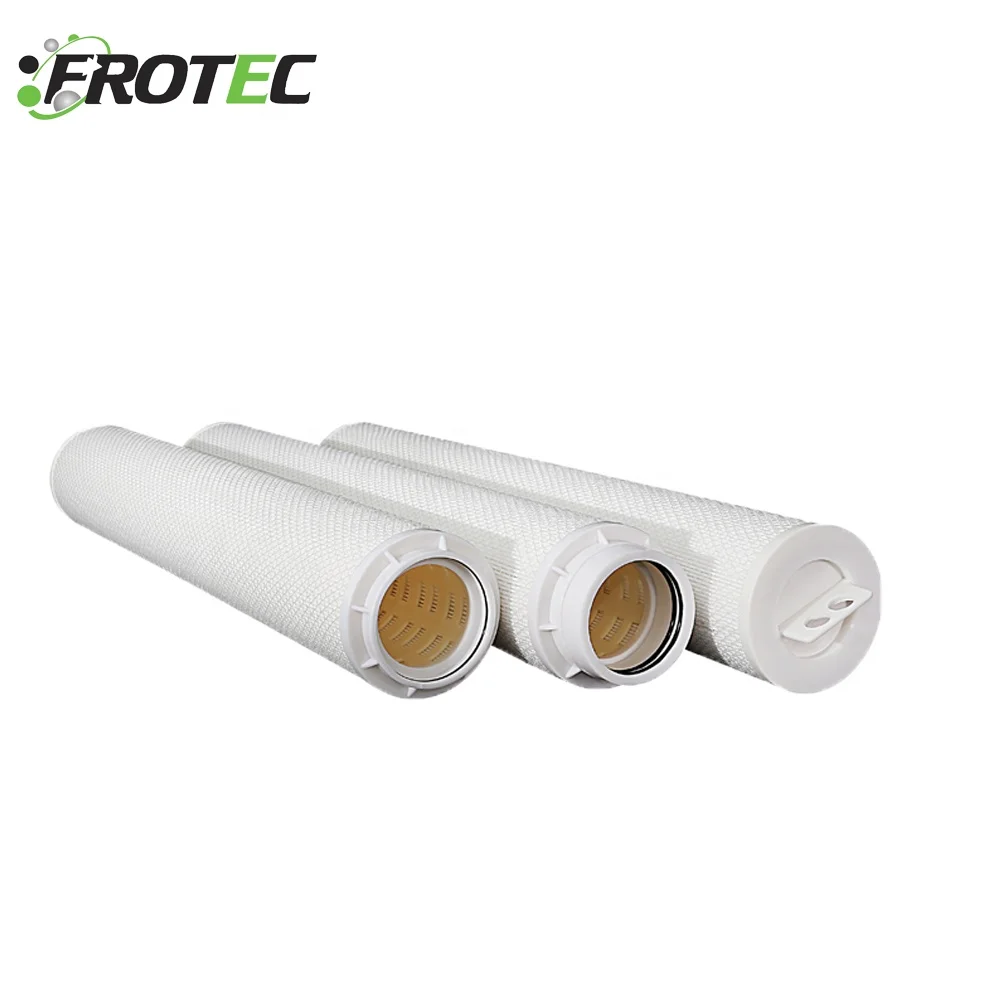

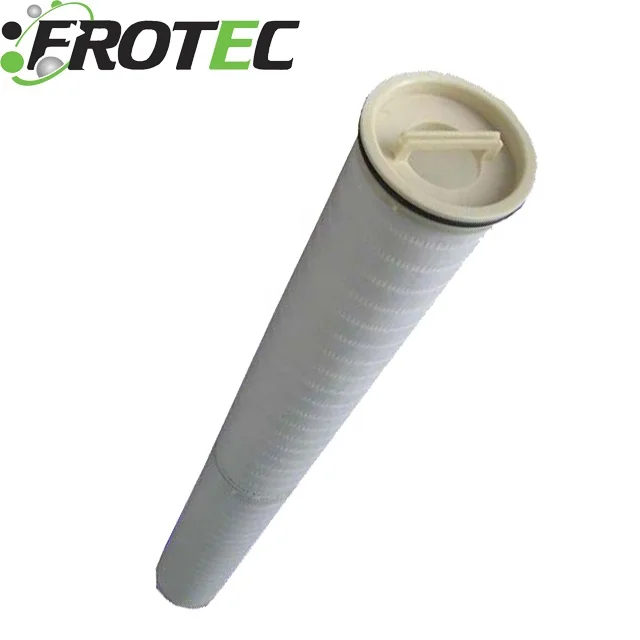

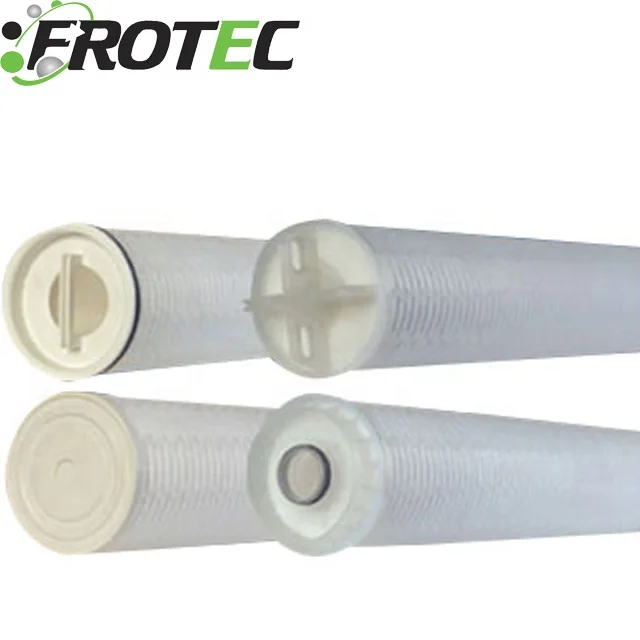

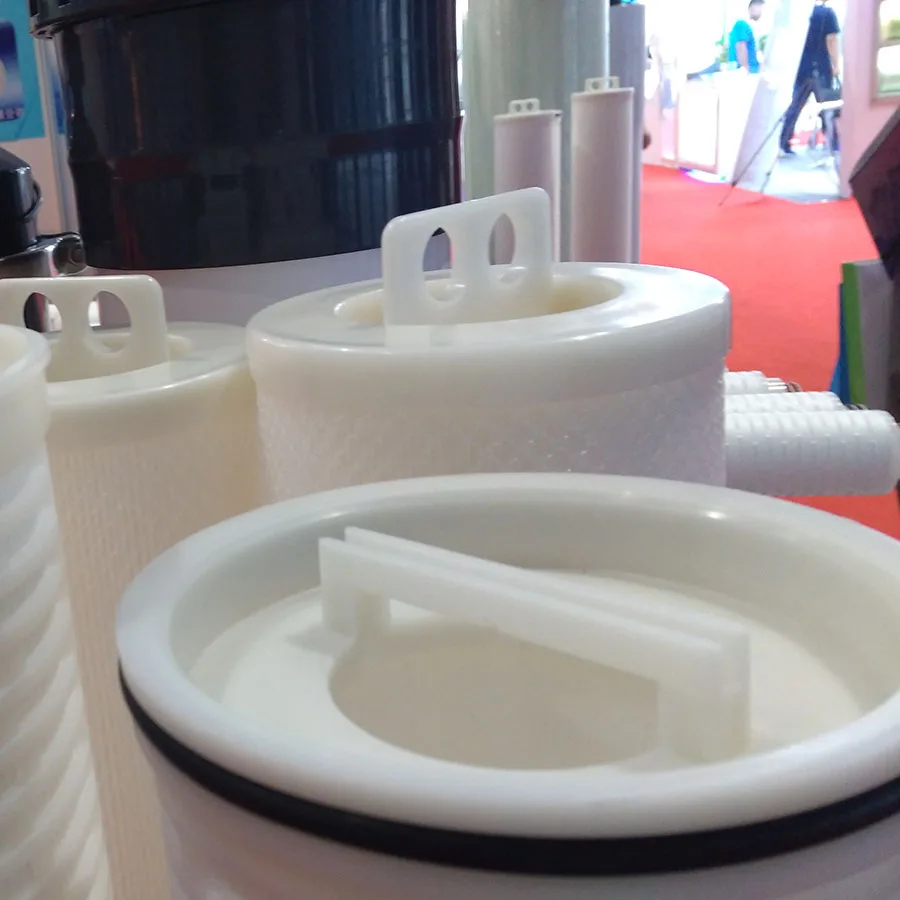

Frotec Industrial 5 Micron Hi Flow Pleated Water Filter Cartridge

1: Description

High Flow Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently. Our High flow filter cartridge can be replace for PALL ULTIPLEAT, CUNO 3M, PARKER MEGAFLOW AND PENTAIR AQUALINE FILTERATION SYSTEMS.

2: Applications

• Prefiltration of RO, pretreatment of sea water desalination

• Bottled water, high fructose, edible oil, soft drinks

• API, solvents, and water filtration in bioPharm market

• Paints and coatings, petrochemical, refineries

• Microelectronics

3: Specification, material of construction

• Media: Pleated glass fiber, pleated depth PP, or melt blown PP

• Support layer: Polypropylene

• End adaptor: Glass fiber reinforced polypropylene

• Seal material: Silicone, EDPM, Buna

• Micron rating: 1um, 4.5um, 6um, 10um, 20um, 40um, 70um, 100um

• Filtration area: 20.69 inch (660LPM); 40.69 inch ( 1,300LPM); 60.69 inch (1,900LPM).

4: Dimensions

• Outside diameter: 6" (152mm)

• Length: 20.69 inch(525mm)/ 40.69 inch(1033mm)/ 60.69 inch(1541mm)

5: Recommended operating conditions

1) Max. operating temperature:

• Pleated glass fiber: 121°C

• Pleated PP: 82°C

• Melt blown PP: 65°C

2) Max. differential pressure:

• Pleated PP: 3.4Bar at 82°C

• Melt blown PP: 1.03Bar at 65°C

• Recommended change out differential pressure: 2.4Bar at 20°C

1. Q: Can I get your products with our logo and design?
    A: Customized service is available. We provide OEM or ODM by customer's logo.

2. Q: What about delivery time?
    A:  If there're stocks of related items you need, we'll send goods to you in 3 working days after 100% deposit. For container order, the lead time will be 3 weeks normally.

3. Q: Do you accept sample order?
    A:  Yes,we can make your customized sample before mass order placed.

4  Q: What's the MOQ ?

    A: We can offer the quantity you required, as we don't dictate MOQ terms.

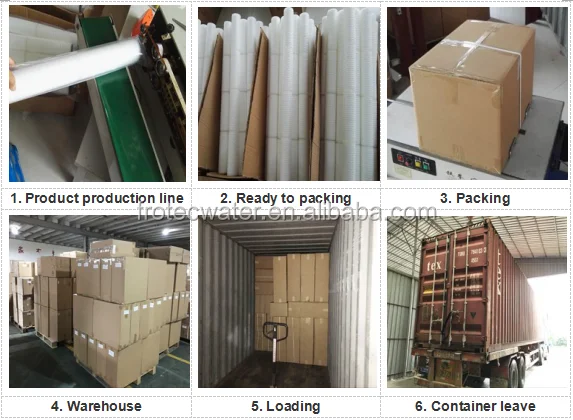

5. Q: How about the shipping?

    A: (1) If the order is small, door to door service is the best choice via DHL, UPS, Fedex, EMS, TNT.

        (2) If you have forwarder in China, we can send the goods to specified warehouse.

        (3) For big quantity, you can choose the ocean shipping, we can also provide the effective forwarder for your reference.

6. Q: Why choosinng us?

    A: We're providing the one-station shopping service for water filter spare parts and ro water system. And we have our own factory manufacture the water filters and membrane housing(FRP/SUS), also we have our membrane include the homeuse and industrial, with decades year of export, which can make sure the quantity and quality and after-sale service.

7. Q: How to contact with you?

    A: Please kindly send me email so that we can send our company catalogue for your reference.
