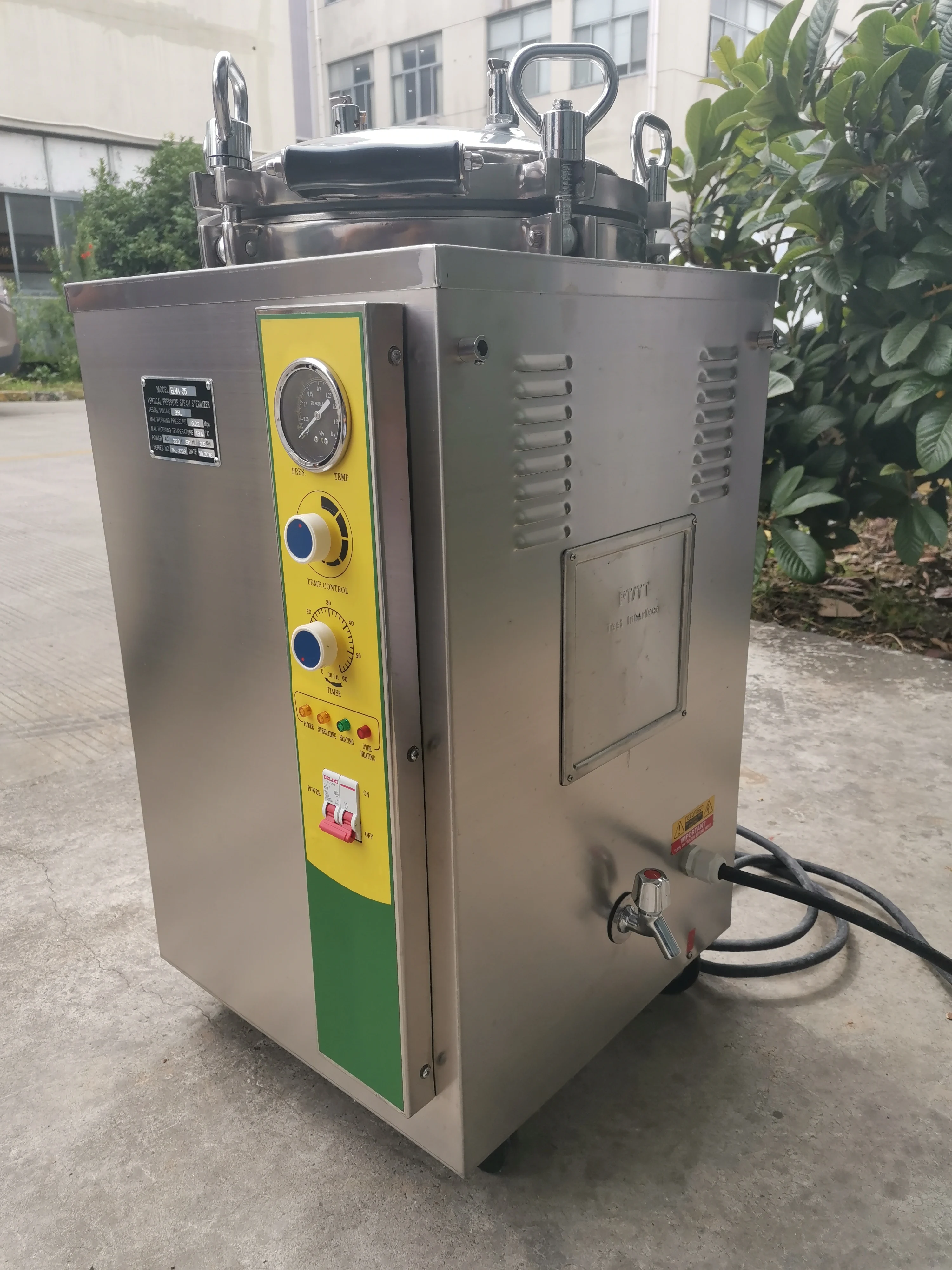

VERTICAL STEAM STERILIZER Autoclave for laboratory

Model JK-HVPS-30L Vertical Cylindrical Pressure Steam Sterilizer is installed with an electrical heater, a timer, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantages of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Main Technical Data

1. Valid volume: 35L;

2. Working pressure: 0.22MPa ;

3. Working temperature: 134℃;

4. Heat average: ≤±1℃;

5. Timer: 0 – 60 min;

6. Pressure-temperature controller: 109 – 134℃, 0.04 – 0.22Mpa;

7. Power:   2.5kW/220v, 50Hz;

8. Overall dimension: 480mm x 460mm x 850 mm (D x W x H);

9. Transport dimension: 570 mm x 550 mm x 970 mm (L x W x H );

10.  Weight :gross: 56kg;  net: 42kg;

Structure Characteristics

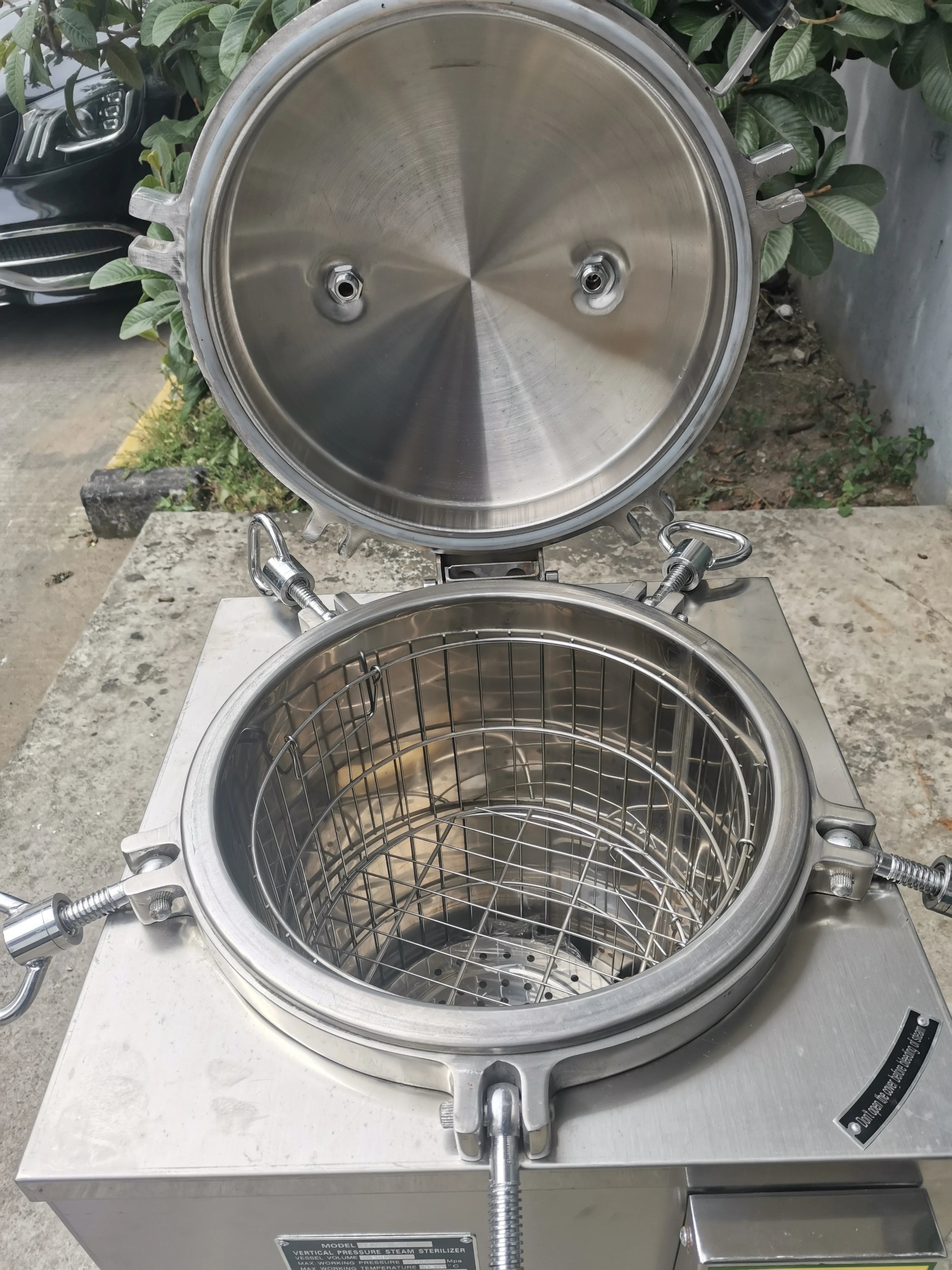

1.   The structure of the unit is a single layer cylindrical body. Its design, manufacture and inspection are strictly operated in accordance with the State Standards of Utilization Safety of Pressure Vessel (see the Quality Certificate for the details).

2.   The main body is made of good quality stainless steel, and has the features of anti-corrosion, easy maintenance and long service life.

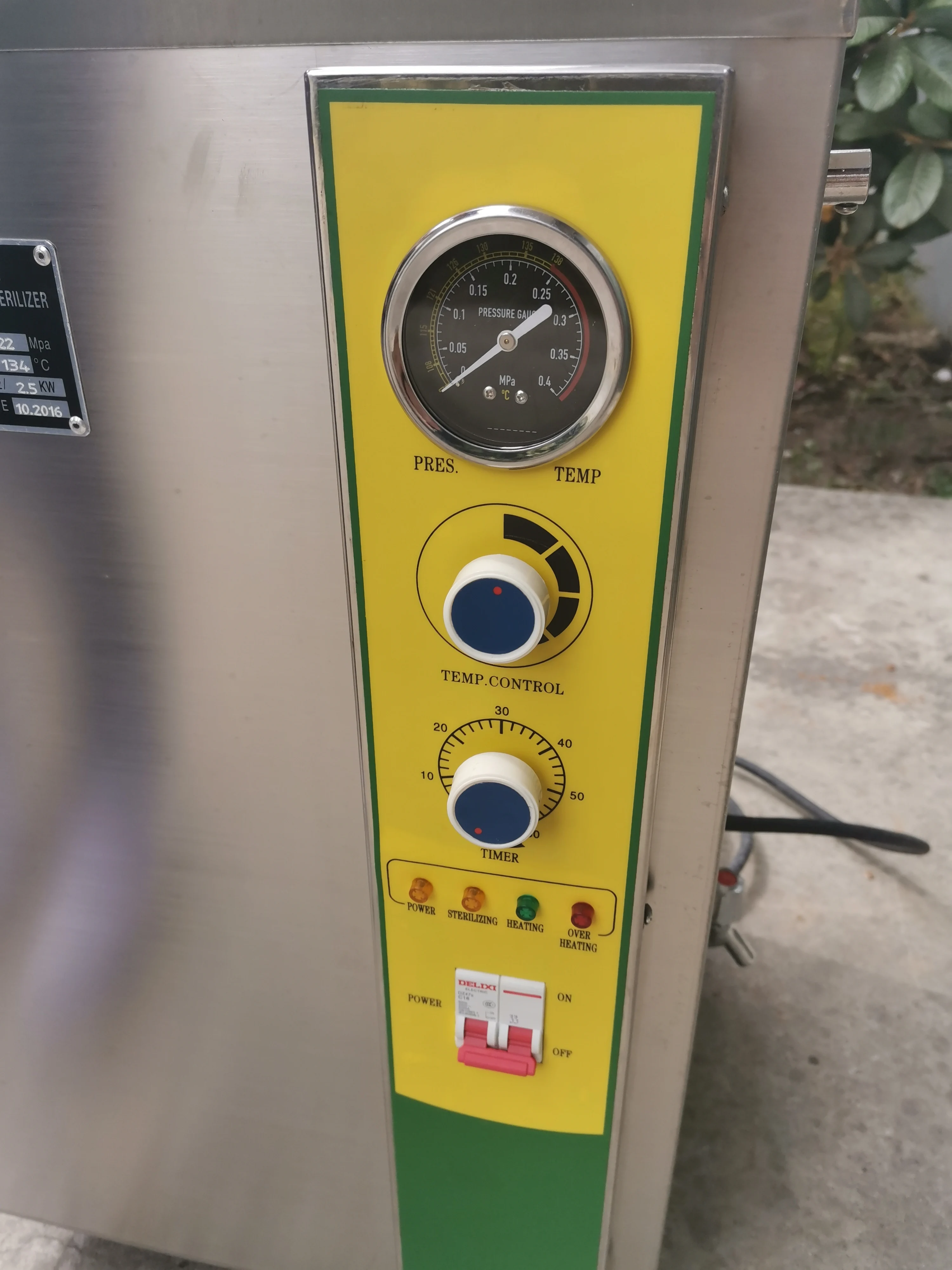

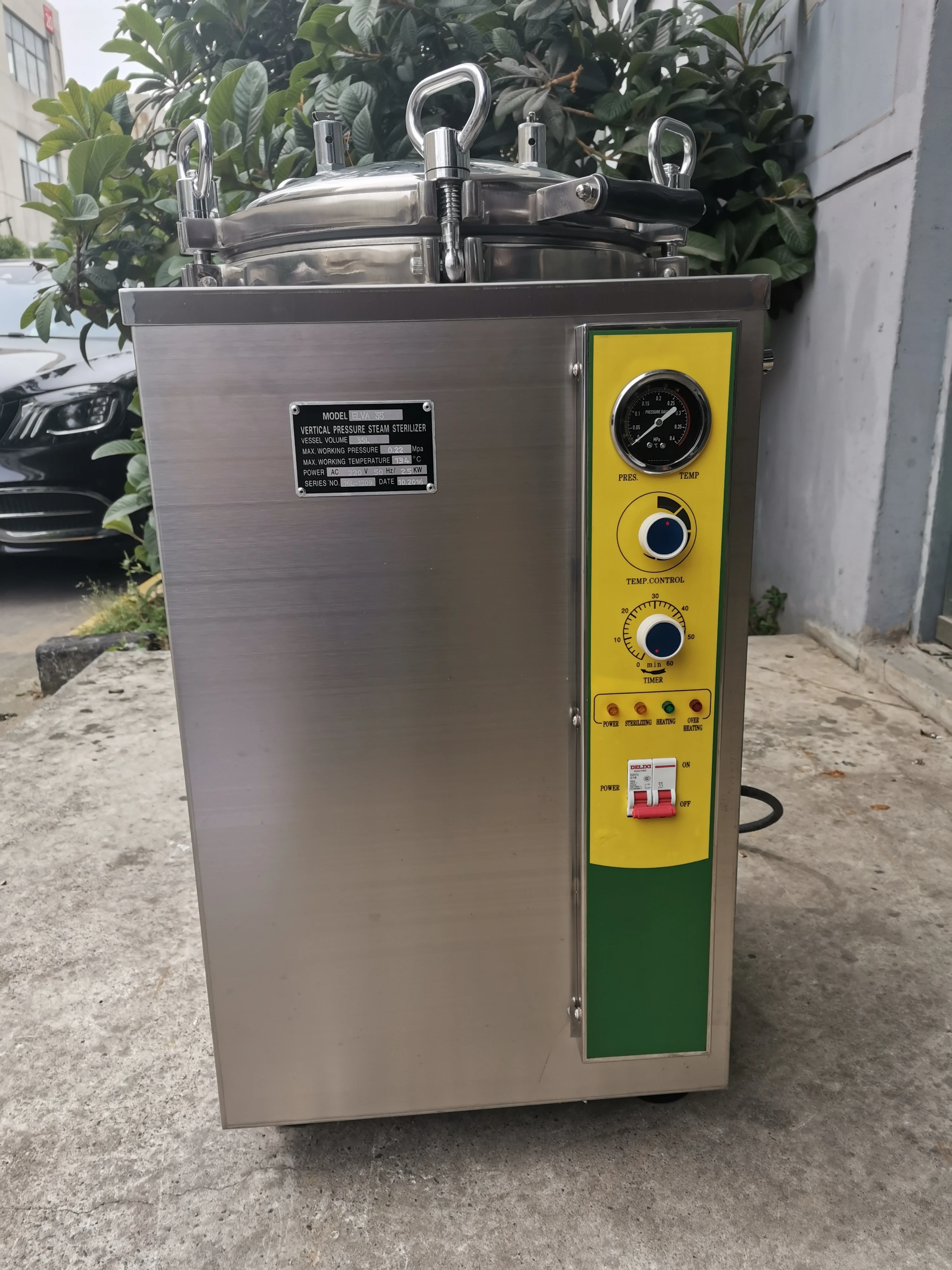

3.   The outline of the unit is quadrate. The displays and the control switches are centered on the controller board in the front of the unit. It is convenient.

4.   A steam pressure stabilizer is used, the range is 0.04 – 0.22MPa ( equal to steam temperature range: 109 – 134℃), to sterilize different objects.

5.   The unit has a timer, when the temperature is up to the point of pre-selection, the timer indicator lights. The timer will time automatically. After sterilization, it will automatically disconnect the power and then alarm.

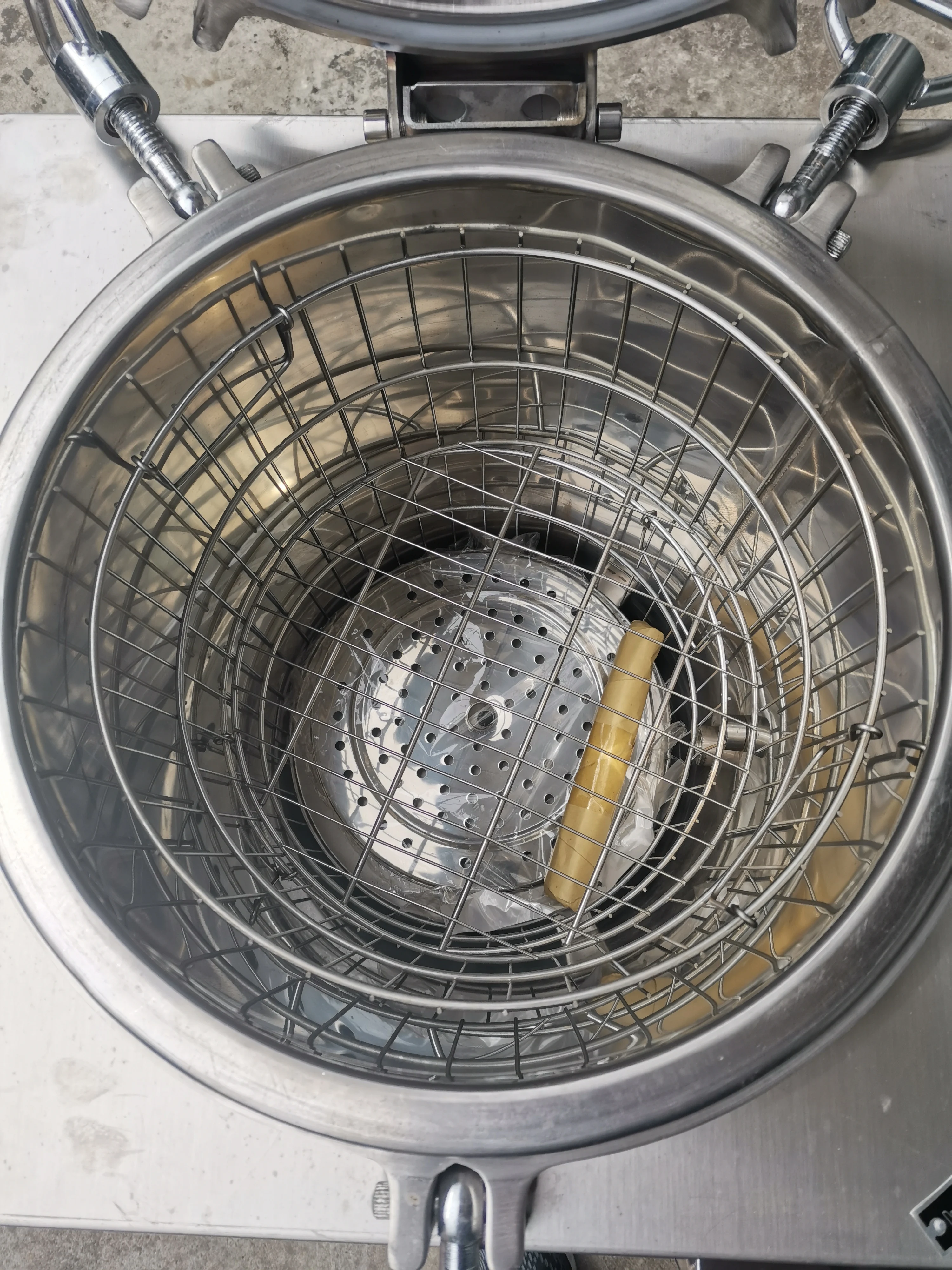

6.   The electrical-heated elements of the unit are immersion tubes ( 2.5kw/220v) with high heating effect. It should be grounded reliably.

7.   A spring safety valve (rated pressure: 0.22MPa) is used. During normal sterilization, it is at “off” position. As soon as the pressure in the pail surpasses the working pressure, the valve will automatically jump up and release steam, until the pressure returns normal, then it closes automatically. To ensure the operation safety.

8.  An overload and leakage protector (OLP) is used; it will automatically disconnect the power when over-voltage or leakage occurs.
