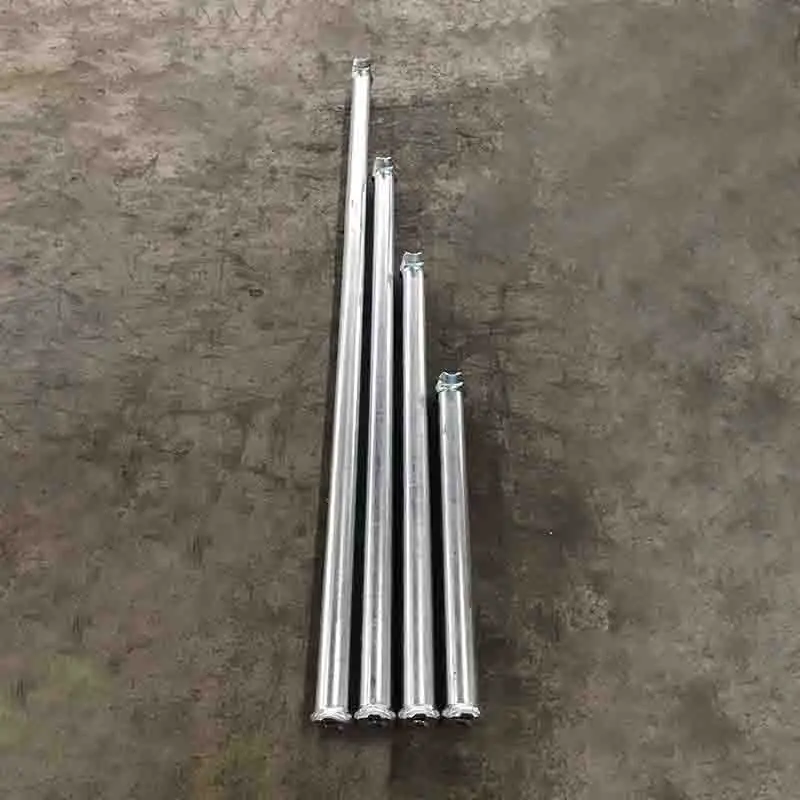

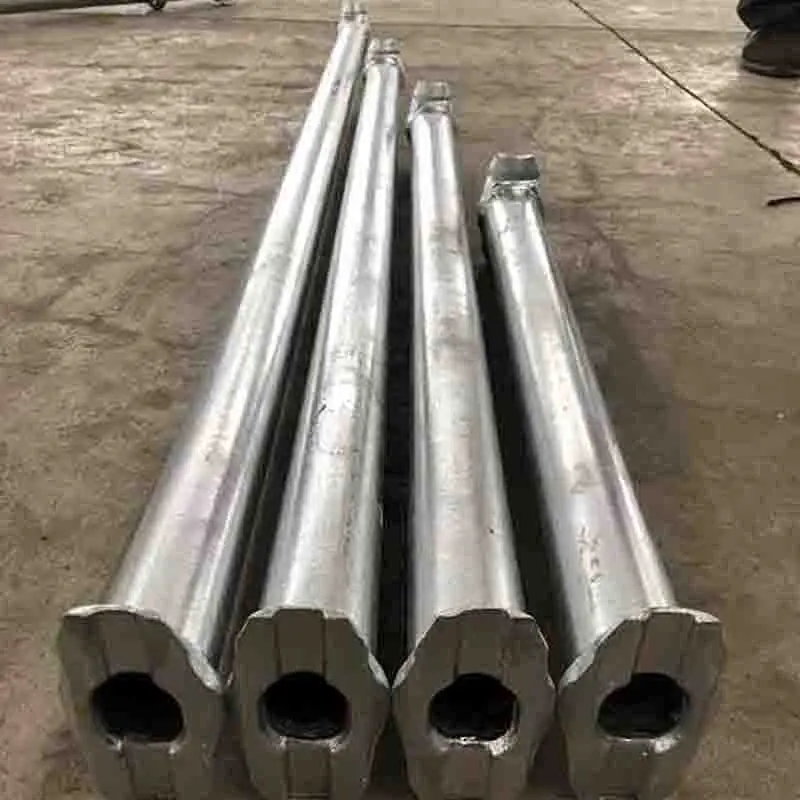

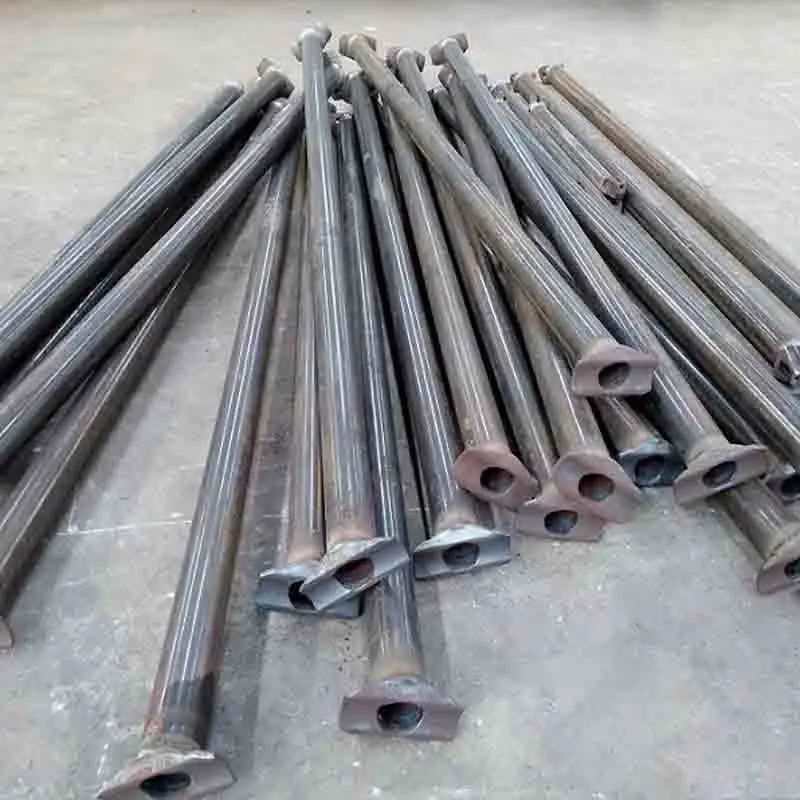

Steel Cuplock Scaffold for Sale Powder Coated Cup Lock Scaffolding system Ledger for Building
- Category: >>>
- Supplier: Guangzhou Shuangma Steel Template Co. Ltd.
Share on (1600467502958):
Product Overview
Description
Product Description
Cup Lock Scaffolding Ledger | ||||||
Code | Description | Size | Weight (kg) | |||
CS.L.305 | 3.05M Ledger | 3048mm (10') | 11.06 | |||
CS.L.300 | 3.00M Ledger | 3000mm (9'10") | 10.88 | |||
CS.L.274 | 2.74M Ledger | 2743mm (9') | 9.96 | |||
CS.L.250 | 2.50M Ledger | 2500mm (8'2") | 9.09 | |||
CS.L.244 | 2.44M Ledger | 2438mm (8') | 8.87 | |||
CS.L.230 | 2.30M Ledger | 2300mm (7'7") | 8.37 | |||
CS.L.213 | 2.13M Ledger | 2134mm (7') | 7.78 | |||
CS.L.210 | 2.10M Ledger | 2100mm (6'11") | 7.66 | |||
CS.L.200 | 2.00M Ledger | 2000mm (6'7") | 7.30 | |||
CS.L.183 | 1.83M Ledger | 1829mm (6') | 6.68 | |||
CS.L.180 | 1.80M Ledger | 1800mm (5'11") | 6.58 | |||
CS.L.160 | 1.60M Ledger | 1600mm (5'3") | 5.86 | |||
CS.L.152 | 1.52M Ledger | 1524mm (5') | 5.59 | |||
CS.L.150 | 1.50M Ledger | 1500mm (4'11") | 5.50 | |||
CS.L.130 | 1.30M Ledger | 1300mm (4'3") | 4.79 | |||
CS.L.127 | 1.27M Ledger | 1268mm (4'2") | 4.68 | |||
CS.L.122 | 1.22M Ledger | 1219mm (4') | 4.50 | |||
CS.L.115 | 1.15M Ledger | 1150mm (3'10") | 4.25 | |||
CS.L.107 | 1.07M Ledger | 1067mm (3'6") | 3.95 | |||
CS.L.100 | 1.00M Ledger | 1000mm (3'3") | 3.71 | |||
CS.L.091 | 0.91M Ledger | 914mm (3') | 3.40 | |||
CS.L.061 | 0.61M Ledger | 610mm (2') | 2.31 | |||
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
Company Profile
SHUANGMA SCAFFOLDING
Started from 1986, SHUANGMA is a mature enterprise which integrates the manufacture, sales and construction services of scaffolding, formwork and metal stucture. The company covers land area of 50000sqmt and factory constuction area more than 28000sqmt, and production capacity more than 1000tons per month. The company locates in North-east outskirt of Guangzhou City, about 55km closes to Guangzhou Baiyun International Airport and Huangpu Port / Nansha Port, has convenient and faster delivery.
Since its establishment, SHUANGMA has set up friendly partnerships with many shipyards. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
Besides, our products have been passed SGS and Intertek tests of EN12810/BS1139/EN74, and sold well both domestically and internationally and gained reputation globally.

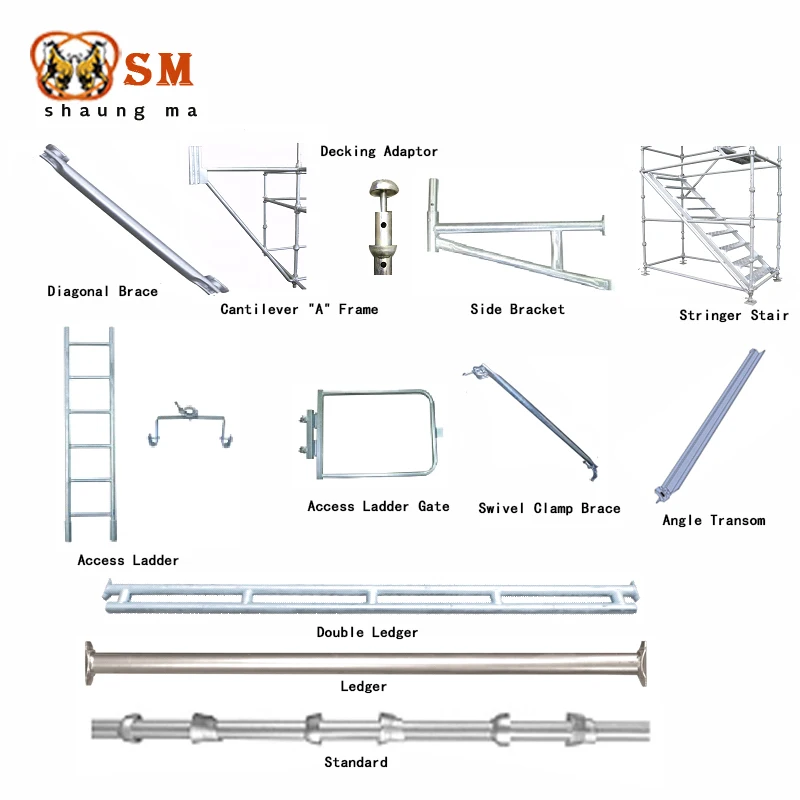

Our main products include: Ring Lock scaffolding, Cross Lock scaffolding, kwikstadge scaffolding, Cup Lock scaffolding, Framework scaffolding, Shoring Props, Stair
system, Movable scaffolding, self-climbing scaffolding system, aluminum scaffolding, and so on.
system, Movable scaffolding, self-climbing scaffolding system, aluminum scaffolding, and so on.
Need high quality products with good prices and services? Contact us now !
Our Advantages
1 | 35 years of scaffolding experience and construction services. |
2 | Great production capacity of more than 1000tons per month which ensure faster delivery. |
3 | Modern factory and before/after sales technical supports. |
4 | Good reputation and relationship with China's top shipyard companies. |
5 | Varied types of scaffolding supply to satisfy different demands of clients. |
6 | Has own Powder Coating production line, to provide fine coating for scaffolding. |

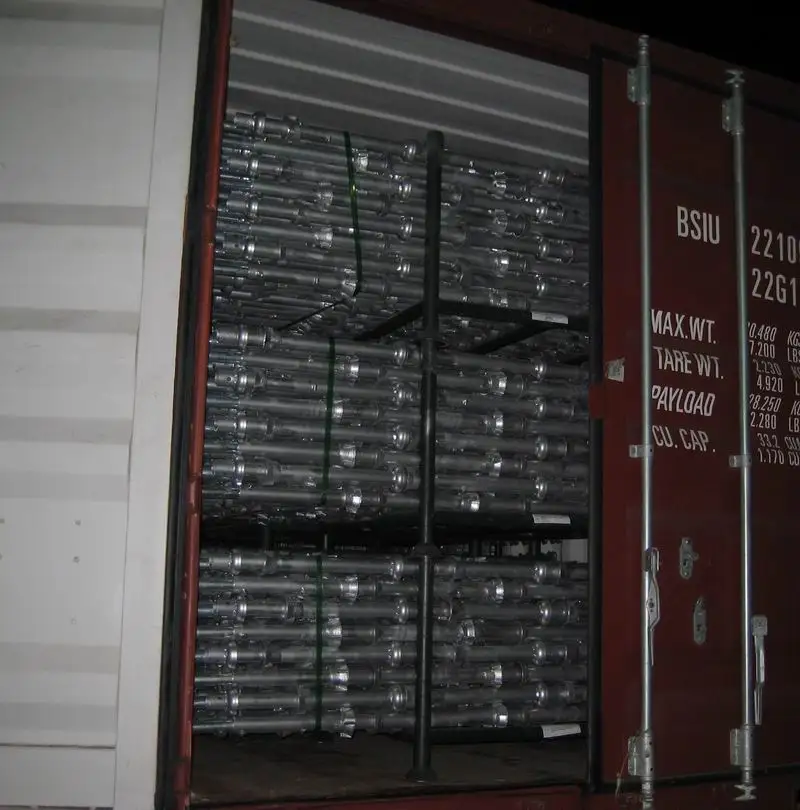

Packing & Delivery

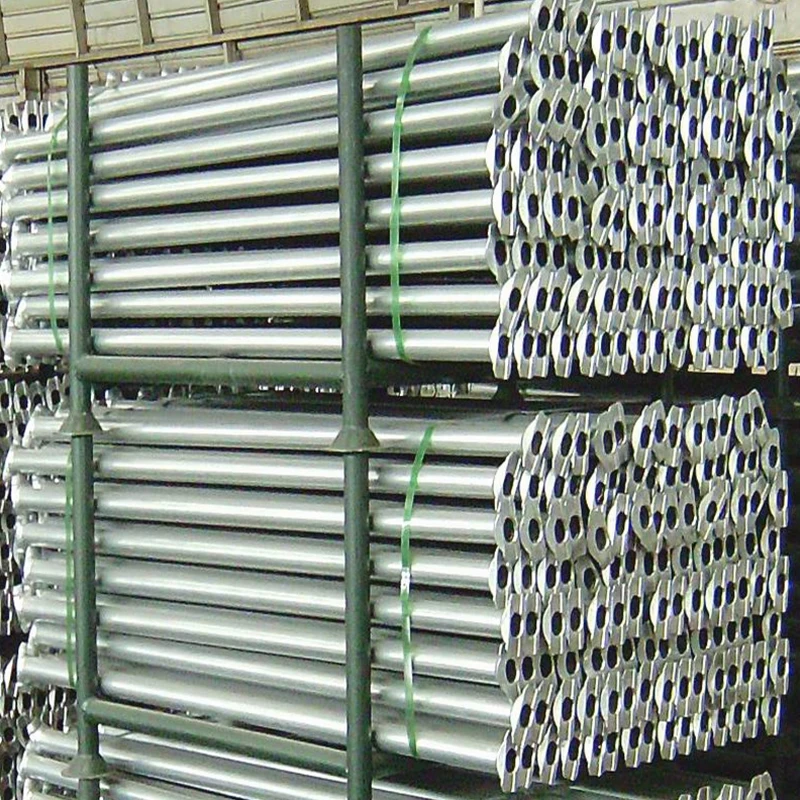

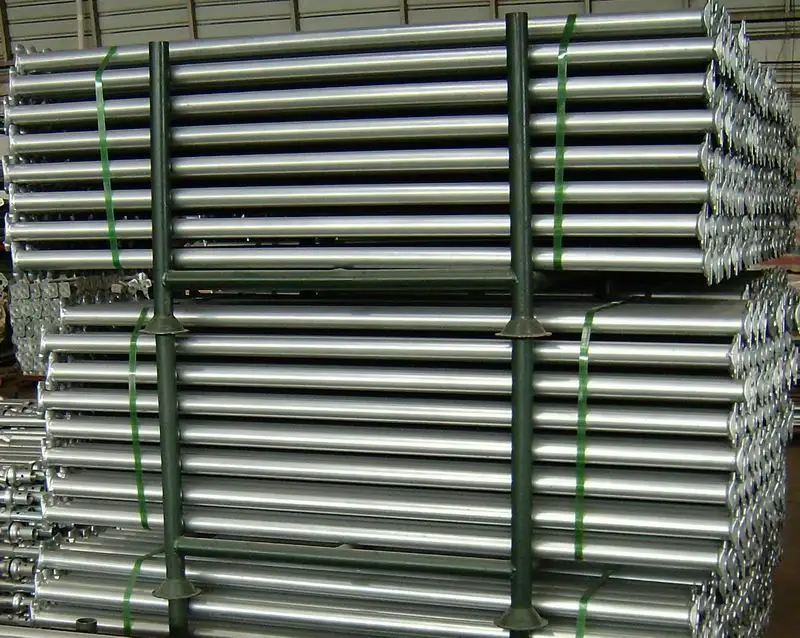

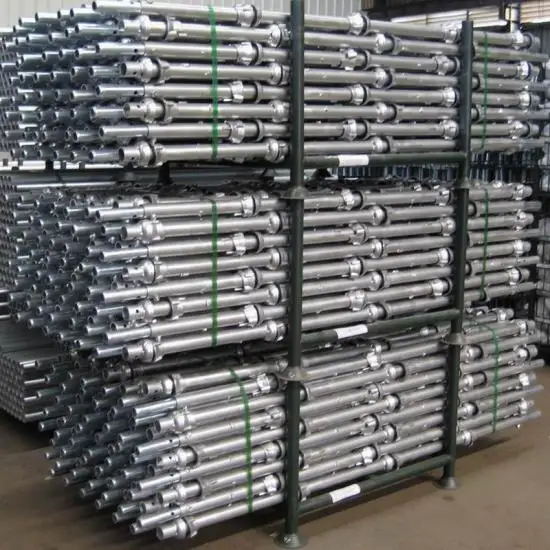

On Steel Pallets
Certifications
Membership of China Formwork And Scaffold Association
Standard Committee Membership of China Construction Materials Rental Contractor Association.

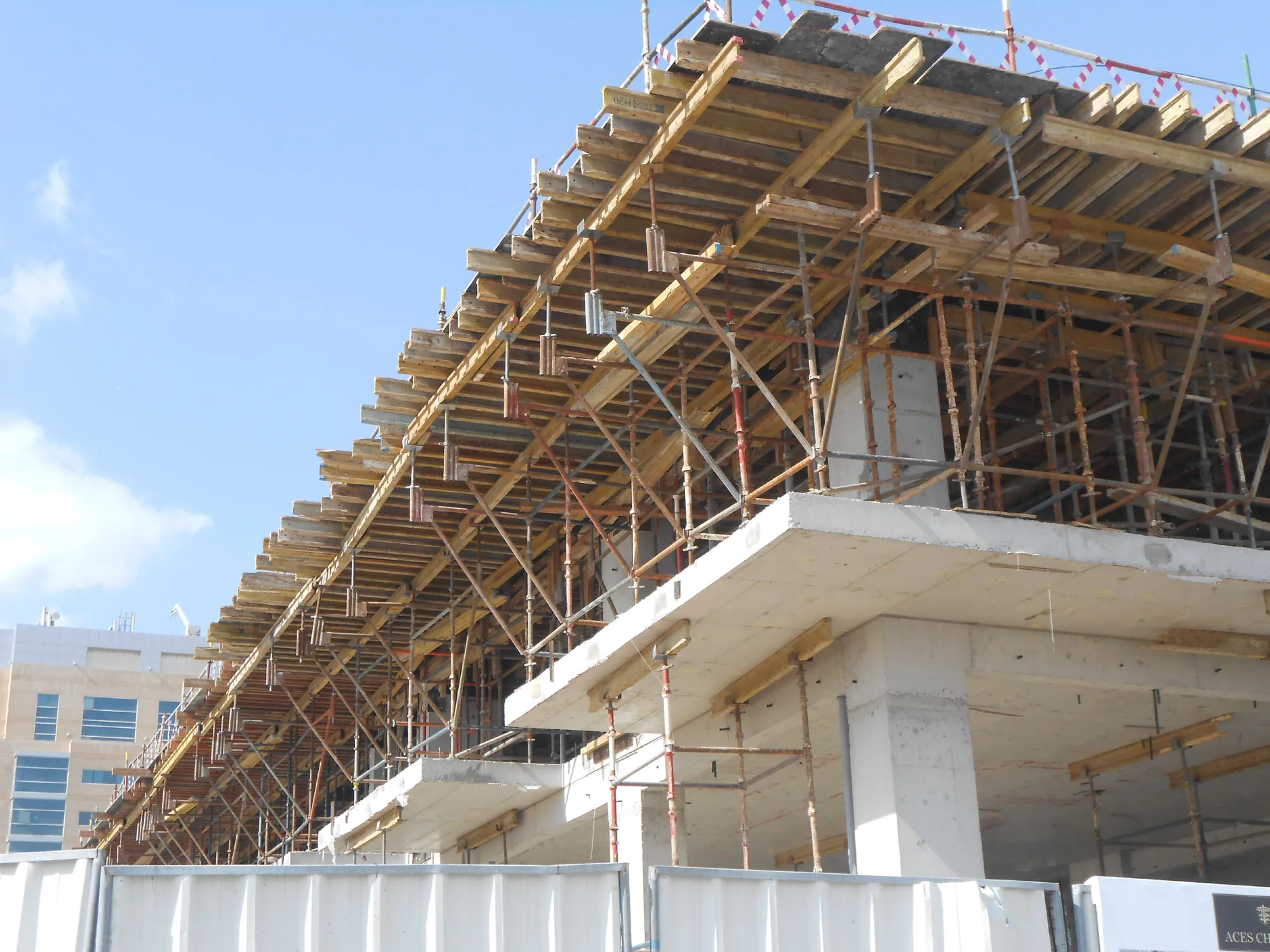

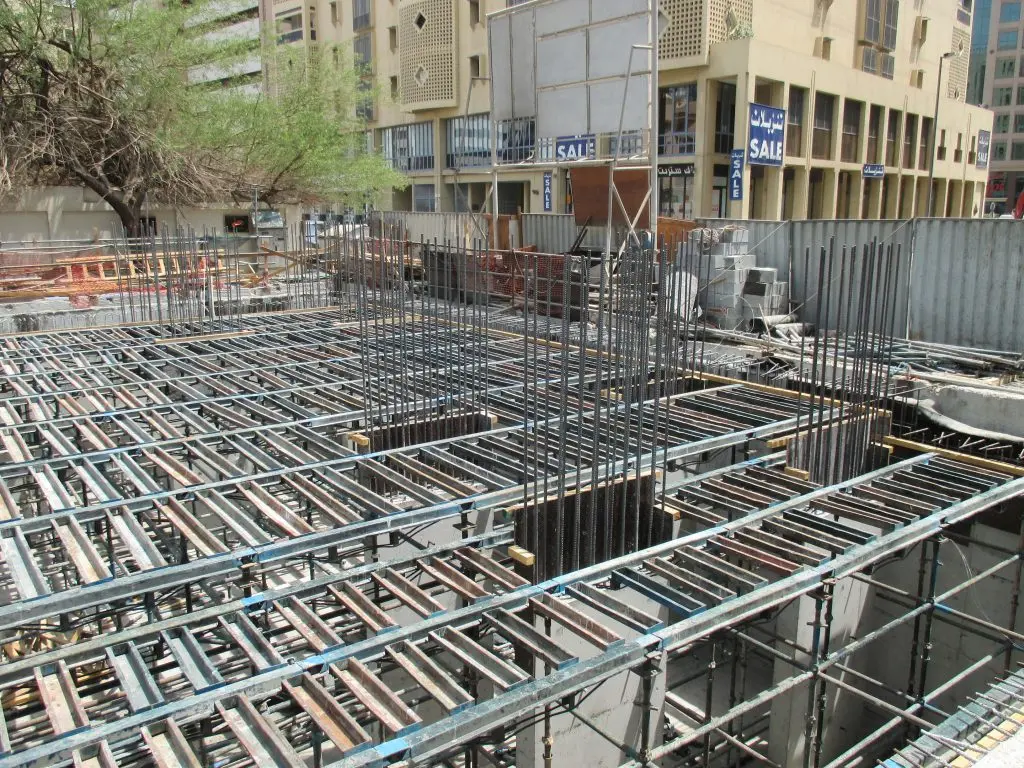

Scaffold Projects
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(25.00%),South
America(10.00%),Africa(10.00%),North America(6.00%),Mid East(5.00%),Eastern Asia(2.00%),Oceania(2.00%). There are total about
501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding
4. why should you buy from us not from other suppliers?
Qualitify Product with Reasonable Price, Big Capacity with 30,000 square meters factory size and more than 500 staffs. High OEM
developed ability with more than 20 years engineers team
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish,Portuguese
We are based in Guangdong, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(25.00%),South
America(10.00%),Africa(10.00%),North America(6.00%),Mid East(5.00%),Eastern Asia(2.00%),Oceania(2.00%). There are total about
501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding
4. why should you buy from us not from other suppliers?
Qualitify Product with Reasonable Price, Big Capacity with 30,000 square meters factory size and more than 500 staffs. High OEM
developed ability with more than 20 years engineers team
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish,Portuguese
