China Famous Brand Hb56 Truck Mounted Concrete Pump For Sale
- Category: >>>
- Supplier: Xuzhou Silkway Import & Export Co. Ltd.
Share on (1600467617868):
Product Overview
Description

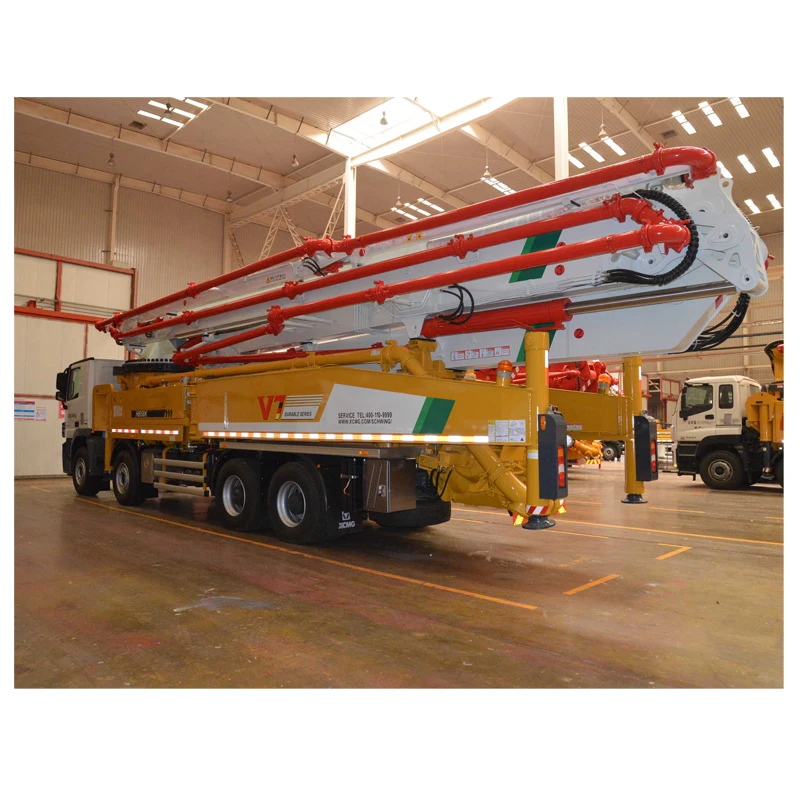

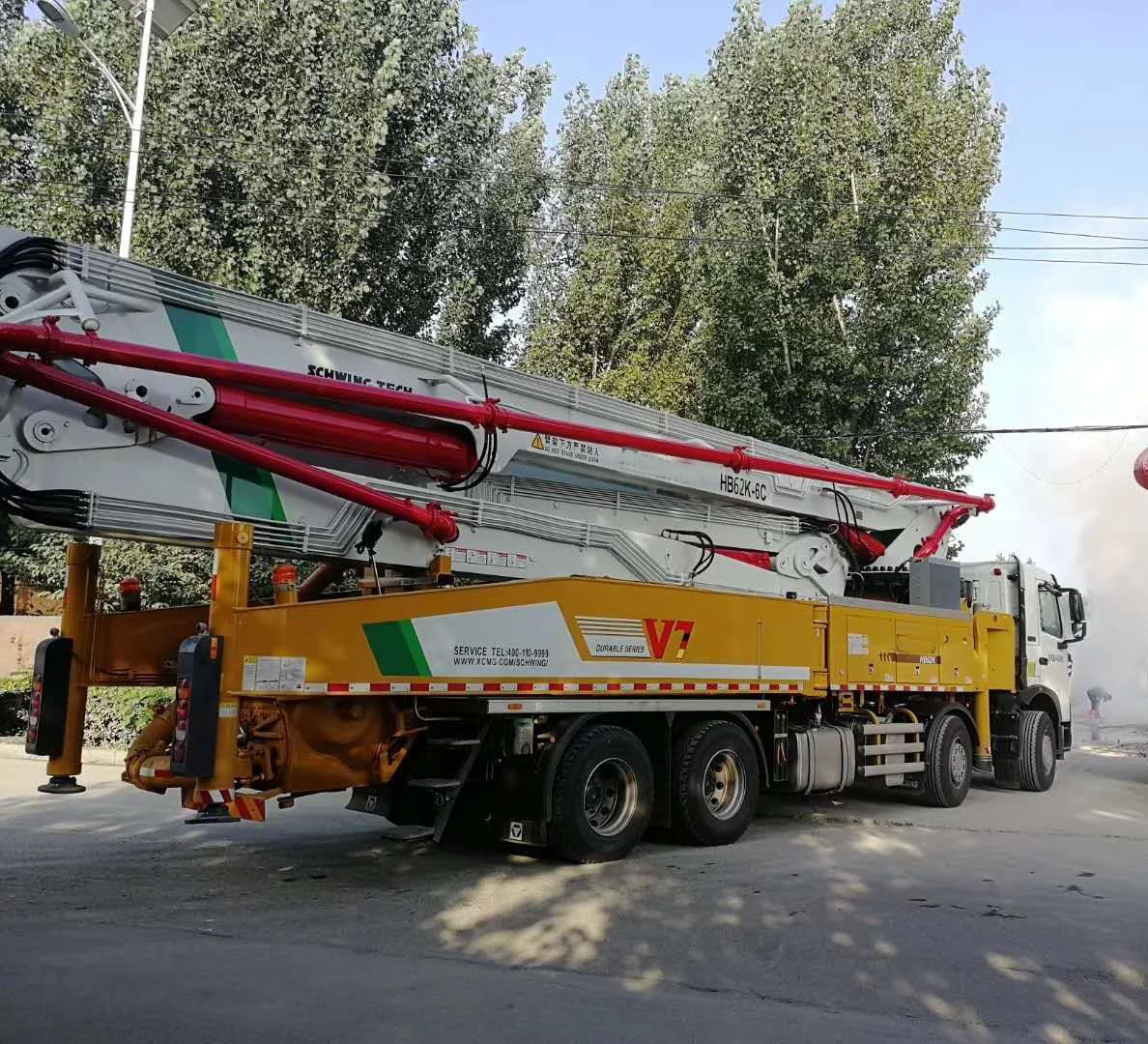

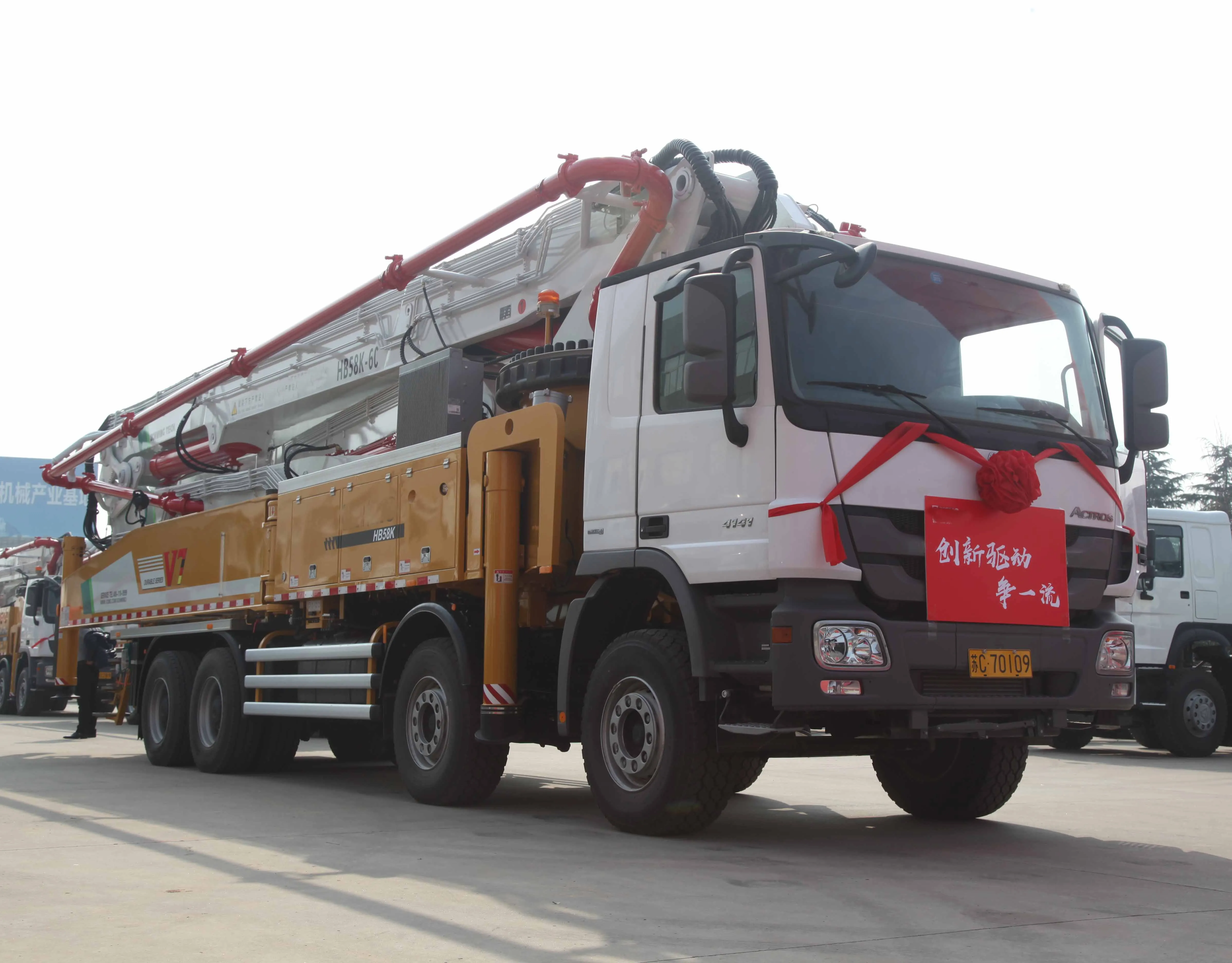

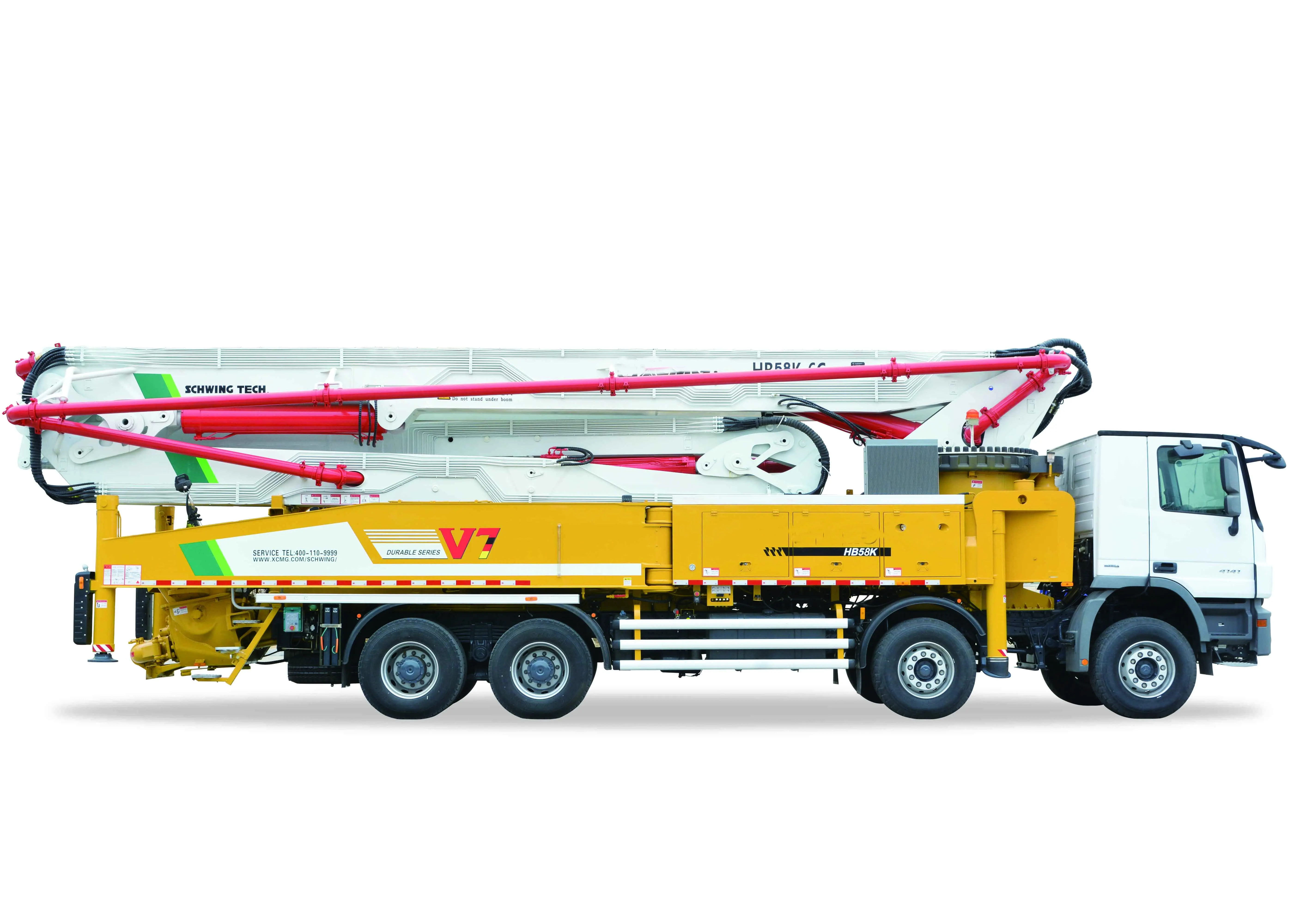

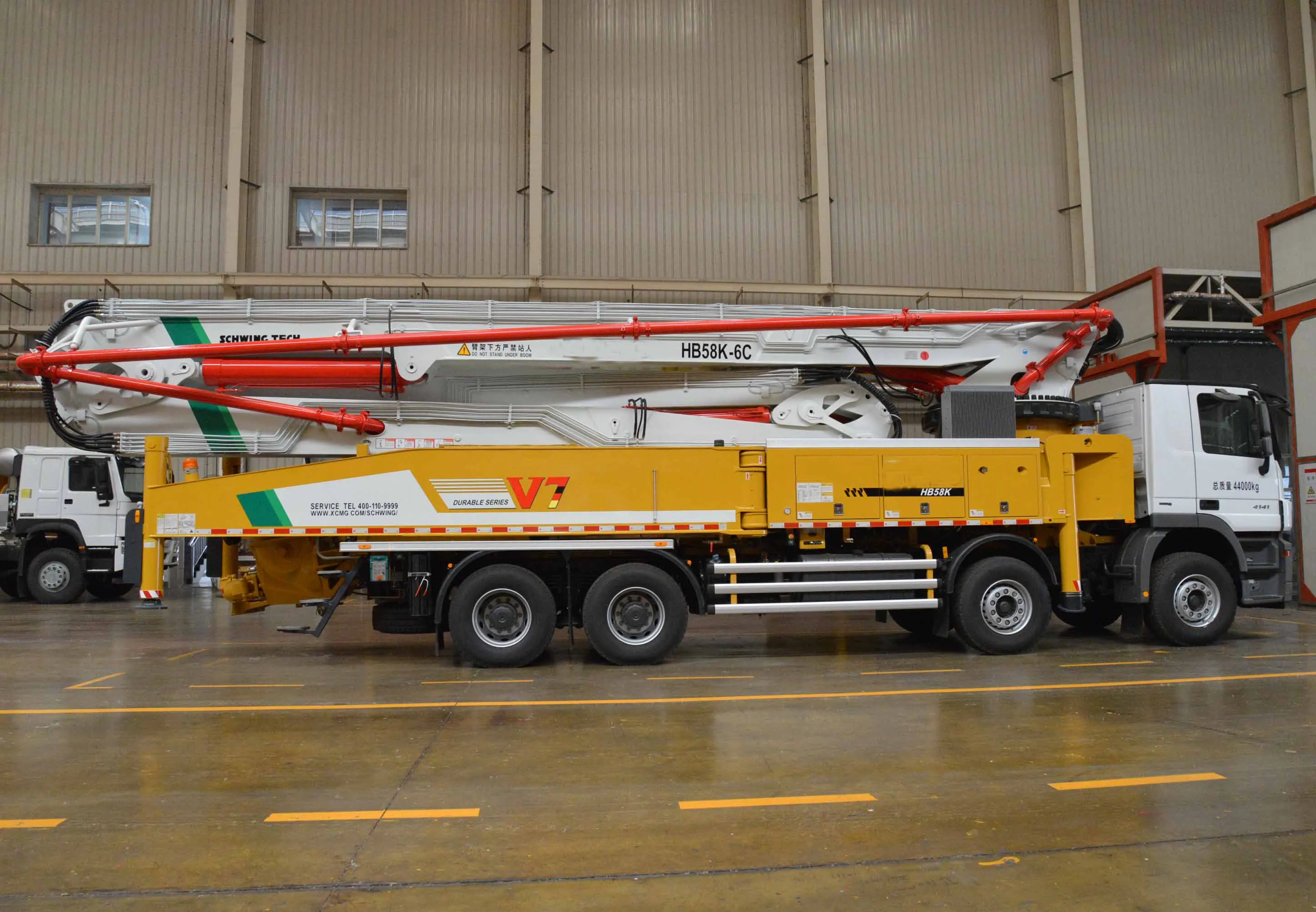

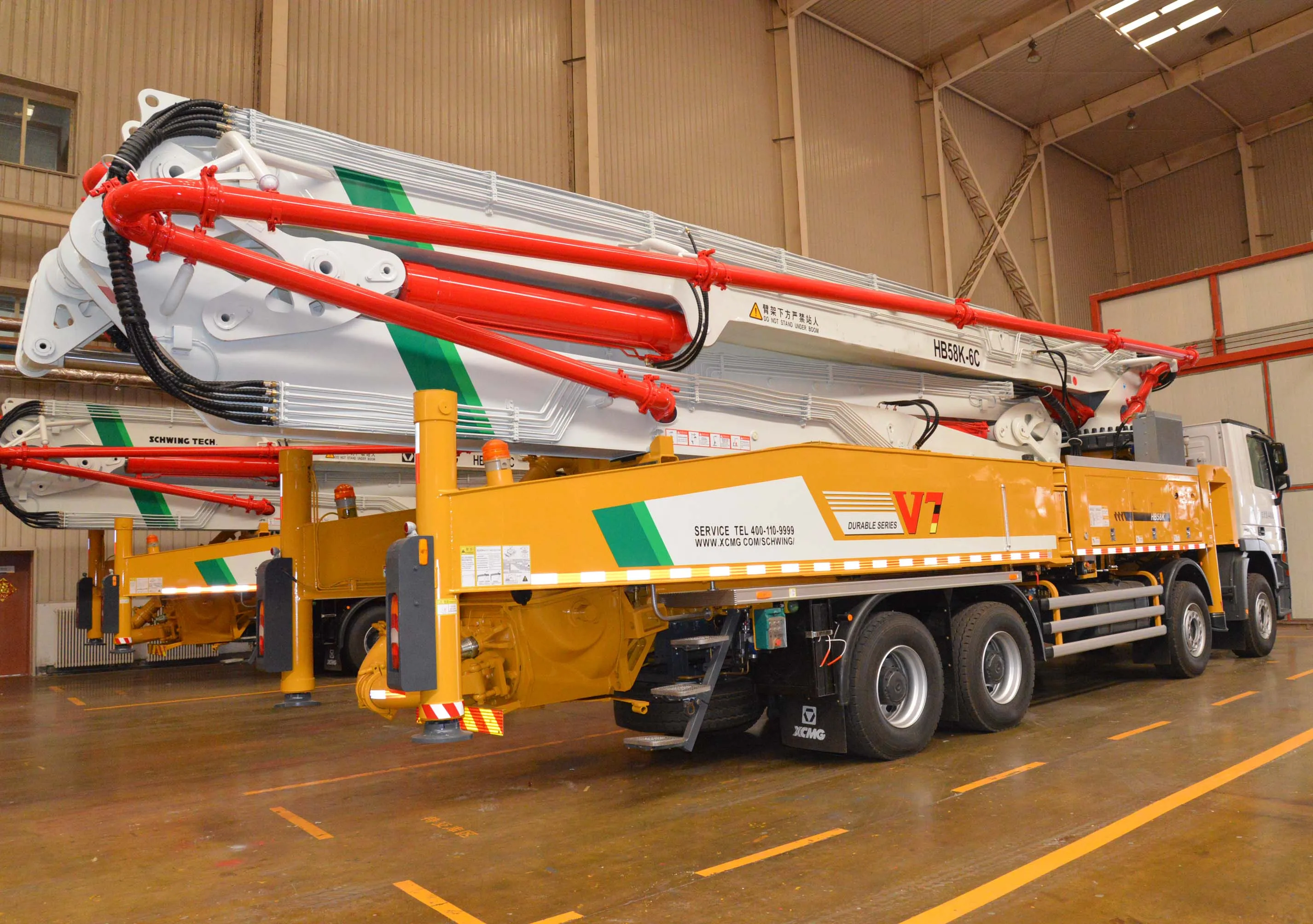

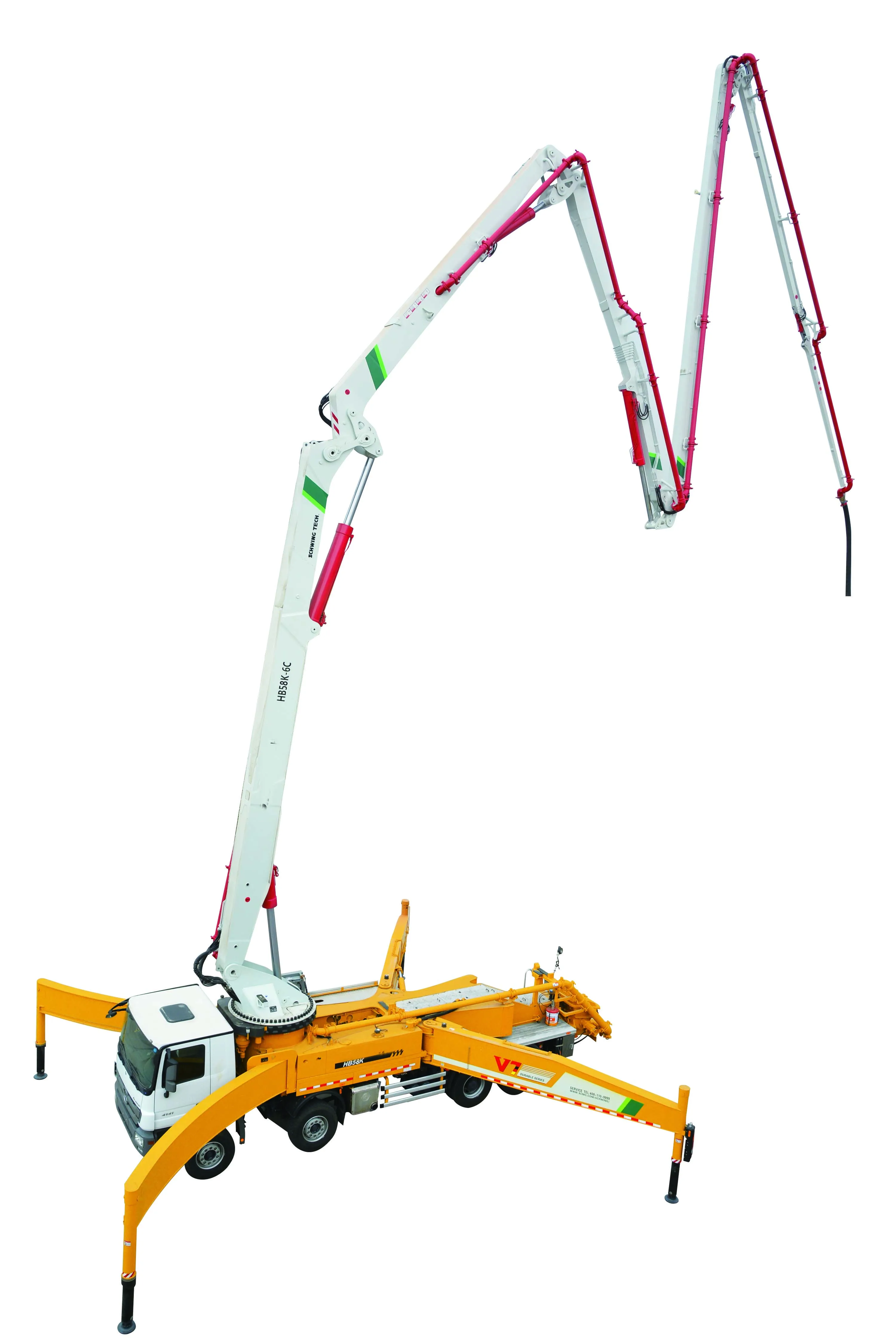

V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient
rockvalve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliablefully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical controlsystem.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient
rockvalve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliablefully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical controlsystem.
Category | Item | Unit | HB58K |
Overall | Outline dimension | km/h | 14300×2500×4000 |
Overall weight | kg | 44000 | |
Chassis | Max. speed | km/h | 85 |
Max. grade-ability | % | 51.40% | |
Wheelbase | mm | 2300+4000+1350 | |
Engine | Model | OM501LA·IV/3 | |
Max power | kw | 305 | |
Max. torque | N·m/(r/min) | 2000/1080 | |
Displacement | L | 11.946 | |
Pumping system | Theoretical output | m3/h | 170 |
Concrete pumping pressure | Mpa | 8 | |
Theoretical pumping | time/min | 21~23 | |
Delivery cylinder diameter ×stroke | mm | 260/2200 | |
Max.diameter of pumping concrete aggregate | mm | ≤40 | |
Filling height | mm | 1540 |
