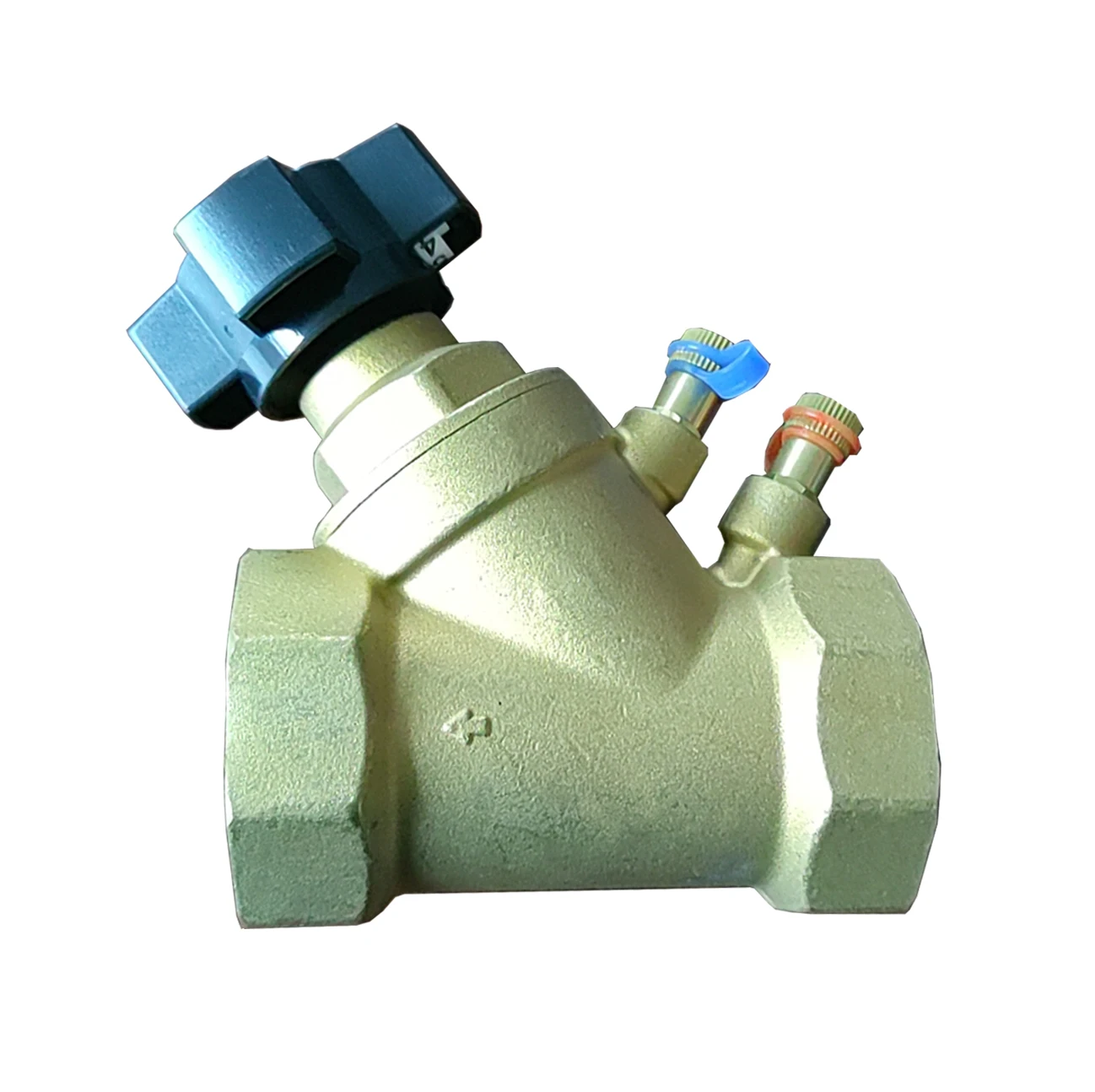

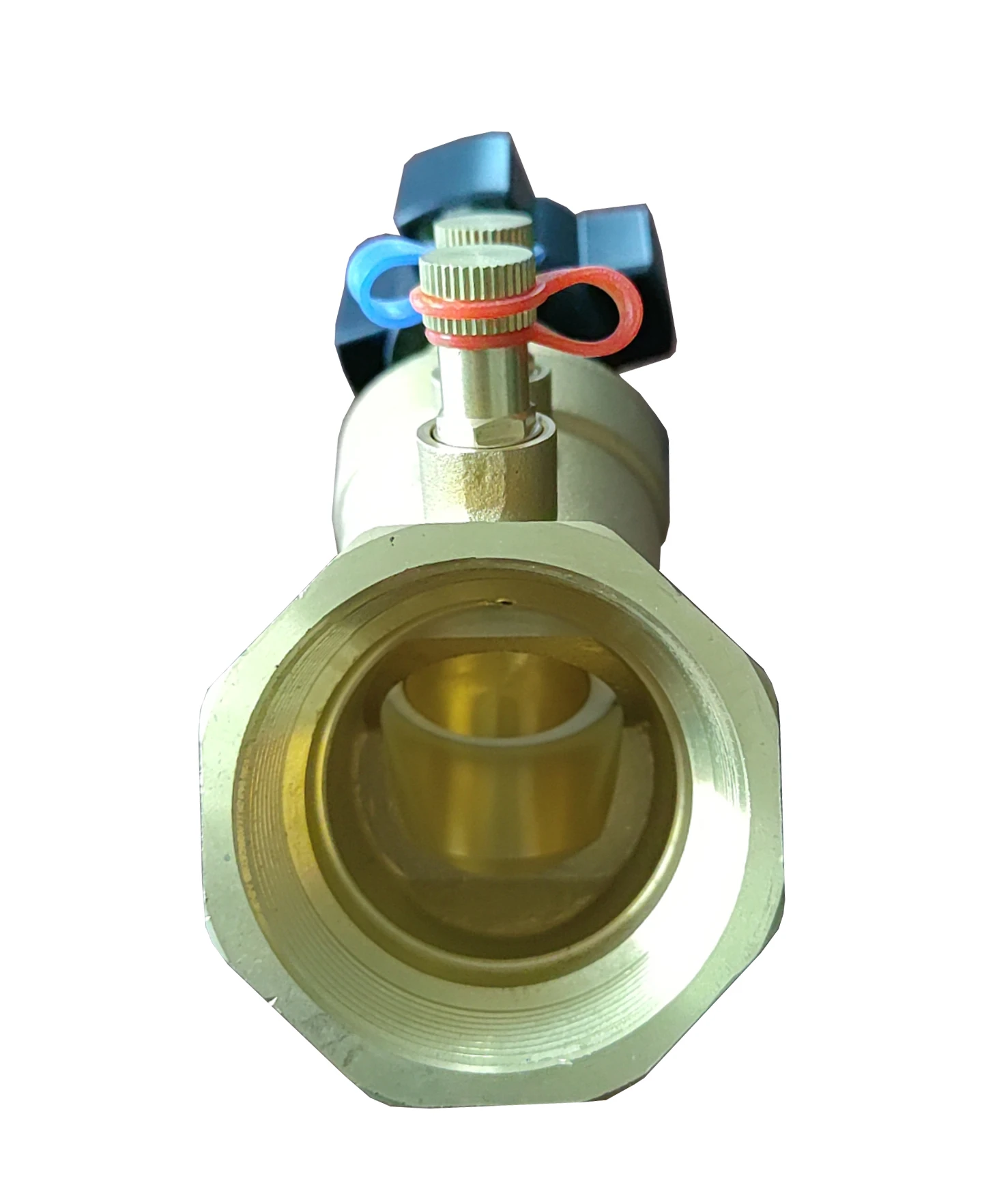

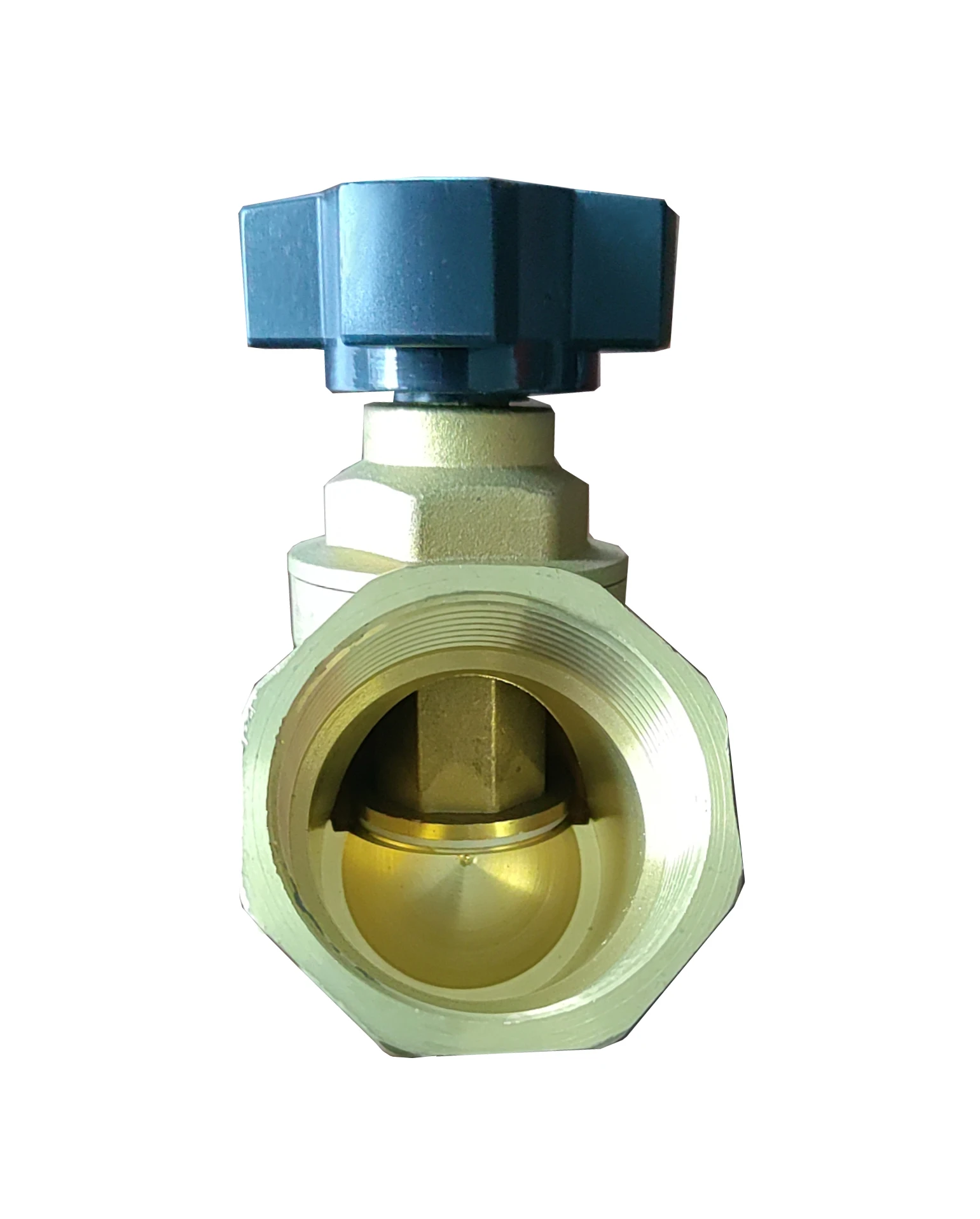

DN15 DN20 DN25 DN32 DN40 DN50 brass body static balancing valve
- Category: >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd.
Share on (1600467650180):
Product Overview
Description
Product Description
Specification
Description | YHVA2050 Static Balancing Valve | ||
Medium | Water | ||
PN | 1.6MPa | ||
Medium Temperature | -20—120 degree( Disassemble wheel when temperature above 120 degree) | ||
Material | Valve Body | Brass | |
Valve Plug | Copper Alloy | ||
Hand Wheel | PA Plastic | ||
Sealing | PTFE | ||
Installation
The valve should be kept in a dry, clean location and protected from damage and contamination.
Before you install the valve
* check that the valve is clean and undamaged.
* the pipe system has been cleaned.
* surfaces the seals are to seal against are clean and undamaged.
* demands on straight pipe lengths before the valve, after a bend respective pump, as well as after the valve
must be observed ( Fg1).
Before you install the valve
* check that the valve is clean and undamaged.
* the pipe system has been cleaned.
* surfaces the seals are to seal against are clean and undamaged.
* demands on straight pipe lengths before the valve, after a bend respective pump, as well as after the valve
must be observed ( Fg1).
