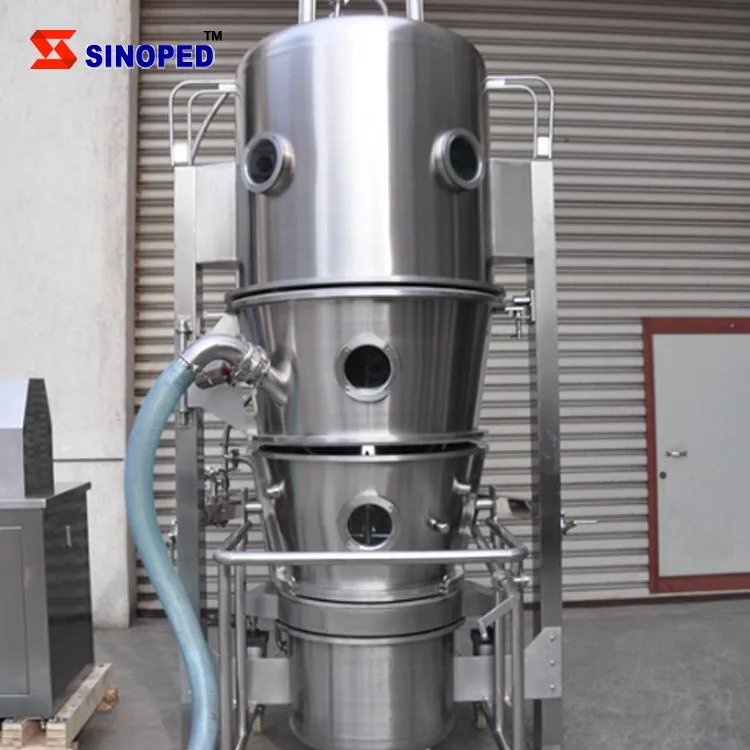

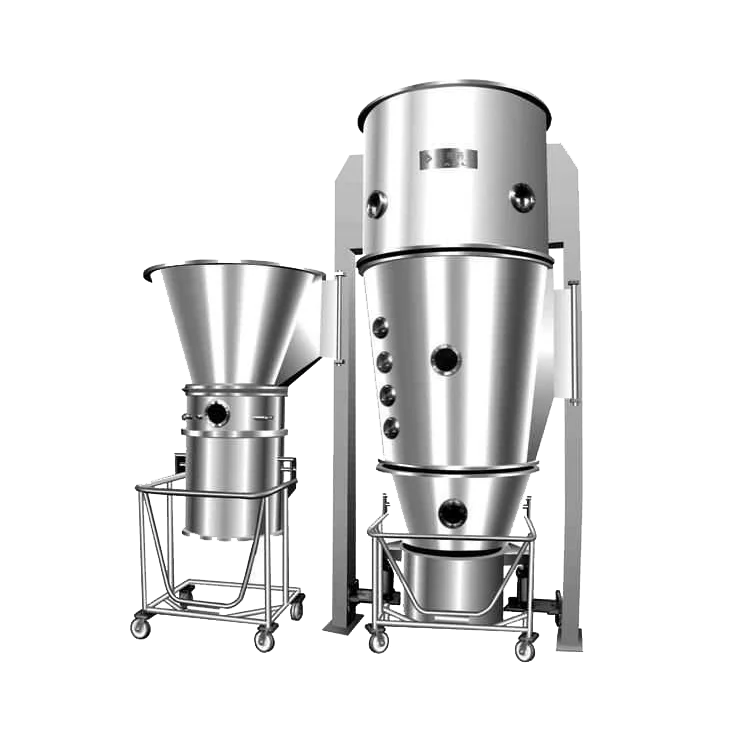

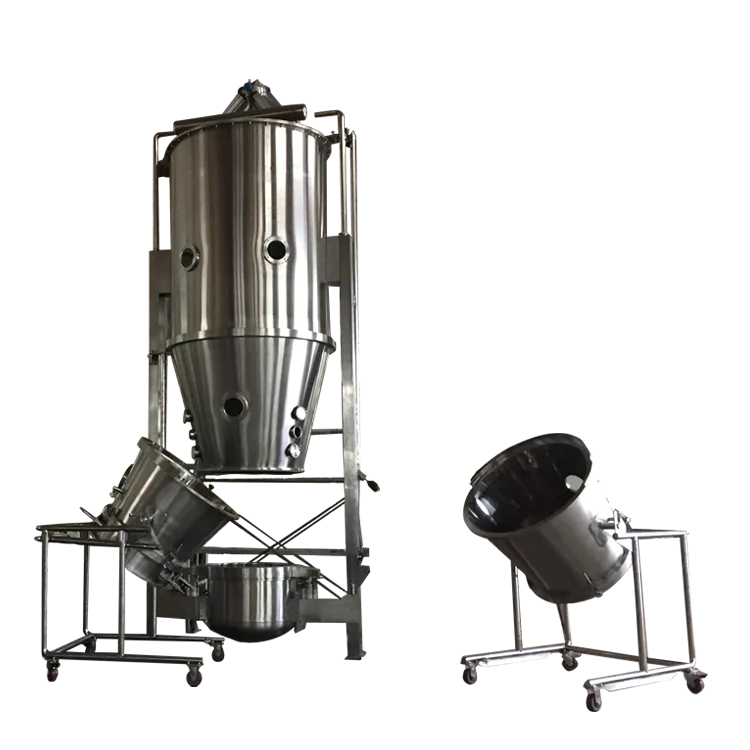

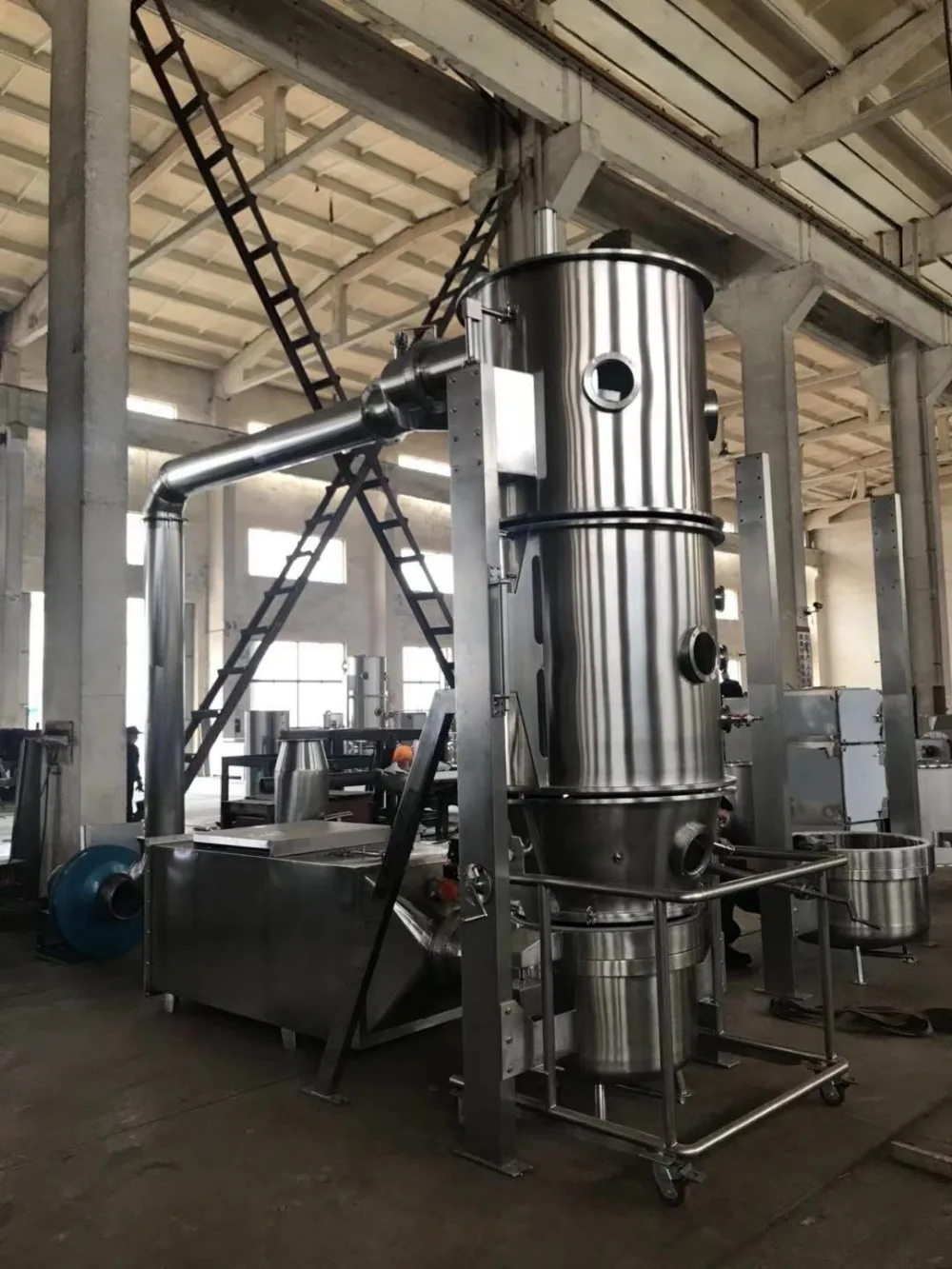

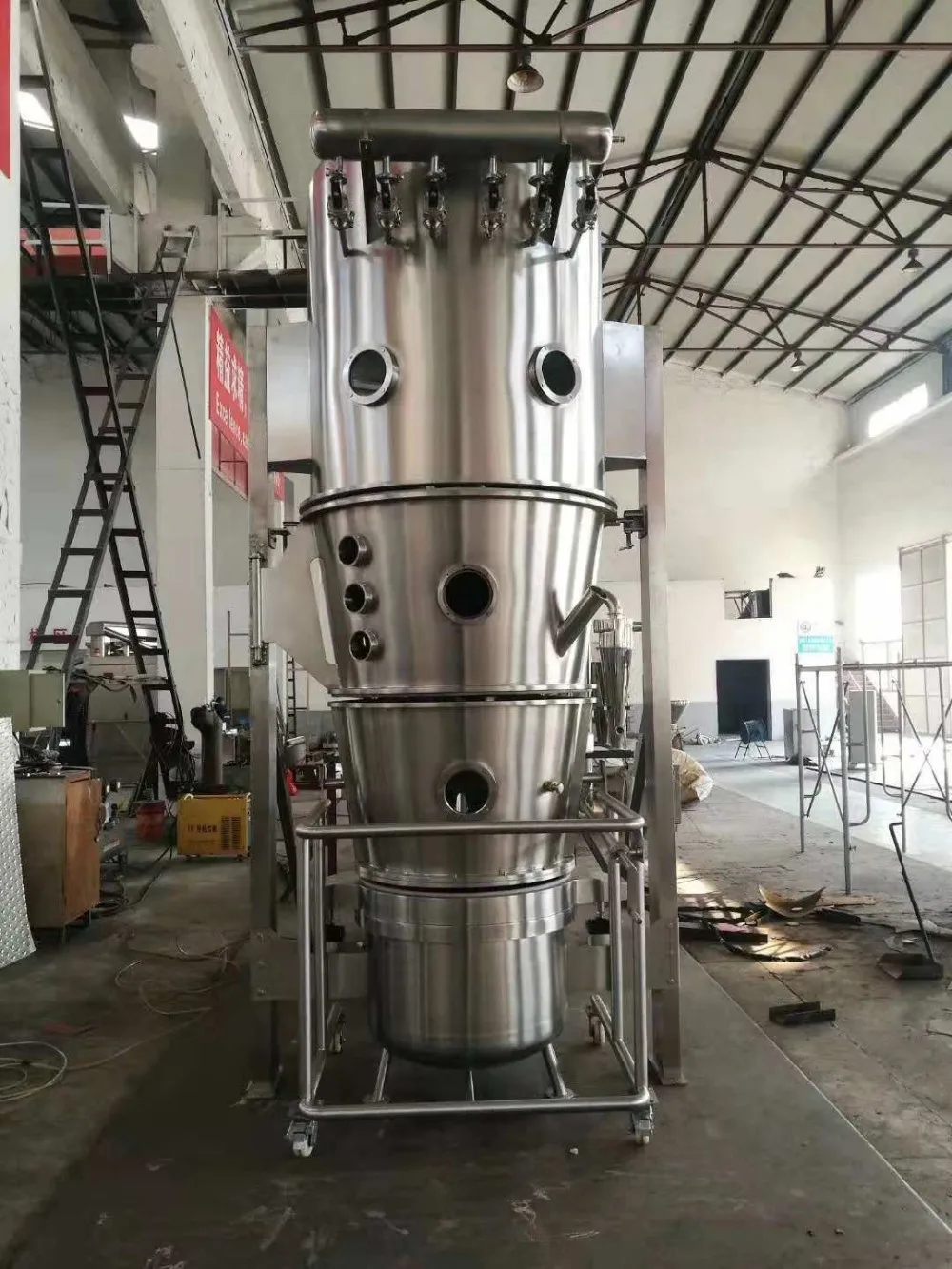

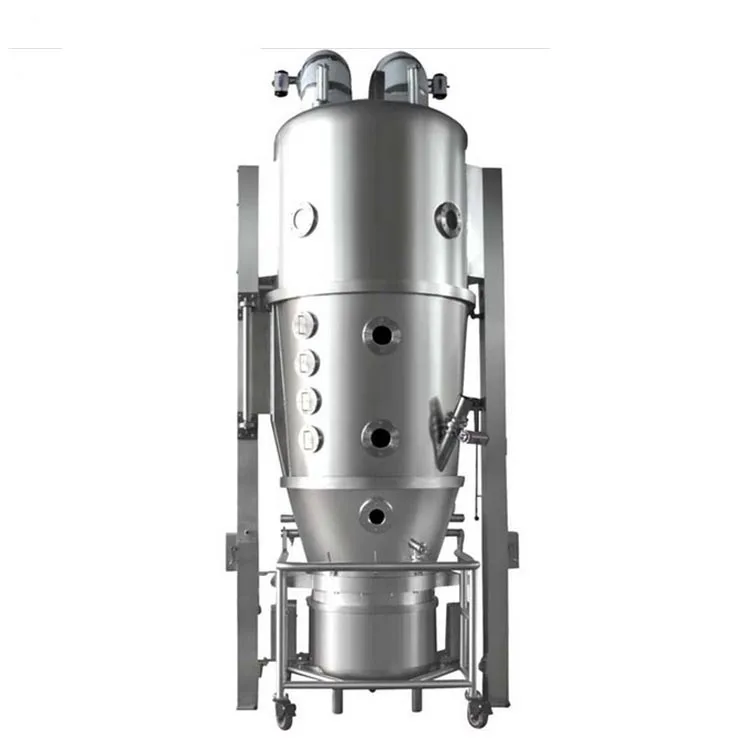

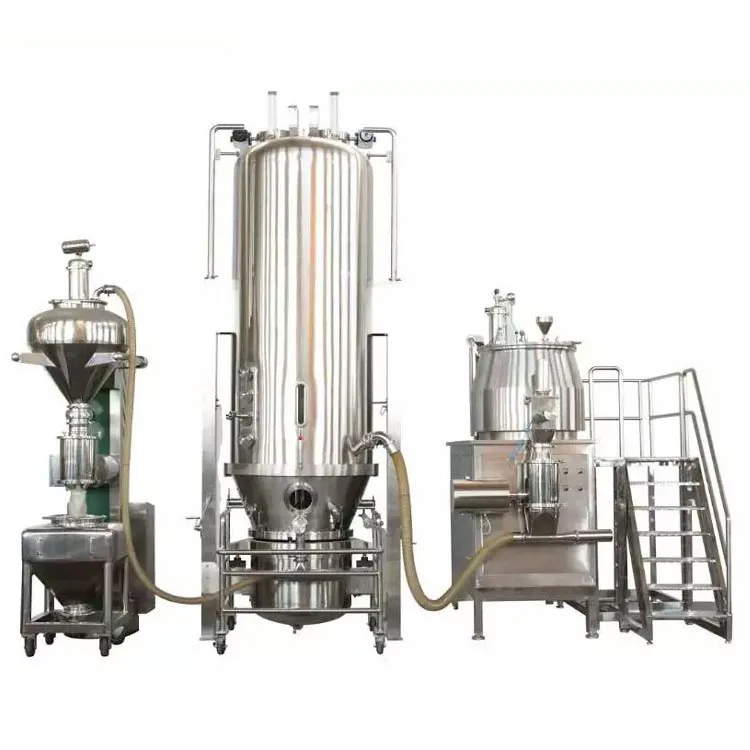

Fg 300 Fluid Bed Dryer lecithin granules
- Category: >>>
- Supplier: Sinoped International (Liaoning) Co. Ltd.
Share on (1600467676123):
Product Overview
Description
Product Description
Professional and Reliable China Manufacturer Fluid Bed Dryer Granulator Fluid Bed Drying Equipment is suitable for drying for powder and granules.
The principle of action is based on: Put the raw material into the fluid bed. The cold air is drawn into the fluid bed through thepre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
Thematerial is fluidized in the fluid bed regularly . The evaporating moisture is drawn out by the fan. The advantage of FL Fluid Bed Dryer Machine technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air, and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing. Final product usually instant solute granule.
The principle of action is based on: Put the raw material into the fluid bed. The cold air is drawn into the fluid bed through thepre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
Thematerial is fluidized in the fluid bed regularly . The evaporating moisture is drawn out by the fan. The advantage of FL Fluid Bed Dryer Machine technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air, and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing. Final product usually instant solute granule.
Applications
Medicine granulation and coating
Granulation: tablet granules, granules for granules and capsules.
Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating.
Food Granulation and Coating
Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food.
Pesticide, Pigment Pigment and Dye Granulation
Drying of Powdery, Granular and Block Materials
Granulation: tablet granules, granules for granules and capsules.
Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating.
Food Granulation and Coating
Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food.
Pesticide, Pigment Pigment and Dye Granulation
Drying of Powdery, Granular and Block Materials
Feature
1). Mixing - granulation - drying - in one machine (one step granulation).
2). Adopting double chamber filtering bags system, removing dust completely. Using antistatic filter material, the equipment is safe to operate.
3). The binder nebulizer adopts multi-fluid spray gun, which has uniform spray particles, the content of powder is very low,
greatly improves the qualified rate of finished products.
4). Can choose two bars explosion-proof design
5).The equipment has no dead angle, the loading and unloading material is light, fast and clean.
2). Adopting double chamber filtering bags system, removing dust completely. Using antistatic filter material, the equipment is safe to operate.
3). The binder nebulizer adopts multi-fluid spray gun, which has uniform spray particles, the content of powder is very low,
greatly improves the qualified rate of finished products.
4). Can choose two bars explosion-proof design
5).The equipment has no dead angle, the loading and unloading material is light, fast and clean.

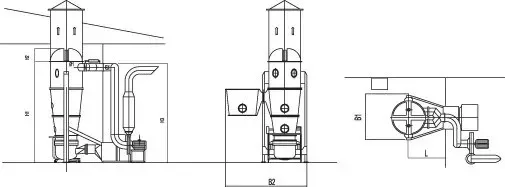

Specification
Technical parameters | ||||||||||||||||||
Item | unit | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||||||
Container of raw material | dim | mm | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |||||||||
volume | L | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | ||||||||||
Production capacity | Min | kg/batch | 4 | 15 | 30 | 80 | 100 | 150 | 250 | |||||||||
Max | kg/batch | 6 | 36 | 72 | 140 | 240 | 360 | 600 | ||||||||||
Consume of steam | kg/batch | 23 | 70 | 140 | 211 | 282 | 366 | 465 | ||||||||||
Amount of compressed air | m³/min | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | ||||||||||
Power of fan | kw | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | ||||||||||
Temperature | °C | ~120°C .Adjustable from ambient to 120 | ||||||||||||||||
Collection rate | % | >99 | ||||||||||||||||
Time of operation | min | 15~30（Depends on material） | ||||||||||||||||
Content of final product | % | ~0.2（Depends on material） | ||||||||||||||||
Noise | dB | ≤75 | ||||||||||||||||
Height of main machine | mm | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | ||||||||||

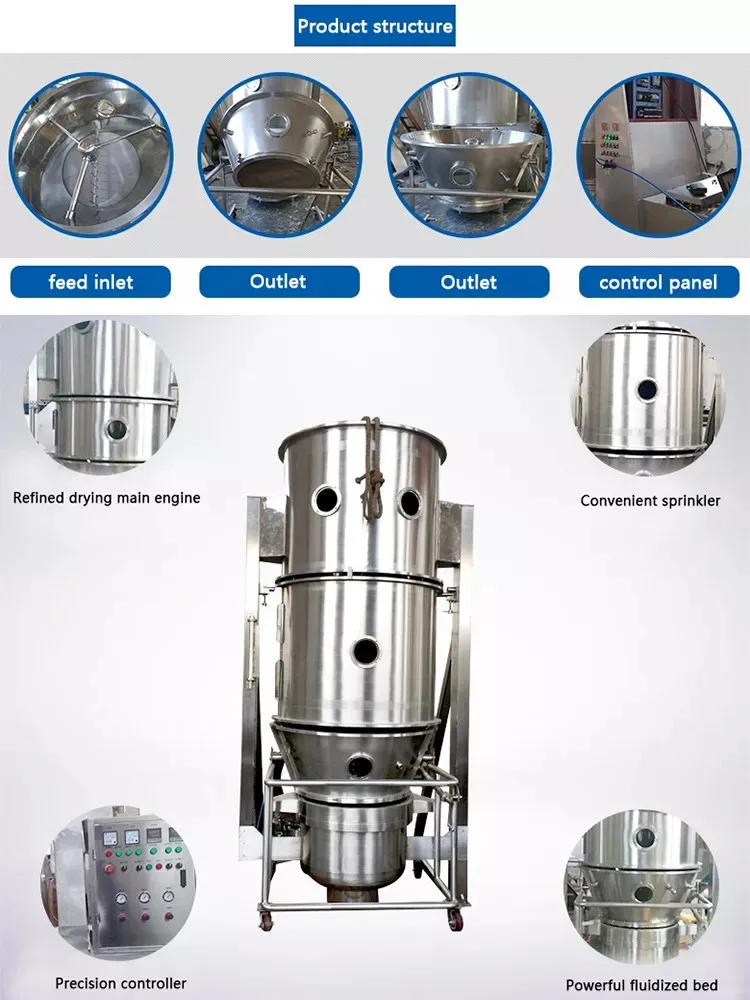

Detailed Images
Machine Parts

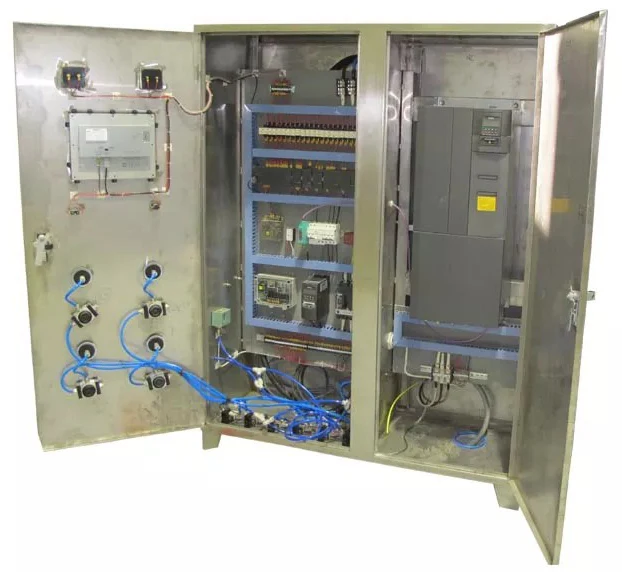

Name: Control Cabinet
Brand: SINOPED
Original: China
All SS304. IP55 Protection degree, able to design according to different electricity safety standard.
Brand: SINOPED
Original: China
All SS304. IP55 Protection degree, able to design according to different electricity safety standard.
Main Features

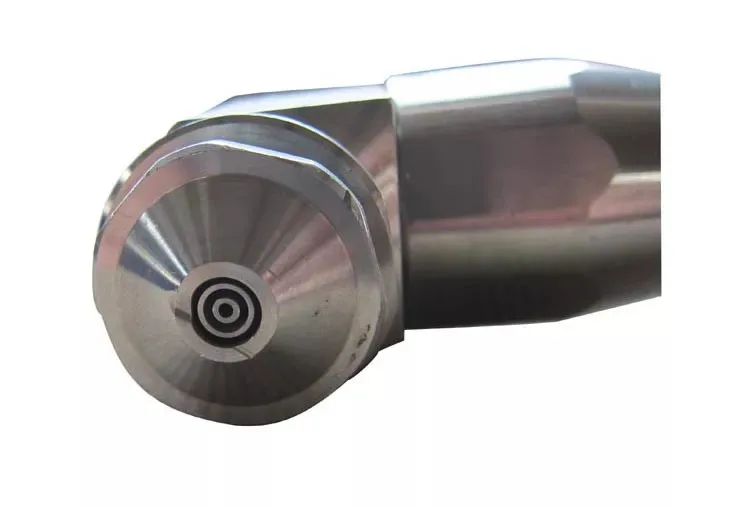

Name: Two Fluid Spray Gun
Brand: SINOPED
Original: China
Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
Brand: SINOPED
Original: China
Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
Machine Parts

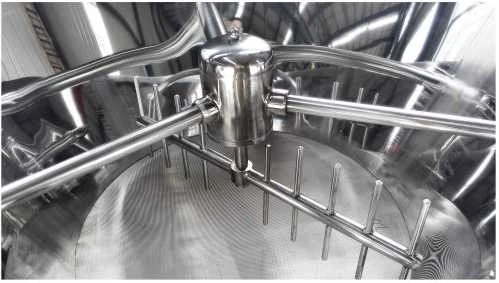

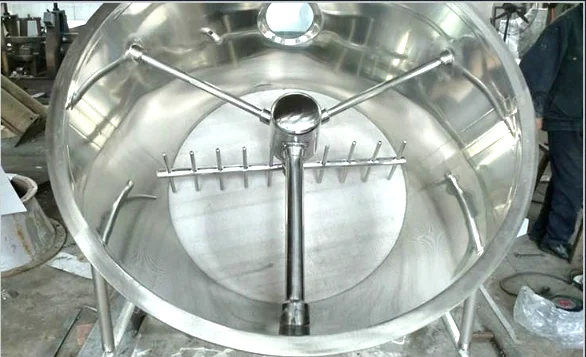

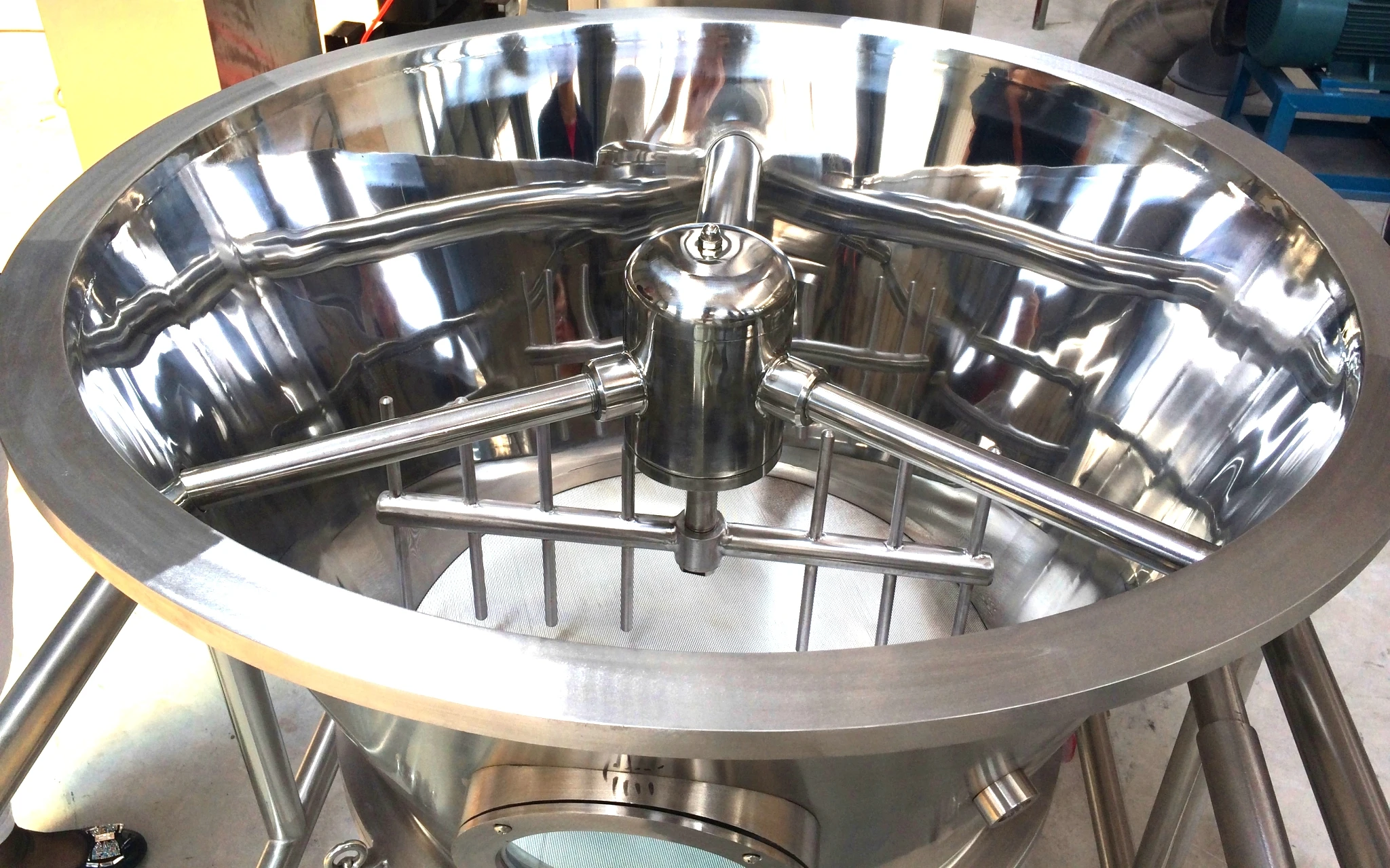

Name: Shake Bag Frame
Brand: SINOPED
Original: China
Adopting double chamber filtering bags system, removing dust completely.
Brand: SINOPED
Original: China
Adopting double chamber filtering bags system, removing dust completely.
Main Features

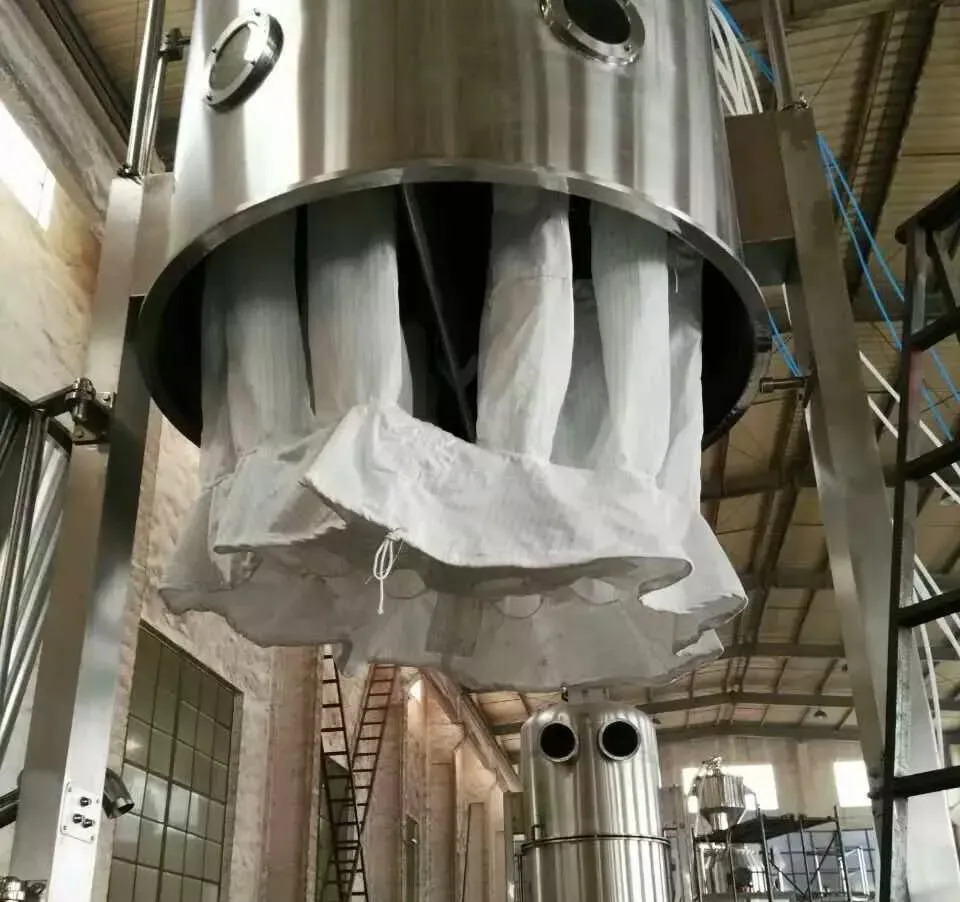

Name: Anti-drop Bags Frame
Brand: SINOPED
Original: China
Ensure bags cannot drop during up and down .
Design&Manufactured in accordance with JB20014-2004
Brand: SINOPED
Original: China
Ensure bags cannot drop during up and down .
Design&Manufactured in accordance with JB20014-2004
Why Choose Us

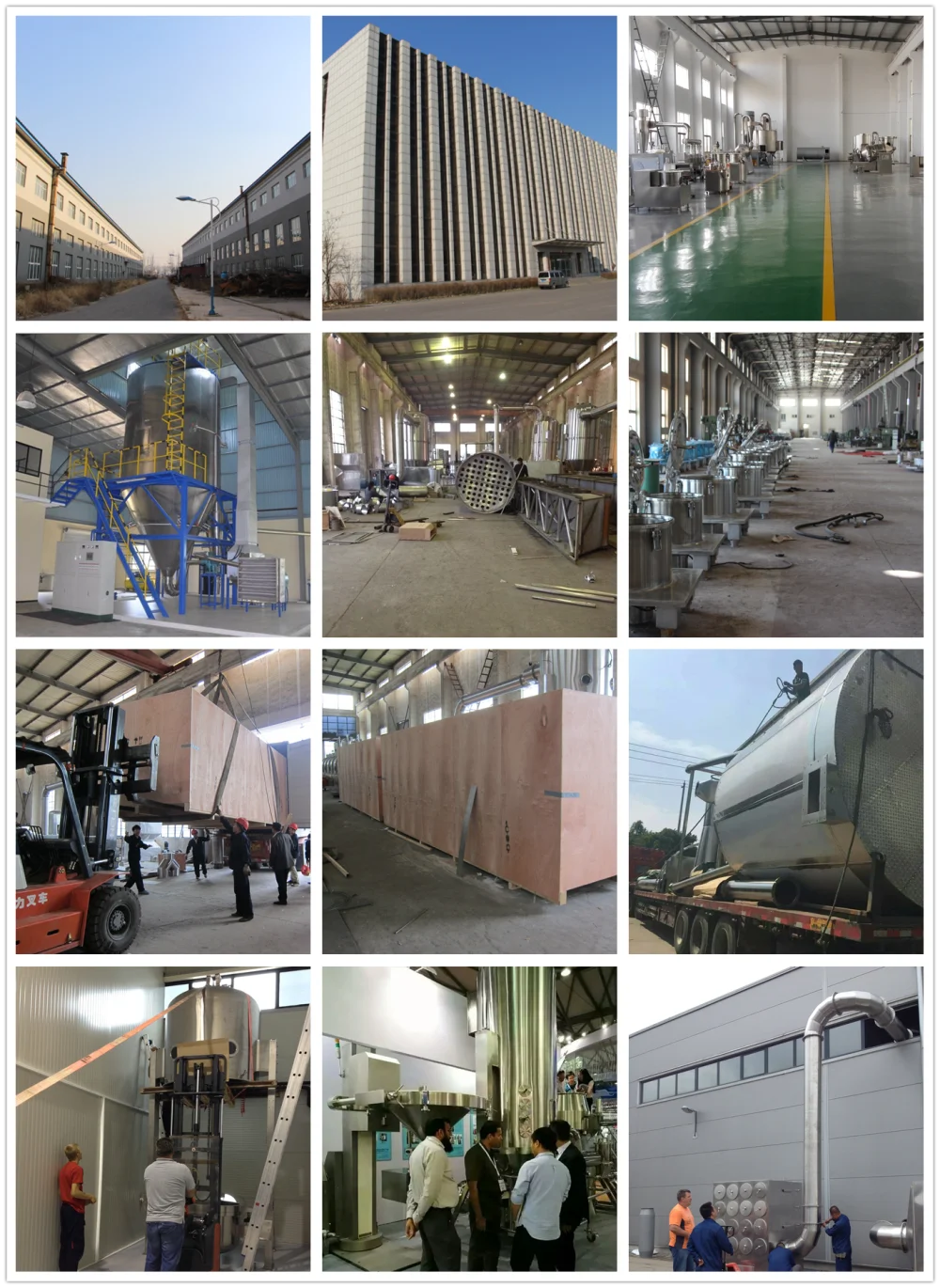

Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
