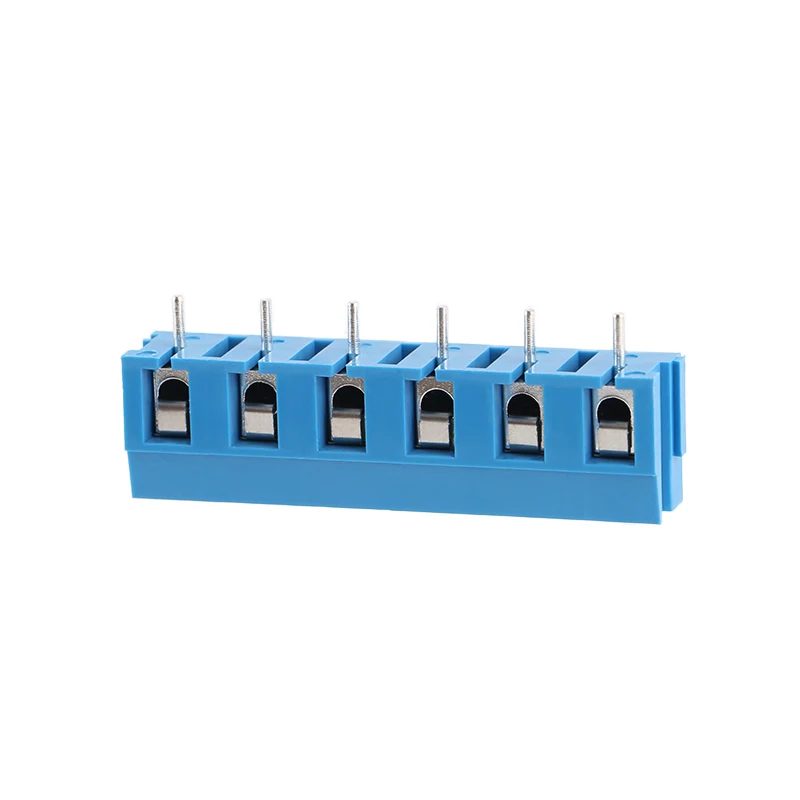

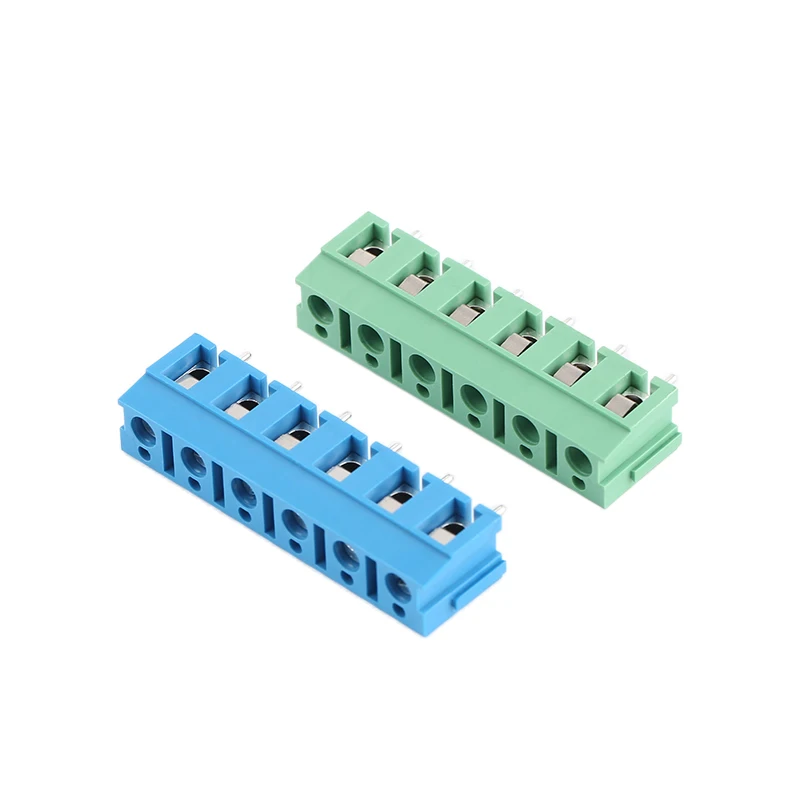

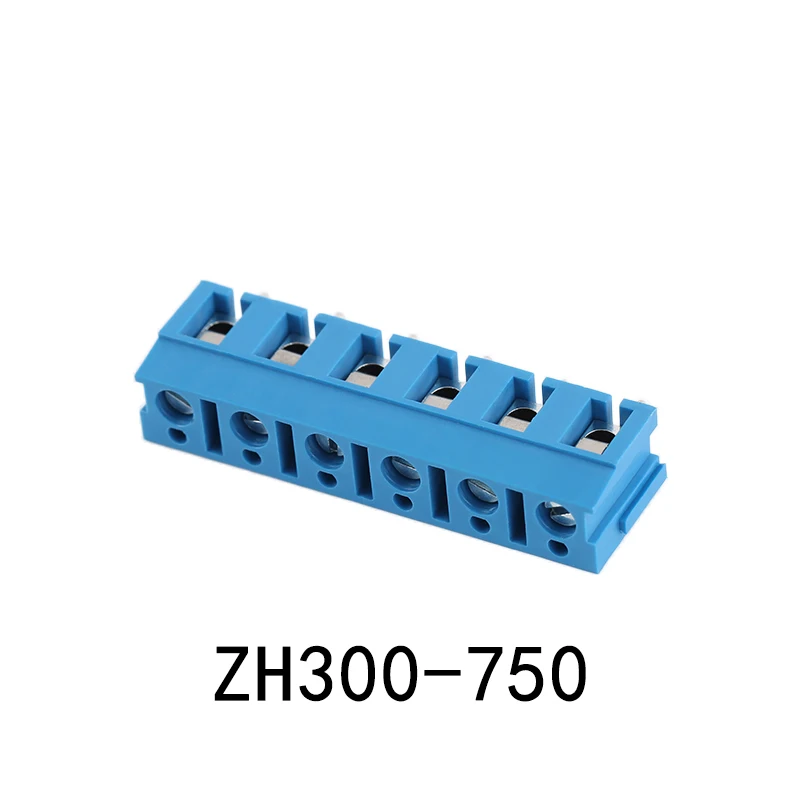

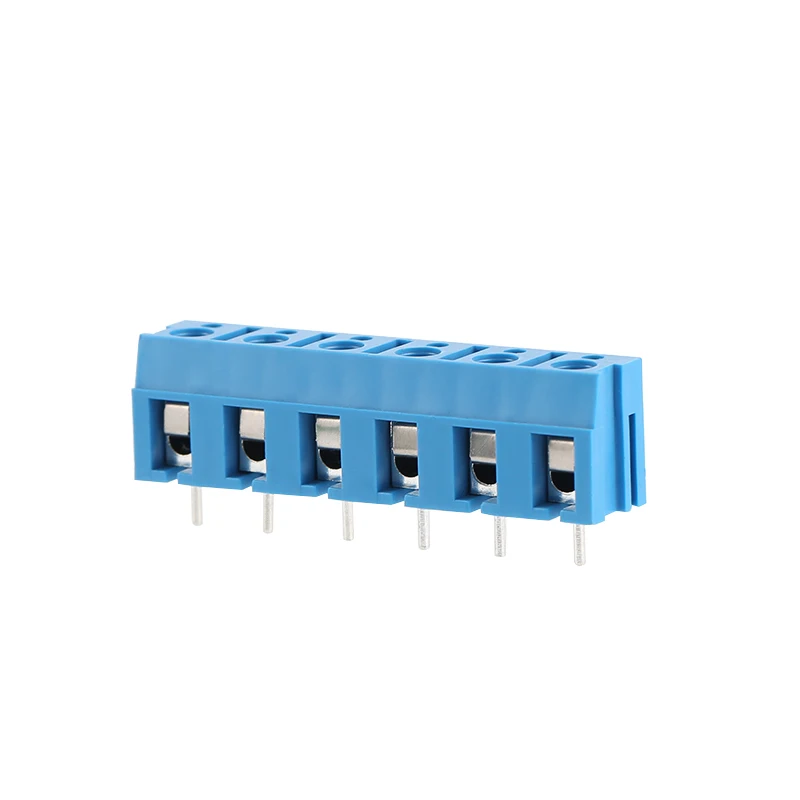

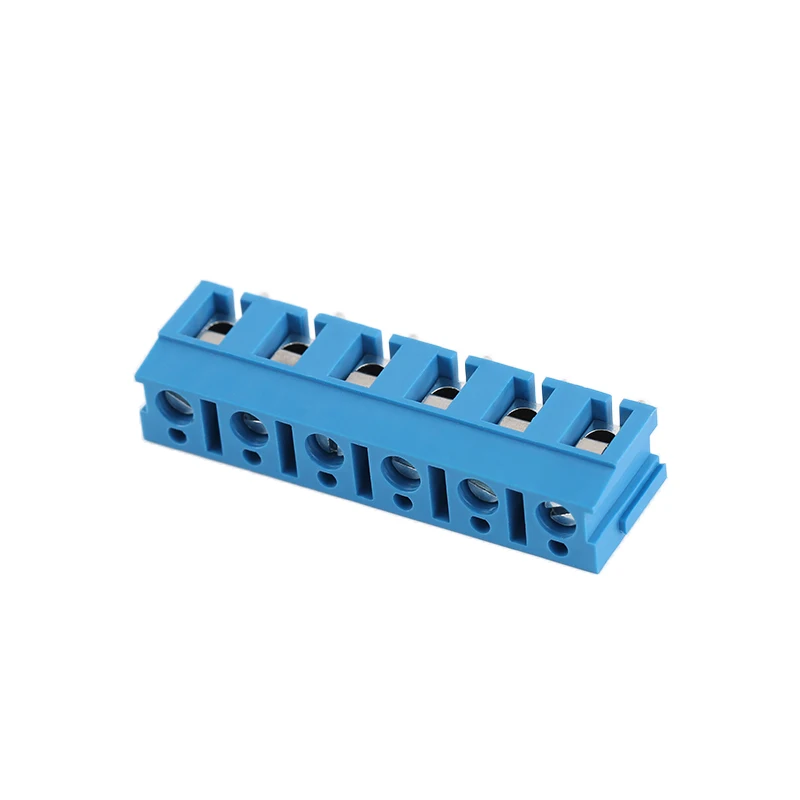

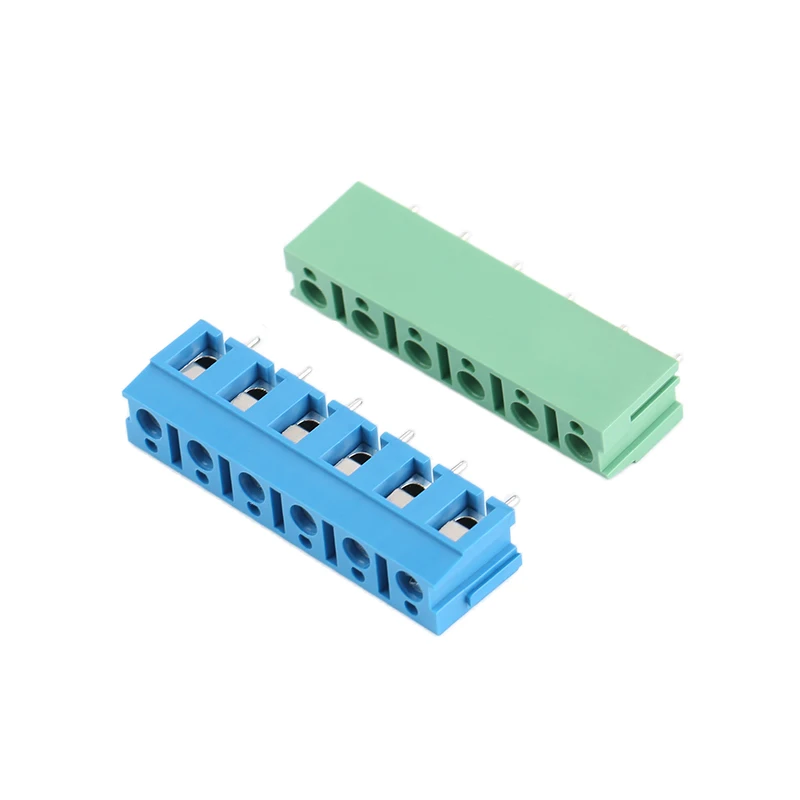

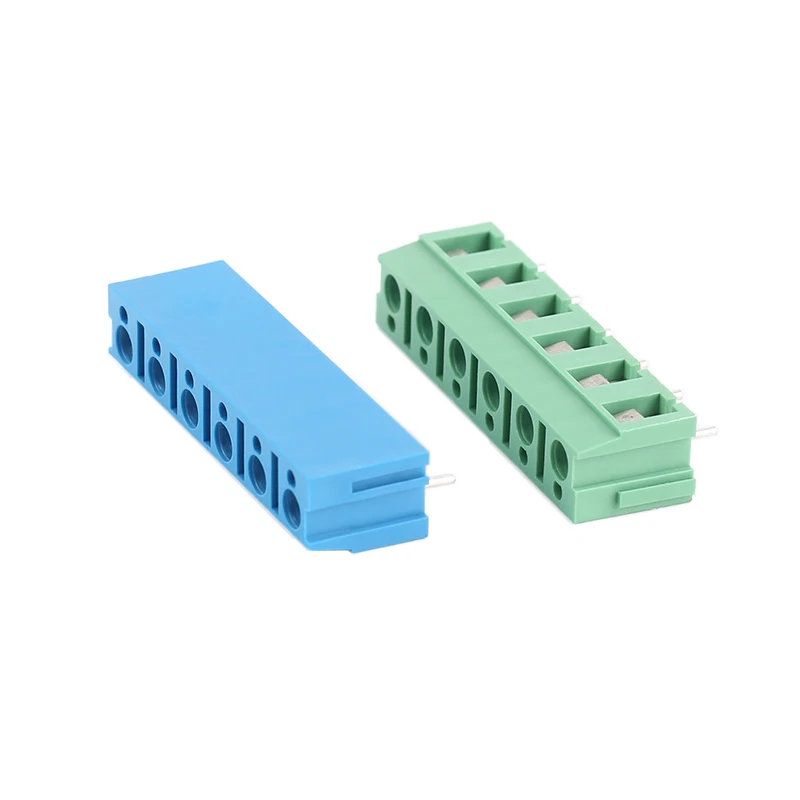

Wire 2conductor through ring tip 10 pole 25a 3 screw terminal block connector
- Category: Terminal Blocks >>>
- Supplier: Cixi Zhongheng Electronics Co. Ltd.
Share on (1600467686773):
Product Overview
Description

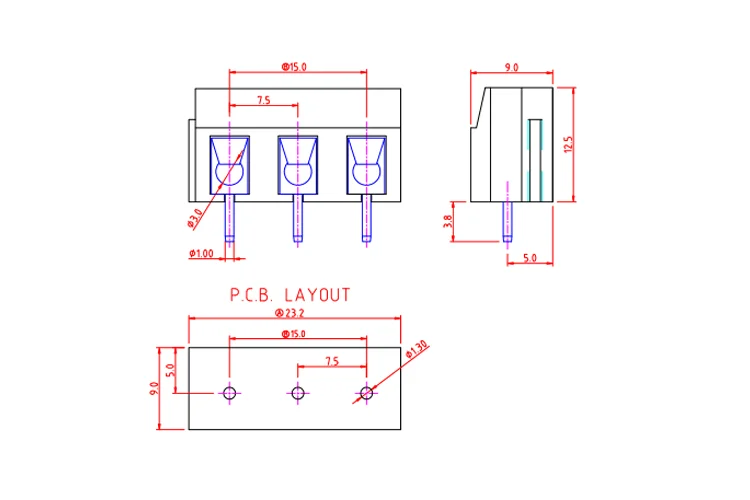

Pitch：7.50MM | ||
Part | Material | Plated |
Frame: | PA66 UL94V-0 | － |
Contact: | Brass | Tin |
Screw: | M3.0Steel | Ni |
Wireprotector: | Stainless Steel | － |
Electrical | ||
Voltage: | 250V | |
Current: | 16A | |
Wire size: | 14-26AWG | |
Poles: | 2-30P | |
Insulation Reslistance: | 5000MΩ/1000V | |
Withstand Voltage: | AC2000V/1Min | |
Mechanical | ||
Acceptable Temperation: | -33℃~+120℃ | |
Max Soldering: | +250℃,5Sec | |
Strip Length: | 5.0-6.0mm |
