Hot air circulation high efficiency turmeric drying machine food fruit fish meat drying oven machine for sale
- Category: >>>
- Supplier: Dryfree Technology Equipment Co. Ltd.
Share on (1600467688323):
Product Overview
Description
Related Products
Product Description

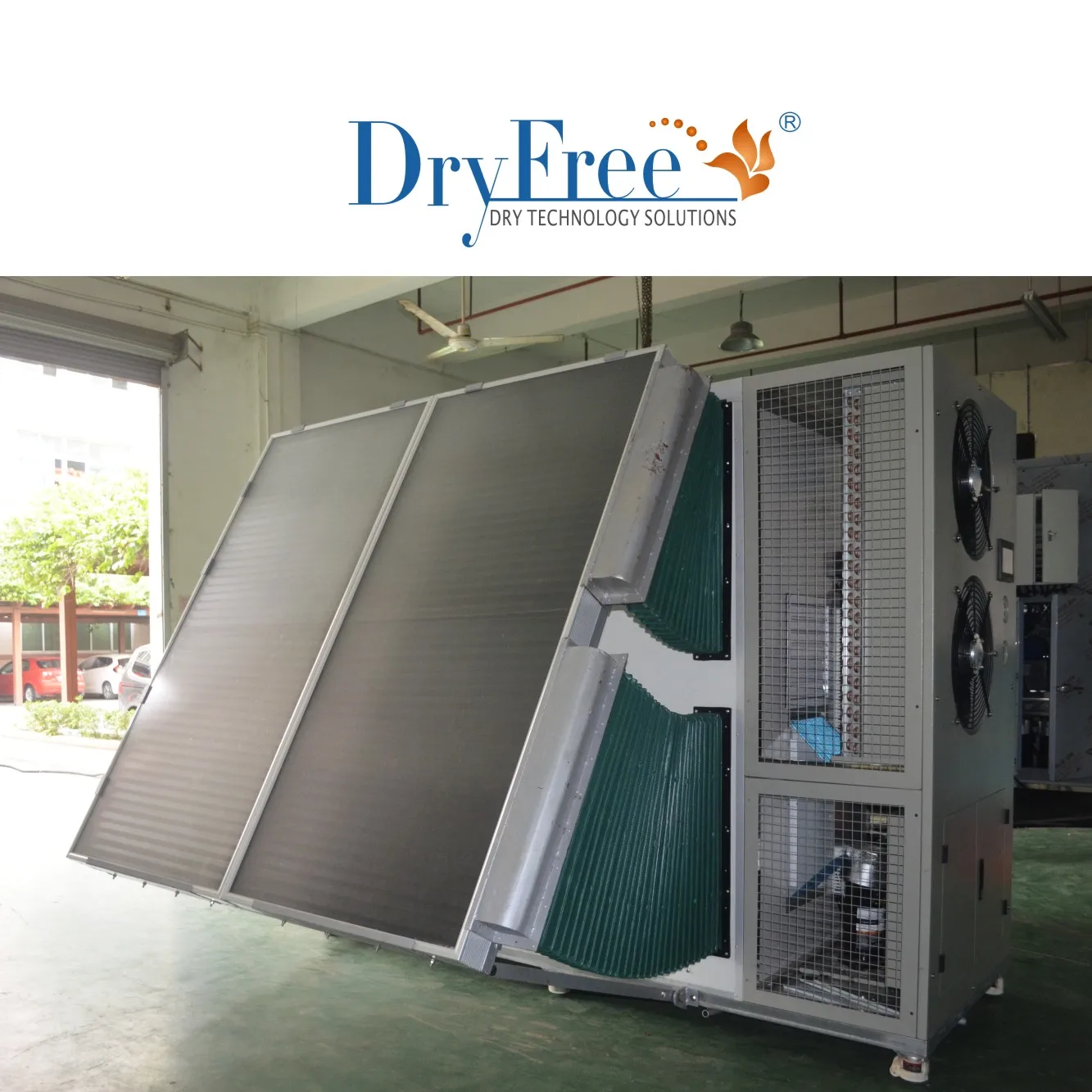

Agriculture heat pump dry system is a compact,high performance dry system.The operating temperature range is between 80°-211°F(27℃-85℃),this system is suitable for families and small factories agricultural products dry.The system include heat pump,control system,fan,dehydration system,dry room and tray,operation voltage is 220v or 110v,lots of place user can use this system directly,don’t worry about the local voltage matching.The system is a complete heat pump dry system
too,user needn’t assemble them again,they connect power to dry system can use them directly.
too,user needn’t assemble them again,they connect power to dry system can use them directly.
Detailed Images
Advantage
1. Free solar power + Energy-save heat pump power
2. Can save 7.5kwh per hour on working time compare with electric heater. And should save so large power cost if calculate 7.5kwh x 24 hours x 30 days (per month) x 12 (months per year )
3. Accurate dry procedure to dry different goods with best quality like keep fresh color and others.
4. Easy operation to select touch button with different programs for different goods through Touch Screen.
5. Automatic control for all total dry process.
6.Reinforced strong structure with long time work life and less maintenance.
7.Waste heat recovery and reutilization
8. Environmental protection and decrease Carbon emission with solar and energy-save power.
2. Can save 7.5kwh per hour on working time compare with electric heater. And should save so large power cost if calculate 7.5kwh x 24 hours x 30 days (per month) x 12 (months per year )
3. Accurate dry procedure to dry different goods with best quality like keep fresh color and others.
4. Easy operation to select touch button with different programs for different goods through Touch Screen.
5. Automatic control for all total dry process.
6.Reinforced strong structure with long time work life and less maintenance.
7.Waste heat recovery and reutilization
8. Environmental protection and decrease Carbon emission with solar and energy-save power.
Product Specifications
Technical Parameters | ||
Model | DF/HP-3/R | |
Power supply | 220V/50Hz | |
Ambient temperature | 5 to 45℃ | |
Load capacity | 300-500kg | |
Dryer heating capacity | 12KW | |
Rated input power(compressor) | 2.4kw | |
Rated input power(outdoor fan) | 0.7kw(2pcs 0.35KW) | |
Rated input power (circulating fan) | 0.6kw | |
Total power | 3.7kw | |
Rated input currents | 13A | |
The humidification capacity | 12KG/H | |
Compressor Model No. | 3HP (scroll compressor) ZW34KA-TPFS-582 Copeland | |
Refrigerant type | Dryfree special refrigerant | |
Refrigerant charge | 4kg | |
Evaporator | Copper tube, Aluminum fins – Yellow anticorrosive material | |
Condenser | Copper tube, Aluminum fins – Yellow anticorrosive material | |
Outdoor fan Qty. | 2 | |
Outdoor fan volume capacity | 6500m³/h | |
Fan speed | 1450R/min | |
Circulation fan volume capacity | 5000-8000m³/h | |
Circulation fan speed | 2800R/min | |
Maximum/rated temperature | 85/80℃ | |
Noise | 55dB(A) | |
Chamber dimension(LWH) | 2800*1100*2200mm | |
Insulation thickness | 50mm | |
Nos. of Trolley | NO | |
No of trays | 60 | |
Tray Dimension | 460x640x25 | |
Tray Material | Total stainless steel 304 | |
Door Size | 700X750mm | |
Nos. of Doors | 2 | |
Exhaust maximum temperature | 115℃ | |
Exhaust pressure | ≤2.35Mpa | |
Return air pressure | ≤0.03Mpa | |
Net weight | 800kg | |
Application type | Indoor & Outdoor | |
Application
Widely used to drying fruit,vegetable,herbs,meat,seafood,etc.Such as litchi,honeysuckle,daylily,beef jerky,mushrooms,blueberry,medlar,jujube,walnut,plum,tea,apricot,raisin,bacon,suasage,small shrimp,rice,etc.

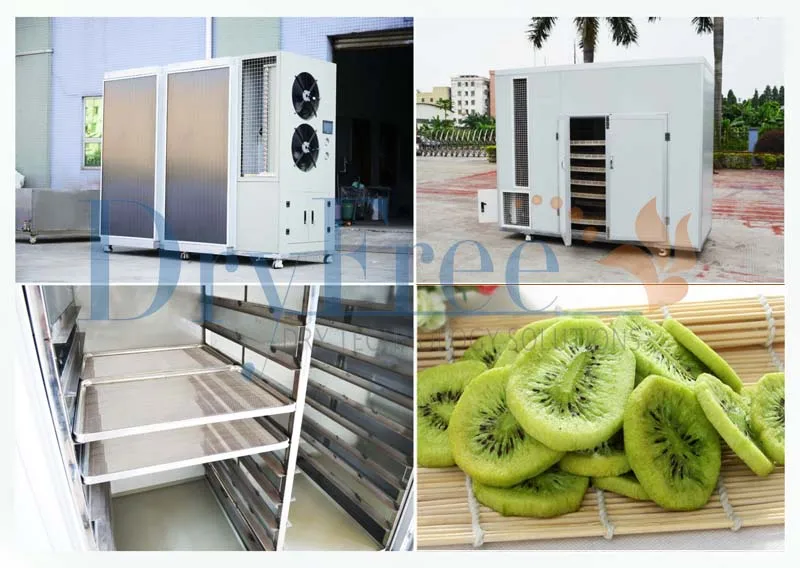

Case show
Packing&Shipping
Certificate
As an enterprise that takes technology as the core and new technology products as the driving force for development, our company has always paid close attention to and insisted on the strong investment in technology research and development, obtained 33 patent certificates, and created the cascade new product echelon. Always maintain product technology leadership and rapid response to market demand.
Company Introduction
Dryfree is China's first factory specializing in the production of dehydrator, solar dryers, heat pump dryer machines and
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
solar+heat pump dryer, which used to dry fruit, flowers,agricultural products,herbs,nuts,meat,seafood,industrial products etc.Our company began to concentrate on the design and installation of drying engineering projects since 2002. In 2006, we established a factory in Dongguan to concentrate on the design, research and development, production of solar unit and heat pump drying unit.And we pioneered the combination of solar dryer and heat pump drying units to provide the most optimized new energy drying and energy-saving design scheme for customers.We hope to create more value for our customers and decrease more pollution and increase more green for our world “Work with your need, save more energy cost, decrease more pollution.”
Why choose us
1.We have stable R&D capital input.The powerful and comprehensive R&D team deeply understand clients’ demand.
2.We have well trained production team,stable and reliable excellent supply chain system and strict quality control system.
3.Dryfree have 15 years experience of drying industry and serve for thousands of customers in nearly 150 industries.There are more than 3000 successful cases.
4.We will provide you on-site service with the experienced project technicians.
5.Our leadership team have advanced business and management concept,rich enterprise operation experience and engineering project management practice.
6.Providing specially-assigned person tracing service to ensure the good communication and coordination with clients.
2.We have well trained production team,stable and reliable excellent supply chain system and strict quality control system.
3.Dryfree have 15 years experience of drying industry and serve for thousands of customers in nearly 150 industries.There are more than 3000 successful cases.
4.We will provide you on-site service with the experienced project technicians.
5.Our leadership team have advanced business and management concept,rich enterprise operation experience and engineering project management practice.
6.Providing specially-assigned person tracing service to ensure the good communication and coordination with clients.
