New Arrival 19mm 12v Ip65 Electrical Waterproof Self Locking Mushroom Type Emergency Push Button Switch
- Category: Push Button Switches >>>
- Supplier: Wenzhou,Rui,Feng,Electric,Co.,Ltd.
Share on:
Product Overview
Description
New Arrival 19mm 12v Ip65 Electrical Waterproof Self Locking Mushroom Type Emergency Push Button Switch
Product Description
Latching Momentary Push Button Switch:
Pin Terminal: 4 pins 5 Pin 6 Pins
Easy to install - Round latching switch with screw clamp type terminals to make fitting very easy
Material:High quality metal material & IP65 IP67 IP68 waterproof protection can be used in wet or dusty enviroment.
Wide Application ,can be used in wet or dusty environment.
Feature:Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;
Large contact surface
Model description | |
KW | KEWEI code |
Mounting hole diameter | 6mm,8mm,10mm,12mm,16mm,19mm, 22mm,25mm,28mm,30mm,35mm,40mm |
Shell material | S:Stainless Steel N: Brass plating nickel A:Aluminum oxide |
Head shape | P-Flat G-High Q-Domed M-mushroom J-Emergency X2-Two bit knob X3- Three bit knob Y2-Two bit key Y3-Three bit key |
Switch Combination | 10-1NO/NC 11-1NO1NC 22:2NO2NC |
Connection type | Y: Solder terminal J: Screw terminal |
Operation types | F:MOMENTARY (RESET) Z:LATCHING(MAINTAINED) |
LED illumination types | E:Ring LED E+DY: Ring +Power symbol LED DY: Power symbol LED D:Dot LED CL:Customized LED |
LED Color | Yellow Blue Red Green Orange White BI-Color,TRI-Color R G Y O B W P RG RB |
LED Voltage | 3V/5V/6V/12V/24V/36V/48V/110V/220V |
Mounting Hole Diameter | 8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm |
Head shape | High round head/ Flat head |
Illuminated or not | Yes |
Terminal type | Pin terminals 5 Pin 6pin |

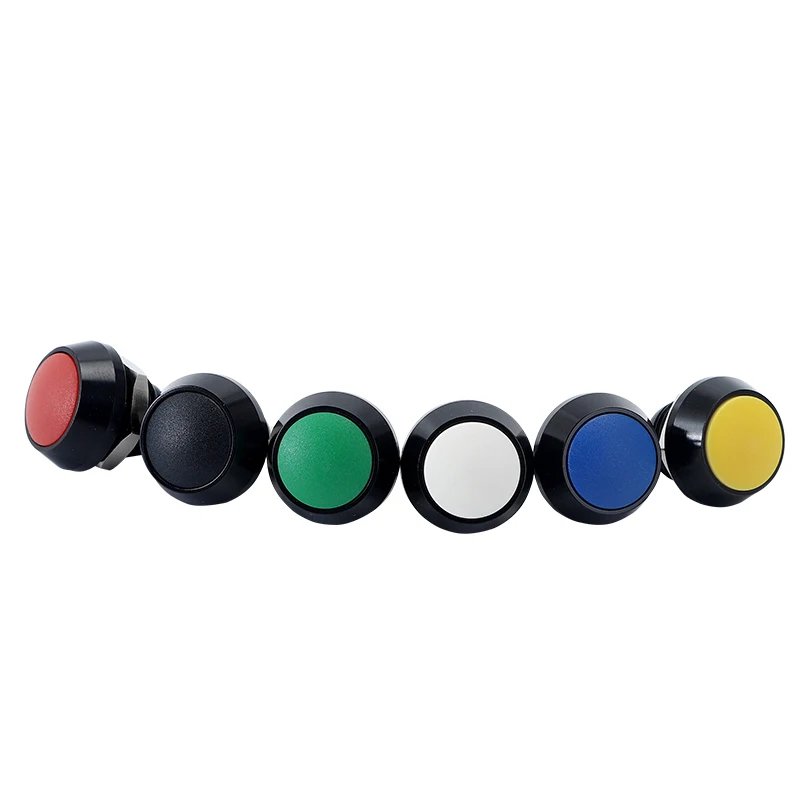

Button Color | Red Green Yellow Blue White Sliver Black |
Shell material/press key Material | Stainless steel/ Brass plating nickel/aluminum oxide color,According to the request |
Diffuser Material | Environmental protection PC |
Nut | Brass Plated Nickel |
Base/Bottom/Insert | High flame retardant PA66 |
Solder pin | Silver plated/gold |
Spring | Imported steel wire |
Switch Combination | 1NO1NC/2NO2NC |
Switch Rating | 3A/250VAC |
Operation types | Momentary or Latching |
Protection Level | IP65(IP67), IK08 |
Ambient temperature | -20℃~+55℃ |
Electrical life | ≥50,000 times |
Mechanical life | ≥500,000 times |
Contact resistance | ≤50mΩ |
Insulation resistance | ≥1000mΩ |
Dielectric strength | 1500VAC |
Nut torque | 5~14Nm |
Panel thickness | ≤10mm |
Accessories | O-ring, Nut |
Customized requirement | Acceptable |
