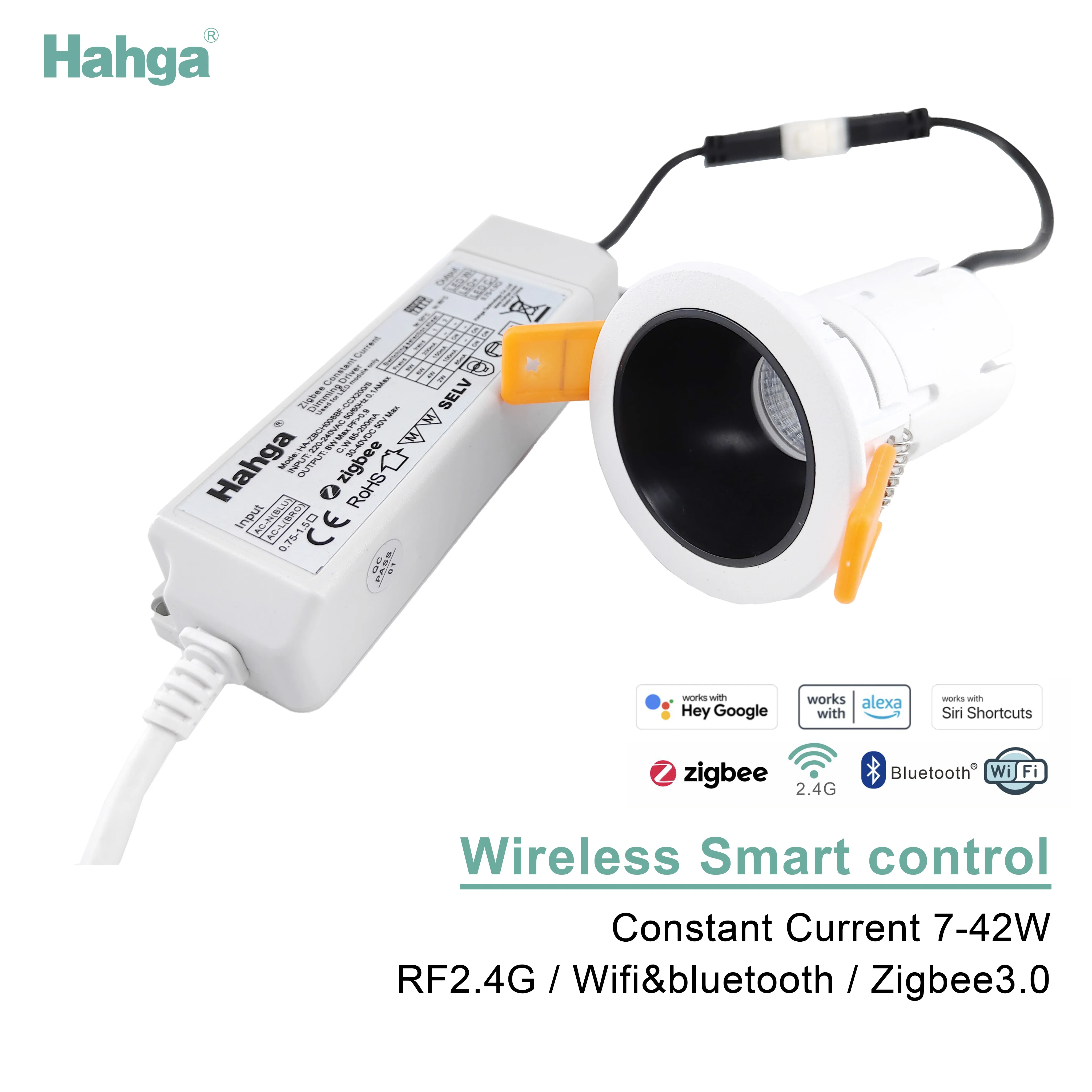

40w 2.4g RF2.4G Wireless zll zha wifi wireless smart led dimmable driver constant current 700ma
- Category: >>>
- Supplier: Zhongshan Hahga Technology Co. Ltd.
Share on (1600467715310):
Product Overview
Description
Hahga
Products Description
Feature
■Output constant Voltage
■Range: 220-240VAC
■Power Factor:≥0.9
■Efficiency up to 88%
■Protections: short circuit/over load/ over temperature
■IP20design for indoor and outdoor installation
■Dimming function: RF 2.4G Remote control
■Range: 220-240VAC
■Power Factor:≥0.9
■Efficiency up to 88%
■Protections: short circuit/over load/ over temperature
■IP20design for indoor and outdoor installation
■Dimming function: RF 2.4G Remote control
■Digital dimming, accurate, stable and smooth dimming
■Single light control, more flexible control
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■CE Rohs approval
■5-year warranty
■Single light control, more flexible control
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■CE Rohs approval
■5-year warranty
RF2.4G remote control Dimming | ||||||||||
Model | Rated Power | Output Current | Output Voltage | Efficiency | Power Factor | |||||
HA-RFCH016BF-CC400 | 16W | 400mA | 25-40V | 83 | 0.9 | |||||
HA-RFCH018BF-CC450 | 18W | 450mA | 25-40V | 83 | 0.9 | |||||
HA-RFCH020BF-CC500 | 20W | 500mA | 25-40V | 83 | 0.9 | |||||
HA-RFCH022BF-CC550 | 22W | 550mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH024BF-CC600 | 24W | 600mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH026BF-CC650 | 26W | 650mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH028BF-CC700 | 28W | 700mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH030BF-CC750 | 30W | 750mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH032BF-CC800 | 32W | 800mA | 25-40V | 85 | 0.9 | |||||
HA-RFCH034BF-CC850 | 34W | 850mA | 25-40V | 86 | 0.9 | |||||
HA-RFCH036BF-CC900 | 36W | 900mA | 25-40V | 86 | 0.9 | |||||
HA-RFCH038BF-CC950 | 38W | 950mA | 25-40V | 86 | 0.9 | |||||
HA-RFCH040BF-CC1000 | 40W | 1000mA | 25-40V | 86 | 0.9 | |||||
Item | |||||||
Voltage Range | AC 220-240V | ||||||
Limited Voltage | 264V AC | ||||||
Power Factor | >0.9 | ||||||
T.H.D | <10% | ||||||
Efficiency | 86% | ||||||
Output | Current Accuracy | ±3% | |||||
Power-on Time | <500ms | ||||||
Protection | Short Circuit | constant voltage mode, recover automatically after fault condition is removed | |||||
Over Loading | ≤120% constant voltage limiting, recover automatically after fault condition is removed | ||||||
Over Temperature | 100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
Others | Ta | -20~+45℃ | |||||
Tc | 85℃ | ||||||
IP rating | IP20 | ||||||
Life span | 50000hours | ||||||
Warranty | 5years | ||||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||||
Company information
PROFESSIONAL R&D and PRODUCTION
With advanced production equipment and standardized production management,the production capacity of 200,000 pieces per month can be guaranteed.
DALI Testing
Wave Soldering
Plug-in Components assembling
Reflow soldering
QUALITY ASSURANCE
Multi professional testing process and testing equipment to ensure product quality.
Safety Test
Aging Test
EMI Tester
In-Circuit Test System
Certifications
Packaging & Delivery
DELIVERY ASSURANCE
Reasonable inventory plan and Official logistics cooperation to ensure fast shipping.
Warehouse
Delivery
Related Products
FAQ
1. How about your goods’ quality?
All products provided by Hahga with 100% burn-in tests, full round tests.
2. What is your warranty? And if I got wrong ones, how will you do with it?
5 years. If any failure caused by quality issue, we send replacement with next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order quantity.
7. Can you provided OEM Service?
Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
All products provided by Hahga with 100% burn-in tests, full round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL ENEC certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
5 years. If any failure caused by quality issue, we send replacement with next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order quantity.
7. Can you provided OEM Service?
Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
