Industrial Carbon Black Coal Ash Drier Machine Clay Soil Vacuum Rotary Drying Drum Dryer

Product Overview

Description

Industrial Carbon Black Coal Ash Drier Machine Clay Soil Vacuum Rotary Drying Drum Dryer

Introduction ---------hot air flow type rotary drum dryer for biomass wood sawdust  :

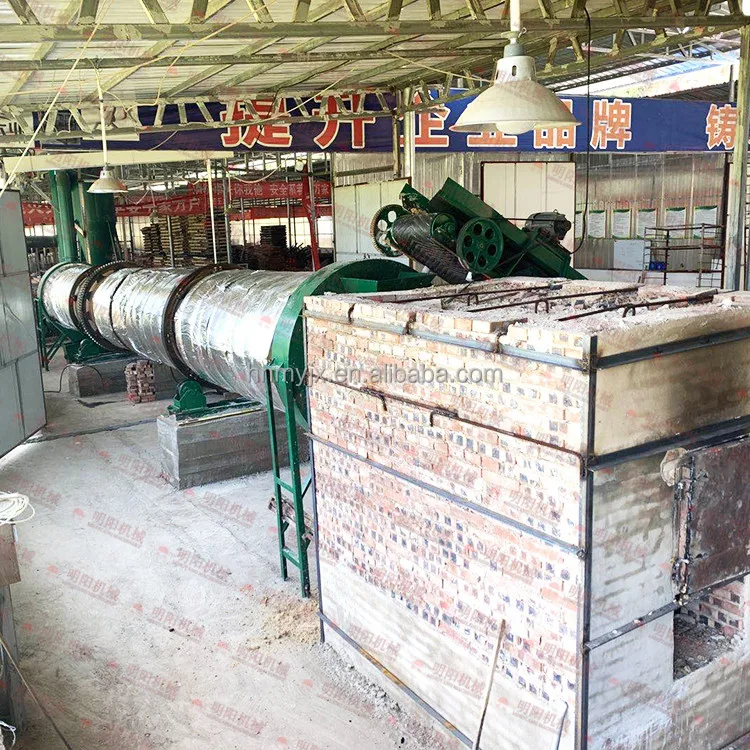

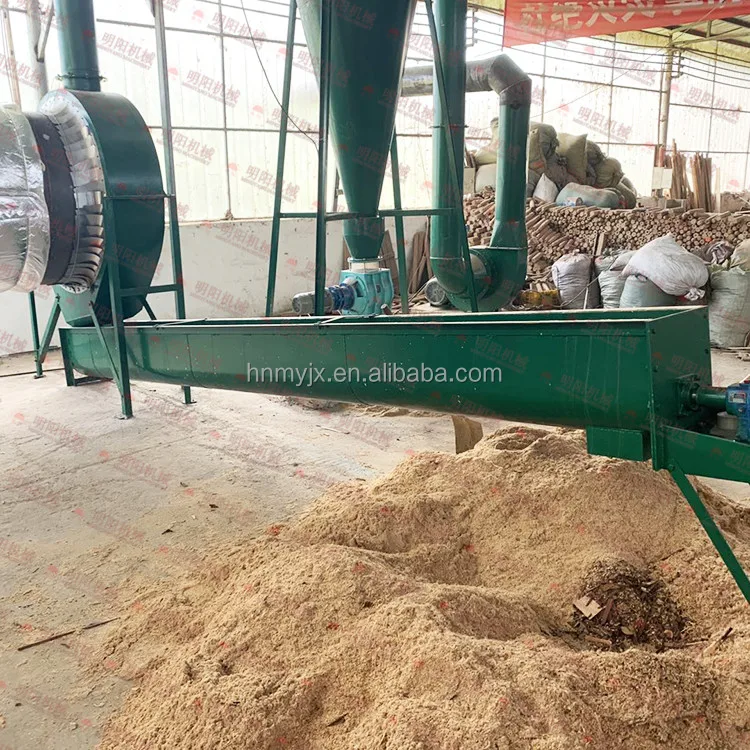

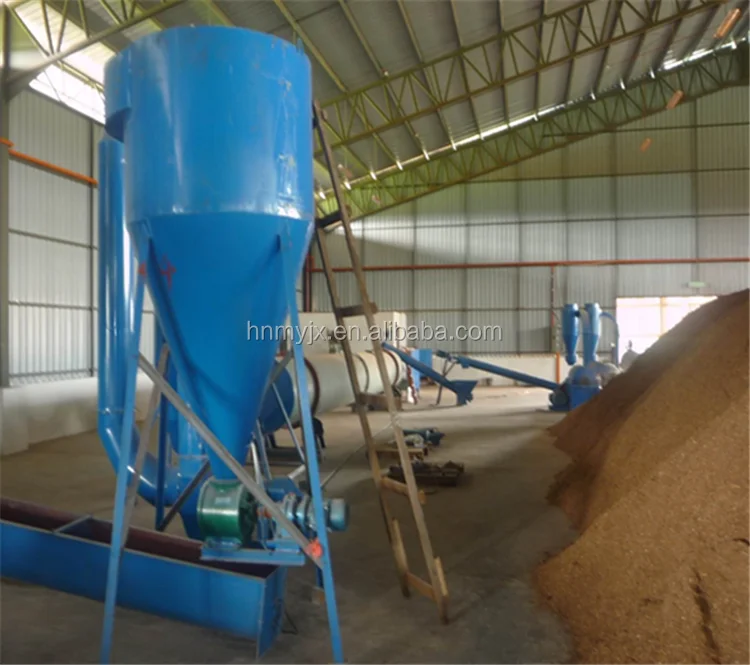

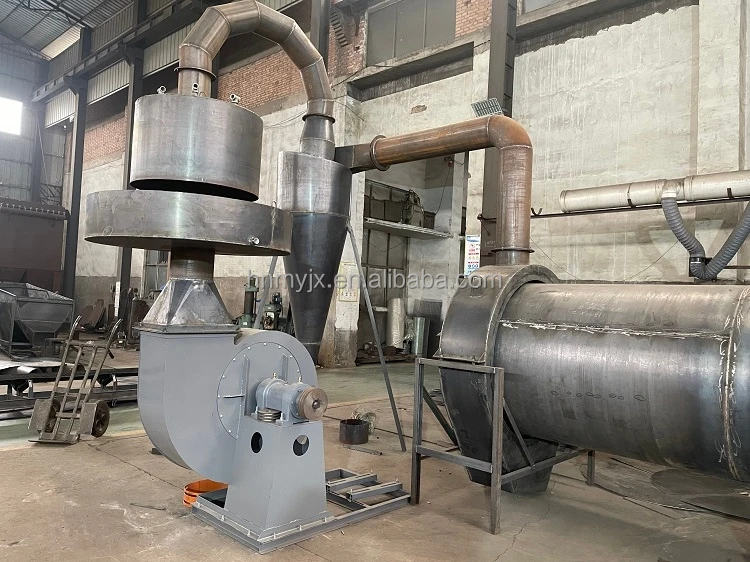

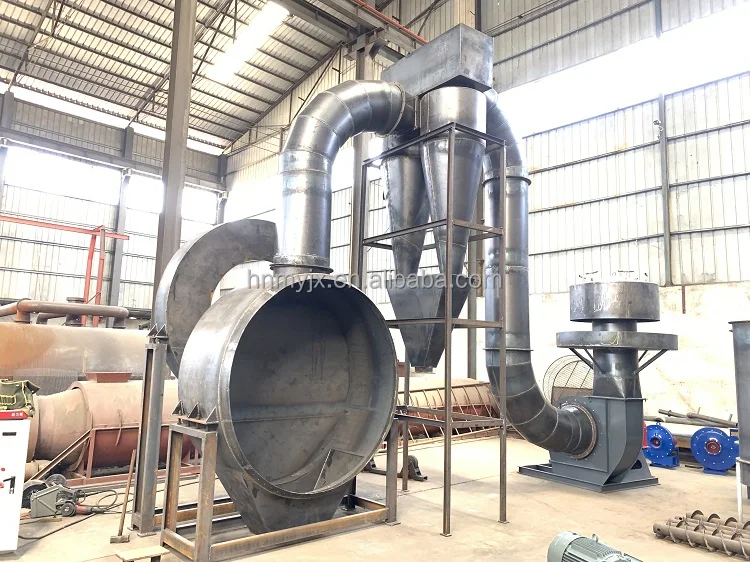

1.This dryer is suitable for drying materials of moisture 30~60%.The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone.

2.Wet materials are put into the hopper.The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly.And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% 3.With the advantages of low cost consumption and high efficiency.

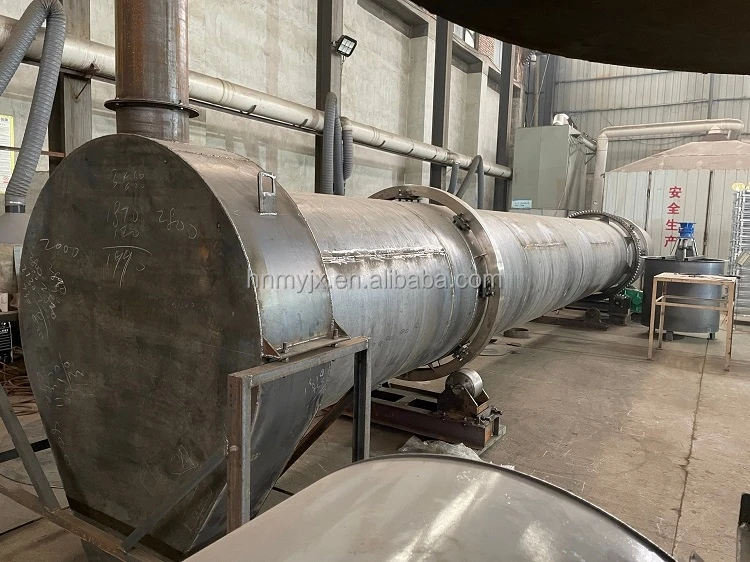

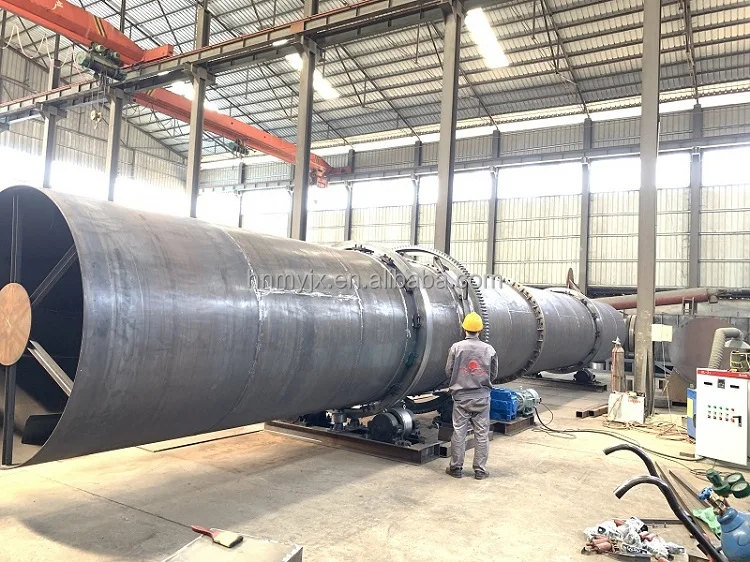

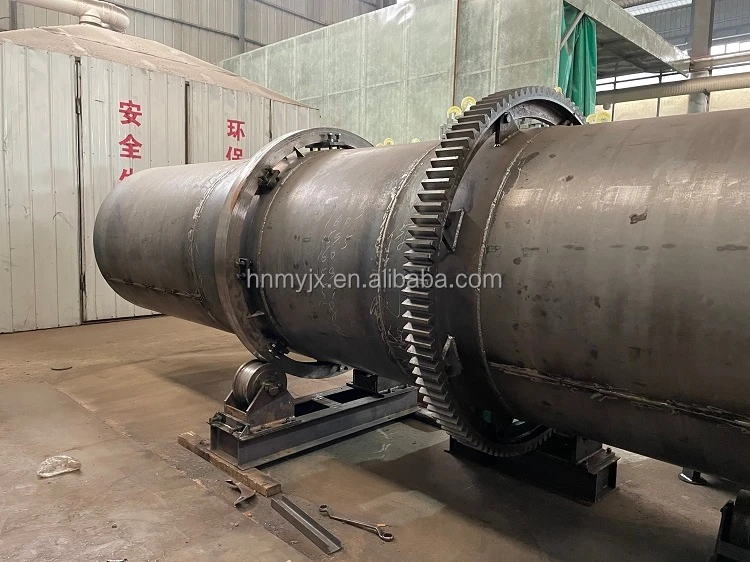

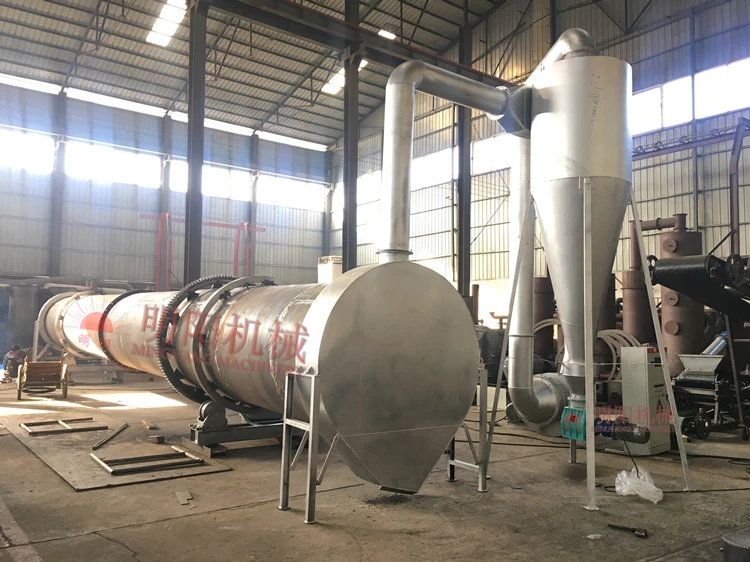

Rotary drum dryer
A: Rotary Dryer is special designed to dry the Wood material which combines the function of drying and cooling, so it can save 30-50% energy.
B: Rotary type dryer shows the features of perfect drying effect, easy operation, high efficiency and easy control of drying. It takes advantage of the stability of roller and homogeneity of air suitable for drying materials of moisture 30-60% .It has the larger capacity , can meet the high capacity need.



Model	GT630	GT800	GT1000	GT1200	GT1500
Capacity kg/h	600-800	800-1000	1200-1500	1500-2000	2000-2500
Main Power	5.5kw	7.5kw	7.5kw	11kw	15kw
Air lock power	1.1kw	1.5kw	2.2kw	2.2kw	2.2kw
Weight	2600kg	2800kg	3800kg	4500kg	5000kg
Diameter of roller	630mm	800mm	1m	1.2m	1.5m
Length of roller	9m	10m	10m	12m	12m
Total length	9+4m	10+5m	10+5m	12+6	12+8m
Wood waste consumption	15-20kg/h	20-25kg/h	30-40kg/h	40-50kg/h	50-60kg/h
Moisture	From 40-70% to 8-12%





The final products:

The full production line:

We can provide you the whole line to make wood charcoal,  including the crushing machine, sawdust drying machine, sawdust briquette machine and carbonization furnace. But first: make sure your raw material's size, whether the crushing machine require or not; Second, make sure your moisture content of the sawdust, if over 12%, the dryer machine is ok to require; This two steps has made sure, we can make briquette and then carbonizing. This is the whole process to finish the process of manufacturing the charcoal briquette.
