Product Overview

Description





YUK600-01HD-C

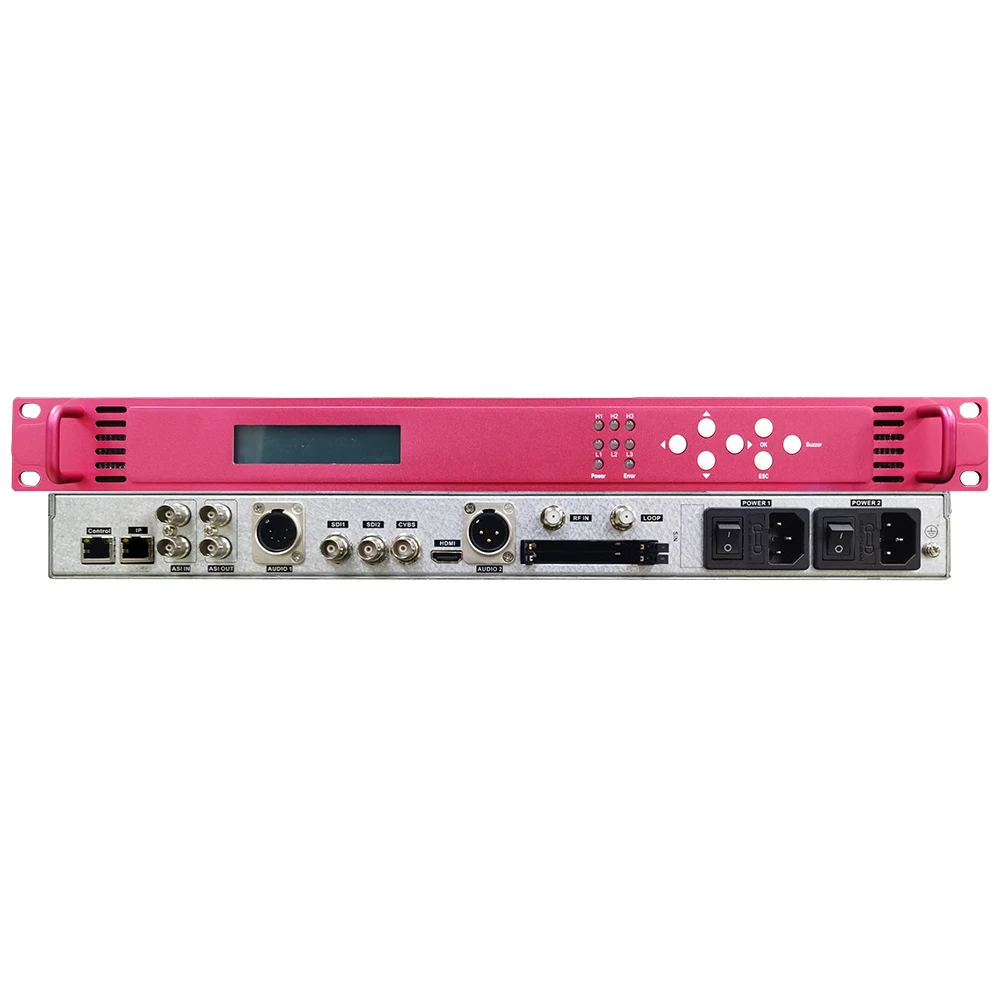

Full HD 1080p Receiver Decoder RF ASI Input H265 Decoder with Cam Slot IRD to IP ASI




Product Overview


YUK2300 integrated receiver decoder supports H.265/H.264/MPEG-2/AVS+ decoding. It is widely used in the satellite, cable and terrestrial TV network with different tuner frontend DVB-S2/S, DVB-C and DVB-T2/T, DTMB.
It supports RF/ASI/IP input, single channel HD-MI/HD/SD-SDI/ Genlock/CVBS/analog stereo/AES/ASI/IP output. The device supports multiple resolutions of 1080P/ 1080I/ 720P/ 576I/ 480I and multiple audio of DRA/AAC/MPEG etc.


Product Feature


* Support multiple input DVB-S2/S, DVB-C and DVB-T2/T, DTMB,IP,ASI

* Multiple output, HD-MI/SD/HD-SDI/Analog stereo/ASI/IP output/Genlock/CVBS

* Support H.265/H.264/MPEG-2/AVS+ decoding

* Twoindependent CAM cards, descrambling two different signals

* Support BISS-1and BISS-E decryption

* Support DRA/AAC/MPEG

* Compatible with HD/SD signals

* Resolution can be automatically identified or manually set

* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD

* Web network management based on B/S

* Support signal input strength, signal to noise ratio (SNR) dynamic display


Specification


RF Input(DVB-S/S2)
Standard
DVB-S/S2
Input
2×RF input, 75Ω
Input Frequency
950~2150MHz
Input Level
-25~ -65 dbm
Symbol Rate
1~ 45Msps
FEC
All ratios compatible with standards
LNB Power Supply
13V/18V/turn off, 22KHz
Constellation
QPSK, 8PSK
Roll-off Factor
0. 2, 0.25, 0.35
RF Input(DVB-C)
Standard
DVB-C
Input
2×RF input, 75Ω
Input Frequency
48~862MHz
Input Level
45~75dbuV
Modulation Mode
16/32/64/128/256QAM
RF Input(DVB-T/T2)
Standard
DVB-T/T2
Input
2×RF input, 75Ω
Input Frequency
44~1002MHz
Input Level
-25~ -100 dbm
Modulation
DVB-T：QPSK/16-QAM/64-QAM
DVB-T2：QaPSK, 16QAM, 64QAM, 256QAM
Bandwidth
6MHz/7MHz/8MHz
Carrier Mode
DVB-T：2K/8K
DVB-T2：1K, 2K，4K，8K，16K，32K
Guard Interval
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/4，5/32，1/8，5/64，1/16，1/32，1/64，1/128
FEC
DVB-T：1/4，1/8，1/16，1/32
DVB-T2：1/2，3/5，2/3，3/4，4/5，5/6
RF Input(DMB-T)
Standard
DMB-T
Input
2×RF input, 75Ω
Input Frequency
146MHz~862MHz
Bandwidth
6MHz/7MHz/8MHz
ASI Input/Output
ASI Input Connector
2×BNC, 75Ω
ASI Output Connector
2×BNC, 75Ω
Executive Standard
DVB-ASI, EN50083-9
Output Bitrate
≤200Mb/s
TS Over IP
Connector
2×RJ45, 10/100/1000 Base-T
Effective Bitrate
600Mb/s
Frame Length
(1-7)×188 adjustable bytes
Transfer Protocol
UDP/RTP, Unicast, Multicast
HD-MI Output
Connector
1×HD-MI
Resolution and Frame Rate
1080p59.94/1080p50/1080i60/1080i50/
720p60/720p50/576p/576i/480p/480i
Embedded Audio
1 channels stereo
Data Video Decoder
Standard
MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+
10 bit, 4:2:0
Data Audio Decoder
Standard
MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC,
MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
HD/SD-SDI Output
Connector
2×BNC,75Ω
SD-SDI Output
SMPTE 259M, 270 Mb/s (10bit)
HD-SDI Output
SMPTE 292M, 1.485 Gbit/s (20bit)
Output Level
800mV+-20 p-p
Audio Output
Connector
1-ch analog stereo audio and 1-ch AES/EBU
Audio Output Mode
Left, Right, Dual Mono, Stereo
Local and Remote Management
Connector
1×RJ45, 10/100/1000 Base-T
Remote Control
HTTP Web
Local Control
HTTP Web
Equipment Upgrade
IP
Physical Specifications
Dimension(L×W×H)
450mm×350mm×44mm
Weight
Net weight 5KG
Power
AC 90V～250V，50/60Hz
Power Consumption
24W (excluding LNB power supply)
Temperature Range
0 ~ 45℃(operation), -10 ~ 60℃(storage)
Humidity
10 ~ 90% (Non-condensing)
