RIKA RK330 01 Temp and RH Relative Humidity Transmitter Probe Sensor 24v Supply 0 10v Output for Online Monitor
- Category: >>>
- Supplier: Hunan Rika Electronic Tech Co. Ltd.
Share on (1600467745971):
Product Overview
Description

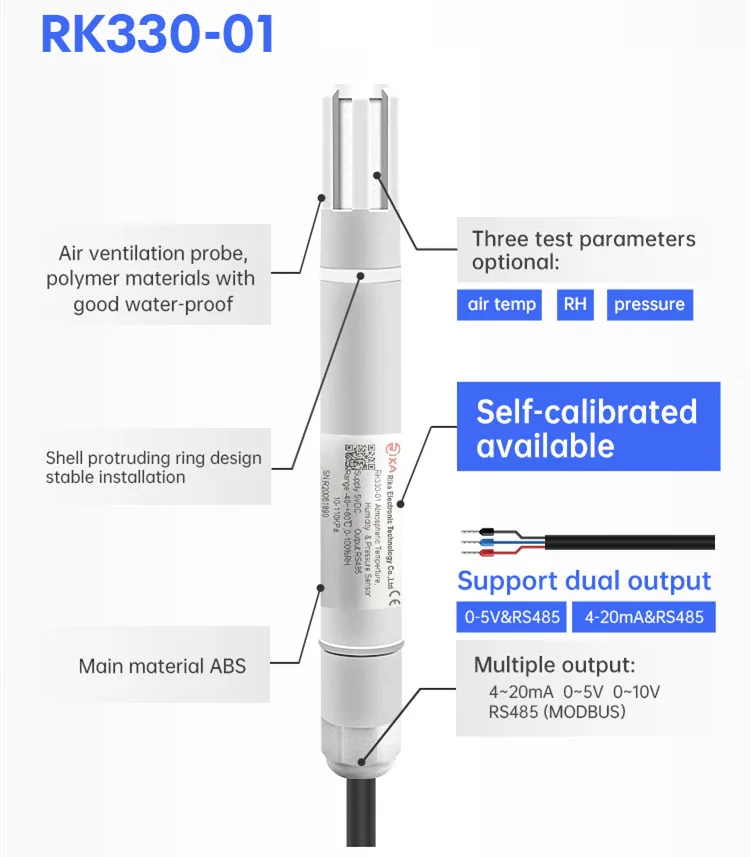

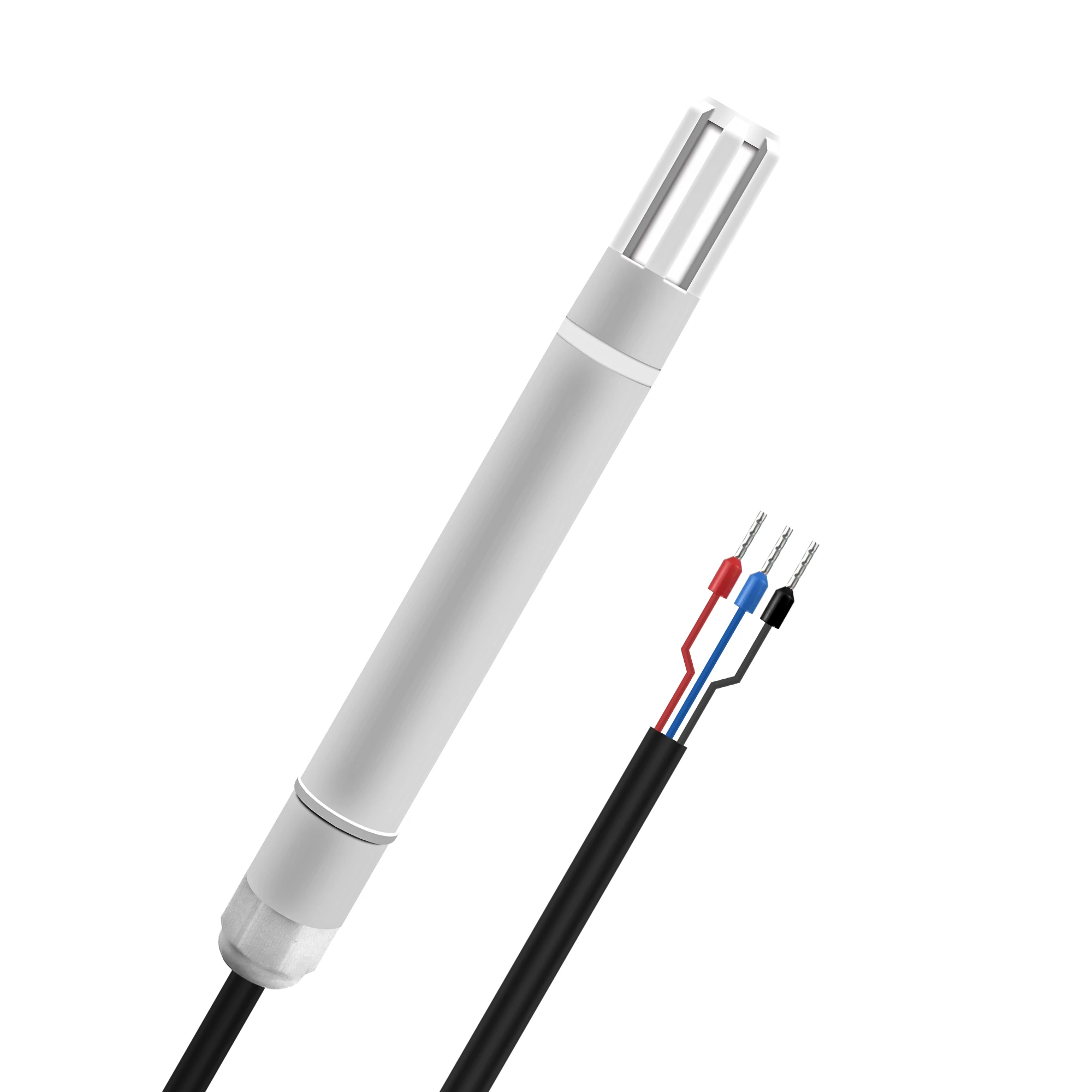

RIKA RK330-01 Temp and RH Relative Humidity Transmitter Probe Sensor 24v Supply 0-10v Output for Online Monitor
Product Description

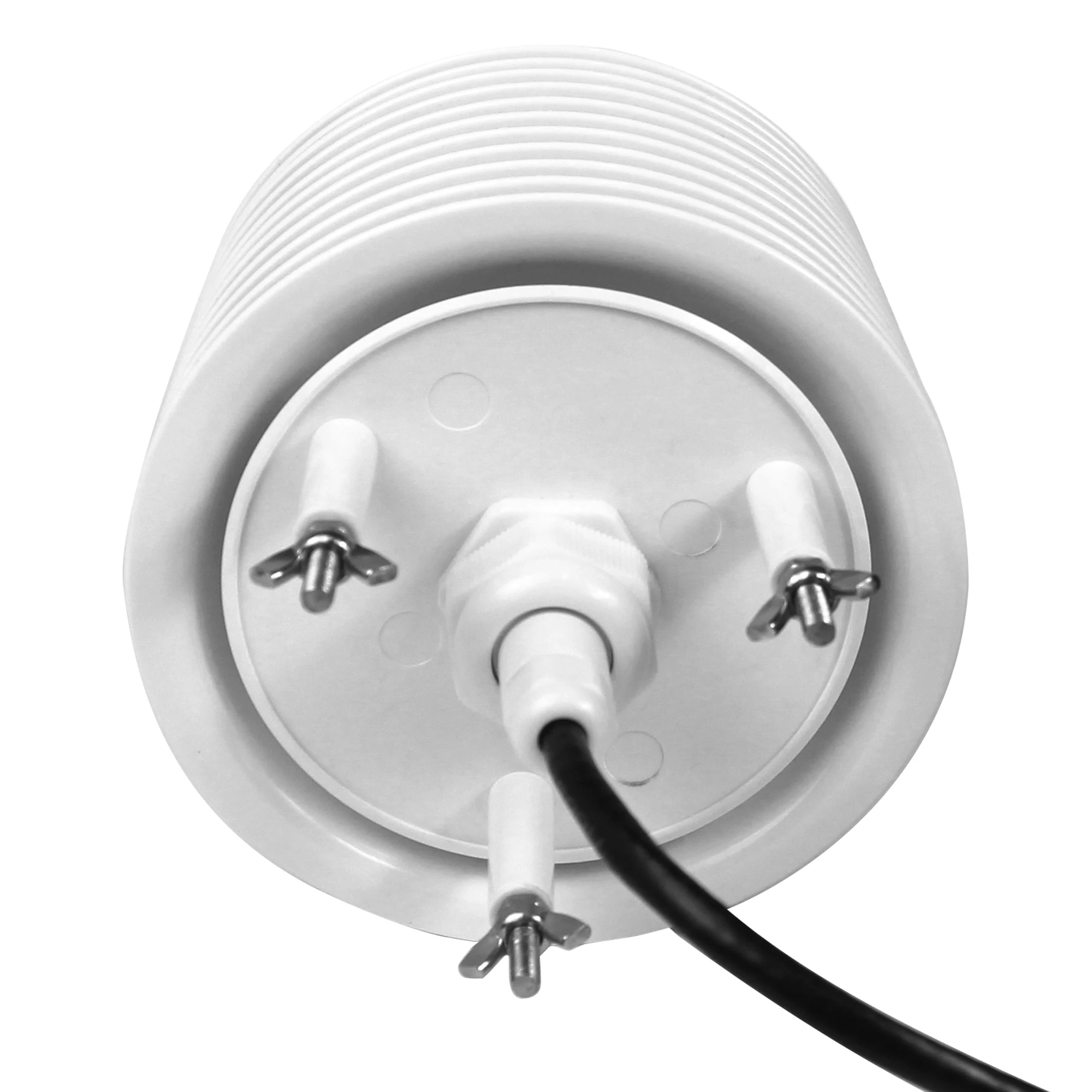

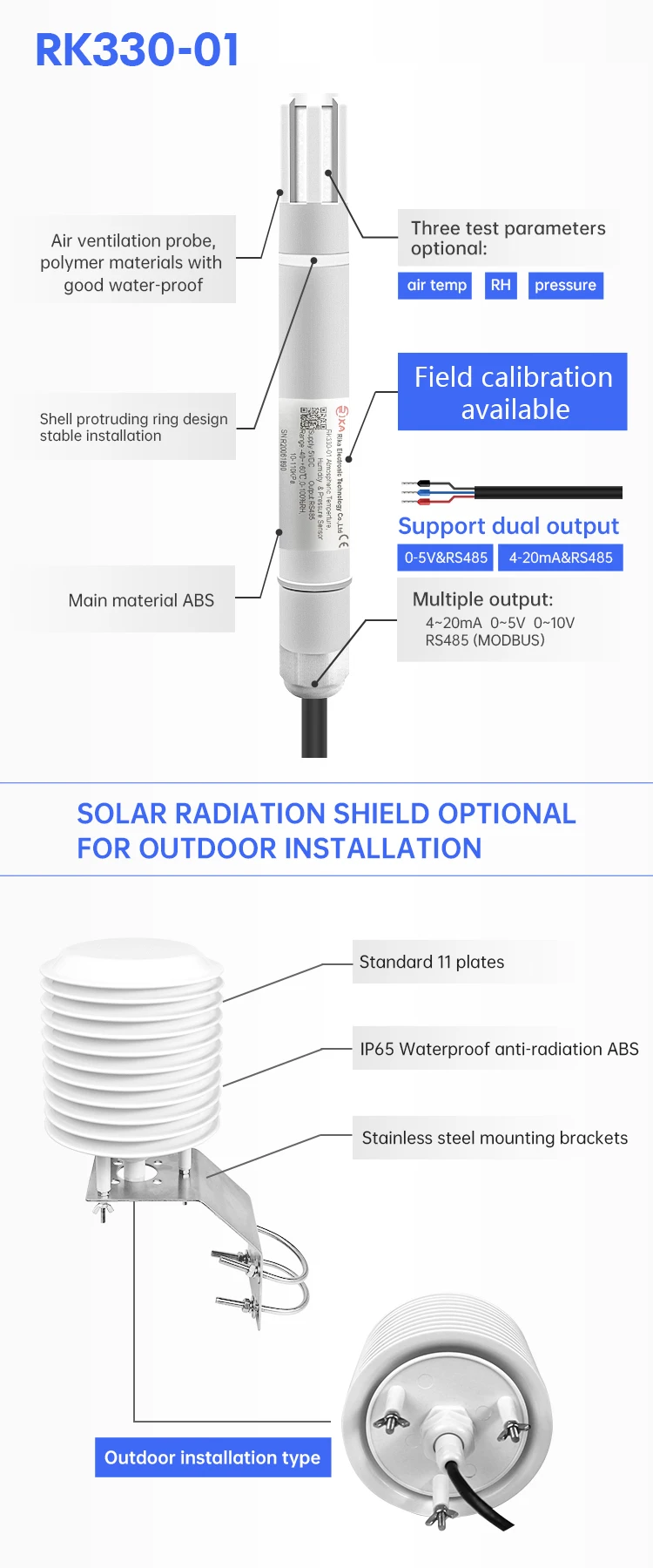

RK330-01 Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.
Features
- High Sensitivity
- Fast response time
- Long service life
- Low consumption
- Good stability of output
Applications :
- Environmental monitoring
- Livestock farm
- Storage
- Forestry
- Greenhouse
- Agriculture
| Item | Technical Specification | |||
|
| Temperature | Humidity | Pressure | |
| Range | -40-60℃ | 0-100%RH | 0-110kPa(0-1100mbar) | |
| Resolution | 0.01℃ | 0.05%RH | 0.1mbar | |
| Accuracy | ±0.5℃ | ±3%RH | ±1mbar | |
| Supply | 12-24VDC | |||
| Output Signal | RS485 MODBUS(RTU) | |||
| Current Consumption | <20mA | |||
| Operating Temperature | -40℃-+80℃ | |||
| Ingress Protection | IP65 | |||
| Storage | 10-60℃@20%-90%RH | |||
| Weight(unpacked) | 400g | |||
| Shelter material | ABS | |||
Details show

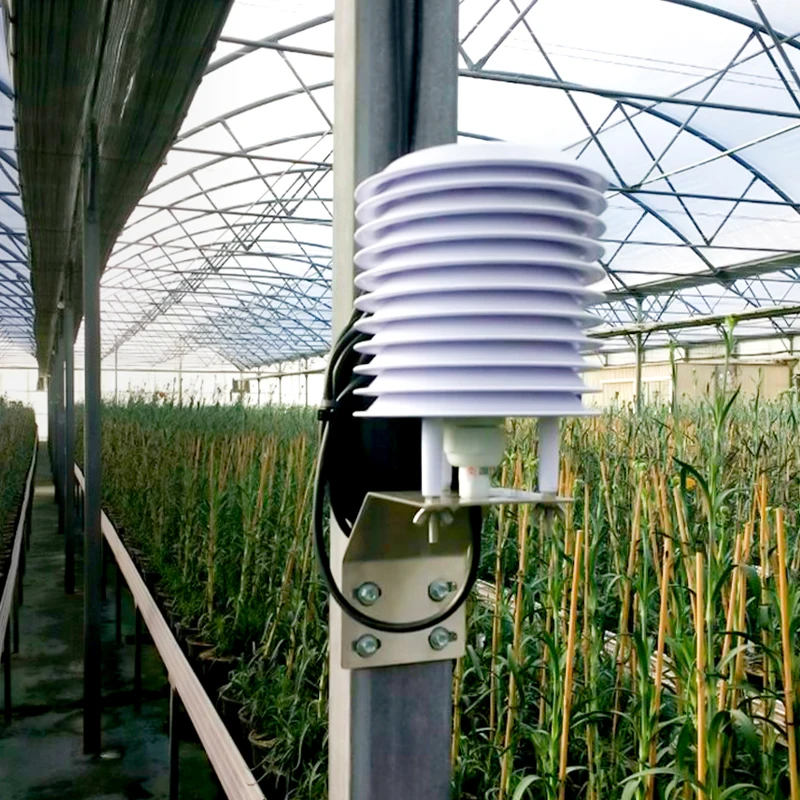

Application
Relative products
In order to recommend proper products to you, please tell me your information below:
1. What’s your required power supply ? -- The standard is 12-24V with 5V supply optional. If you have special demands, please specify.
2. What’s your required output signal ? -- We have 0-20mv, 4-20mA, 0-5V, RS485 optional. Please specify.
3. What’s your required cable length ? - The standard is 2.5m. If you have special demands, please specify.
4. Quantity?
5. Price items: CIF or Exw or FOB ?--If CIF please tell us your detail shipping address for freight calculation.
6. Your complete company name,address, post code,contact person, tel, fax etc.
|
Wind speed sensor |
Wind direction sensor |
Solar radiation sensor |
|
Pyranometer |
Solar Panel Temp sensor |
Air temp, RH and Pressure sensor |
Feedbacks
Company Information
Certifications
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
