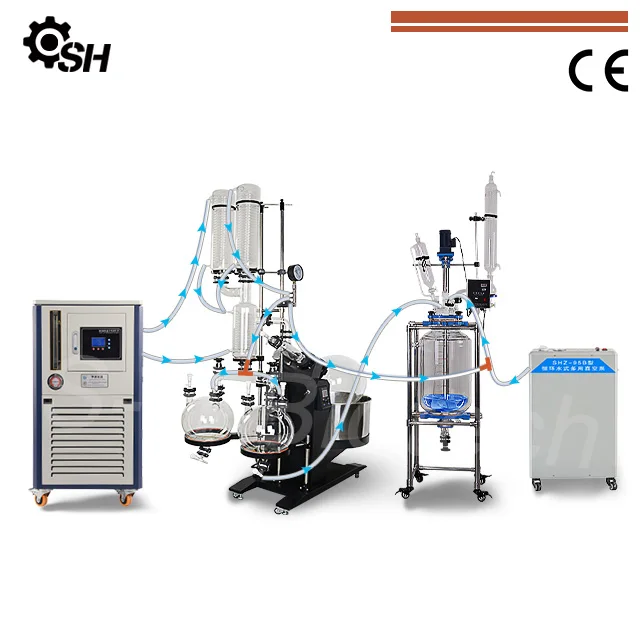

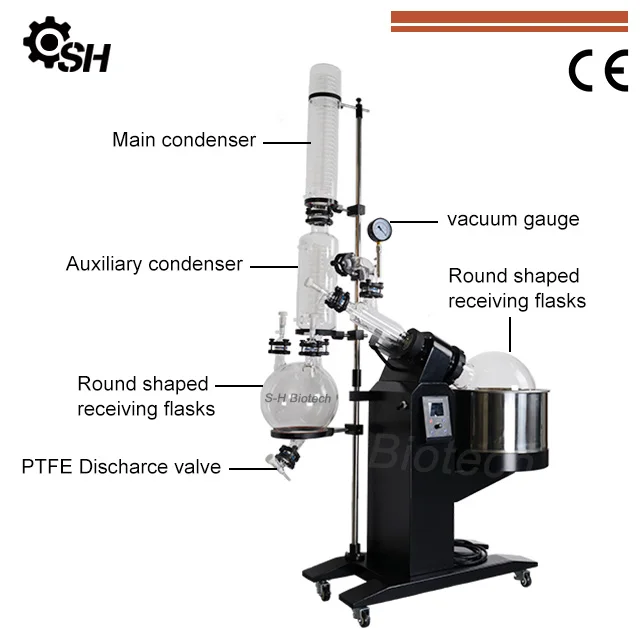

Industrial 5l 10l 20l 50l 100l Vacuum Distillation Roovap Essential Oil Distiller Dual Condenser Rotary Evaporator
- Category: >>>
- Supplier: Shanghai Shenheng Biological Technology Co. Ltd.
Share on (1600467755612):
Product Overview
Description
| Model | RE-10L2C | RE-20L2C | RE-30L2C | RE-50L2C |
| Rotary Flask | 10L | 20L | 30L | 50L |
| Collection flask(L) | 5L*2pcs | 10L*2pcs | 20L*2pcs | 20L*2pcs |
| Rotary Motor power(W) | 250 | |||
| Rotaing Speed(rmp) | 20~120, digital display | 20~90, digital display | ||

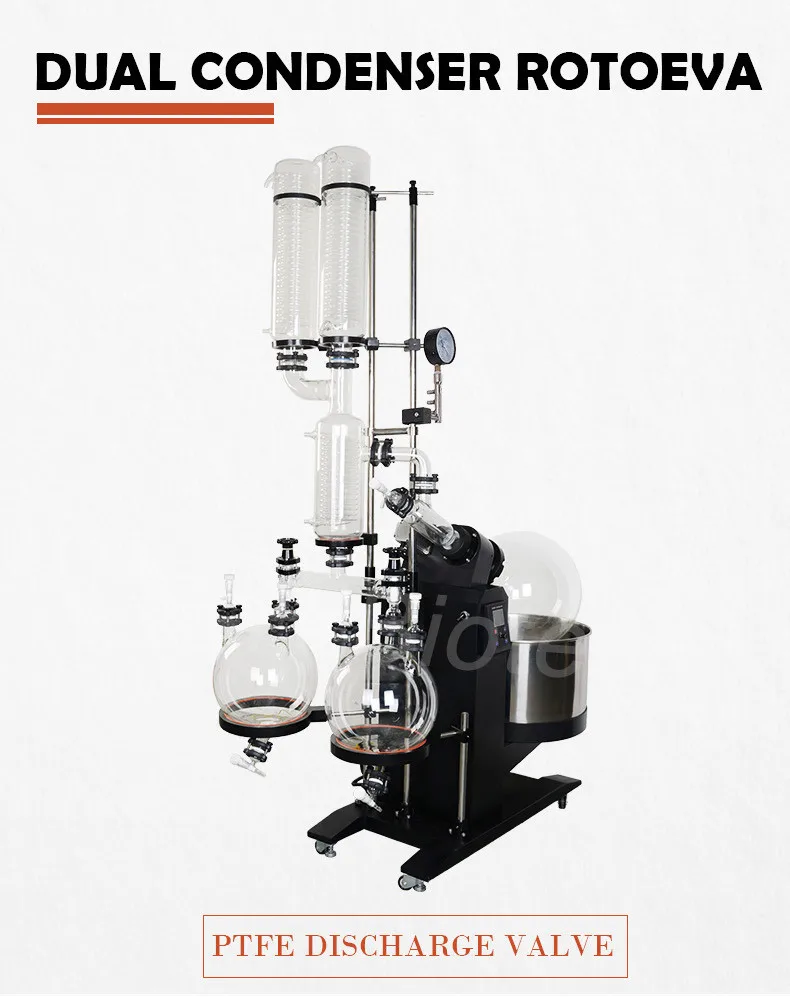

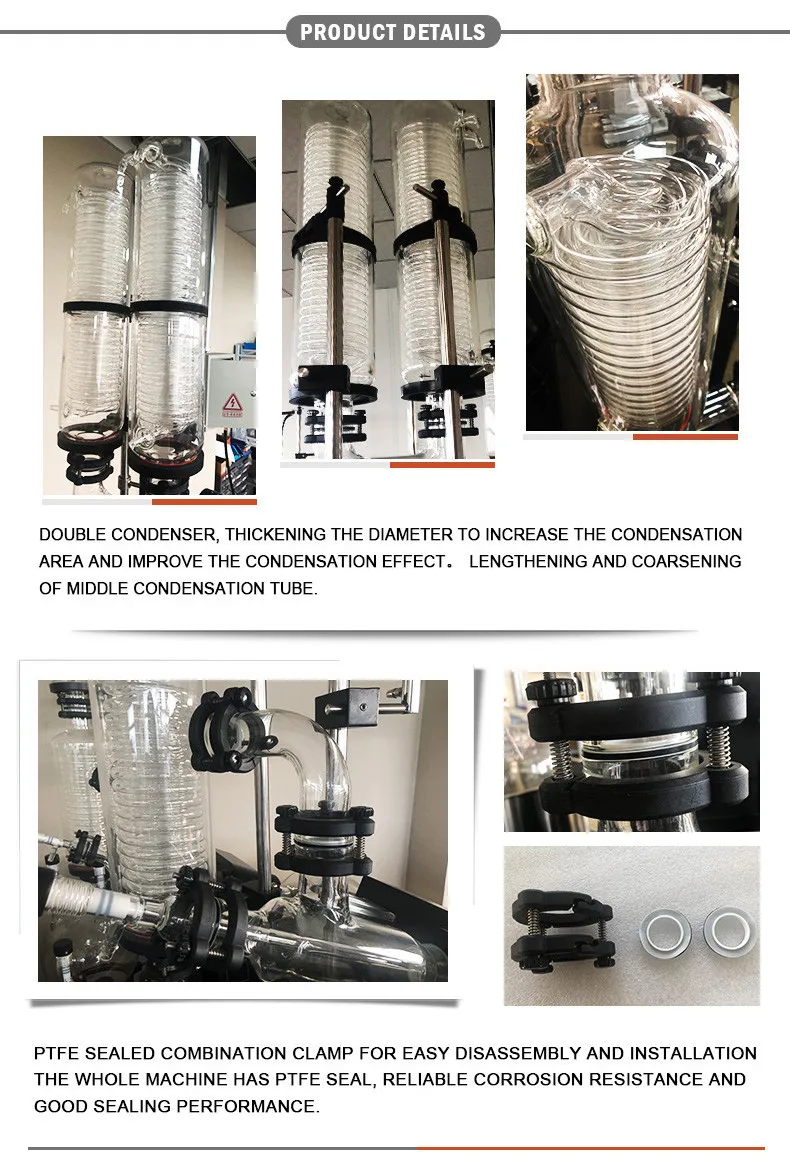

| Condenser | 2PCS Main condenser+1pcs assistant condenser | |||
| Heating Bath | Satinless steel water/oil bath | |||
| Temp.range | Water: RT-90C Oil: RT-200C | |||
| Attainable vacuum | ≤0.1MPA(1BAR,750Torr) | |||
| Evaporative power | H2O≥3.2L/h, Alcohol≥6.5L/h | H2O≥5L/h, Alcohol≥611L/h | H2O≥7L/h, Alcohol≥15.3L/h | H2O≥9L/h, Alcohol≥19L/h |
| Lift Type | Electric Lift | |||
| Lifting Stroke | 0-200MM | |||
| Voltage | 220V/50HZ,1-Phase | |||
| Power | 3KW | 6KW | ||
FEATURE

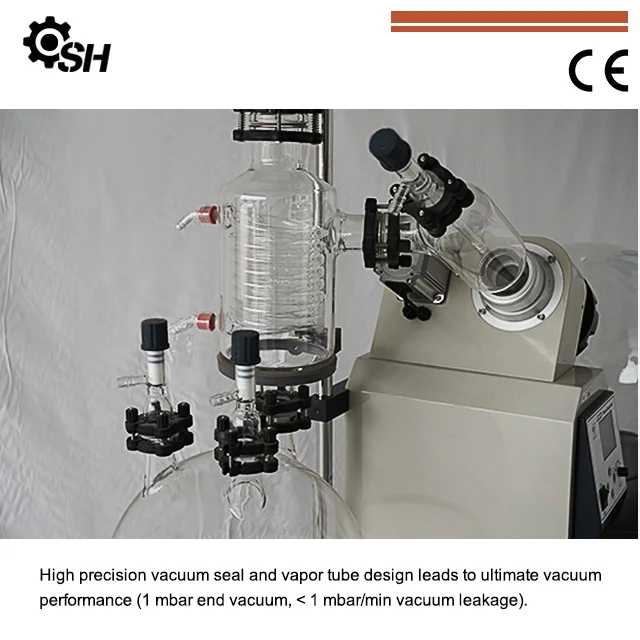

1. New PTFE -rubber assembled seal guarantees high vacuum rate and long sealing life.

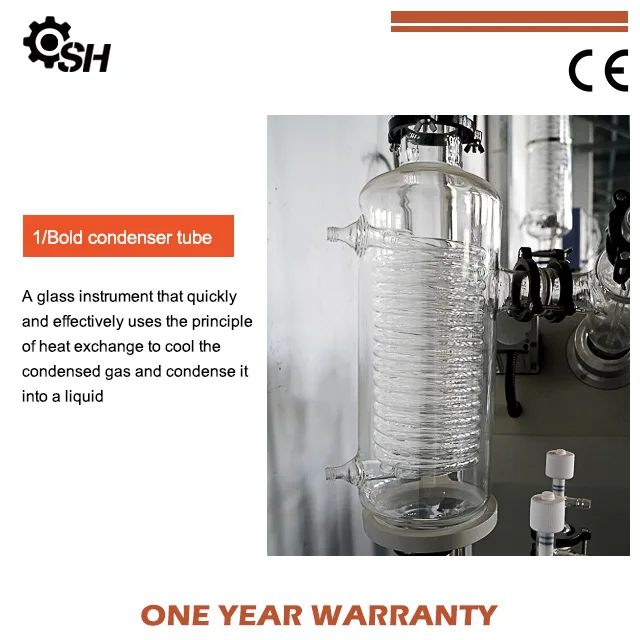

2. Efficient condenser ensures high receiving rate.
3. Continuous Feeding

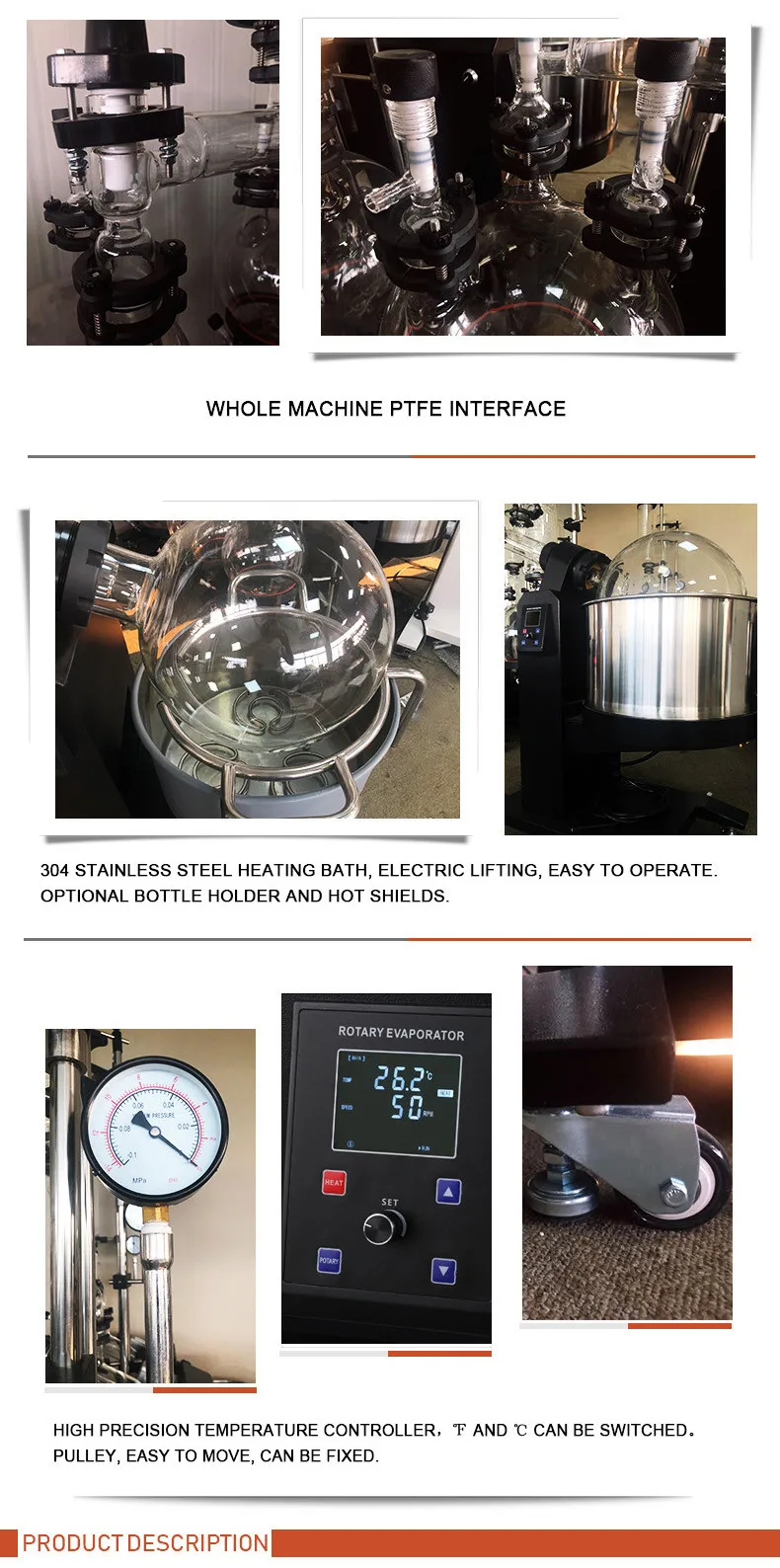

4. Vacuum rate on Vacuum Gauge can be referred so to hold on a best rate for operating low-boiling samples. 5. Bath can be lifted and is equipped with intelligent temperature controller with digital display.
6. Reasonable structure and good materials applied in whole set of product.
