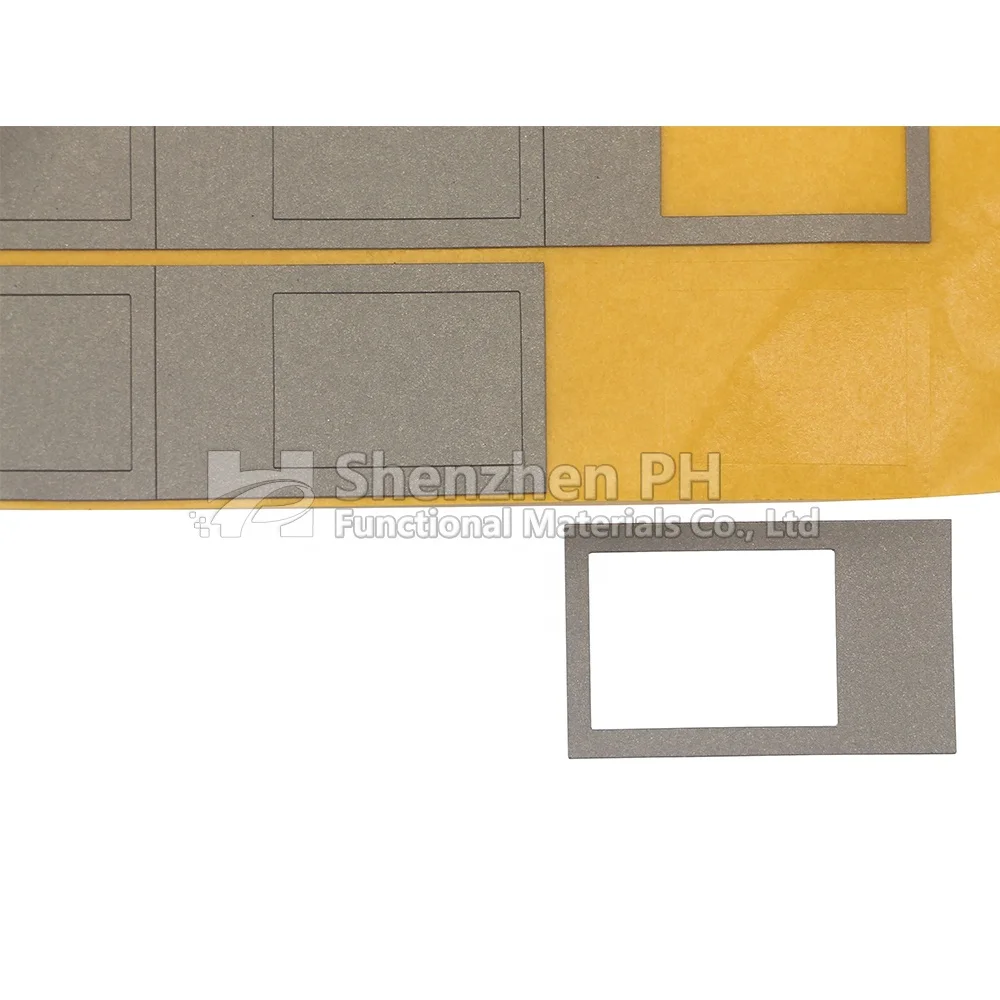

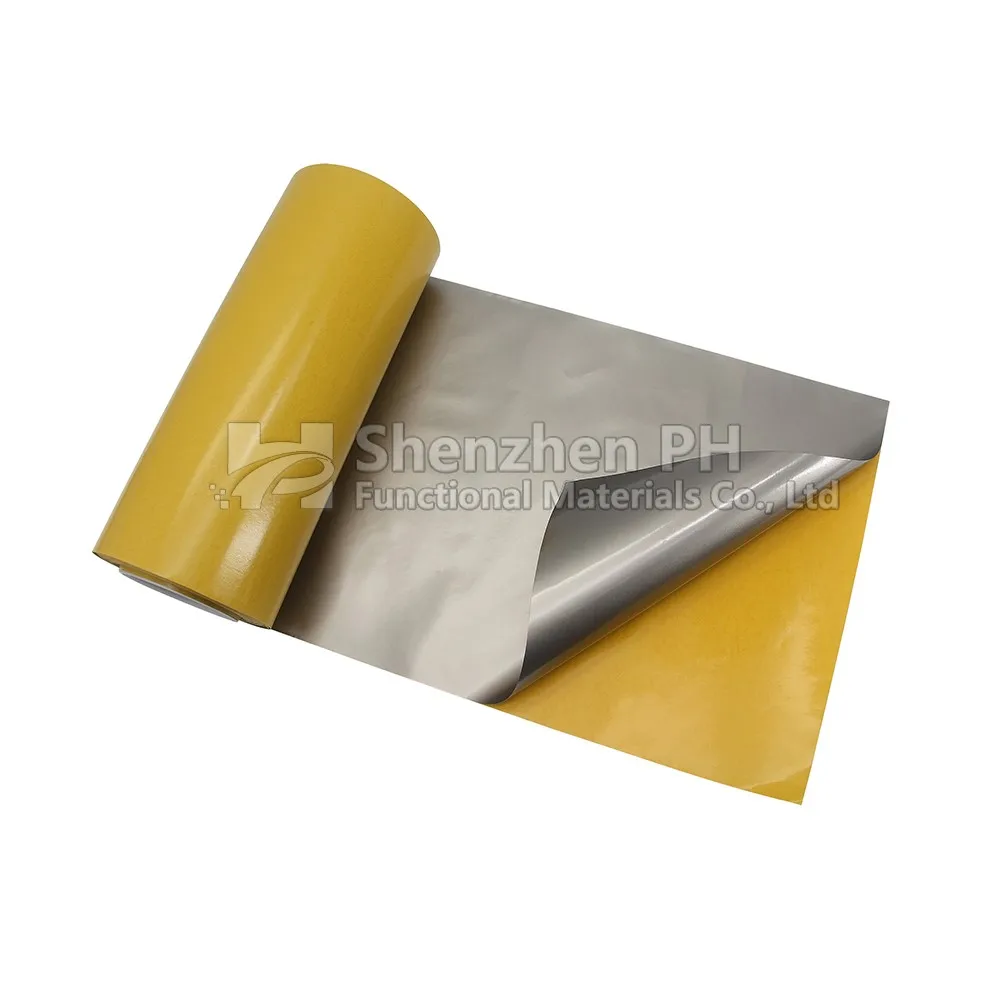

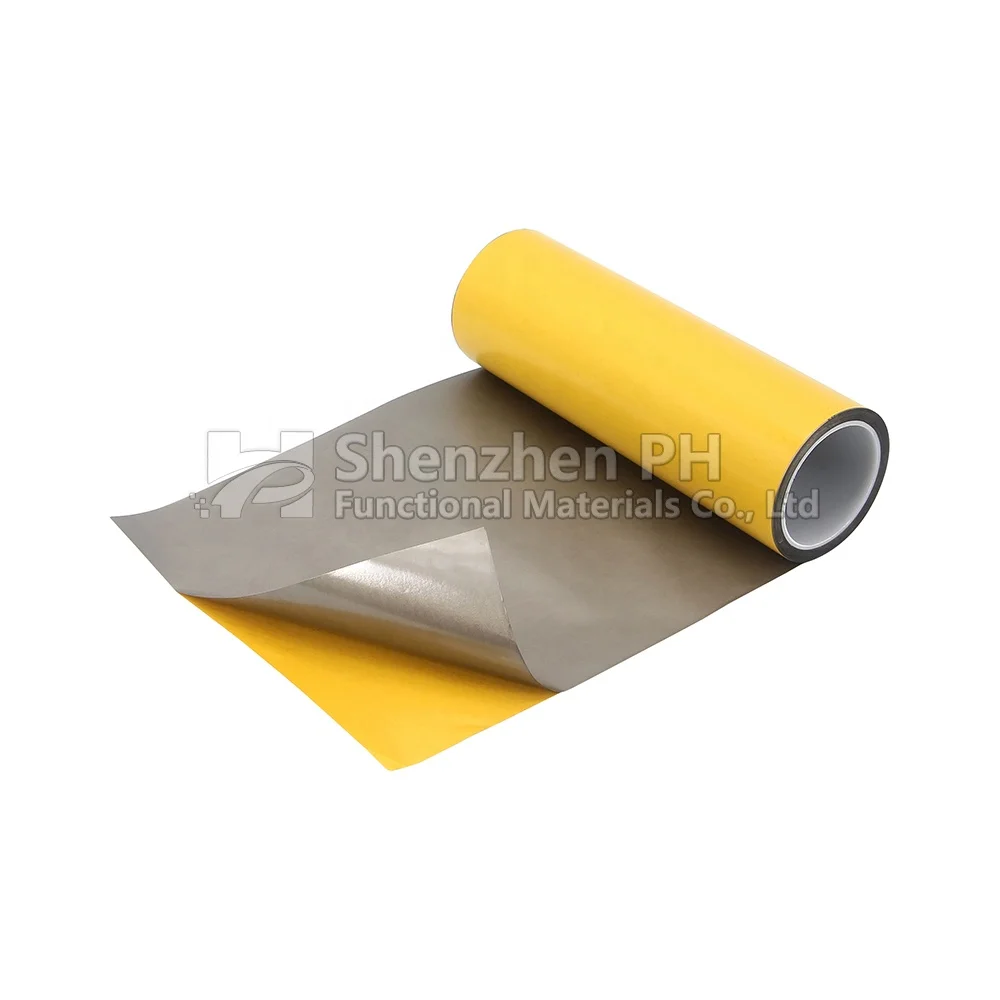

Magnetic vinyl coil flexible self adhesive magnetic strip wireless charging multifunctional magnetic strip
- Category: >>>
- Supplier: Shenzhen PH Functional Materials Co. Ltd.
Share on (1600467773383):
Product Overview
Description

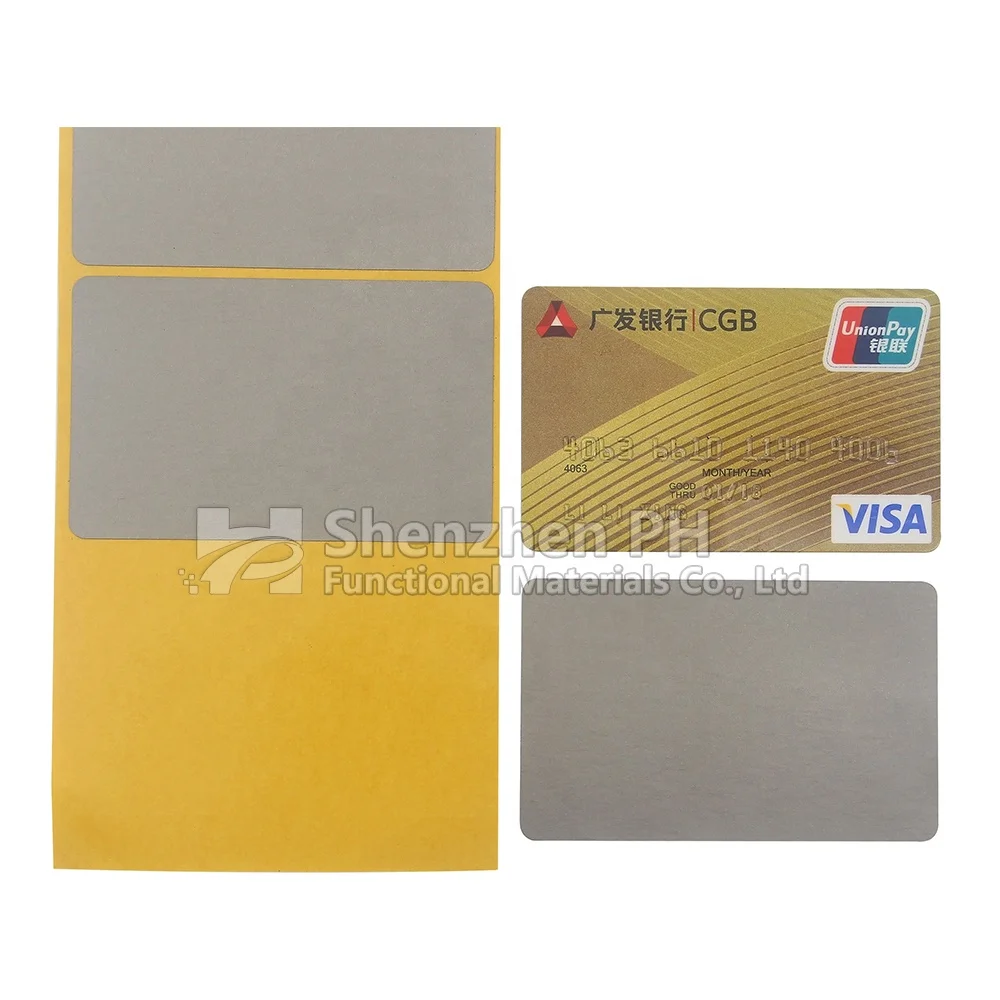

Flexible Self Adhesive Magnetic Strip wireless charging shield materials on 1 inch 10 foot magnetic tape
PH RF absorber materials including three categories, they are magnetic fabric (low-end), Soft magnetic alloy (middle end) and sintered ferrite (high-end) . All the items possess the function of magnetic.
By attached between the antenna and the back metal, forming a magnetic conduction channel, which can eliminate the interfere to antenna from metal (Or other sources of interference) , Enable the antenna to transmit a signal normally.
Company certification:IS09001
Product certification:ROHS and Halogen Free
Guarantee period:5 years
Product Description

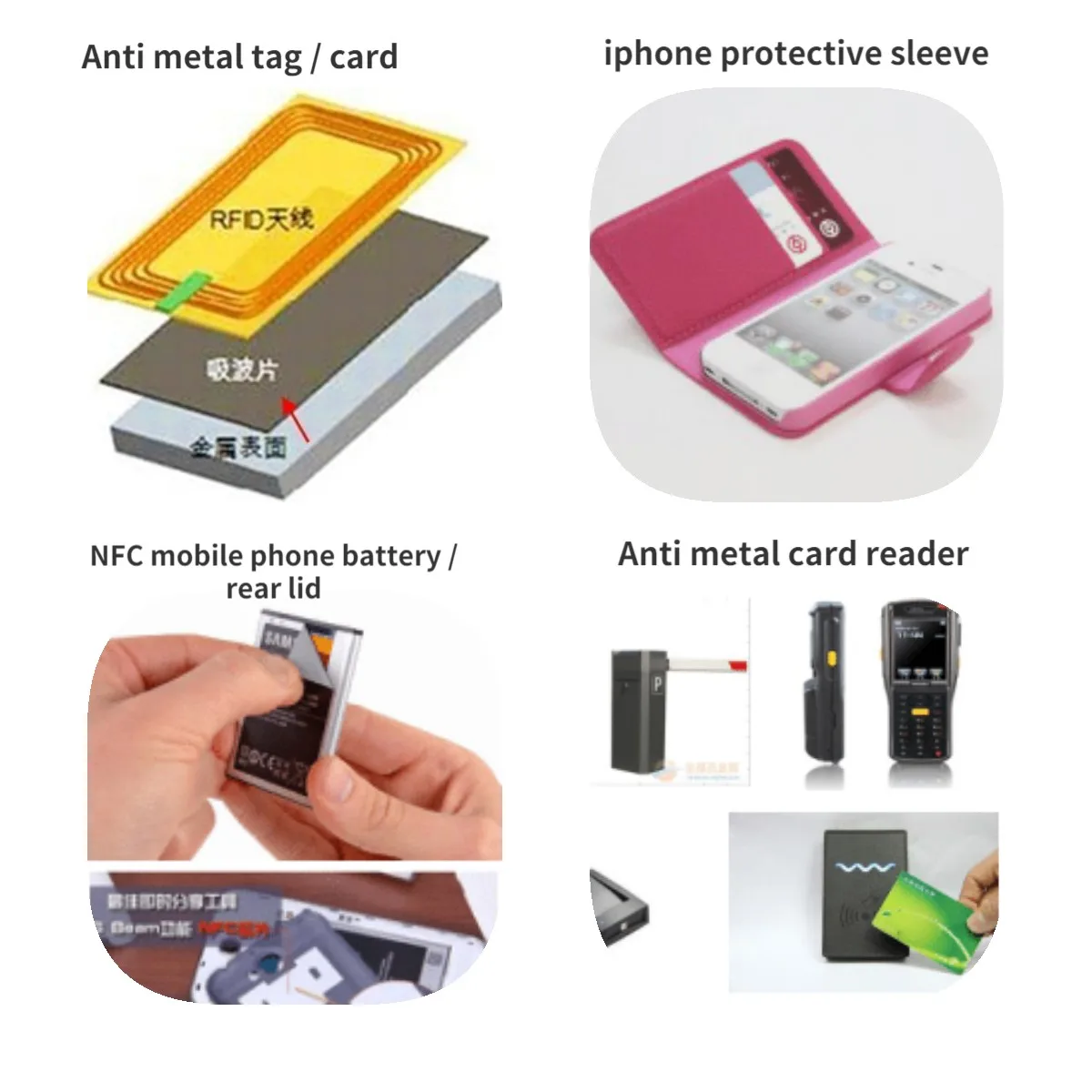

Application:
Product features:
1 Soft texture materials, good fit;
2 Perfect absorption performance, can absorb the electromagnetic wave in the wide band range;
3 Meet the ROHS environmental protection requirements
4 Can be cut into required size and shape based on customer requirements
| Technical parameter | ||||||||||
| Category | Ferrite Magnetic fabric | Soft magnetic alloy | Sintered ferrite | |||||||
| Item NO. | WLF15 | NFS20 | NFS30 | NFS40 | NFS50 | NFS120 | NFS150 | PHF130 | PHF150 | |
| Frequency(MHZ) | 125KHz/13.56MHz | |||||||||
| Basis | ferrite magnetic powder+resin | Alloy soft magnetic powder+resin | ferrite | |||||||
| Common thickness(mm) | 0.15~1.0 | 0.1~0.5 | 0.05~0.1 | 0.06/0.10 | ||||||
| Standard size(mm) | 300mm in width.20m or 50m in length | 300mm*300mm Within 125mm*125mm | ||||||||
| Permeability | 15 | 20 | 30 | 40 | 50 | 120 | 150 | 130 | 150 | |
| Surface resistance(Ω) | ≥1G | |||||||||
| Density(g/cm3) | 3.4 | 3.6 | 3.3 | 4 | 4.6 | 4.9 | ||||
| Environmental requirements | Consistent with ROHS and halogen free | |||||||||
| Temperature limitation(℃) | 25~85 | 25~120 | ||||||||
Characteristic of Magnetic fabric:
Low cost
General permeability, low magnetic loss
High resistivity
Meet ROHS and halogen free
Flame retardant grade:UL94-V2
Common thickness:0.3~0.5mm
Characteristic of Soft magnetic alloy:
middle and upper cost
middle and upper permeability, low magnetic loss
High resistivity
Meet ROHS and halogen free
Flame retardant grade:UL94-V2
Common thickness:0.05~0.5mm
Characteristic of Sintered ferrite:
High cost
High permeability, low magnetic loss
High resistivity
Meet ROHS and halogen free
Flame retardant grade:UL94-V2
Common thickness:0.06~0.1mm
Packaging & Shipping
Company Information
Shenzhen PH functional materials Co., Ltd. was established in 2011. It is a high-tech company who firstly researched and manufactured EMI absorber sheets in China mainland . With the help of advanced material test and research platform of Sichuan University, PH has researched and manufactured A variety of magnetic materials such as EMI absorbing sheets, sintering ferrite sheets, anti-metal magnetic sheets, sendust lamellar powder , soft magnetic ferrite powder,rubber magnet and Thermal conductivity gel. These materials hold the characteristics of absorbing electromagnetic wave, increasing magnetic flux, anti metal interference and isolating magnetic field. Widely used in WPC(wireless charging), RFID, NFC, EMC ,EMI and other fields.
PH has perfect production and testing equipment , professional talent team and a number of independent patent technology. With obvious leading position in the industry, it was selected as the only government funded enterprises in EMI absorber industry by Shenzhen Municipal Science and Technology Innovation Council in 2015. We have passed ISO9001 quality management system certification. Both stable quality and rapid delivery can be supplied. Welcome to inquire!
