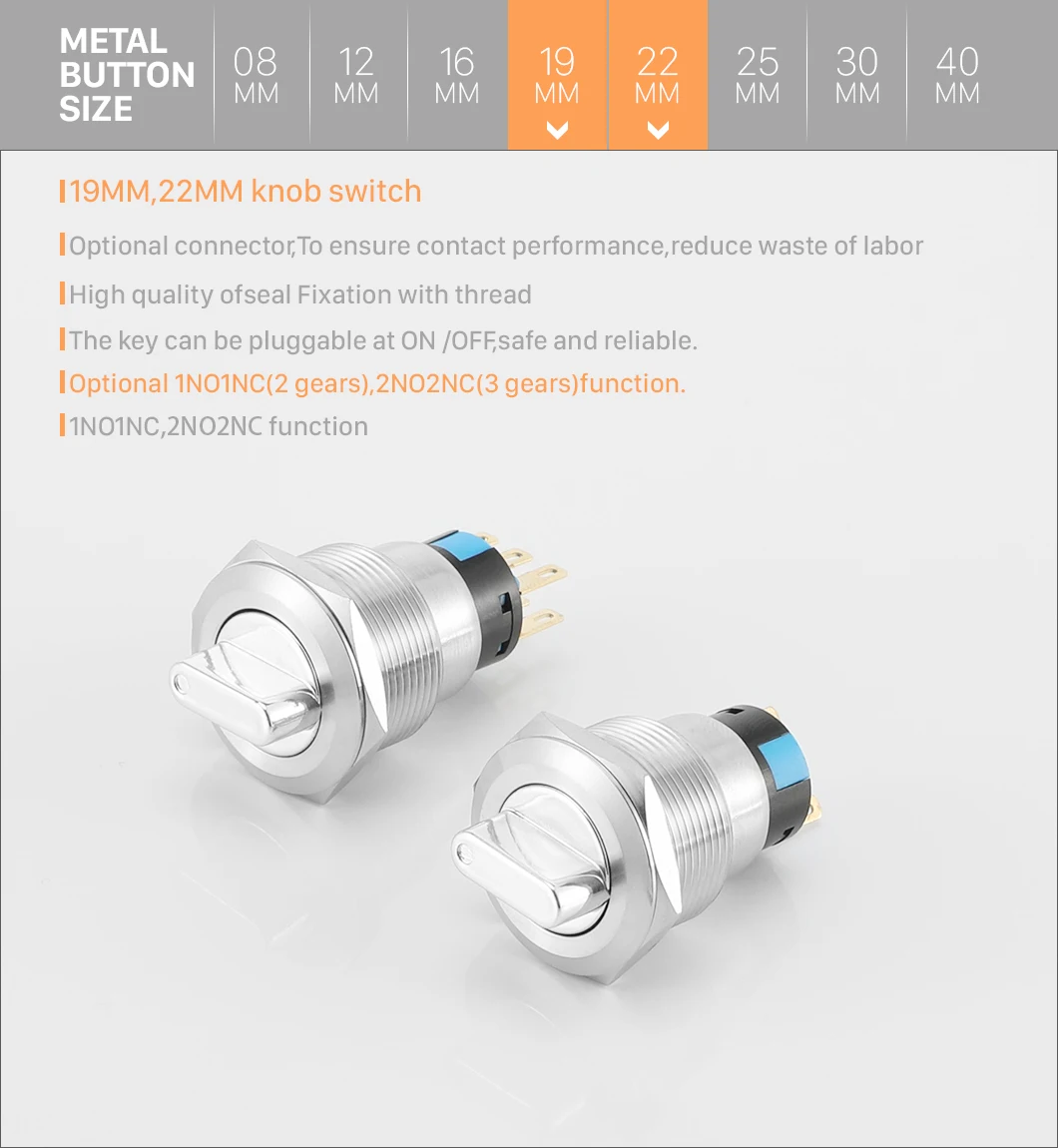

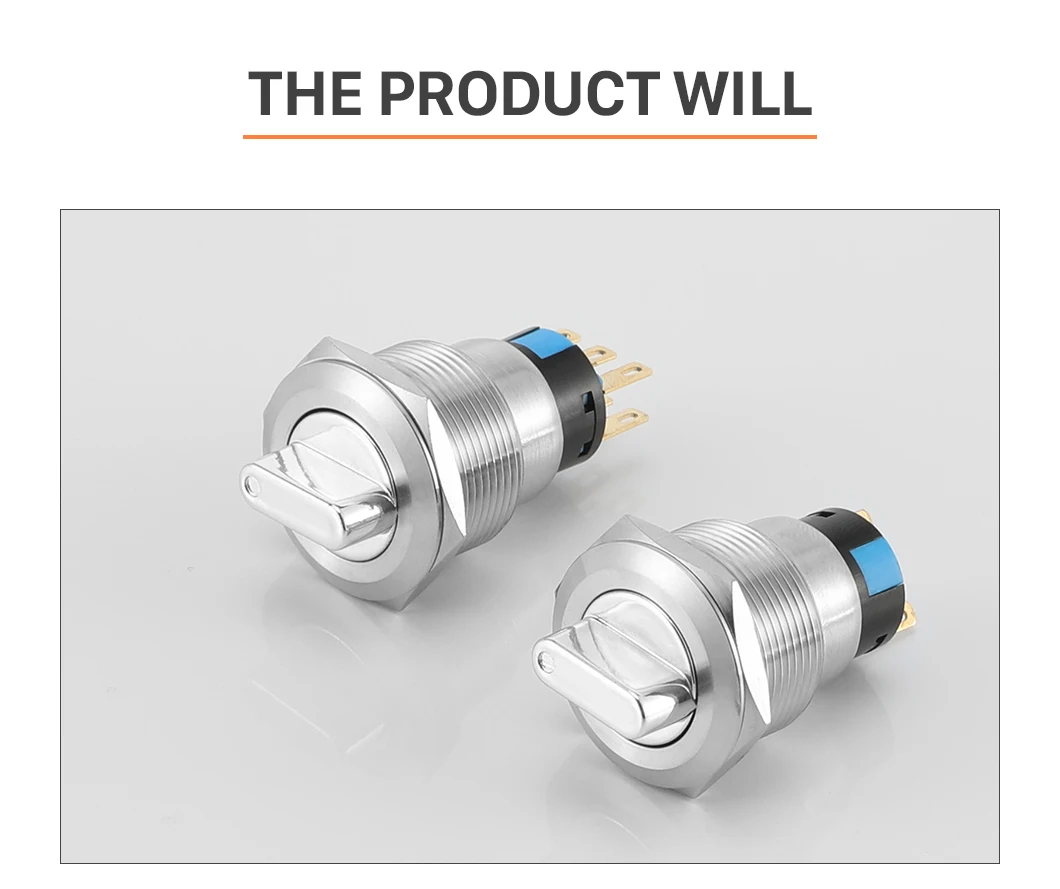

19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches
19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches
19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches
19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches
19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches
19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches

19mm/22mm electrical knob button switch start latching Beauty equipment metal rotary switches

Share on (1600467797304):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


The Others Parameters
Project
Parameter
Project
Parameter
Contact
Environment-friendly Silver Contact

Actuating Force
about 4N
 Contact Resistance
≤50mΩ
Mounting panel thickness
≤10mm. customised the others
Insulation Resistance
≥1000mΩ
Nut torque
5~14N.m
Dielectric Strength
1000VAC min
Outshell/Press Key
Stainless Steel/Aluminum Oxide/Copper plate / According to the request
Ambient Temperature
-30℃~+80℃
Protection Levels

IK10




 Electrical Life
Rated:2A250VAC-
100,000 times
Nut
Nickel brass
 Rated:5A250VAC-50,000 times
Base Seat



          PA66
 Rated:8A250VAC-20,000 times
Bottom Seat
 PA66
 Reated:10A250VAC- 20,000 times

Bottom Seat

Mechanical Life
Momentary-500,000 times
Insert seat
Latching-300,000 times
Pins
H65 / H65 Silver Plated / Gold

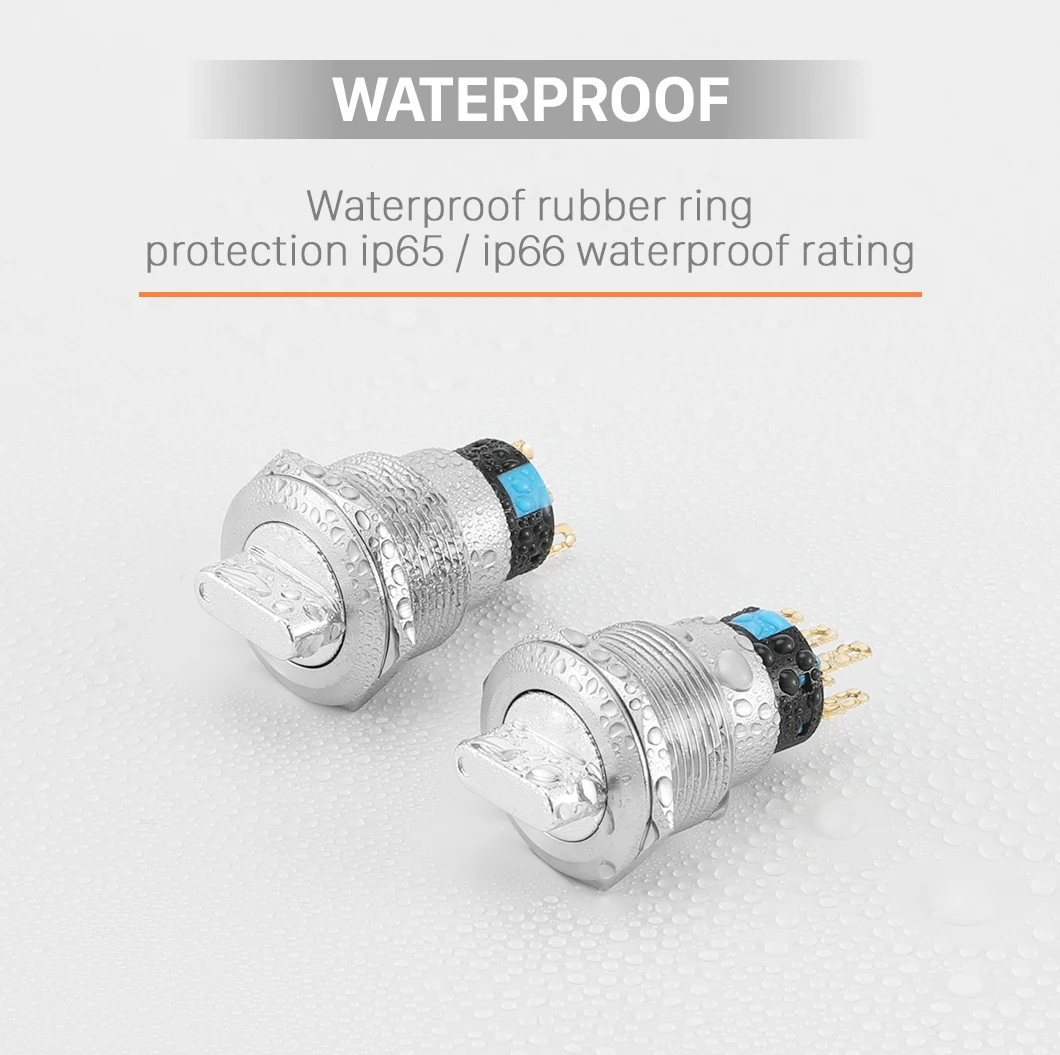

Waterproof
IP65/IP66
Contact
Environment-friendly Silver Contact


Led Lamp Parameters
Project
Parameterc
Led type
High Brightness LED lamp,cool
Luminous color
Red,Green,Blue,Yellow,White
Rated Voltage
 AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current
≤20mA
Reference Life
 40,000hours


Packing & Delivery




Company Profile




FAQ


Title goes here.
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.

6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.

7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.

8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
