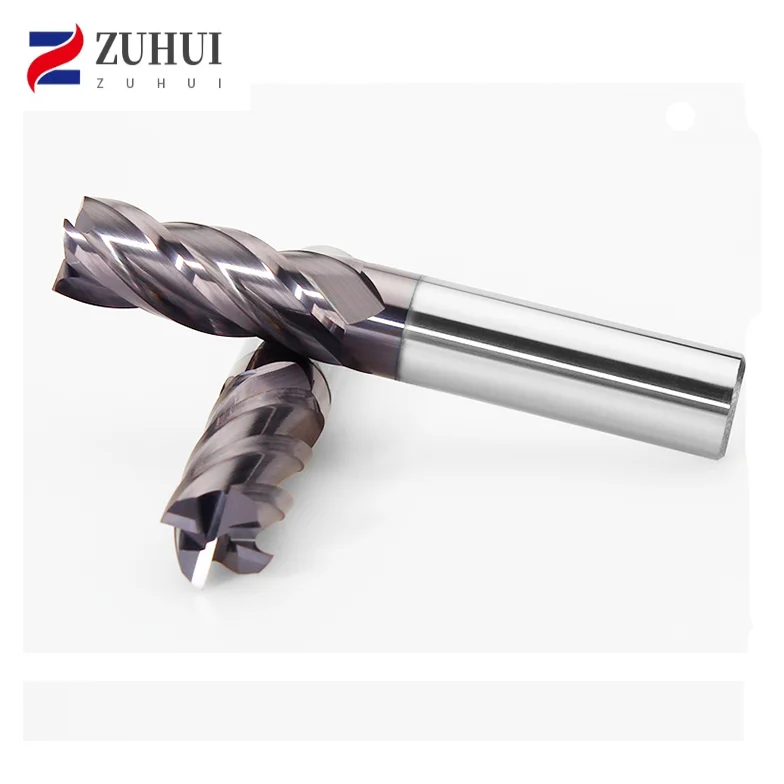

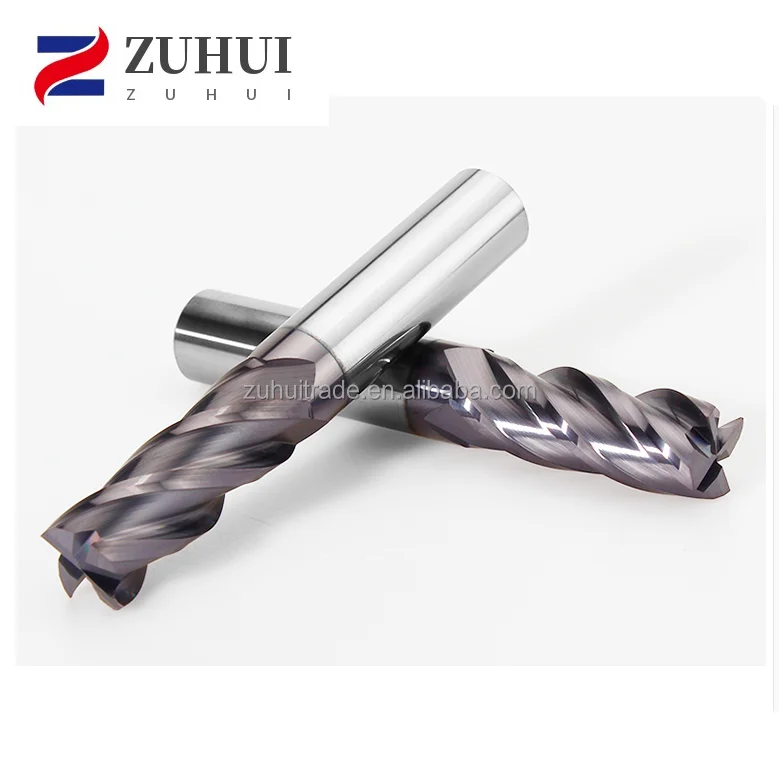

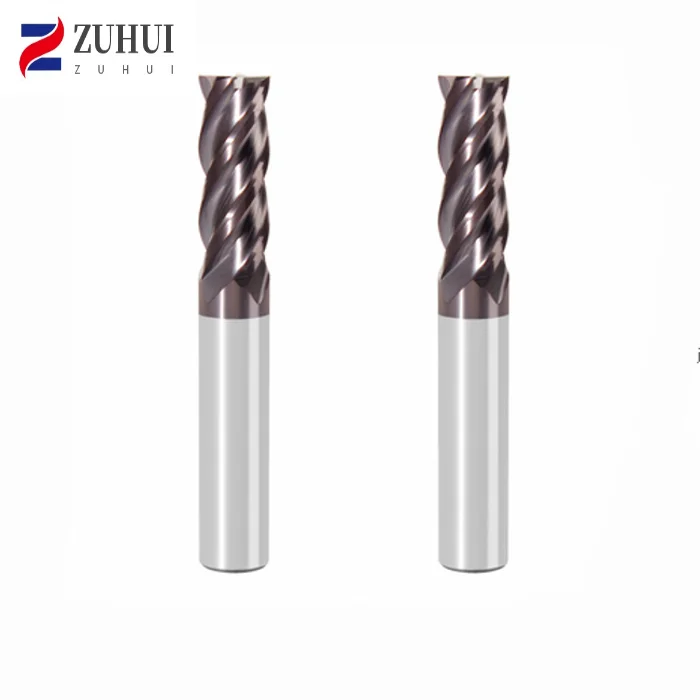

4 Flutes Tungsten ball nose end mill CNC Milling Cutters End Milling single flute carbide end mill
- Category: >>>
- Supplier: Wenling Zuhui Import And Export Co. Ltd.
Share on (1600467806005):
Product Overview
Description
Products Description
Product Name | 4 Flutes End Milling Cutter | Product Type | P |
Coating | Purple Nano coating | Material | Tungsten Carbide |
Size | 2~20mm | HRC | 55-65 |
Helix Angle | 35 ° | Flute | 4 |
Certification | ISO9001；ISO14001； SGS | Tolerance | D≤12 0~0.02 |
Suitable For | Alloy steel ,High hardness steel,Aluminum alloy,copper alloy | Place of Origin | China |
Product Paramenters

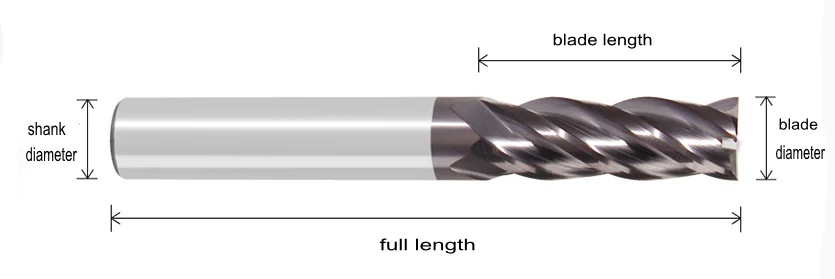

Specification | Tool specifications (mm) | ||||||||
Blade diameter | Blade length | Number of blades | Shank diameter | Full length | |||||
D1.0-3L-4F-4D-50L | 1.0 | 3 | 4 | 4 | 50 | ||||
D1.5-4.5L-4F-4D-50L | 1.5 | 4.5 | 4 | 4 | 50 | ||||
D2.0-6L-4F-4D-50L | 2.0 | 6 | 4 | 4 | 50 | ||||
D2.5-7.5L-4F-4D-50L | 2.5 | 7.5 | 4 | 4 | 50 | ||||
D3.0-9L-4F-3D-50L | 3.0 | 9 | 4 | 3 | 50 | ||||
D3.0-9L-4F-4D-50L | 3.0 | 9 | 4 | 4 | 50 | ||||
D3.5-10L-4F-4D-50L | 3.5 | 10 | 4 | 4 | 50 | ||||
D4-12L-4F-4D-50L | 4.0 | 12 | 4 | 4 | 50 | ||||
D5-15L-4F-5D-50L | 5.0 | 15 | 4 | 5 | 50 | ||||
D5-15L-4F-6D-50L | 5.0 | 15 | 4 | 6 | 50 | ||||
D6-18L-4F-6D-50L | 6.0 | 18 | 4 | 6 | 50 | ||||
D8-25L-4F-8D-60L | 8.0 | 25 | 4 | 8 | 60 | ||||
D10-30L-4F-10D-75L | 10 | 30 | 4 | 10 | 75 | ||||
D12-32L-4F-12D-75L | 12 | 32 | 4 | 12 | 75 | ||||
D14-40L-4F-14D-100L | 14 | 40 | 4 | 14 | 100 | ||||
D16-45L-4F-16D-100L | 16 | 45 | 4 | 16 | 100 | ||||
D18-45L-4F-18D-100L | 18 | 45 | 4 | 18 | 100 | ||||
D20-48L-4F-20D-100L | 20 | 48 | 4 | 20 | 100 | ||||
D3-12L-4F-3D-75L | 3.0 | 12 | 4 | 3 | 75 | ||||
D3-12L-4F-3D-100L | 3.0 | 12 | 4 | 3 | 100 | ||||
D4-16L-4F-4D-75L | 4.0 | 16 | 4 | 4 | 75 | ||||
D4-16L-4F-4D-100L | 4.0 | 16 | 4 | 4 | 100 | ||||
D5-18L-4F-5D-75L | 5.0 | 18 | 4 | 5 | 75 | ||||
D5-18L-4F-5D-100L | 5.0 | 18 | 4 | 5 | 100 | ||||
D6-22L-4F-6D-75L | 6.0 | 22 | 4 | 6 | 75 | ||||
D6-22L-4F-6D-100L | 6.0 | 22 | 4 | 6 | 100 | ||||
D6-40L-4F-6D-100L | 6.0 | 40 | 4 | 6 | 100 | ||||
D6-25L-4F-6D-150L | 6.0 | 25 | 4 | 6 | 150 | ||||
D8-25L-4F-8D-75L | 8.0 | 25 | 4 | 8 | 75 | ||||
D8-30L-4F-8D-100L | 8.0 | 30 | 4 | 8 | 100 | ||||
D8-40L-4F-8D-100L | 8.0 | 40 | 4 | 8 | 100 | ||||
D8-35L-4F-8D-150L | 8.0 | 35 | 4 | 8 | 150 | ||||
D10-30L-4F-10D-100L | 10 | 30 | 4 | 10 | 100 | ||||
D10-45L-4F-10D-100L | 10 | 45 | 4 | 10 | 100 | ||||
D10-50L-4F-10D-100L | 10 | 50 | 4 | 10 | 100 | ||||
D10-40L-4F-10D-150L | 10 | 40 | 4 | 10 | 150 | ||||
D12-35L-4F-12D-100L | 12 | 35 | 4 | 12 | 100 | ||||
D12-50L-4F-12D-100L | 12 | 50 | 4 | 12 | 100 | ||||
D12-45L-4F-12D-150L | 12 | 45 | 4 | 12 | 150 | ||||
D14-45L-4F-14D-150L | 14 | 45 | 4 | 14 | 150 | ||||
D16-50L-4F-16D-150L | 16 | 50 | 4 | 16 | 150 | ||||
D20-55L-4F-20D-150L | 20 | 55 | 4 | 20 | 150 | ||||
Product Comparison
Main Products
HRC55 Ball Nose End Mill
HRC55 Flat End Mill
HRC55 Corner Radius End Mill
HRC60 Flat End Mill
HRC60 Ball Nose End Mill
HRC60 Corner Radius End Mill
HRC65 Flat End Mill
HRC65 Ball Nose End Mill
HRC65 Corner Radius End Mill
End Mill For Aluminum
End Mill For Aluminum
Single Flute End Mill
3 Flutes End Mill
Tungsten Drill
Micro End Mill
Company Profile
Wenling Zuhui Import And Export Co.,Ltd. is the predecessor of Zhejiang Kangtao Automation Equipment Co.,Ltd ,which was established in 1998 .Our company provide customers with powder metallurgy products , precision forged gears and precision carbide cutting tools.We produce bearings ,various gears ,belt pulleys ,splines ,sprockets ,ratchet gears ,and many other highly durable and precise components .
Zuhui employs a team of highly skilled and experienced engineers that are here to help customers design and develop their products and troubleshoot any issues that my arise .Our production facility is outfitted with all of the necessary equipment to create high quality products with great consistency .Contact us today if you would like to learn more .

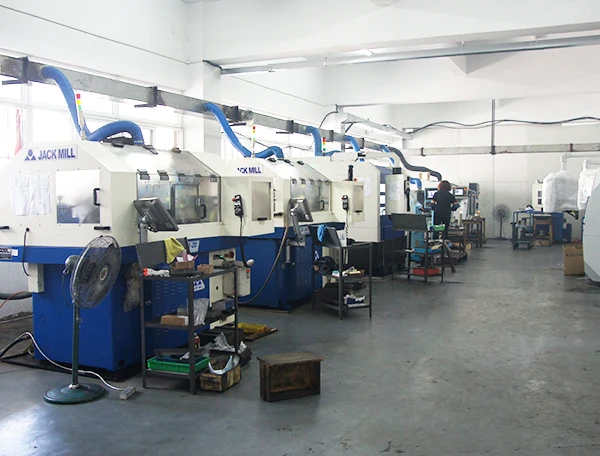

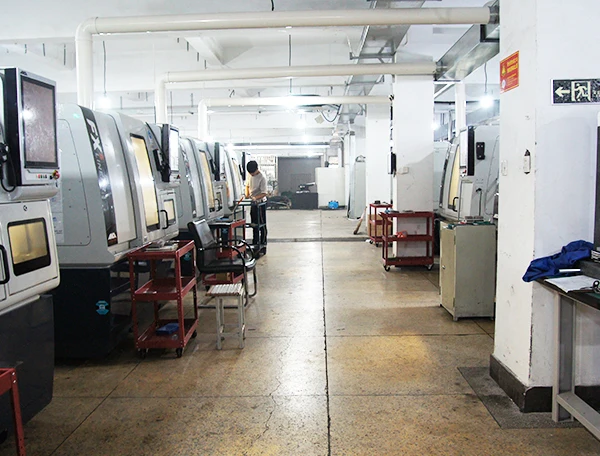

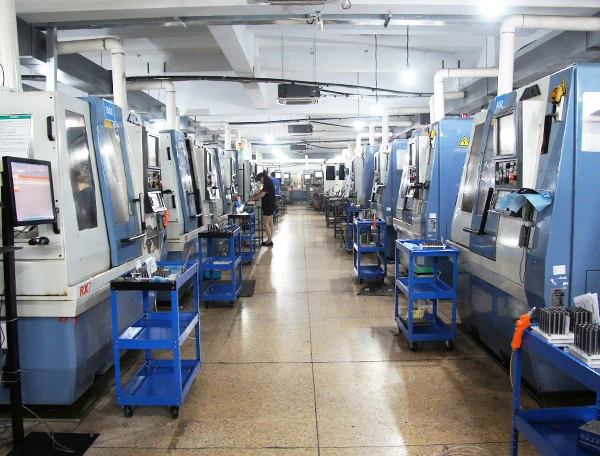

Producing Equipments

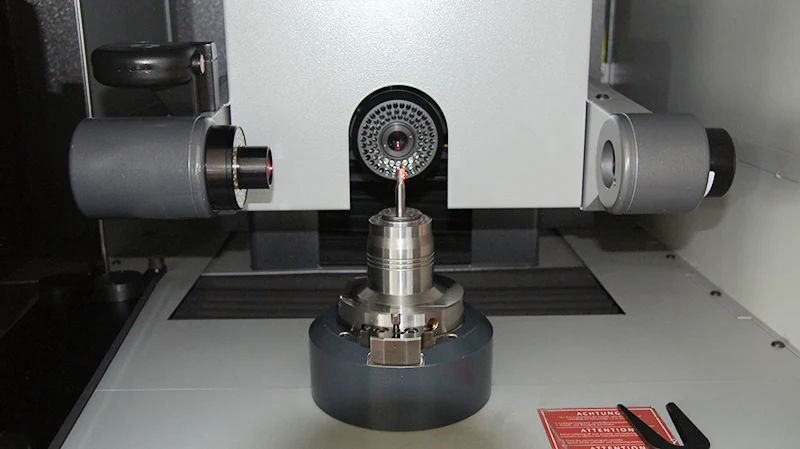

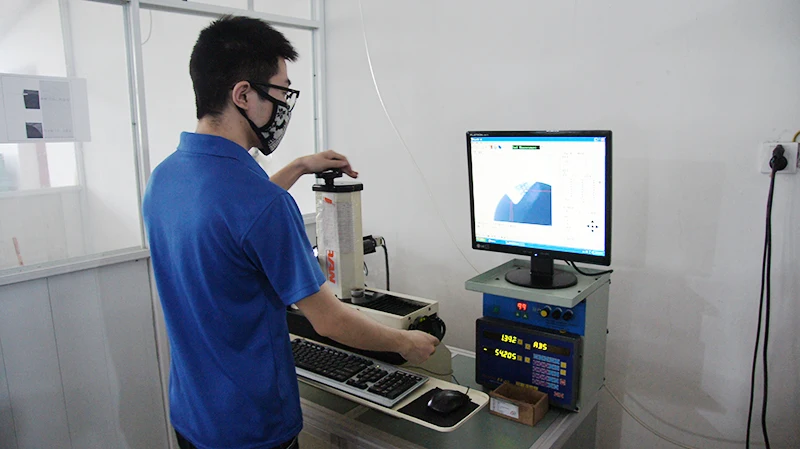

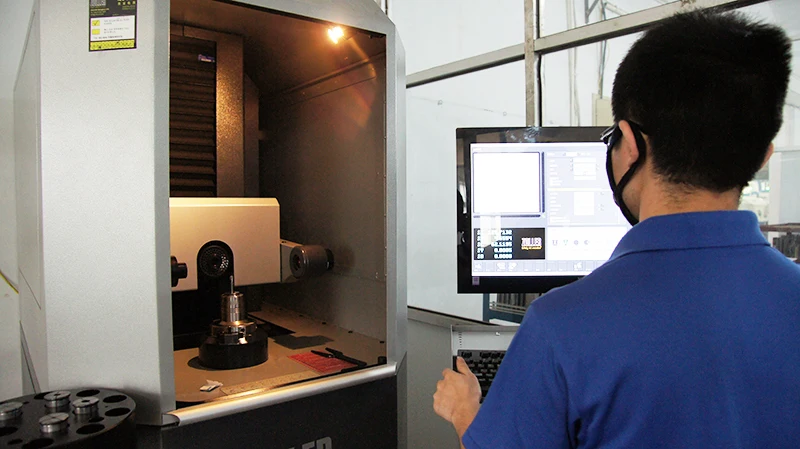

Inspection Method
Certification
Contact Us
FAQ
Q: What’s your MOQ ?
A:No MOQ in standard size ,customized size MOQ 10 pcs .
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A:No MOQ in standard size ,customized size MOQ 10 pcs .
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
