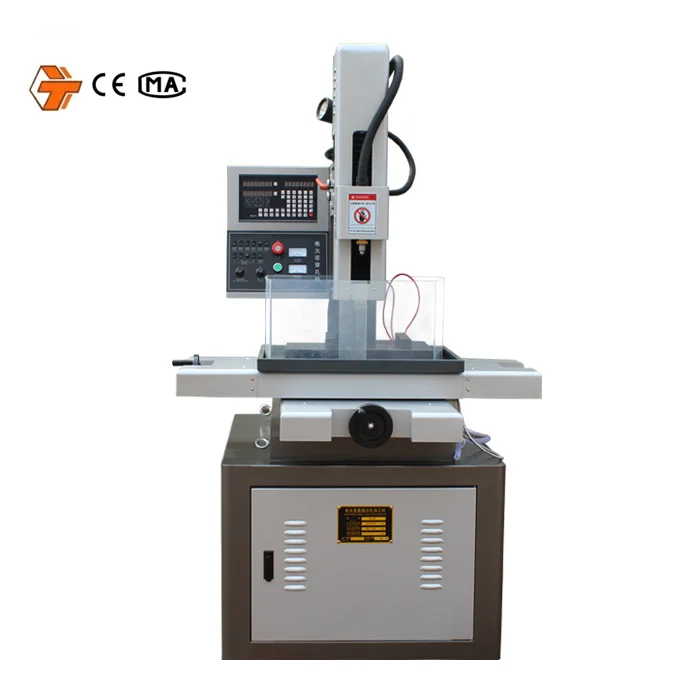

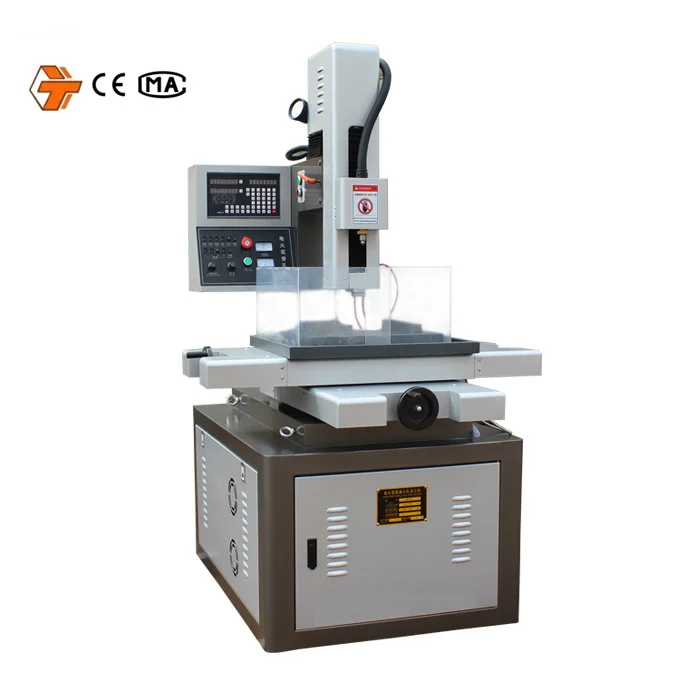

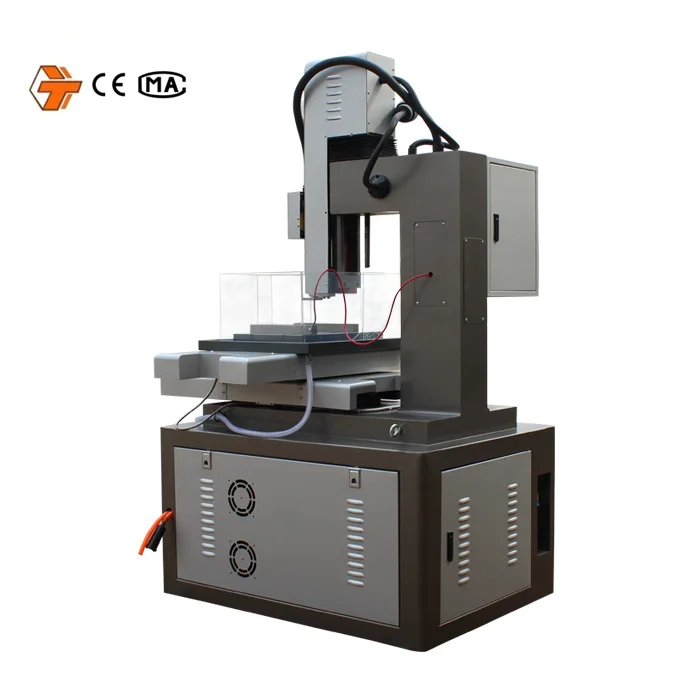

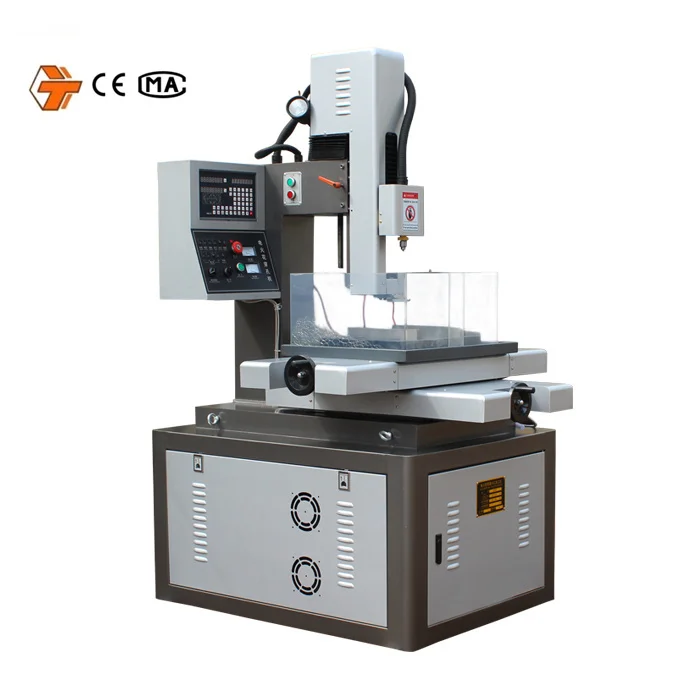

DD703.30 Spindle Servo Travel Small Hole Spark Erosion Drill Edm Machine
- Category: >>>
- Supplier: Taizhou Terui CNC Machine Co. Ltd.
Share on (1600467810934):
Product Overview
Description
30-60mm/min speed cnc small hole drilling edm
Product Description
| Model Number | DD703.30 | DD703.50 |
| X-Y travel(mm) | 300*400 | 500*630 |
| Workbench size(mm) | 260*380 | 700*1000 |
| Spindle servo travel(mm) | 300 | 600 |
| Spindle head travel(mm) | 200 | 500 |
| Spindle head speed | 20-120rpm | 20-120rpm |
| Electrode wire diameter(mm) | 0.3-3 | 0.3-3 |
| Maximum distance between the director and the table(mm) | 300 | 500 |
| Input power(KW) | 3 | 3 |
| Dimension(mm) | 1260*1160*1900 | 2000*1500*1900 |
Company & Partner
Certificate&Package
FAQ
Q:Could you print the logo or company name on the products or package?
A:Yes. Customer's logo or company name can be printed on products or package,we will do what you want.
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q: Could I visit your factory ?
A:Yes.Welcome to our factory.
Q: How to solve the failure problems after-sales?
A: Please send us photos or video of the problems.After we confirm the problems,we will provide corresponding solution.
DD703.50 30-60mm/min speed cnc small hole drilling edm
