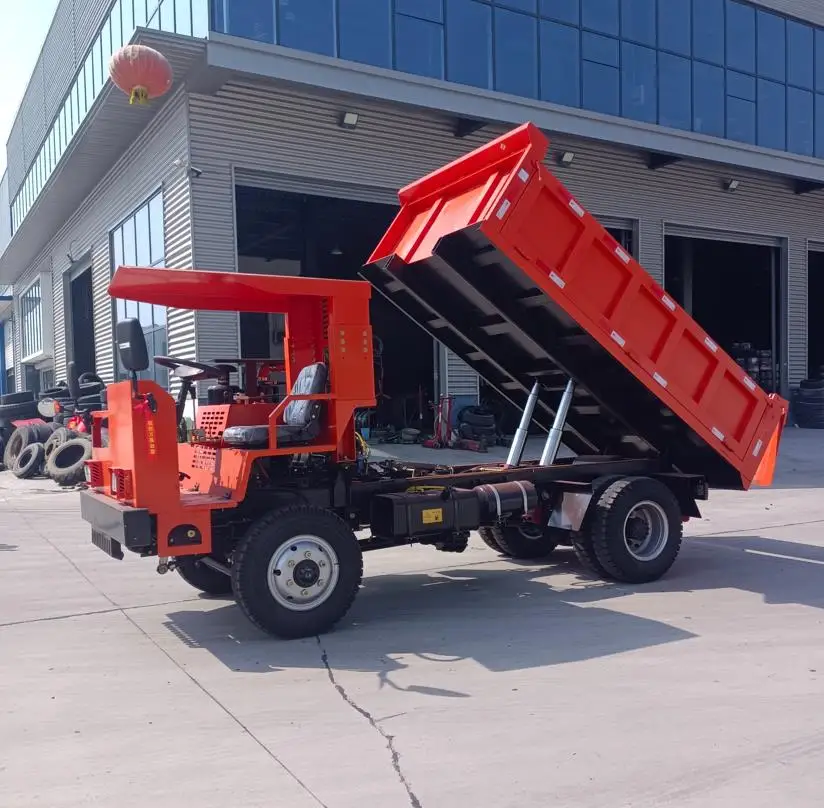

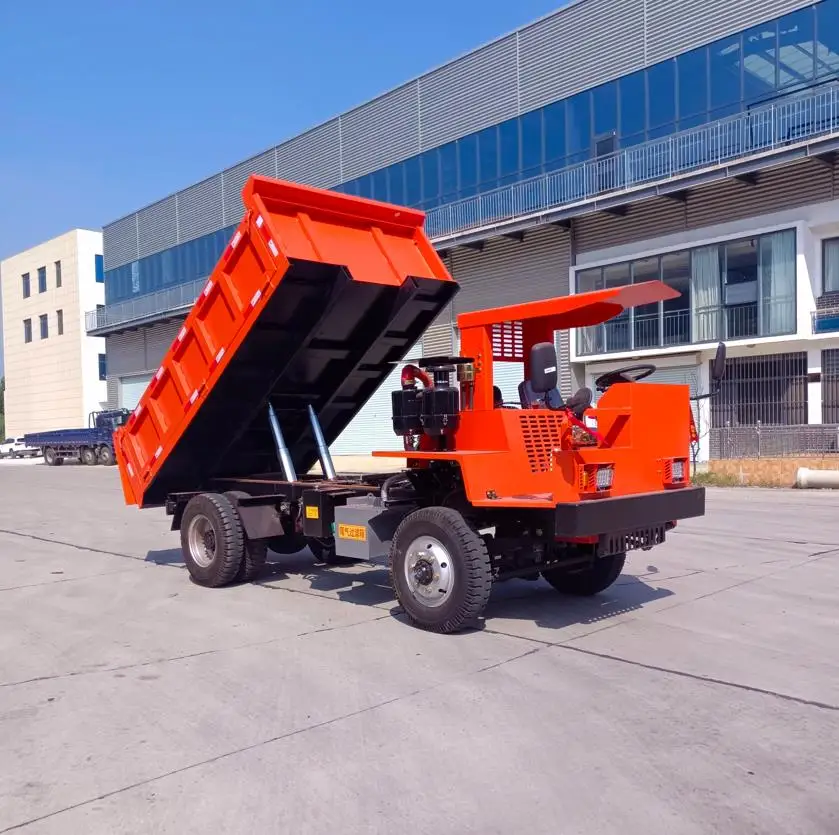

4x4 New underground mining dump trucks Dump Truck For Sale

Price:

Quantity:

Product number	4 tons rear drive mining truck	Tooling integrated front
Fuel type	diesel fuel
engine model	Yunnei 490
Engine power	42KW
Drive way	Rear wheel drive/four-wheel drive
Braking method	Air brake
Rear wheel track	1500mm
Front wheel track	1500mm
Wheelbase	2150mm
Frame	140mm high, 60mm wide, 10mm thick	Special material for car frame
Unloading method	900 double tops after unloading
Vehicle size	Length 4200Width 1500Height 1400	To the driver's safety ceiling 1.9M
Cargo box size	Length 2500Width 1500Height 500	Channel steel cargo box
Direction machine	Full hydraulic power
Leaf spring	12 pieces 70mm wide and 14mm thick
Cargo box volume (m³)	1.87
Deadweight/㎏	4000

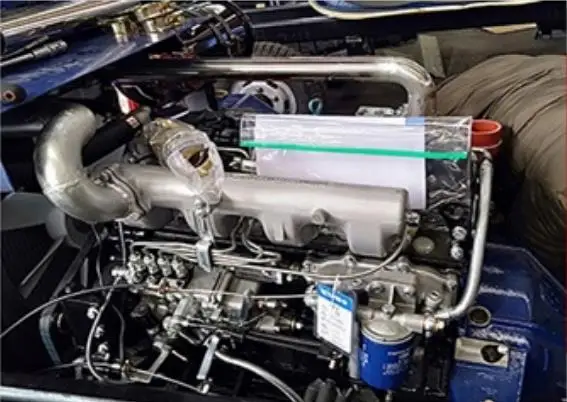

The engine adopts a famous brand engine with strong power and stable performance

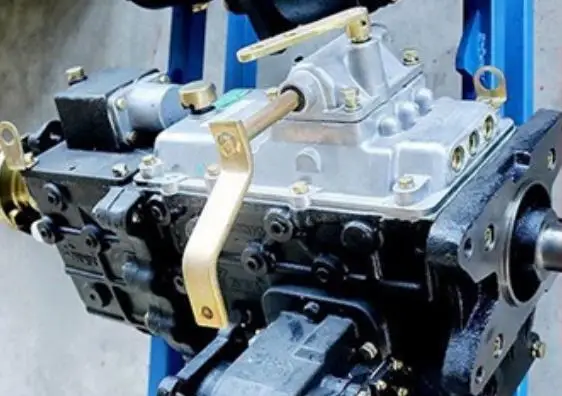

Gearbox, the traditional gear shift is lighter than the optimized design, the gear design precision is high, and the use time is long

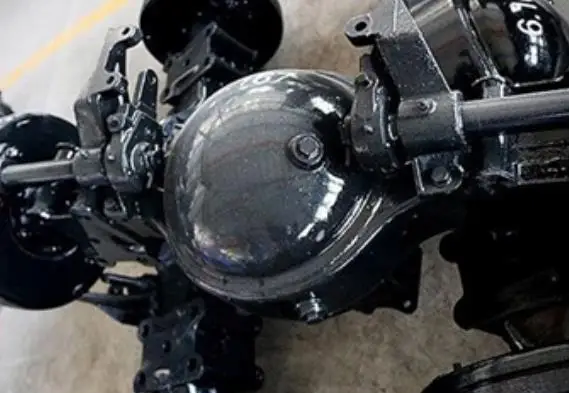

The rear axle adopts low speed ratio, large torque and strong load capacity

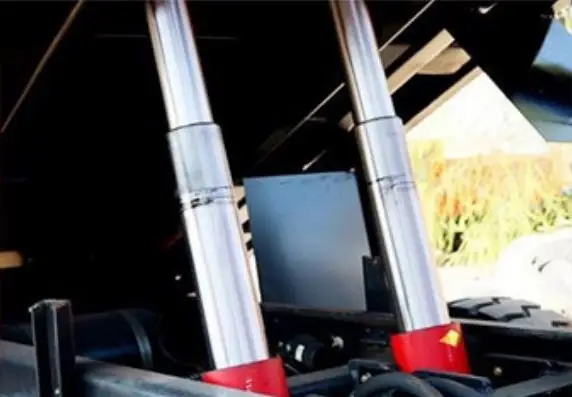

Hydraulic double top dump, durable and not easy to rust

1. The mining dump truck has stronger power, large torque reserve and strong driving.

2. The speed required for various underground operations and transportation operations, higher efficiency, and less fuel
consumption,

3. Reinforced front sealed drive axle, full hydraulic steering system, more flexible operation.

4. Reinforced half-shaft bushing, more durable

New products from manufacturers at wholesale prices
