1. Product introduction

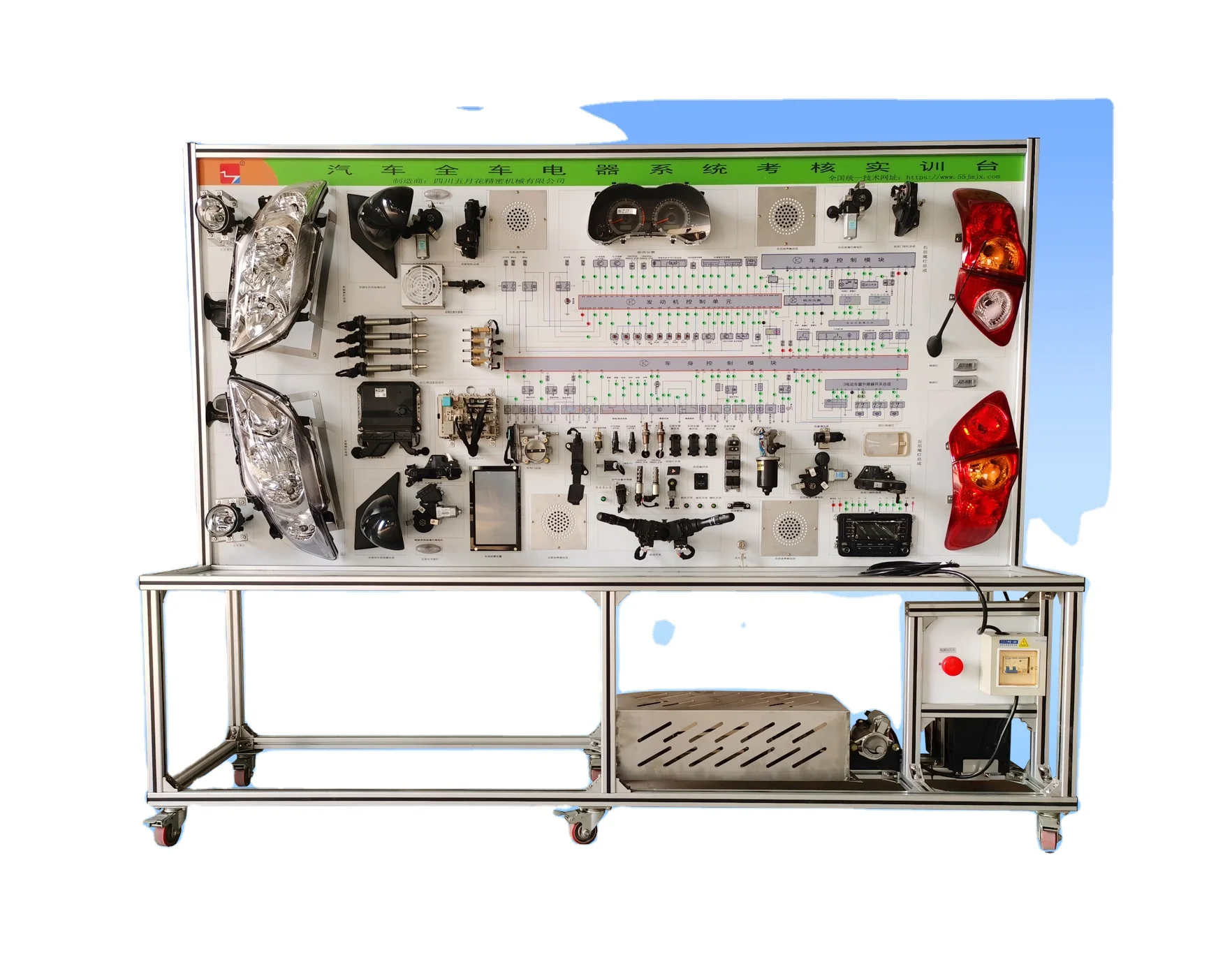

The equipment is based on the physical object of the Volkswagen Passat B5 automobile body electrical system, fully demonstrating the composition and working process of the automobile instrument system, lighting system, lighting system, wiper system, starting system, charging system and ignition system, and provides students with circuit terminals. Wiring function. It is suitable for the teaching needs of middle and higher vocational and technical colleges, general education colleges and training institutions for the theory and maintenance training of automobile body electrical systems.
2. Features
1. The real and operational electrical system of the car body fully demonstrates the composition of the car instrument system, lighting system, lighting system, wiper system, starting system, charging system and ignition system.
2. Operate various electrical switches and buttons, and demonstrate the working process of automobile instrumentation system, lighting system, lighting system, wiper system, starting system, charging system and ignition system.
3. Each electrical component line terminal on the training platform panel is equipped with a wiring plug. Refer to the supporting circuit diagram or maintenance information, and connect it with the intermediate wiring harness, which can exercise the students' ability to recognize the diagram and terminal wiring.
4. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of each circuit element of the electrical system of the automobile body, such as resistance, voltage, current, frequency signals, etc. on the panel.
5. The bottom frame of the training platform is welded by steel structure, and the surface is treated by spraying technology. It has a self-locking caster device, which is flexible, safe, reliable, and durable.
6. Equipped with intelligent fault setting and assessment system:
★Fault setting and assessment system composition:
1. Two-dimensional code panel for informatization teaching: There are detection terminal jacks for sensors and actuators on the panel, and at the same time match the two-dimensional code information course learning information identification corresponding to the individual module. Scan the code to display the current component principle and technical information.
2. In the actual teaching environment, teachers guide students to install and log in the integrated micro-course teaching APP on the mobile device, and scan the QR code of the device to enter the system course for autonomous learning. The learning content needs to exactly match the integrated QR code work page course.
3. The training platform is equipped with a simulated fault setting and teaching assessment device. The 7-inch touch screen can set one or more common faults to meet the requirements of vocational skills teaching. The fault contents include: open circuit, virtual connection, and occasional. The number of failures: single point 8 or 16. Teachers can set faults in a variety of ways, such as single-point fault setting, combined fault setting, and assessment setting, which is also convenient for students to practice in the classroom and exercise their practical ability.
4. The teacher can remotely send fault-setting instructions to the training equipment through the wifi connection of the teaching software. Assessment: Teachers use the method of assessing faults to set faults in the comprehensive fault setting. Students conduct remote fault diagnosis and troubleshooting in the virtual diagnosis by observing the current fault phenomenon of the training platform, and fill in the diagnosis results in the training assessment. The system determines Diagnosis results and automatic scoring of this assessment.
3. Technical parameters
1. Dimensions: 1700×1100×800mm (length×width×height)
2. Power supply: AC 380V±10% (three-phase four-wire) 50Hz
3. Working voltage: DC 12V
4. Working temperature: -40℃～+50℃
5. Three-phase asynchronous motor
Model: YT 100L1-4
 Voltage: AC 220V/380V
 Power: 2.2KW
 Speed: 1420r/min

wooden case

Our company is one of subsidiary corporations of Xiwang Industry Group, which was founded in 2010 and was located in South Avenue of Yanjiang District, Ziyang City, Sichuan Province. We have established a high-tech enterprise with Sichuan Auto Occupation College which has invested with capital RMB million, integrating R&D, production and studying.

Our company possesses technical force. We have more than 100 staff members including 5 senior engineers, 12 engineers and technicians.

Advanced Equipment: Four-axis machines, three-coordinate measuring machines, CNC lathe, CNC milling machines, EDM shaping machines, we have more than 100 sets equipment. At the same time, we have engine test bench, auto electrical laboratory under Xiwang Industry Group. To respond to the country's energy consumption and environmental protection policy, our company focuses on the development of natural gas industry of automobile and we are engaged in auto gas equipment R&D and manufacturing. We cooperate with Combined Gas Equipment Company in New Zealand, and we have developed CNG, LNG gas equipment. Our relevant products are popular both at home and abroad, such as India, Vietnam, Canada and Iran.

The advanced experiment equipment, detecting instruments and measuring instruments effectively guarantee the quality of our products. We have passed ISO9001:2008 quality management system. And our products meet QC/T245-2002 and ECER110 safety specifications. At same time, we have also attained PRC special equipment manufacturing license.

"Energy conservation, environmental protection, safe, economy" is our aim. We are always adhering to "Scientific management, continuous improvement, excellent quality, customer satisfaction" quality policy. We rely on Sichuan Auto Occupation College and Jiao Tong University as our technical units to promote auto gas energy.
