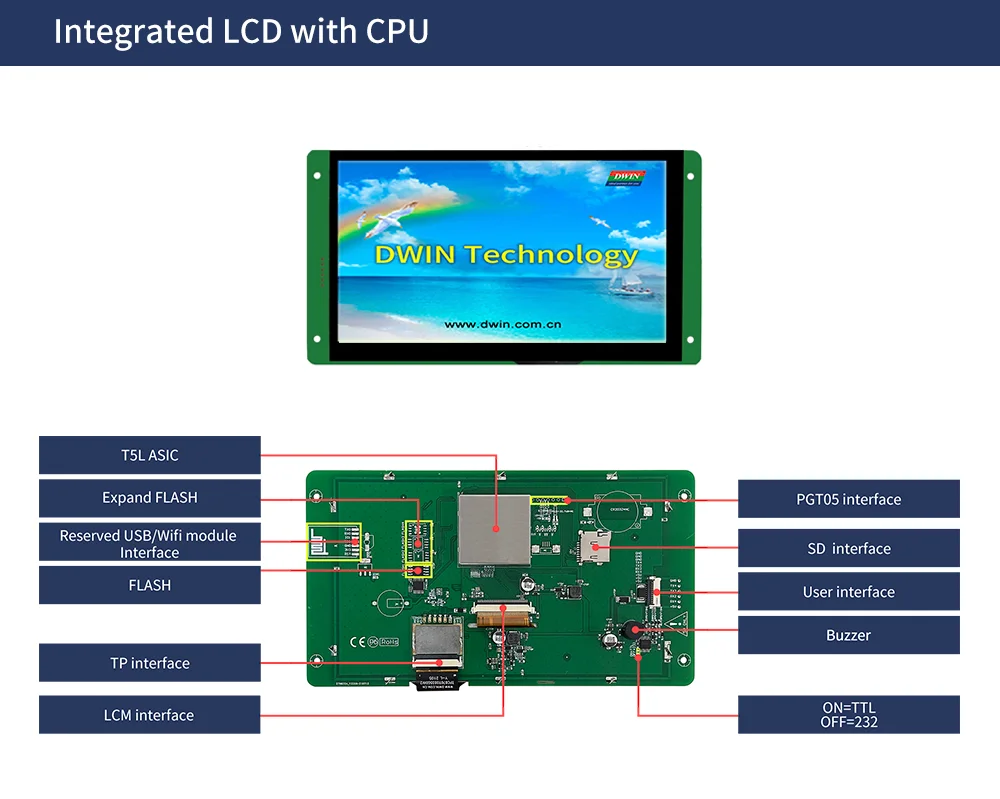

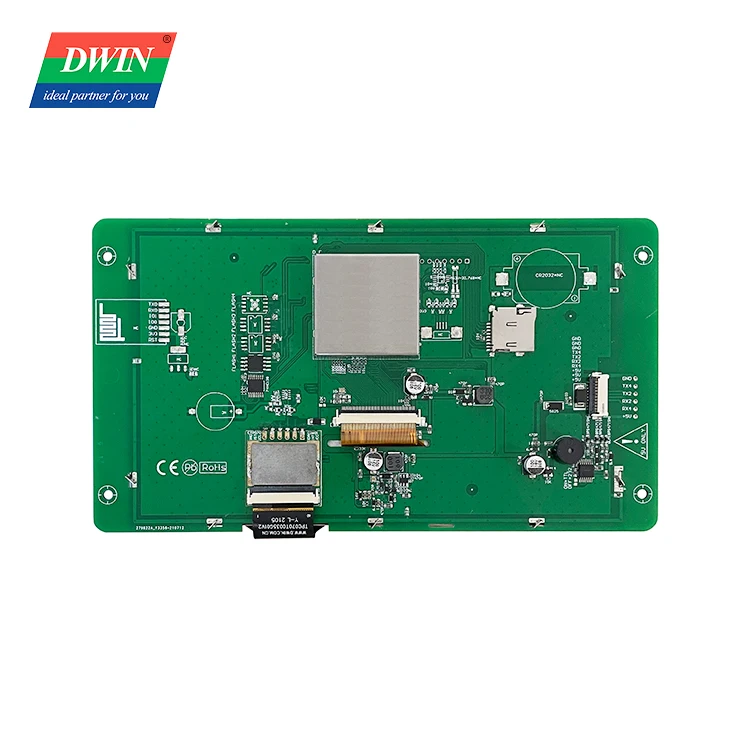

Dwin 7.0 Inch TFT Screen 800*480 HMI Commercial Display UART LCD Display Touch Screen DMG80480C070 03WTC
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1600467846128):
Product Overview
Description
Hardware Festuers
Item | Parameter | Description | ||
LCD Type | TFT | |||
Resolution | 800×480 | Support 0°/90°/180°/270° | ||
Color | 16.7M colors | 24 bit color 8R8G8B | ||
Active Area (A.A.) | 154.10mm (W)×85.90mm (H) | |||
Backlight Typ | LED | ≥20000H（Continuous working with maximum brightness, time of brightness halves） | ||
Brightness | 250nit | 100 levels adjustment (It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker | ||
Screen type | - | TN, TFT LCD | ||
Notice: Displaying a high contrast still screen for more than 30 minutes may result in an image blurring.Please add the screensaver to avoid. | ||||
Voltage& Current
Item | Conditions | Min | Typ | Max | Unit |
Power Voltage | - | 4.5 | 5 | 5.5 | V |
Operation Current | VCC = +5V, Backlight on | 500 | mA | ||
Working Humidity | VCC = +5V, Backlight off | 150 | mA |
Reliability Test
Item | Description | Min | Typ | Max | Unit | ||||
Operating Temperature | -20℃~70℃ (5V @ 60% RH) | 4 | 5 | 5.5 | V | ||||
Storage Temperature | -30℃~80℃ | 500 | mA | ||||||
Conformal Coating | None | ||||||||
Operating Humidity | 10%~90%RH, typical value of 60% RH | 150 | mA | ||||||

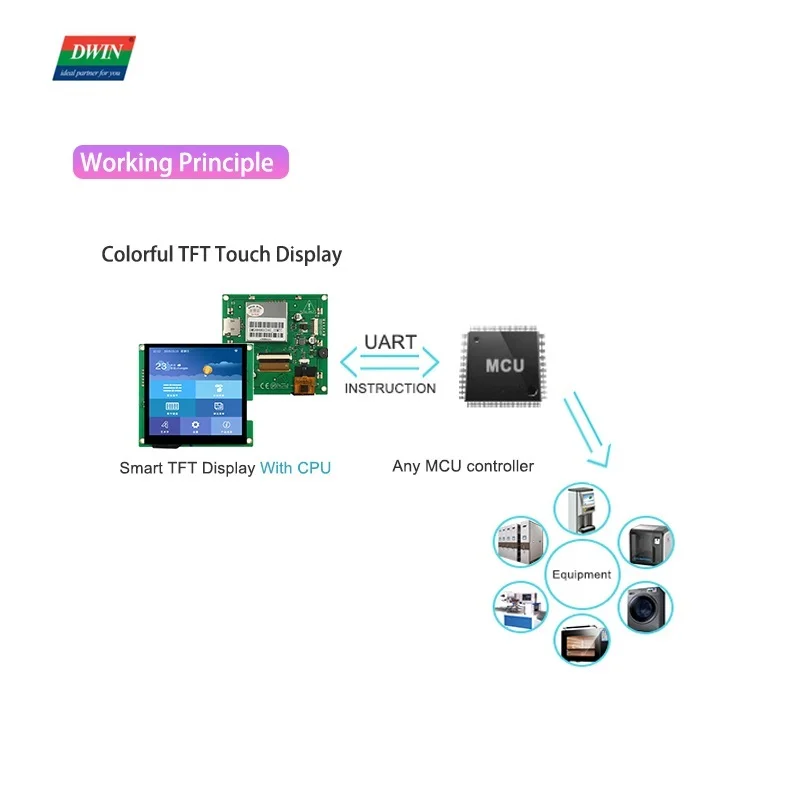

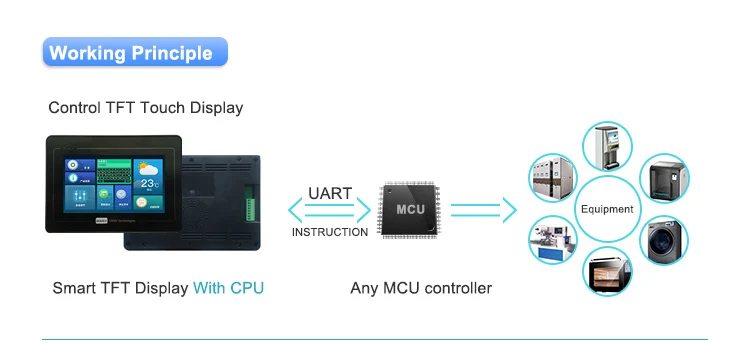

Interface
Item | Conditions | Min | Typ | Max | Unit | ||||
Baudrate | User Set | 3150 | 115200 | 3225600 | bps | ||||
Output Voltage（TXD） | Output 1, Iout =1mA | 3.0 | 3.3 | - | V | ||||
Output 0, Iout =1mA | - | 0 | 0.3 | V | |||||
Input Voltage（RXD） | Input 1, Iout =1mA | 2.4 | 3.3 | 5.0 | V | ||||
Input 0, Iout = -1mA | 0 | - | 0.5 | V | |||||
Interface | UART2:ON=TTL/CMOS;OFF=RS232 UART4:ON=TTL/CMOS;OFF=RS232 (Only available after OS configuration) | Yes | |||||||
Socket | 10Pin_1.0mm | ||||||||
SD Slot | YES (SDHC/FAT32 Format) | ||||||||
UI&Peripheral
UI&Peripheral | Min | Typ | Max | Unit | |||||

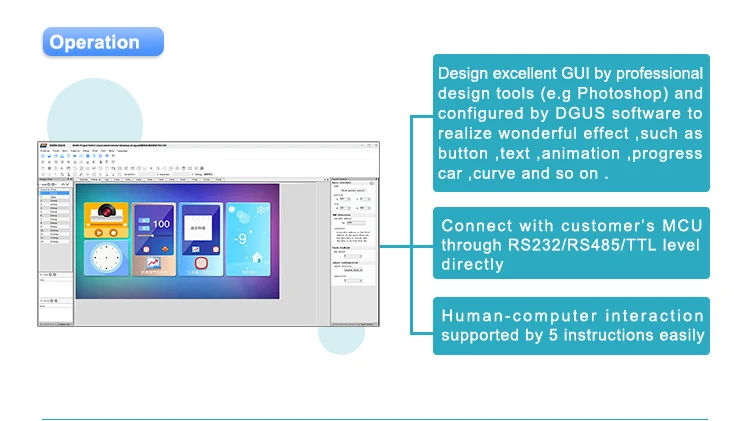

UI version | DGUS II | 7841 | 115200 | 7833600 | bps | ||||

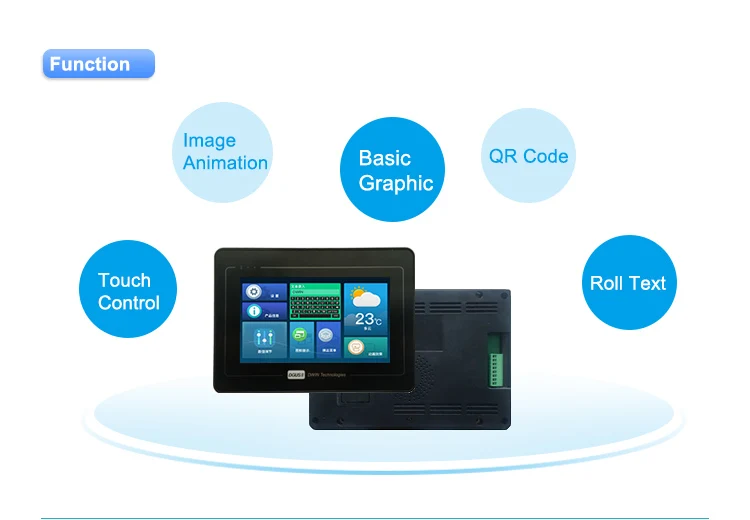

Peripheral | Capacitance touchscreen，Buzzer | 239 | - | 15667200 | bps | ||||
Packing Capacity & Dimension
Dimension | Black | ||||||||

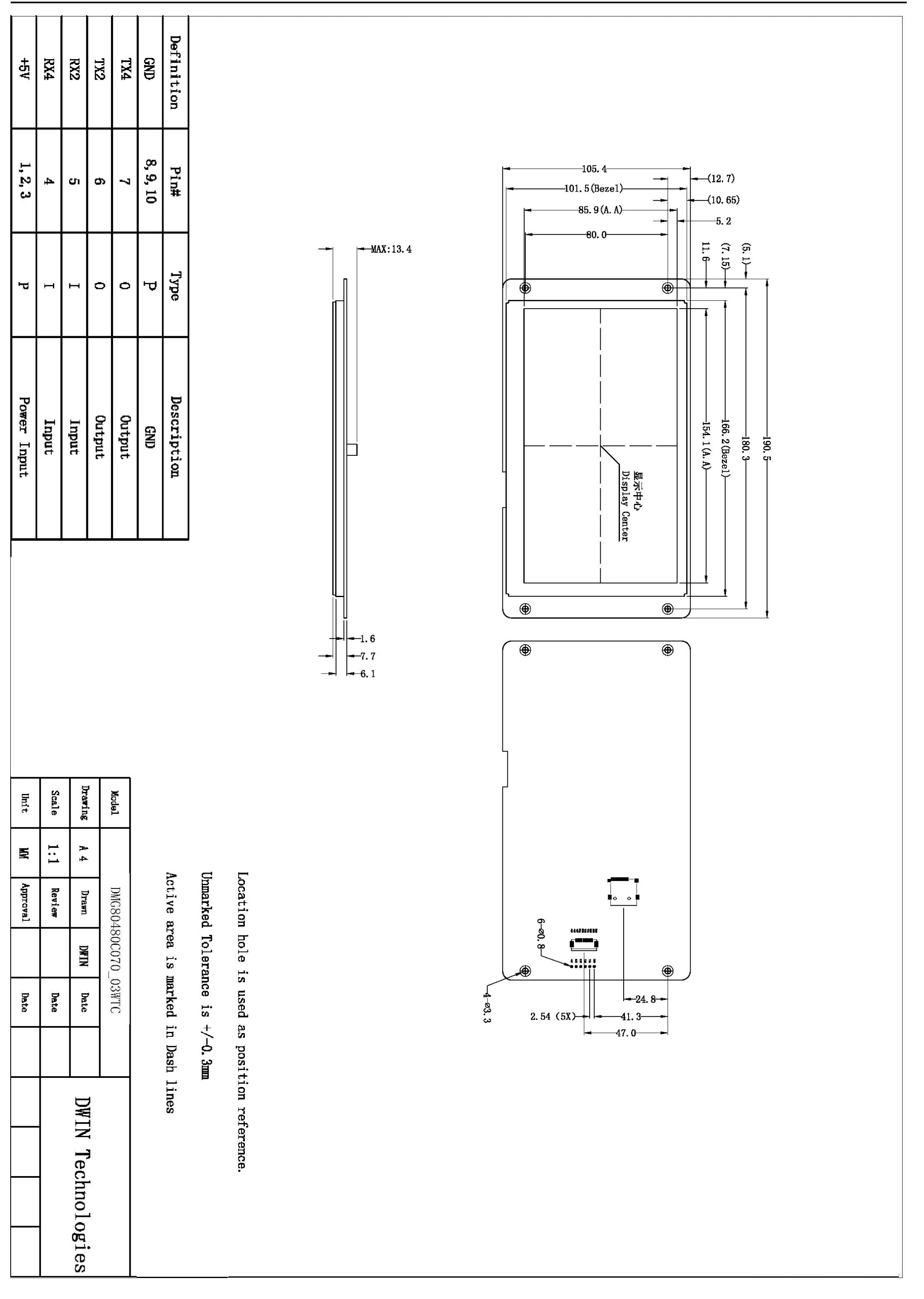

Dimension | 190.50mm (W)×105.40mm (H)×13.40mm (T) | - | - | 122 | Pcs | ||||
Weight | 319g | - | 320 | - | Kbytes | ||||
Remark: There is no extra-notice if the product design changes that do not affect performance parameters and use.

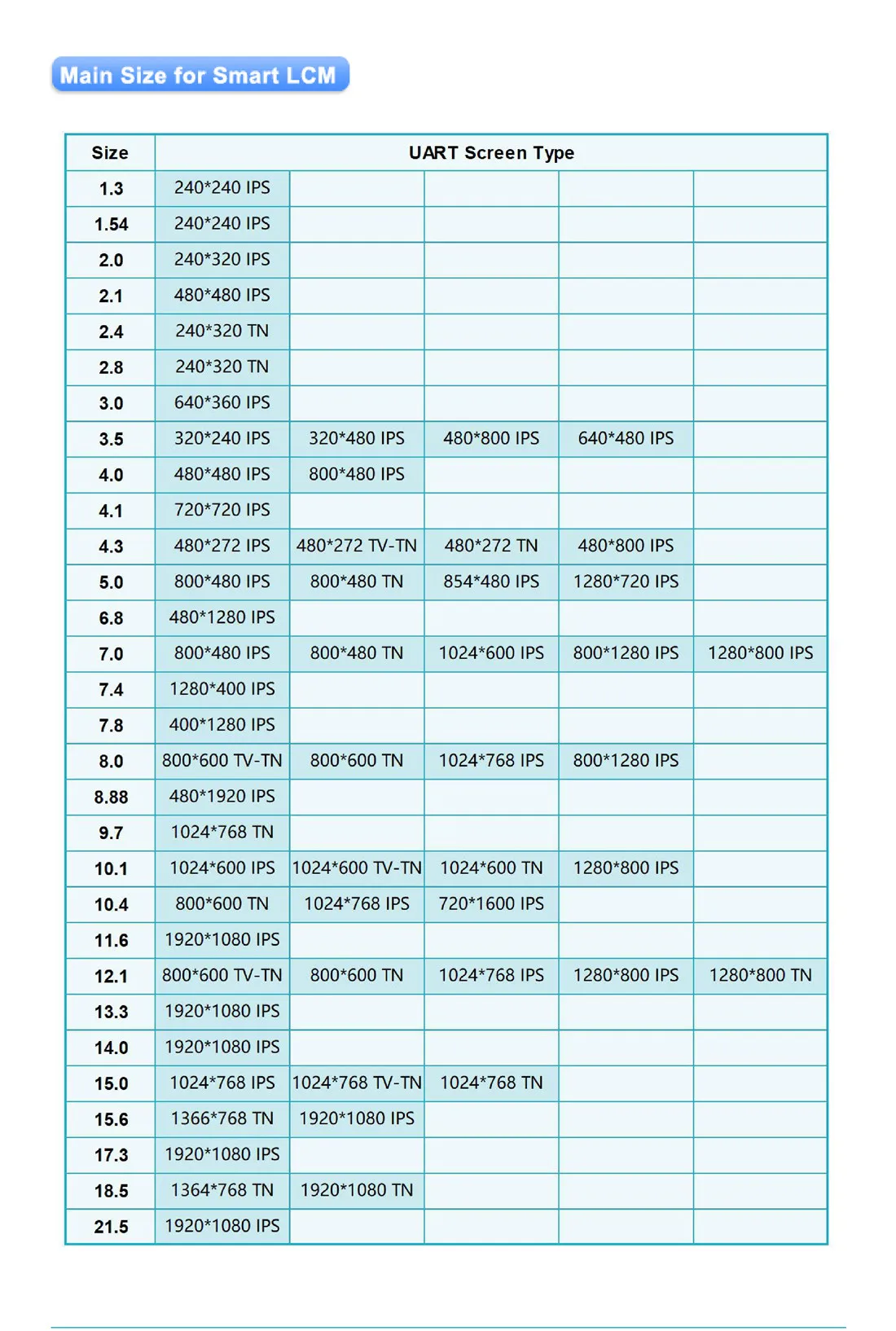

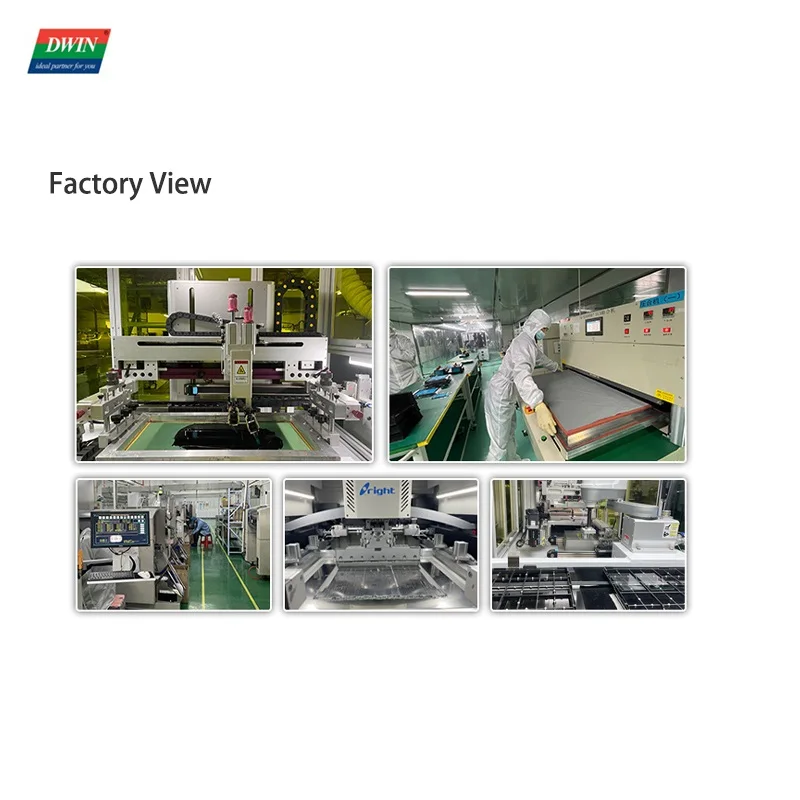

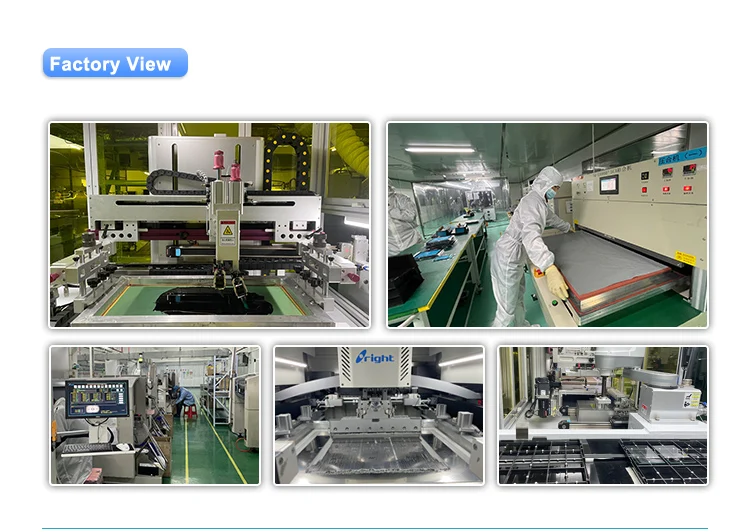

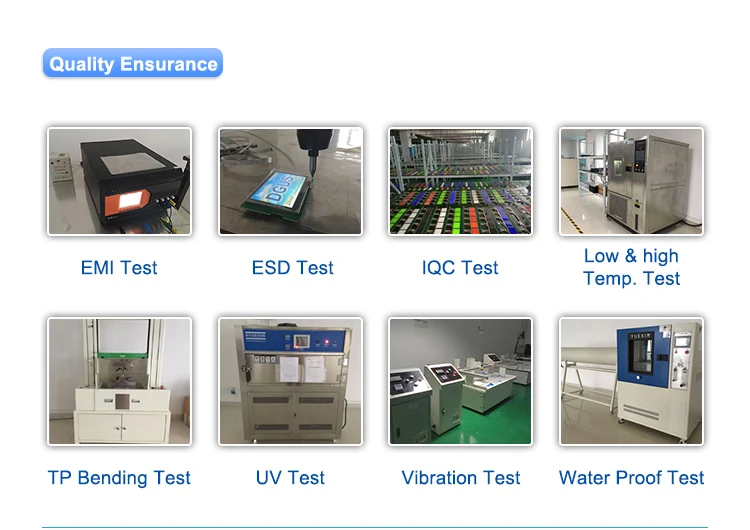

Beijing DWIN Technology is a world-leading high-tech industrial automation enterprise which is dedicated to the research, development, manufacture and sales of UART LCM. The head office of DWIN is located in the core area of China's "Silicon Valley" Zhong Guan Cun. The company has set up offices in many provinces of China (Beijing, Suzhou, ChangSha, GuangZhou and ShenZhen etc.), established the effective sales channels and branches in Northern Europe, America, India, Turkey, Brazil and Korea. The manufacturing center of the company is seated at DWIN Hunan Technology Park covering 28000 m2. The manufacturing centers are equipped with high cleanliness assembly lines, quality improvement centers, laboratories and aging test workshops. A 4500-square-metre Application Support Center has been built in Guangzhou for providing technical support. Established in 2003, DWIN advocates its operation philosophy of "Professional, Creditable, and Successful". The company believes that only by creating value for the clients, could DWIN realize its idea of "Double win", and therefore could meet its need to grow and expand. Relying on the competitive advantage of its product in function, quality, service and price, DWIN plays a major role in the market of Industrial UART LCM, especially in the market of the construction machinery, healthcare instrument, and electronic equipment for export, which are products focused on high reliability. As a result, DWIN has already won the trust and support from clients like SANY Group, GE and SIEMENS. Creating value for the clients is DWIN's belief; Technology innovation is DWIN's focus; "Double Win" and mutual development are DWIN's spirit!
FAQ
Question 1:
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation
(Car&ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…
Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please leave messages to us on Alibaba.com
Question 4: Will DWIN have online technical support?
Answer: Yes of cause, below ways you can get technical support.
- Whatsapp: +86 19192113166
- DWIN website:www.dwin-global.com
- DWIN Forum: https://forums.dwin-global.com/
- Leave messages to us on Alibaba.com
Question 5: What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation
(Car&ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…
Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please leave messages to us on Alibaba.com
Question 4: Will DWIN have online technical support?
Answer: Yes of cause, below ways you can get technical support.
- Whatsapp: +86 19192113166
- DWIN website:www.dwin-global.com
- DWIN Forum: https://forums.dwin-global.com/
- Leave messages to us on Alibaba.com
Question 5: What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.
