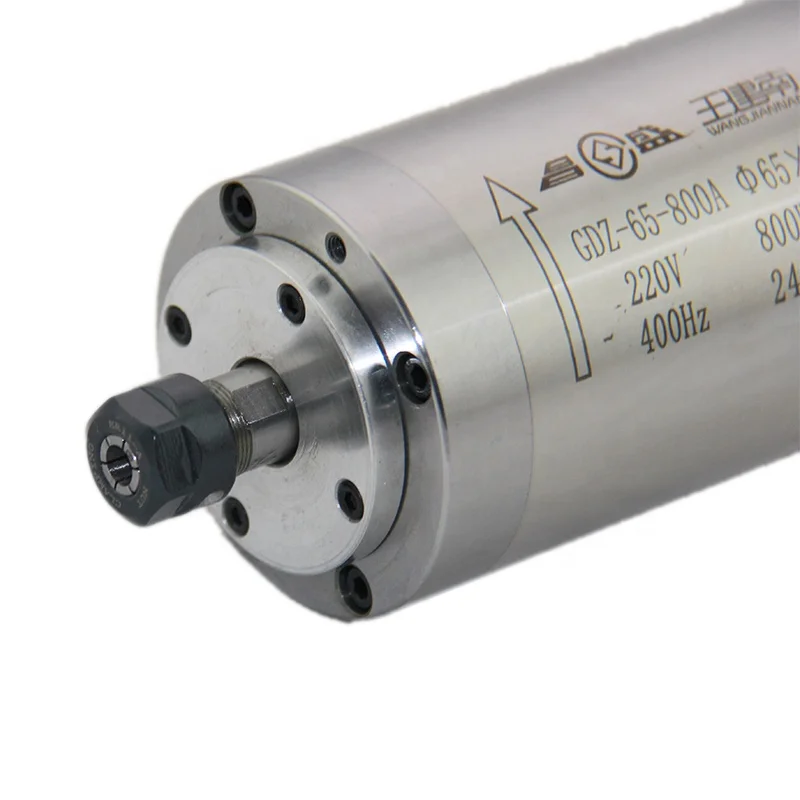

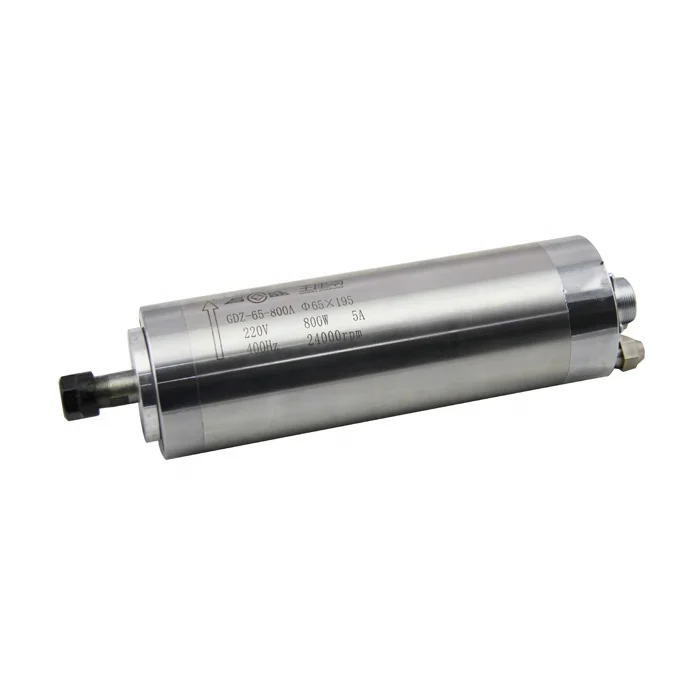

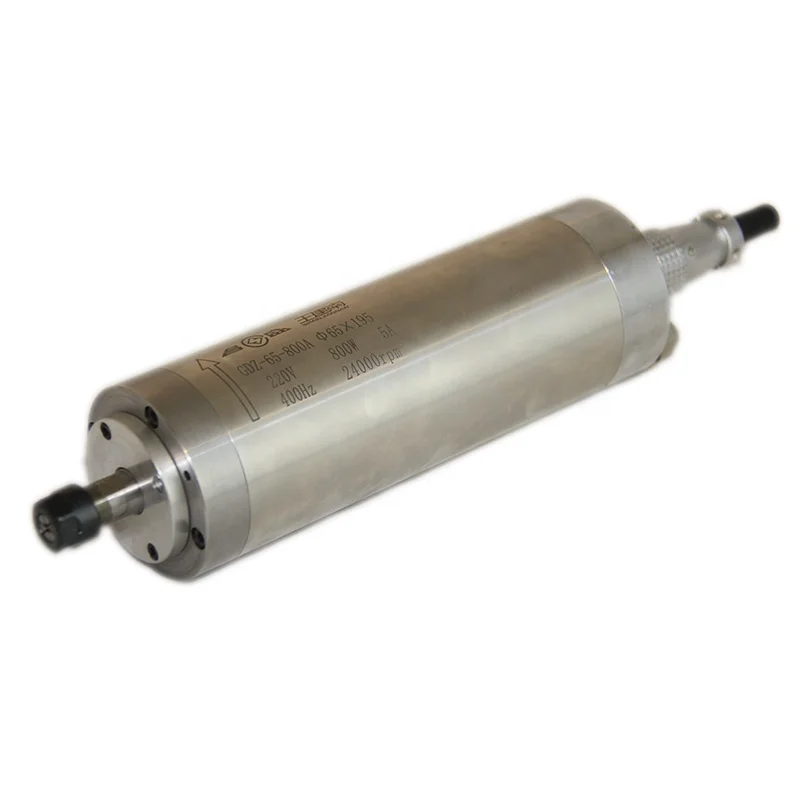

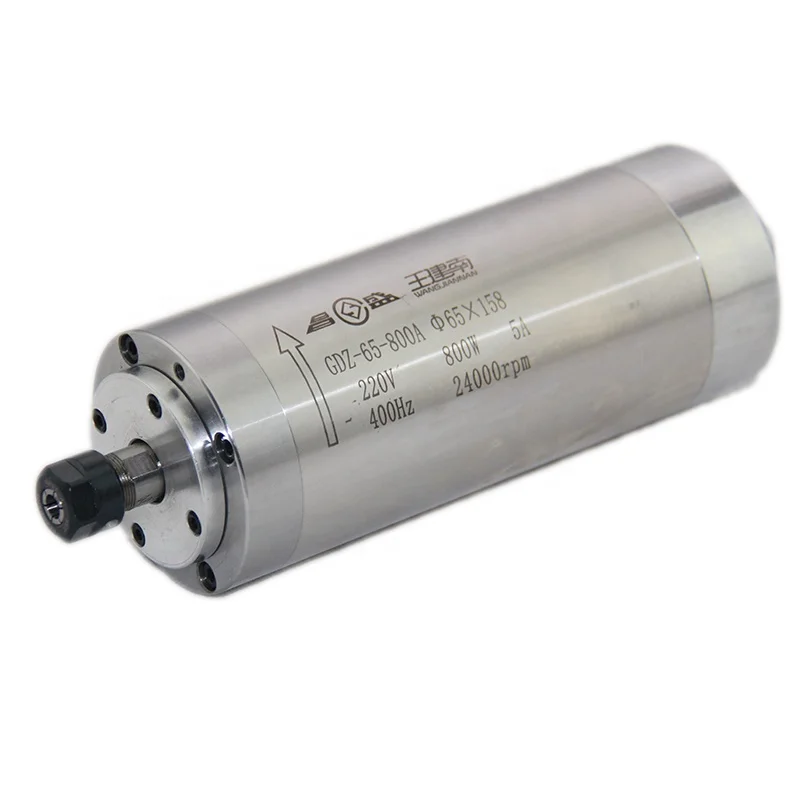

Water cooled spindle GDZ65 800A er11 Collect nut 65 diameter 800w spindle cnc
- Category: >>>
- Supplier: Foshan Hongli Weiye Electromechanical Hardware Co. Ltd.
Share on (1600467852312):
Product Overview
Description
Product Overview
Model No：GDZ65-800A(3 bearing)
Spindle size：65*158mm
Voltage：220V
Current：5A
Frequency：400HZ
Speed：24000rpm/min

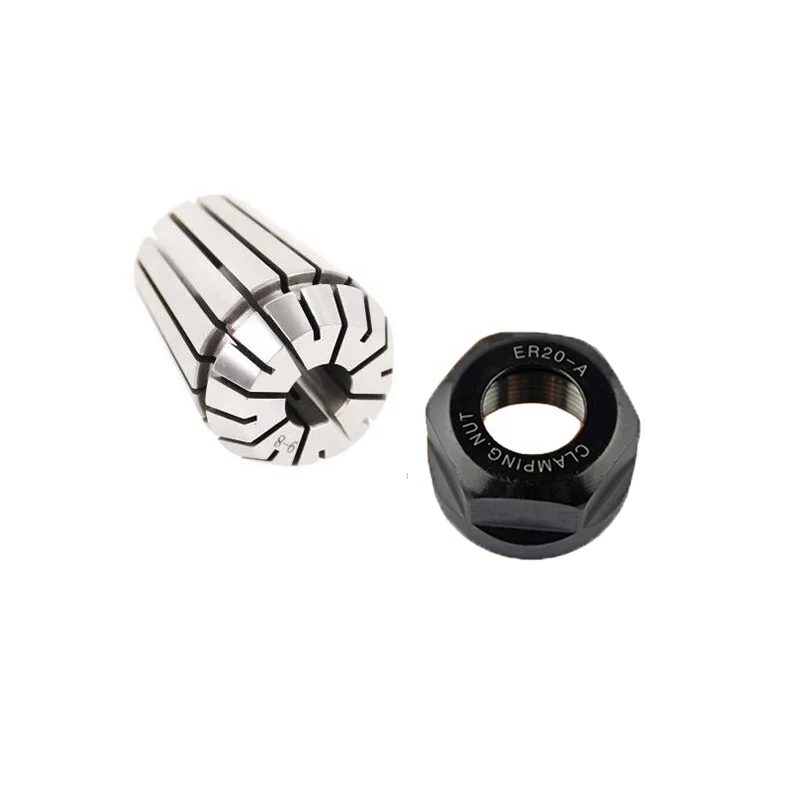

Collect ut：ER11 - Φ1-7mm
Voltage：220V
Current：5A
Frequency：400HZ
Speed：24000rpm/min
Collect ut：ER11 - Φ1-7mm
Bearing quantity : 3

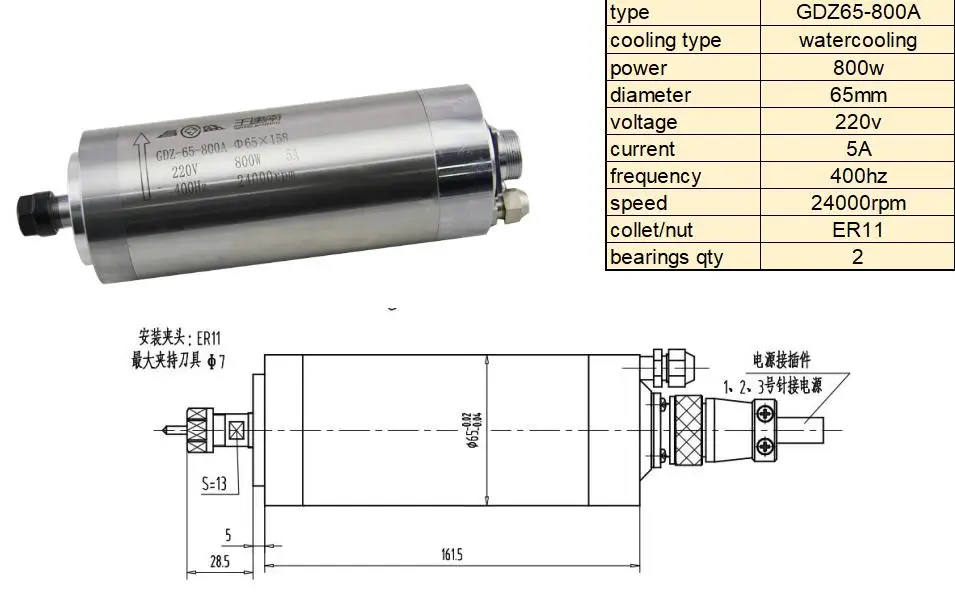

PRODUCT SPECIFICATIONS
Model Number | GDZ65-800A | Power | 800A | ||||||
Operating Speed | 24000rpm/min | Cooling | Water cooled | ||||||
Collet nut | ER11(1-7mm） | Voltage | 220V | ||||||
Frequency | 400HZ | Current | 5A | ||||||
Lub | Grease | Bearing | 2*7002C P4+1*700C P4 | ||||||
Packaging & Shipping
FAQ
Q1：Could you accept OEM and customize?
A1：YES,we can customize for you according to sample or drawing.
Q2：Dose your factory have any certificate?
A2：yes.we have ISO 9001:2008,SGS and CE. If you want other,we can do for you.
Q3：Is you company factory or Trade Company?
A3：We have our own factory ;our type is factory + trade.
Q4：What's the delivery time?
A4：It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
Q5：How does your factory do regarding quality control?
A5：Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6：What's your warranty terms?
A6：We offer different warranty terms for different products. Please contact with us for details.
Q4：What's the delivery time?
A4：It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
Q5：How does your factory do regarding quality control?
A5：Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6：What's your warranty terms?
A6：We offer different warranty terms for different products. Please contact with us for details.
