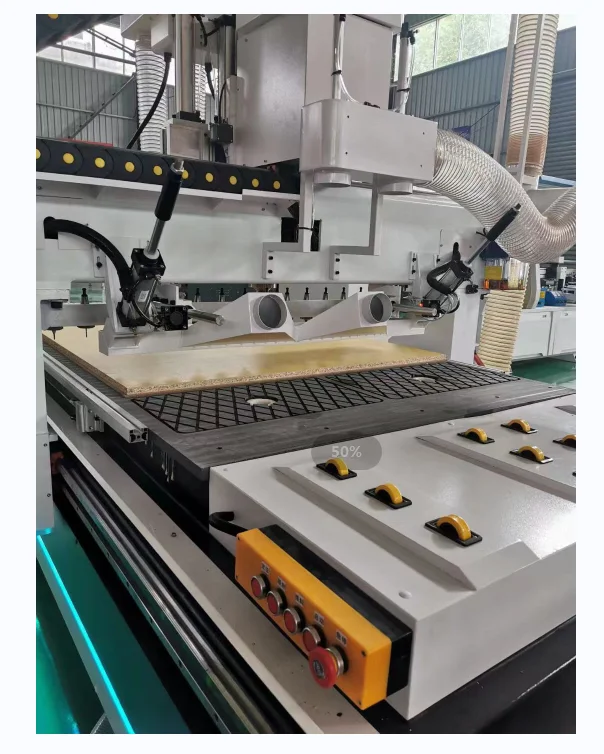

Economic model atc cnc router engraving machine 1325 professional supply provide vacuum table
- Category: >>>
- Supplier: Jinan JCUT CNC Equipment Co. Ltd.
Share on (1600467906205):
Product Overview
Description
Product Description

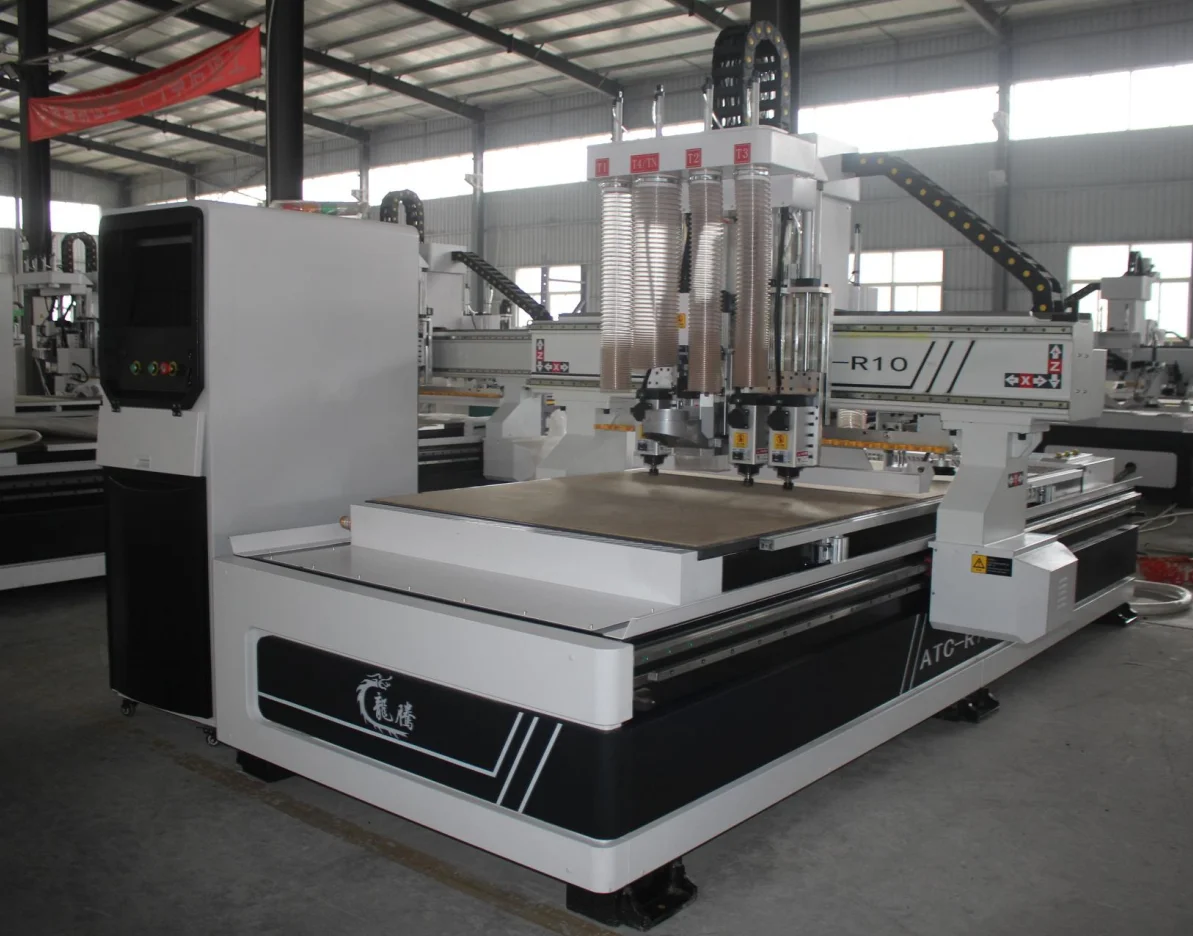

Economic model atc cnc router engraving machine 1325 professional supply provide vacuum table
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Descriptions | Parameters | ||||||
Model | JCUT R10 | ||||||
Working area | 1220*2440*200mm (Customizable) | ||||||
Tool magazine | 12 (12-16) position servo inline auto tool changer magazine with tool sensor | ||||||
Table | Vacuum table with 7.5kw/380V pump, super adsorption | ||||||
Spindle | 6kw*4 spindles | ||||||
Spindle speed | 0-24000RPM | ||||||
Motor and driver | Dorna 1500W servo motor and driver (Yaskawa, Leadshine for optional) | ||||||
X, Y axis | X, Y axis adopt HICK 1.5m helical rack | ||||||
Z axis | Z axis adopt TBI -2510 ball screw | ||||||
Linear rail | X, Y, Z axis adopt 30 linear rail | ||||||
Control system | Taiwan LNC/Syntec control system | ||||||
Inverter | Hpmont 11kw inverter | ||||||
Reducer | France Motovario reducer | ||||||
Oil lubrication system | Automatic oil lubrication system | ||||||
Dust collector | 4kw/380V dust collector with double bag | ||||||
Auto unloading | Fully automatic tile horizontal push blanking with auxiliary aluminum bar stopper function | ||||||
Accuracy | ±0.02mm | ||||||
Voltage | 380V (Customizable) | ||||||
Machine body | Heavy 3.5m machine body, sealing metal plate structure with thick gantry | ||||||
Machine size | 3600*2200*1950mm | ||||||
Net weight | 2800kg | ||||||
Details Images
Vacuum table
Patent design 50MM adsorption caliber, PVC pipe connection sealing good, plate do not run.Adding the auto push function
Independent Control Box
Independent control box with LED Display Screw

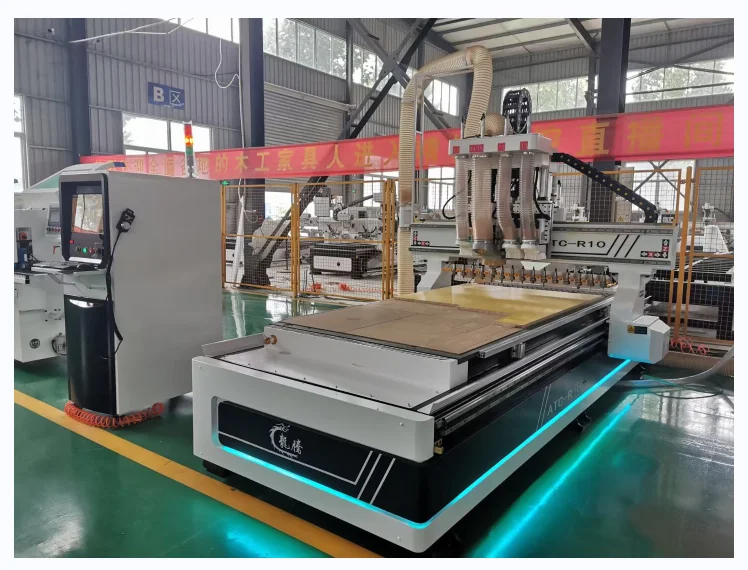

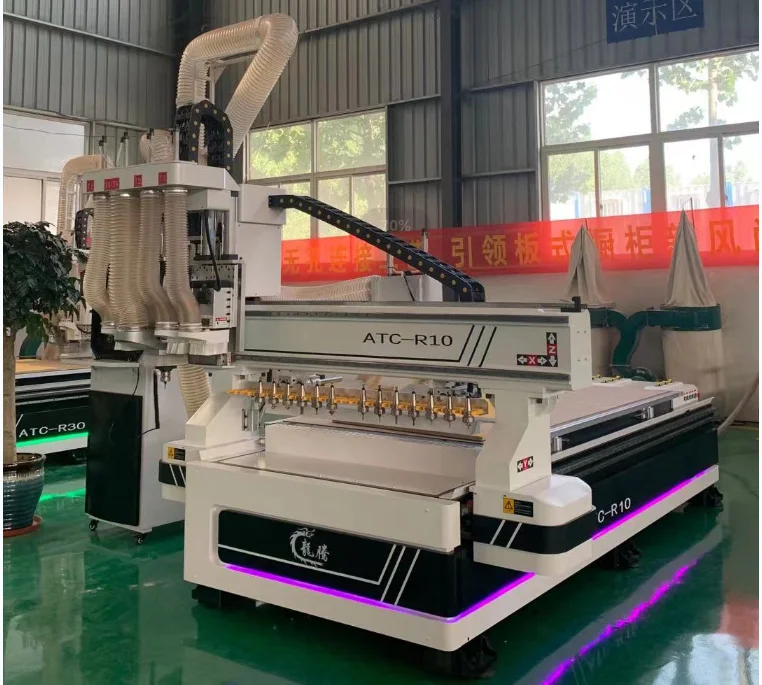

Machine Structure
Heavy Machine Structure
Machine Spindles
6KW*4 Four Spindles
Motor
Pure 1500W servo motor

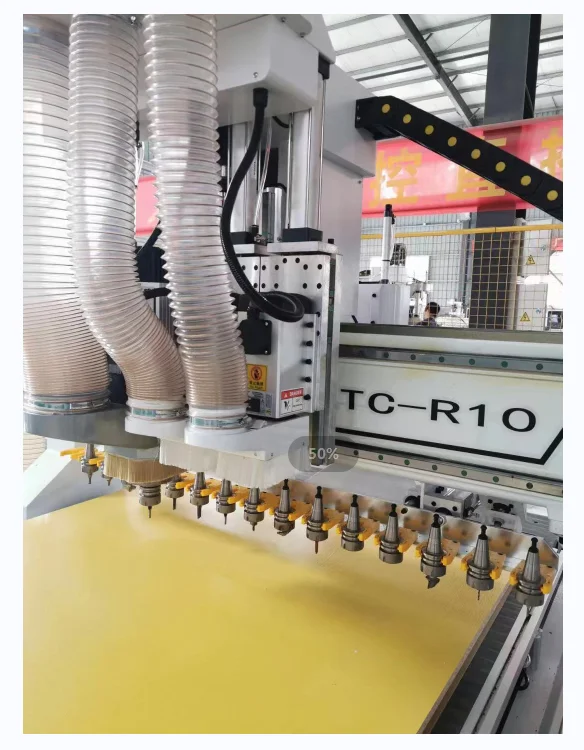

Tool Magazine
12 tools position,Tool Magazine (8-16 tools )
Samples

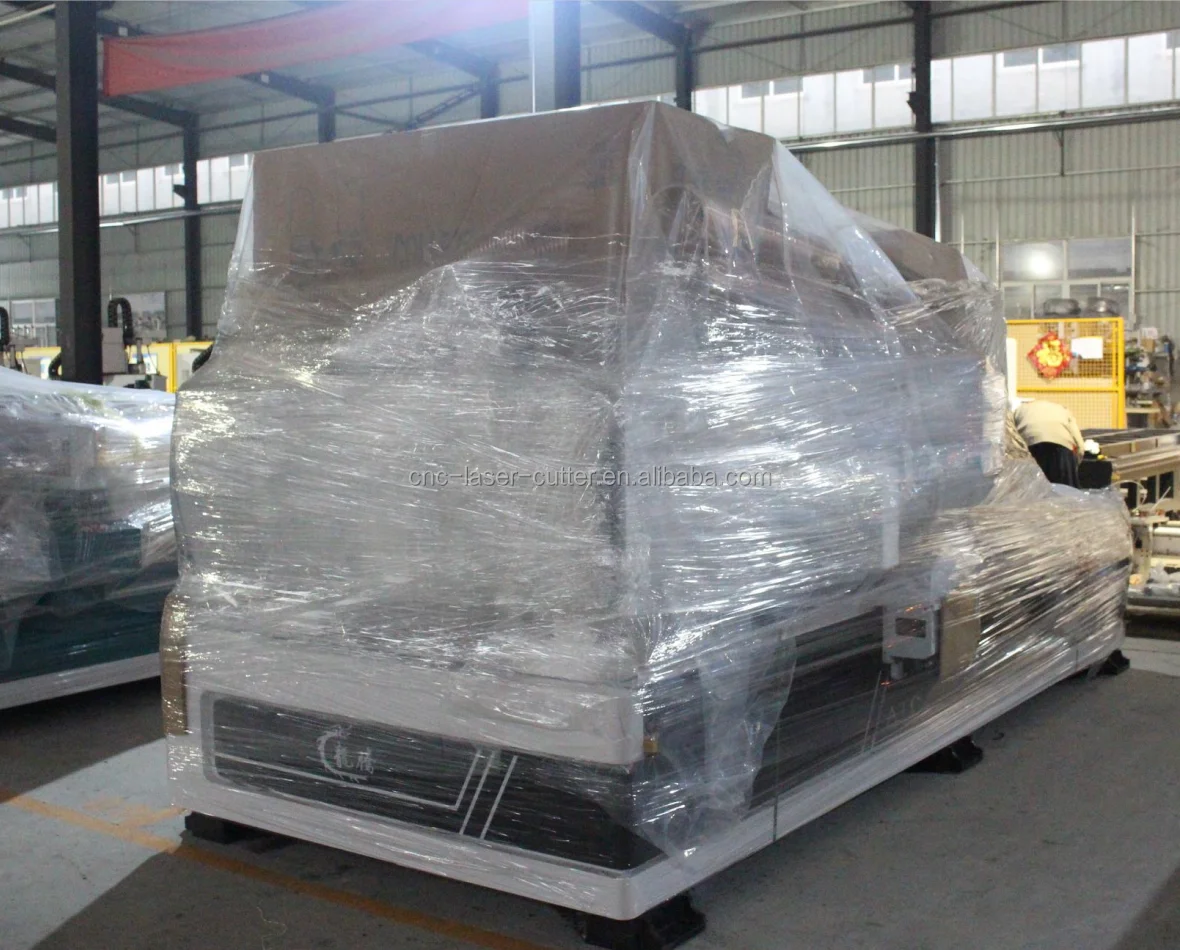

Product packaging
Shipping: About 10-15 days after confirm the order
Certifications

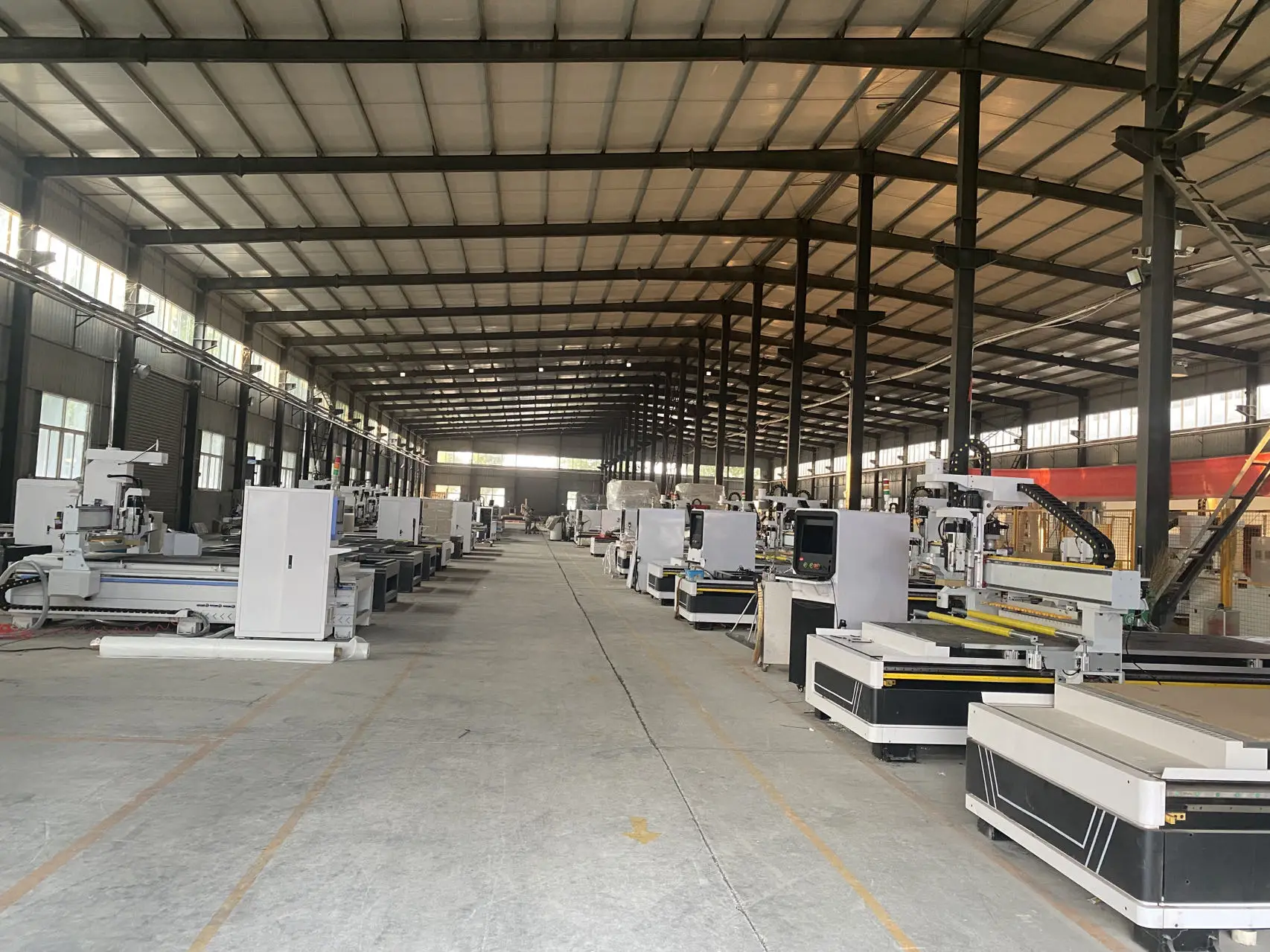

Company Profile
JINAN JCUT CNC EQUIPMENT CO., LTD is located in Jinan, Shandong, China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.
Our machine mainly used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.
customers Photos
Contact us
FAQ
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 10~15 working days; For customized machine, about 20 working day.
Q7. MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 10~15 working days; For customized machine, about 20 working day.
Q7. MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
