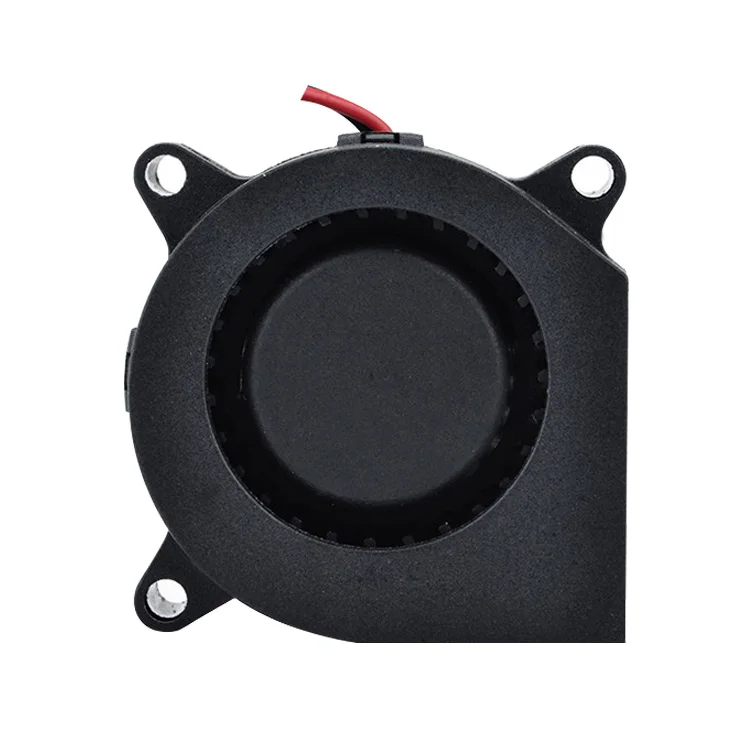

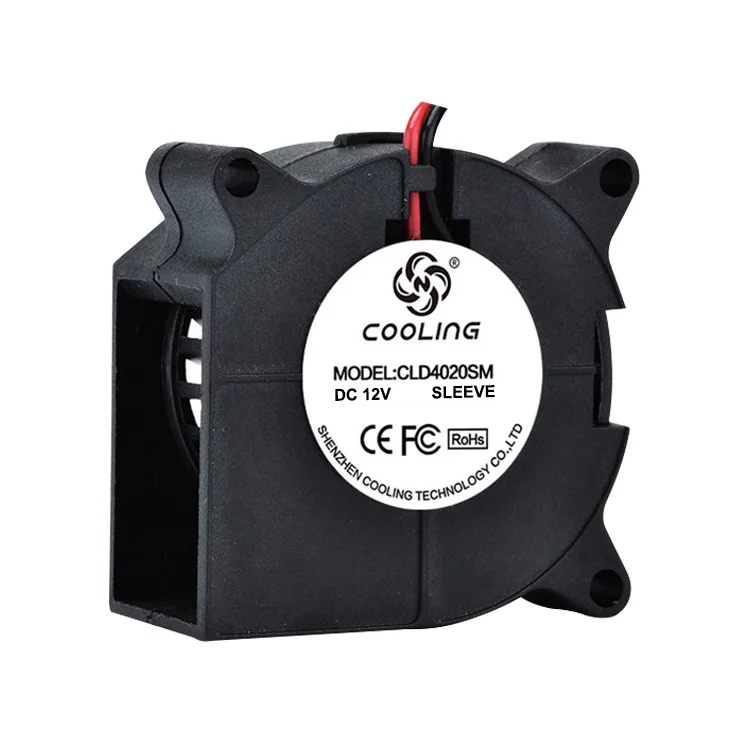

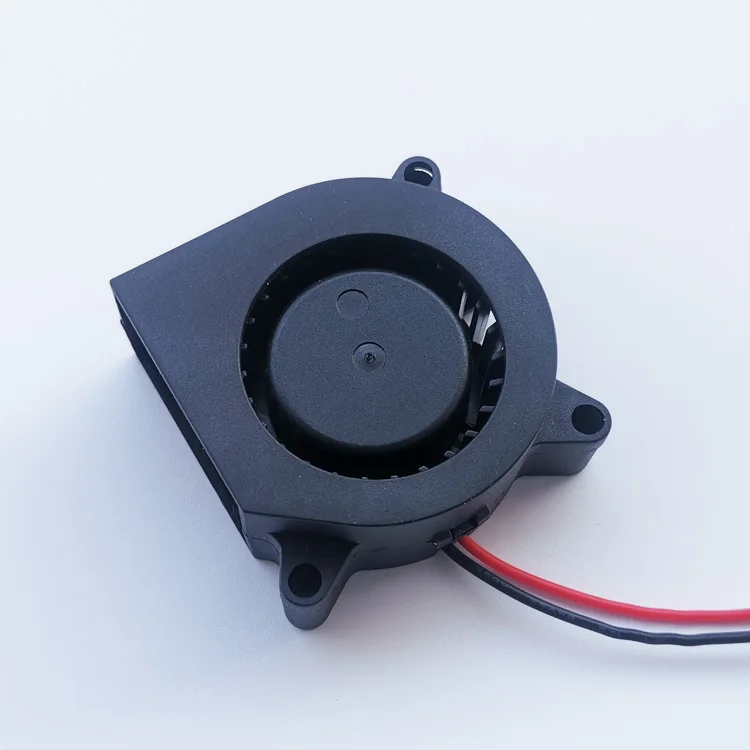

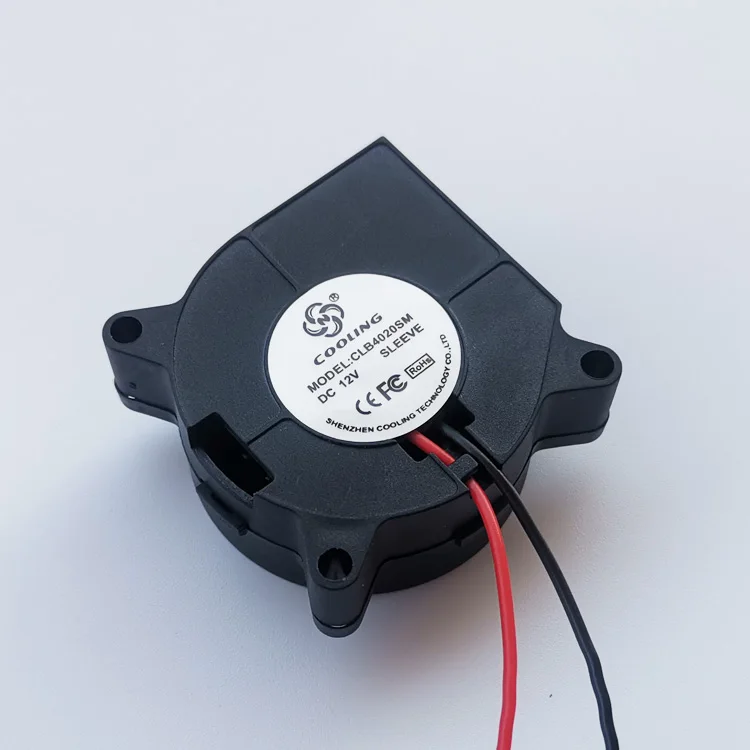

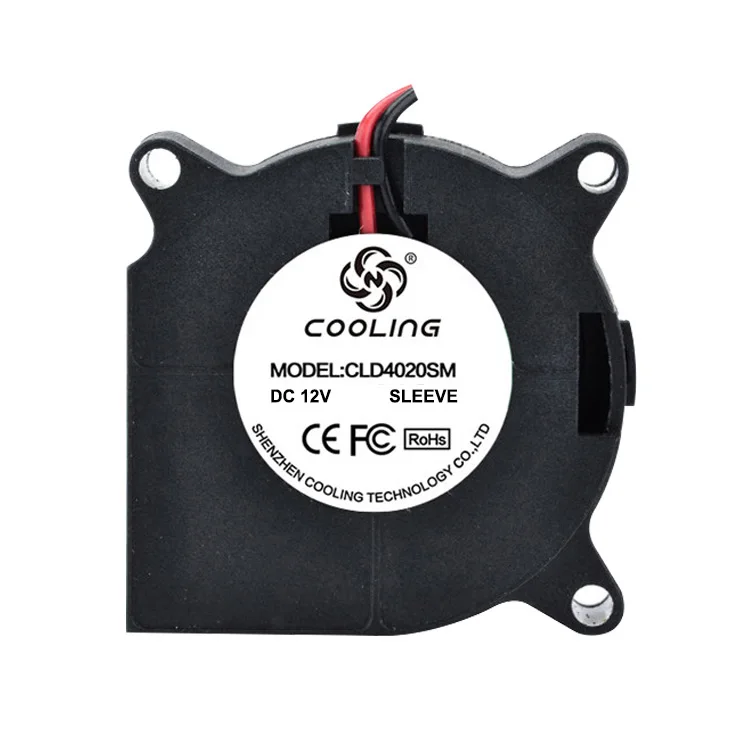

Silent 40mm centrifugal fan 40x40x20mm 5v 12v dc blower
- Category: >>>
- Supplier: Shenzhen Cooling Technology Co. Ltd.
Share on (1600467919189):
Product Overview
Description
Product Description
Silent 40mm centrifugal fan 40x40x20mm 5v 12v dc blower
DC blower fan, centrifugal fan, blower
Size: 40X40X20mm
Frame: Plastic
Size: 40X40X20mm
Frame: Plastic
Impeller: Plastic
Voltage:5V,12V
Specification
Model Part Number | Voltage (volt) | Current (Amp) | Power (Watt) | Speed (rpm) | Air Flow (CFM) | Air Pressure (mmH2O) | Noise (dB-A) |
CLB4020LL05 | 5 | 0.14 | 0.72 | 4500 | 2.00 | 2.64 | 27.4 |
CLB4020L05 | 5 | 0.16 | 0.8 | 5000 | 2.27 | 3.35 | 30.2 |
CLB4020ML05 | 5 | 0.24 | 1.2 | 5500 | 2.56 | 4.18 | 33.5 |
CLB4020LM05 | 5 | 0.29 | 1.44 | 6000 | 2.75 | 5.22 | 35.7 |
CLB4020M05 | 5 | 0.34 | 1.68 | 6500 | 3.06 | 6.55 | 37.4 |
CLB4020H05 | 5 | 0.38 | 1.92 | 7500 | 3.54 | 9.13 | 40.9 |
CLB4020LL12 | 12 | 0.06 | 0.72 | 4500 | 2.00 | 2.64 | 27.4 |
CLB4020L12 | 12 | 0.07 | 0.08 | 5000 | 2.27 | 3.35 | 30.2 |
CLB4020ML12 | 12 | 0.1 | 1.2 | 5500 | 2.56 | 4.18 | 33.5 |
CLB4020LM12 | 12 | 0.12 | 1.44 | 6000 | 2.75 | 5.22 | 35.7 |
CLB4020M12 | 12 | 0.14 | 1.68 | 6500 | 3.06 | 6.55 | 37.4 |
CLB4020H12 | 12 | 0.16 | 1.92 | 7500 | 3.54 | 9.13 | 40.9 |
CLB4020HH12 | 12 | 0.18 | 2.16 | 8500 | 4.00 | 12.16 | 44.5 |
CLB4020LL24 | 24 | 0.03 | 0.72 | 4500 | 2.00 | 2.64 | 27.4 |
CLB4020ML24 | 24 | 0.05 | 1.2 | 5500 | 2.56 | 4.18 | 33.5 |
CLB4020LM24 | 24 | 0.06 | 1.44 | 6000 | 2.75 | 5.22 | 35.7 |
CLB4020M24 | 24 | 0.07 | 1.68 | 6500 | 3.06 | 6.55 | 37.4 |
CLB4020H24 | 24 | 0.08 | 1.92 | 7500 | 3.54 | 9.13 | 40.9 |
CLB4020HH24 | 24 | 0.09 | 2.16 | 8500 | 4.00 | 12.16 | 44.5 |

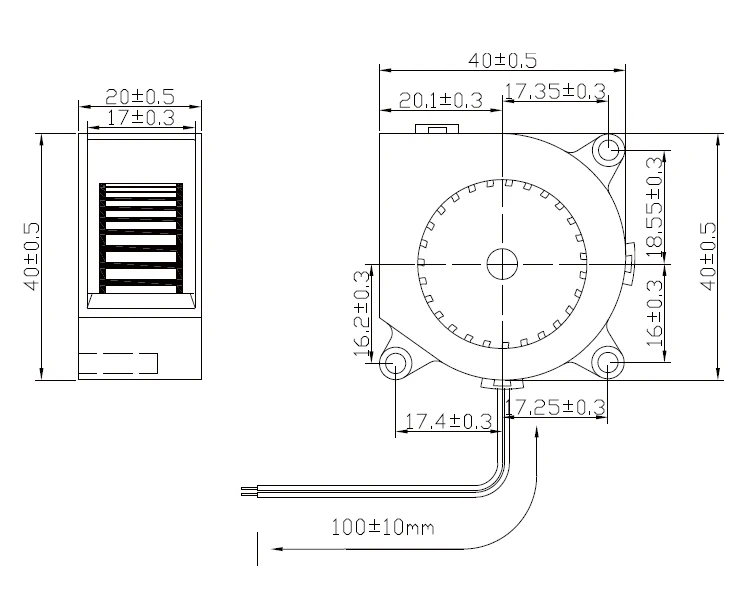

Product Drawing
