Automatic Powered Motorized Gravity Flexible Expandable Steel Roller Conveyor
- Category: >>>
- Supplier: Xiamen Shenzhou Packing Machine Co. Ltd.
Share on (1600467930435):
Product Overview
Description
Products Description

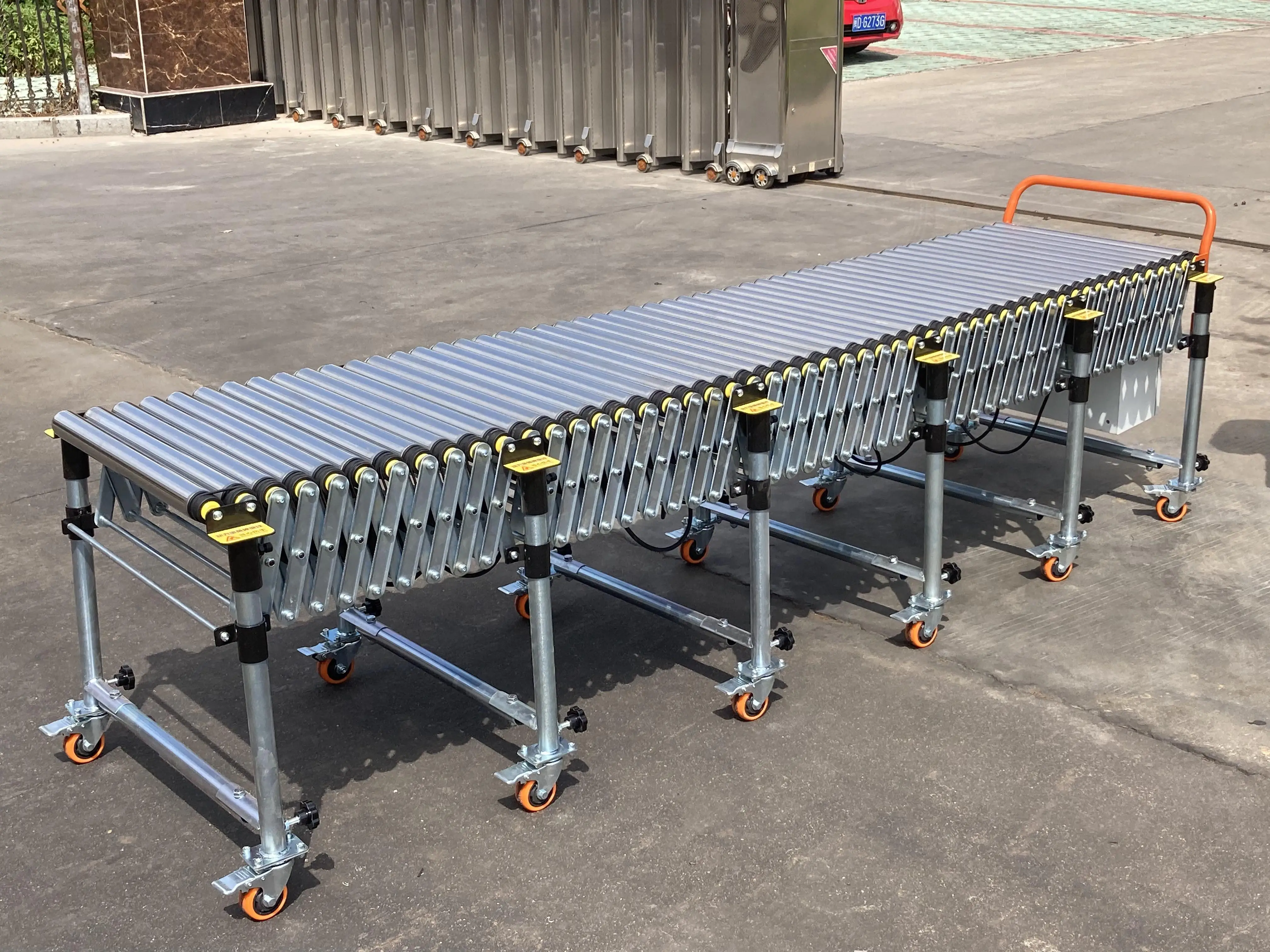

Powered Expanable Roller Conveyor
The poweed roller conveyor has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like. It has the characteristics of large transport volume, high speed, light operation, and the ability to realize the transmission of multiple lines at the same time.It is ideally suited for truck loading and unloading, distribution centers, packaging, portable assembly lines, shipping and receiving operations.Application of telescopic roller conveyor
Roller conveyor is suitable for conveying the material which has a flat bottom. It has advantages of large conveying capacity,high speed , strong load capacity. It is easy to connect roller conveyors. Several roller lines and other conveying devices can be assembled into complicated logistics transport system to meet the technical requirements in many fields. The roller conveyor is classified by form of layout: horizontal conveying, turning conveying, incline conveying.
Features & Advantages
1.Continuous Duty Multiple Drive Motors;

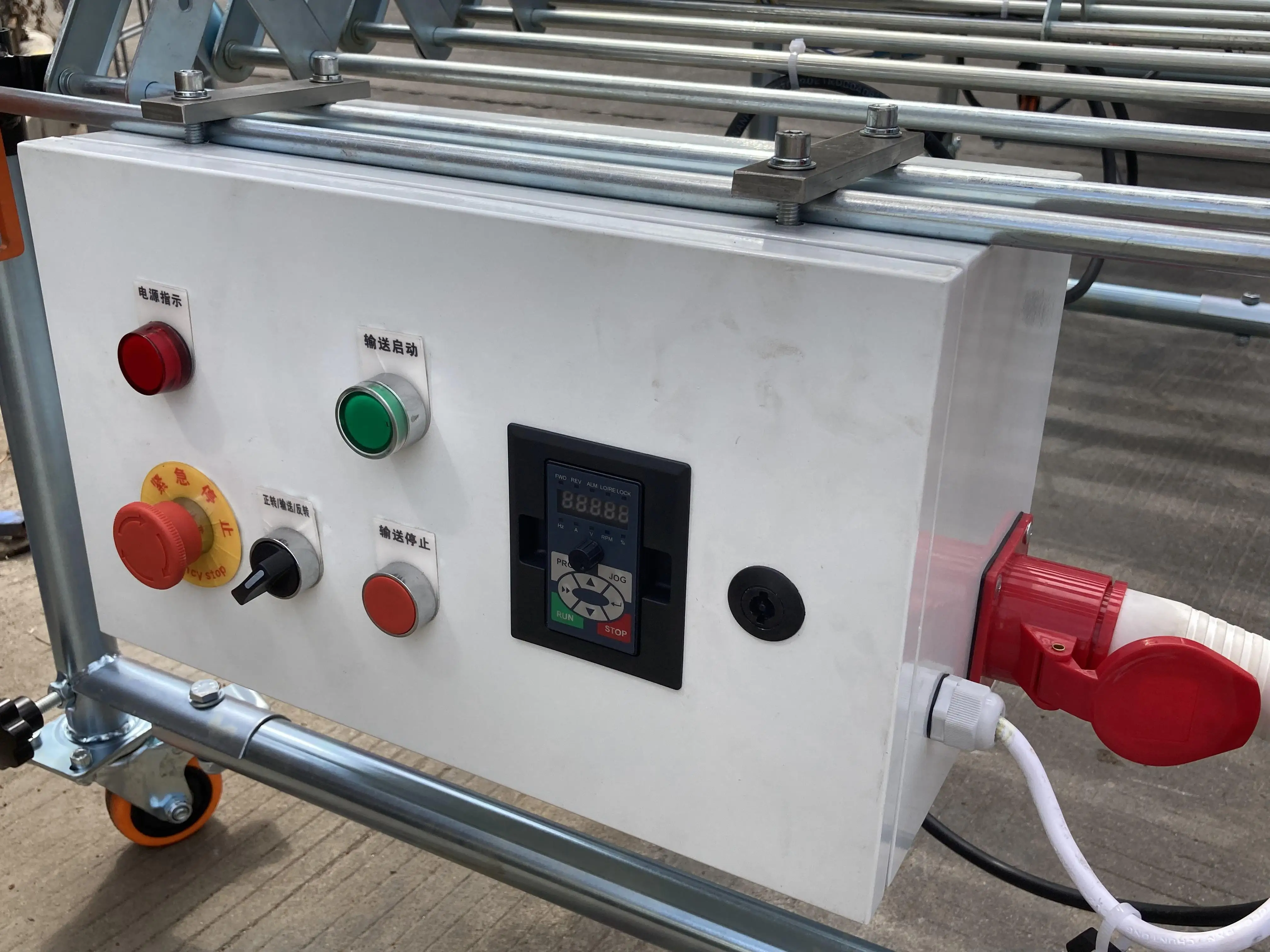

2.Line speed is adjustable from 0 to 30 meters per minute. Start/stop controls at both ends;
3.Self Tracking;
4.Cartons follow the twists and turns of the conveyor path without using engineered curves;
5.Adjustable Height;
6.Heavy-duty square tubing legs offer longer service life and stability;
7.Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and locking nuts;
8.Castors with Brakes;
9.Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.
2.Line speed is adjustable from 0 to 30 meters per minute. Start/stop controls at both ends;
3.Self Tracking;
4.Cartons follow the twists and turns of the conveyor path without using engineered curves;
5.Adjustable Height;
6.Heavy-duty square tubing legs offer longer service life and stability;
7.Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and locking nuts;
8.Castors with Brakes;
9.Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.
Specification
Product size | standard width: 600mm/800mm |
Support | wall thickness of the steel frame: 1.5~3.0mm |
Roller Material | 50 diameter, 201 stainless steel, 9pcs/m |
Retractable Slice | bending structure, steel plate stamped part, large loading capacity, bolted connection |
Caster | universal caster with brake, stable conveying |

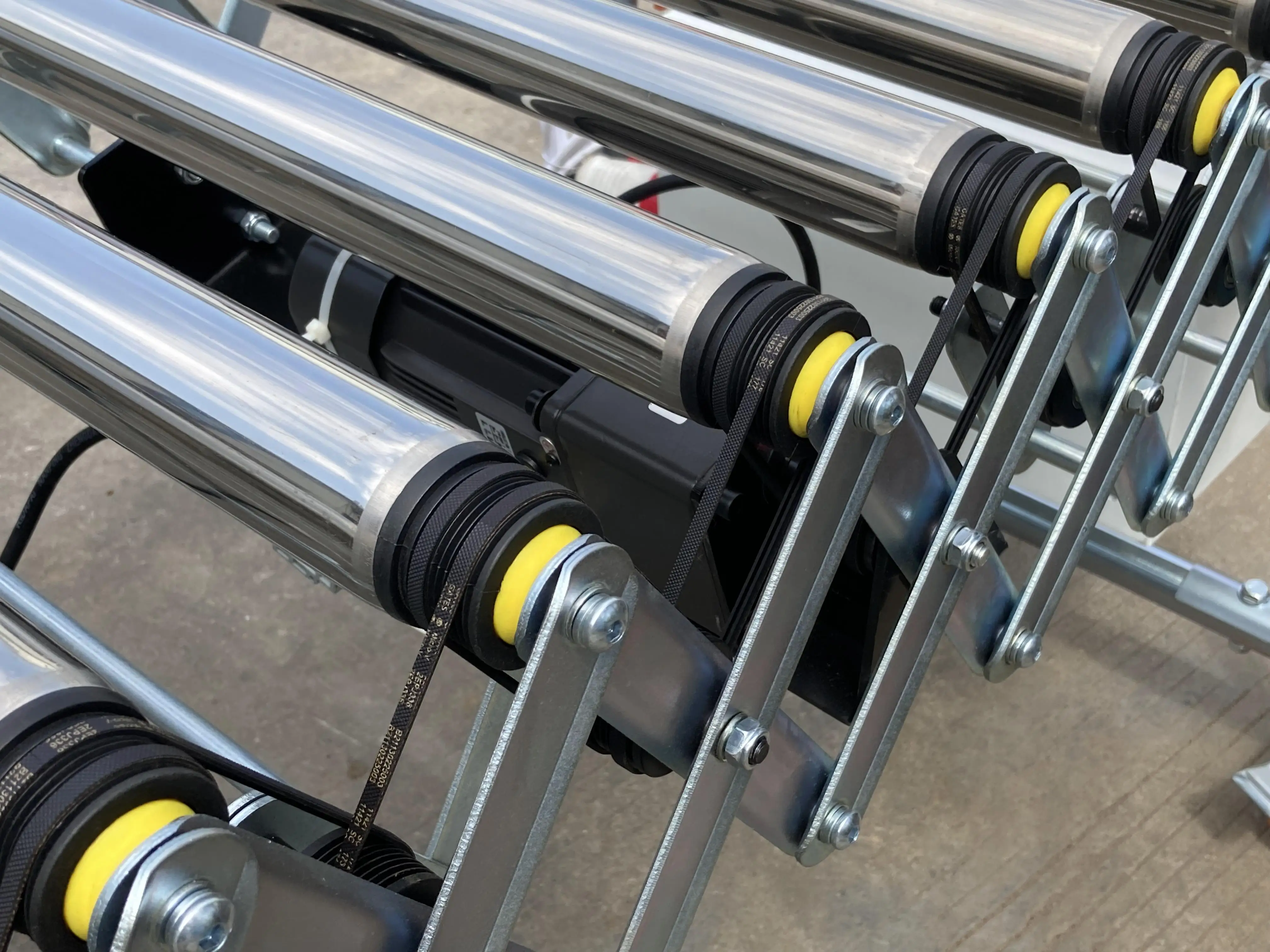

Driving Belt | standard brand: GATES V-ribbed belt |
Motor | standard brand: MAILI 120W, 220V, customizable |
Line Speed | 0~30m/min, one motor every 1.2m, all synchronized |
Working Length | unlimited |
Working Width | standard width: 600mm/800mm, customizable |
Working Height | (1) 57~86cm; (2) 75~115cm; (3) 95~160cm |
Why Choose Us
Xiamen SHENG ZHOU® is a premier designer and manufacturer of engineered packing machine, specializing in heat shrink packing solutions.
Shenzhou is your committed partner with the equipment, technology, resources, experience, and people to deliver the results you require. Our facility has been providing millions of packing machines,materials and products over the last 20 years with astonishing quality and stellar on-time delivery performance.
We have the capability to produce your most challenging designs. Whether you are looking for a competitive quote on an existing part or if you are launching a new product, our experience will help you design, refine, validate, prototype and launch your product safely, efficiently and confidently.
Not only can we provides packing equipments to u, but we can also provide you with value added services to whatever extent you need;And customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Our rigorous APQP and ISO Quality Standards ensure that you receive parts that meet your specifications 100% of the time - on-time and at a very competitive price.This is our promise to you.
Shenzhou is your committed partner with the equipment, technology, resources, experience, and people to deliver the results you require. Our facility has been providing millions of packing machines,materials and products over the last 20 years with astonishing quality and stellar on-time delivery performance.
We have the capability to produce your most challenging designs. Whether you are looking for a competitive quote on an existing part or if you are launching a new product, our experience will help you design, refine, validate, prototype and launch your product safely, efficiently and confidently.
Not only can we provides packing equipments to u, but we can also provide you with value added services to whatever extent you need;And customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Our rigorous APQP and ISO Quality Standards ensure that you receive parts that meet your specifications 100% of the time - on-time and at a very competitive price.This is our promise to you.
About Us
SHENG ZHOU® Steam Shrink Tunnel is the first of its kind, and has been available since 1998. Though it has been available for quite some time, we have continued to improve its design, and can honestly claim that we offer the best, most reliable Steam Shrink Tunnel on the market today.
The SHENG ZHOU® Steam Shrink Tunnel is currently being used in many of the world’s most notable manufacturing plants including several Fortune 500 companies.
SHENG ZHOU® high-performance Steam Shrink Tunnels are designed to meet the most challenging shrink applications. They are recognized in the industry for their flexibility and their capability of shrinking various decorative shrinkable sleeve label onto a wide range of container types, shapes and sizes.
This flexibility makes SHENG ZHOU® Steam Shrink Tunnel one of the best values in the industry. With ShenZhou Packing Machine Co.,Ltd., we can always recommend or specify the Steam Shrink Tunnel type best suited to your needs, your constraints and your budget.
The SHENG ZHOU® Steam Shrink Tunnel is currently being used in many of the world’s most notable manufacturing plants including several Fortune 500 companies.
SHENG ZHOU® high-performance Steam Shrink Tunnels are designed to meet the most challenging shrink applications. They are recognized in the industry for their flexibility and their capability of shrinking various decorative shrinkable sleeve label onto a wide range of container types, shapes and sizes.
This flexibility makes SHENG ZHOU® Steam Shrink Tunnel one of the best values in the industry. With ShenZhou Packing Machine Co.,Ltd., we can always recommend or specify the Steam Shrink Tunnel type best suited to your needs, your constraints and your budget.
Happy Customers
FAQ
1. What warranty do you offer? Do you have replacement parts?
We warrants all SHENG ZHOU™ packaging machines to be free from defects in material or workmanship for a period of one year (12months) from date of shipment.
We warrants all SHENG ZHOU™ packaging machines to be free from defects in material or workmanship for a period of one year (12months) from date of shipment.
We have replacement parts for every machine we offer. Feel free to contact us and we will ship the required parts within 24 business hours. All SHENG ZHOU™ machines come with a 12 months manufacturer warranty unless otherwise stated.
In this case the return costs of replacement parts are shared, i.e. you pay for the item to be shipped back to us and we pay for it to be shipped back to you. Beyond this 12-month period, repair and shipment costs are paid by the customer.
2. What information do I need to provide for a quote?
If a quick, high-level budgetary quote is all you need, we are happy to provide you with the base machine rate. However, the more information you provide us about your particular application, the more accurately we can quote you. It also enables us to identify potential challenges and discuss how we can overcome them.
3. What type of payments do you accept?
We accept Credit Card, Debit Card, Western Union, E-checking, Wire Transfer and Letter of Credit. Contact us for more options if your payment method is not listed.
4. How do you deliver my machine to my place?
We will arrange international shipment and pay shipping freight at our expense, if you place a CIF or CFR order. Bill of Lading in original hard copy will be couriered to your office together with Commercial Invoice & Packing List, within 7 working days from vessel sailing date or flight departure date. What you need to do is to appoint a customs broker for importation declaration and inland transportation to your plant.
Our factory locates in Xiamen city which is main seaport of China. It takes only 30 minutes’ drive from our factory to Xiamen Port from where we ship SHENG ZHOU™ packaging machines on weekly basis to any main seaports worldwide.
Through Xiamen International Airport (XMN), in 45 minutes’ drive, we deliver some small size & light weight machines or consumable packaging materials by air freight in case of urgent demand.
5. I am not quite sure which machine is right for my project and packaging method.
No worries! Tell us more about your application and we will help you choose the right model and options. The more detail
information on products and desired package method you give, the better we understand your need and the faster we offer a solution.
Send us your samples, e.g. bottles & sleeve label in case of bottle sleeve wrapping application, and we will test a Steam Shrink Tunnel with the materials we receive. Videos and photos will be sent back immediately by e-mail so that you know exactly how our machine operates and how good shrink quality is, before making final decision.
On your request, we are more than happy to send back physical samples for your evaluation by international courier after the testing.We will refund your courier expense when you place the order.
6. Why do you need samples for a firm quote? What if I don't have any?
Samples allow us to help you avoid unforeseen challenges, determine the need for special options or recommend a different machine model better suited for your application. In nearly 65% of all projects, sample reviews prevent costly mistakes, inferior performance and extended lead times.
In addition, before delivery, we will test your machine again with your samples in order to verify and assure the machine built to 100% satisfaction.Although we would like to review samples testing before we provide a firm quote, we understand that this is not always possible. In that case, we will provide a quote based on the information and drawings you provided.
2. What information do I need to provide for a quote?
If a quick, high-level budgetary quote is all you need, we are happy to provide you with the base machine rate. However, the more information you provide us about your particular application, the more accurately we can quote you. It also enables us to identify potential challenges and discuss how we can overcome them.
3. What type of payments do you accept?
We accept Credit Card, Debit Card, Western Union, E-checking, Wire Transfer and Letter of Credit. Contact us for more options if your payment method is not listed.
4. How do you deliver my machine to my place?
We will arrange international shipment and pay shipping freight at our expense, if you place a CIF or CFR order. Bill of Lading in original hard copy will be couriered to your office together with Commercial Invoice & Packing List, within 7 working days from vessel sailing date or flight departure date. What you need to do is to appoint a customs broker for importation declaration and inland transportation to your plant.
Our factory locates in Xiamen city which is main seaport of China. It takes only 30 minutes’ drive from our factory to Xiamen Port from where we ship SHENG ZHOU™ packaging machines on weekly basis to any main seaports worldwide.
Through Xiamen International Airport (XMN), in 45 minutes’ drive, we deliver some small size & light weight machines or consumable packaging materials by air freight in case of urgent demand.
5. I am not quite sure which machine is right for my project and packaging method.
No worries! Tell us more about your application and we will help you choose the right model and options. The more detail
information on products and desired package method you give, the better we understand your need and the faster we offer a solution.
Send us your samples, e.g. bottles & sleeve label in case of bottle sleeve wrapping application, and we will test a Steam Shrink Tunnel with the materials we receive. Videos and photos will be sent back immediately by e-mail so that you know exactly how our machine operates and how good shrink quality is, before making final decision.
On your request, we are more than happy to send back physical samples for your evaluation by international courier after the testing.We will refund your courier expense when you place the order.
6. Why do you need samples for a firm quote? What if I don't have any?
Samples allow us to help you avoid unforeseen challenges, determine the need for special options or recommend a different machine model better suited for your application. In nearly 65% of all projects, sample reviews prevent costly mistakes, inferior performance and extended lead times.
In addition, before delivery, we will test your machine again with your samples in order to verify and assure the machine built to 100% satisfaction.Although we would like to review samples testing before we provide a firm quote, we understand that this is not always possible. In that case, we will provide a quote based on the information and drawings you provided.
