HITOSINO OEM HIKVISON 8 Channel H.265 4K NVR 5MP Motion Detection Full Color IP Security Camera System
- Category: >>>
- Supplier: Shenzhen Hailan Shike Electronics Co. Ltd.
Share on (1600467932383):
Product Overview
Description
VR
OEM All Hikvsion, Dahua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!
Main Functions

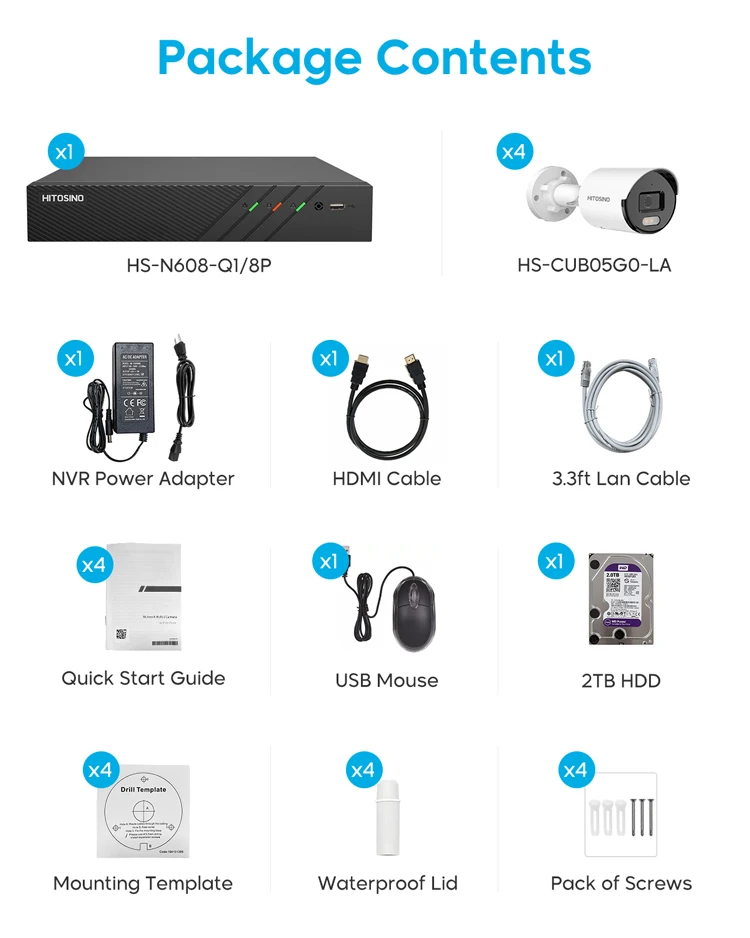

Accessories
Specifications
Camera | OEM DS-2CD1057G0-LUF | |
Image Sensor | 1/3" Progressive Scan CMOS | |
Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light | |
Shutter Speed | 1/3 s to 1/100, 000 s | |
Slow Shutter | Yes | |
Wide Dynamic Range | 120 dB | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
Lens | ||
Focal Length & FOV | 2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9° 4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1° | |
Lens Mount | M12 | |
Focus | Fixed | |
Aperture | F1.0 | |
DORI | ||
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m 4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m | ||
Illuminator | ||
Smart Supplement Light | Yes | |
White Light Range | Up to 30 m | |
Video | ||
Max. Resolution | 2560 × 1440 | |
Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) | |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG | |
Video Bit Rate | 32 Kbps to 8 Mbps | |
H.264 Type | Baseline Profile/Main Profile/High Profile | |
H.265 Type | Main Profile | |
H.264+ | Main stream supports | |
H.265+ | Main stream supports | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Audio | ||
Audio Compression | -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
Audio Bit Rate | -UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) | |
Audio Sampling Rate | -UF: 8 kHz/16 kHz | |
Environment Noise Filtering | -UF: Yes | |
Network | ||
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS | ||
Simultaneous Live View | Up to 6 channels | |
API | Open Network Video Interface, ISAPI | |
User/Host | Up to 32 users. 3 levels: administrator, operator and user | |
Client | iVMS-4200, Hik-Connect | |
Plug-in required live view: IE 10+ | ||
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | ||
Local service: Chrome 57.0+, Firefox 52.0+ | ||
Image | ||
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. | ||
Day/Night Switch | Day, Night, Auto, Schedule | |
Image Enhancement | BLC, 3D DNR | |

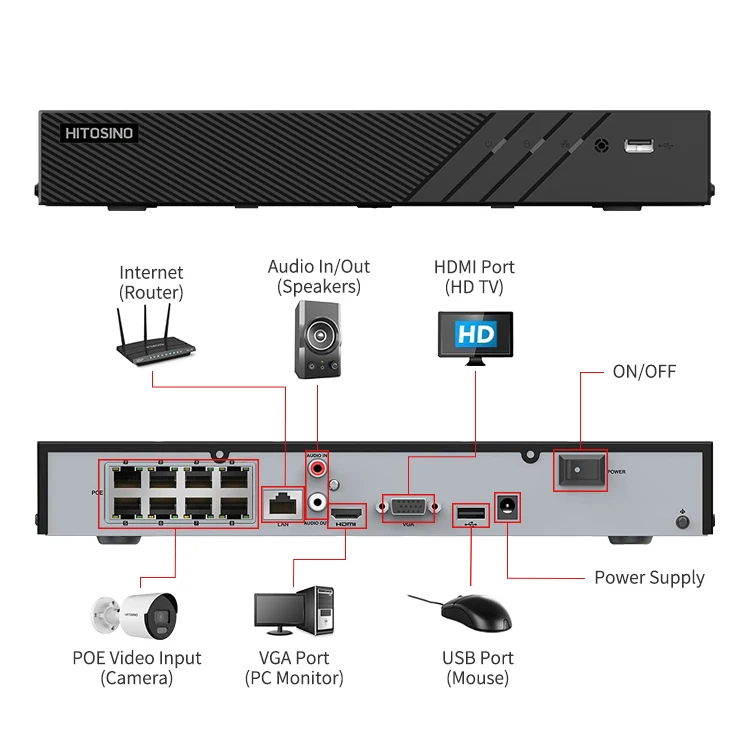

NVR | OEM DS-7608NI-Q1/8P | |
Video and Audio | ||
8-ch Up to 8 MP resolution | ||
Incoming bandwidth | 80 Mbps | |
Outgoing bandwidth | 80 Mbps | |
HD MI output | 1-ch,4K (4096x2160)/30Hz, 4K (3840x 2160)/30Hz,2K (2560x 1440)/60Hz,1920x 1080/60Hz, 1600x1200/60Hz, 1280x 1024/60Hz, 1280x720/60Hz | |
VGA output | 1-ch,1920× 1080/60Hz,1280× 1024/60Hz, 1280×720/60Hz | |
Video output mode | HD MI/VGA simultaneous output | |
CVBS output | N/A | |
Audio output | 1-ch,RCA (Linear,1 KΩ) | |
Two-way audio input | 1-ch,RCA (2.0 Vp-p,1 KΩ,usingthe audioinput) | |
Decoding | ||
Decoding format | H.265+/H.265/H.264+/H.264 | |
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF | |
Synchronous playback | 8-ch | |
Capability | 1-ch@8MP (30fps)/5-ch@1080p(30fps) | |
Stream type | Video,Video & Audio | |
Audio compression | G.711ulaw/G.711alaw/G.722/G.726 | |
Network | ||
Remote connection | 64 | |
Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,ISUP, UPnP™, HTTP, HTTPS | |
Network interface | 1,RJ-45 10/100Mbps self-adaptiveEthernetinterface | |
PoE | ||
Interface | 8,RJ-45 10/100Mbps self-adaptiveEthernetinterface | |
Power | ≤ 75W | |
Supported standard | IEEE 802.3af/at | |
Auxiliary Interface | ||
SATA | 1 SATA interface | |
Capacity | Up to 8 TB capacityforeachdisk | |
USB interface | Frontpanel:1× USB 2.0; Rearpanel:1 ×USB 2.0 | |
General | ||
Powersupply | 48 VDC, 1.88A | |
Consumption(without HDD and PoE off) | ≤ 10W | |
Working temperature | -10 °C to 55°C (14°F to 131 °F) | |
Working humidity | 10%to 90% | |
Dimension (W ×D ×H) | 320× 240× 48mm (12.4"× 9.4"×1.9") | |
Weight (without HDD) | ≤ 1kg (2.2 lb) | |
Certification | ||
FCC | Part15 SubpartB, ANSI C63.4-2014 | |
CE | EN 55032:2015,EN 61000-3-2,EN 61000-3-3,EN 50130-4,EN 55035: 2017 | |
