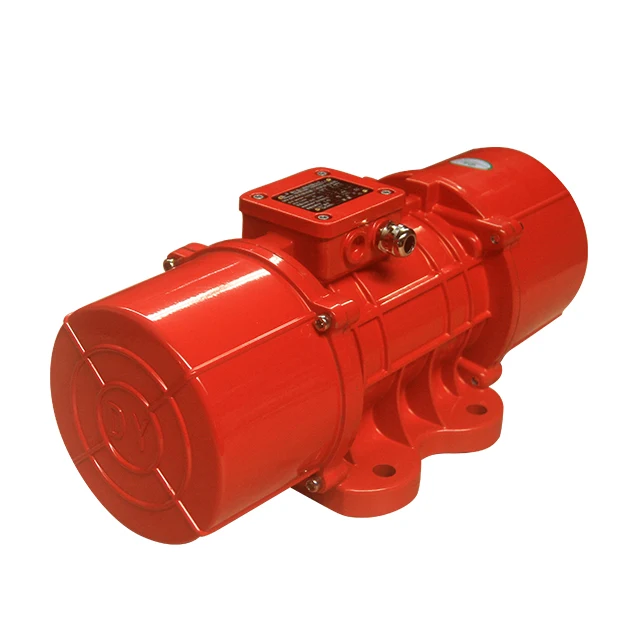

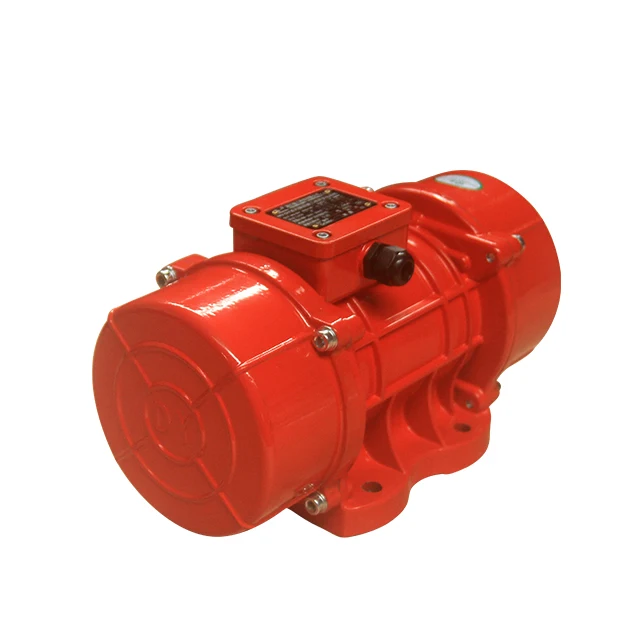

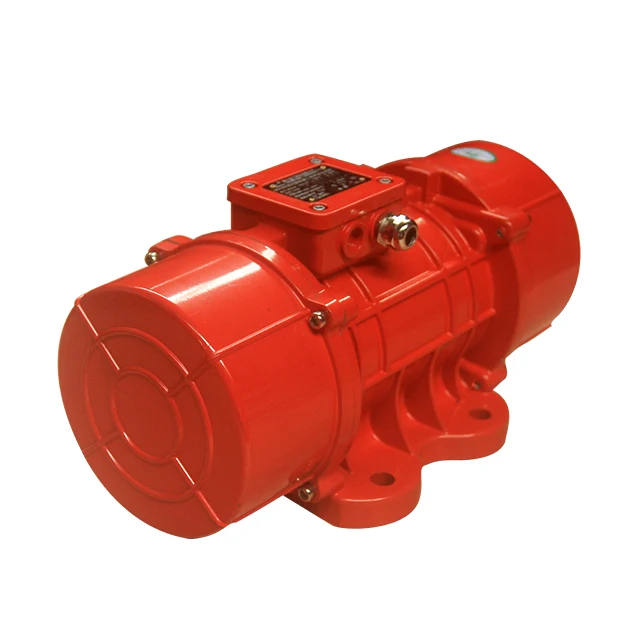

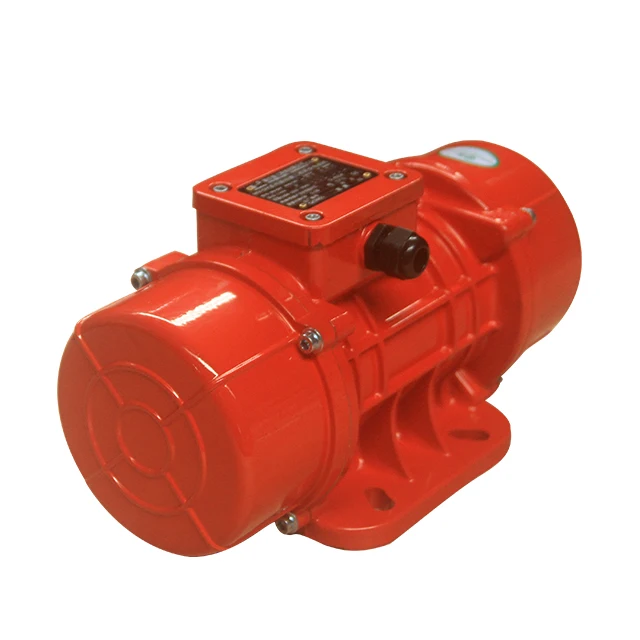

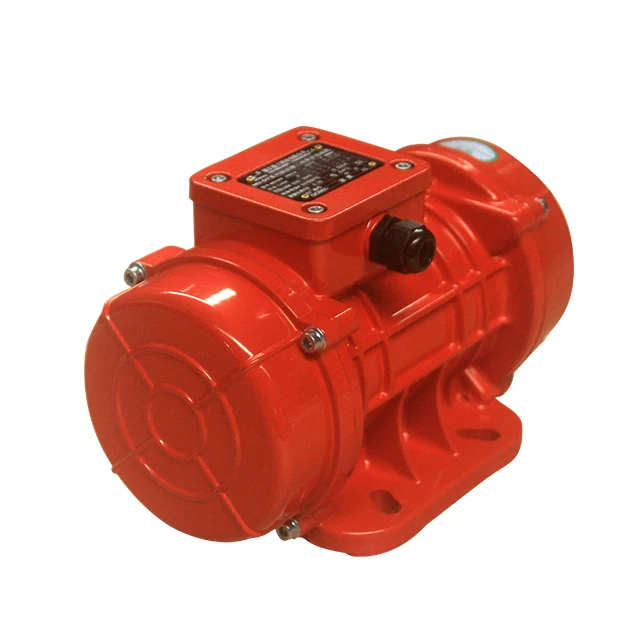

WOMA Hot sell Electric Vibratory Mechanical External MVE/WME Vibrator Motor For Sieving machine
- Category: >>>
- Supplier: Zhejiang Woma Machinery Technology Co. Ltd.
Share on (1600467955929):
Product Overview
Description
WOMA MVE/WME 0.04kw 0.7kN Industrial Vibrating Electric Motor for Vibration Machine
Model(3000RPM) | Force (kn) | Power (kw) | Weight (kg) | Installation size (mm) |
WME60/3 | 0.7 | 0.04 | 4.7 | 62-74*106 |
WME100/3 | 1 | 0.04 | 4.9 | 62-74*106 |
WME200/3 | 2 | 0.09 | 6.6 | 62-74*106 |
WME300/3 | 3 | 0.16 | 10.2 | 90*125 |
WME400/3 | 4 | 0.2 | 11.0 | 90*125 |
WME500/3 | 5 | 0.37 | 16.0 | 105*140 |
WME700/3 | 7 | 0.45 | 16.8 | 105*140 |
WME800/3 | 8 | 0.55 | 20.1 | 120*170 |
WME1200/3 | 12 | 0.75 | 21.8 | 120*170 |
WME1300/3 | 13 | 1.1 | 23.9 | 120*170 |
WME1600/3 | 16 | 1.25 | 54.0 | 140*190 |
WME1800/3 | 18 | 1.25 | 54.9 | 140*190 |
WME2000/3 | 20 | 2 | 55.8 | 140*190 |
WME2200/3 | 22 | 2 | 56.4 | 140*190 |
WME2300/3 | 23 | 2 | 57.0 | 140*190 |
WME3200/3 | 32 | 2.2 | 100.0 | 155*255 |
WME4000/3 | 40 | 2.3 | 105.2 | 155*255 |
WME5000/3 | 50 | 3.5 | 110.0 | 155*255 |
WME6500/3 | 65 | 4.2 | 211.0 | 200*320 |
WME9000/3 | 90 | 7.2 | 215.5 | 200*320 |
WME12000/3 | 120 | 10 | 267.7 | 125-125*380 |
WME15000/3 | 150 | 15 | 325.0 | 125-125*380 |
Model(1500RPM) | Force (kn) | Power (kw) | Weight (kg) | Installation size (mm) |
WME40/15 | 0.3 | 0.03 | 4.8 | 62-74*106 |
WME90/15 | 0.9 | 0.04 | 7.1 | 62-74*106 |
WME200/15 | 2 | 0.06 | 12.1 | 90*125 |
WME250/15 | 2.5 | 0.07 | 13.0 | 90*125 |
WME300/15 | 3 | 0.08 | 13.7 | 90*125 |
WME400/15 | 4 | 0.15 | 19.3 | 105*140 |
WME500/15 | 5 | 0.25 | 21.0 | 105*140 |
WME700/15 | 7 | 0.37 | 27.6 | 120*170 |
WME800/15 | 8 | 0.4 | 28.5 | 120*170 |
WME1100/15 | 11 | 0.4 | 35.2 | 120*170 |
WME1400/15 | 14 | 0.45 | 63.2 | 140*190 |
WME1700/15 | 17 | 0.75 | 67.0 | 140*190 |
WME2400/15 | 24 | 1 | 75.7 | 140*190 |
WME2700/15 | 25 | 1.2 | 86.0 | 155*255 |
WME3000/15 | 30 | 1.5 | 94.0 | 155*255 |
WME3800/15 | 38 | 1.72 | 125.0 | 155*255 |
WME4300/15 | 43 | 1.94 | 130.0 | 155*255 |
WME5500/15 | 55 | 2.2 | 165.8 | 180*280 |
WME7200/15 | 72 | 3 | 231.0 | 200*320 |
WME9000/15 | 90 | 5.8 | 246.0 | 200*320 |
WME10000/15 | 100 | 6.3 | 329.0 | 125-125*380 |
Model(1000RPM) | Force (kn) | Power (kw) | Weight (kg) | Installation size (mm) |
WME50/1 | 0.5 | 0.03 | 10.0 | 90*125 |
WME100/1 | 1 | 0.04 | 12.7 | 90*125 |
WME200/1 | 1.8 | 0.05 | 19.4 | 105*140 |
WME300/1 | 3 | 0.16 | 27.3 | 105*140 |
WME400/1 | 4 | 0.25 | 30.8 | 120*170 |
WME500/1 | 5 | 0.37 | 34.6 | 120*170 |
WME800/1 | 7.8 | 0.45 | 64.4 | 140*190 |
WME1100/1 | 11 | 0.55 | 83.1 | 140*190 |
WME1400/1 | 14 | 0.7 | 85.6 | 140*190 |
WME1500/1 | 15 | 0.7 | 87.2 | 140*190 |
WME1600/1 | 16 | 0.75 | 88.4 | 140*190 |
WME1620/1 | 16 | 0.75 | 96.0 | 155*255 |
WME2100/1 | 21 | 1.1 | 108.0 | 155*255 |
WME2600/1 | 26 | 1.5 | 148.0 | 155*255 |
WME3000/1 | 30 | 1.7 | 155.0 | 155*255 |
WME3800/1 | 38 | 2 | 188.0 | 180*280 |
WME4700/1 | 47 | 2.35 | 206.2 | 180*280 |
WME5200/1 | 52 | 2.6 | 260.0 | 200*320 |
WME6500/1 | 65 | 2.9 | 280.0 | 200*320 |
WME8000/1 | 80 | 4.5 | 300.0 | 200*320 |
WME9000/1 | 90 | 5 | 311.0 | 200*320 |
WME10000/1 | 100 | 6 | 401.5 | 125-125*380 |
WME13000/1 | 130 | 7 | 438.0 | 125-125*380 |

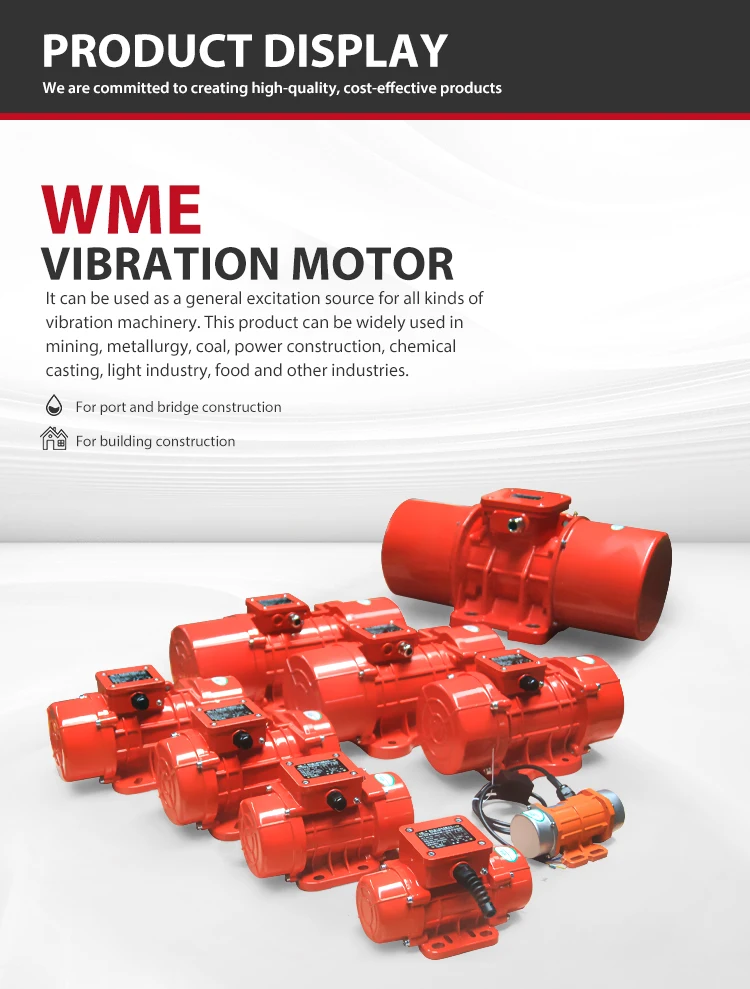

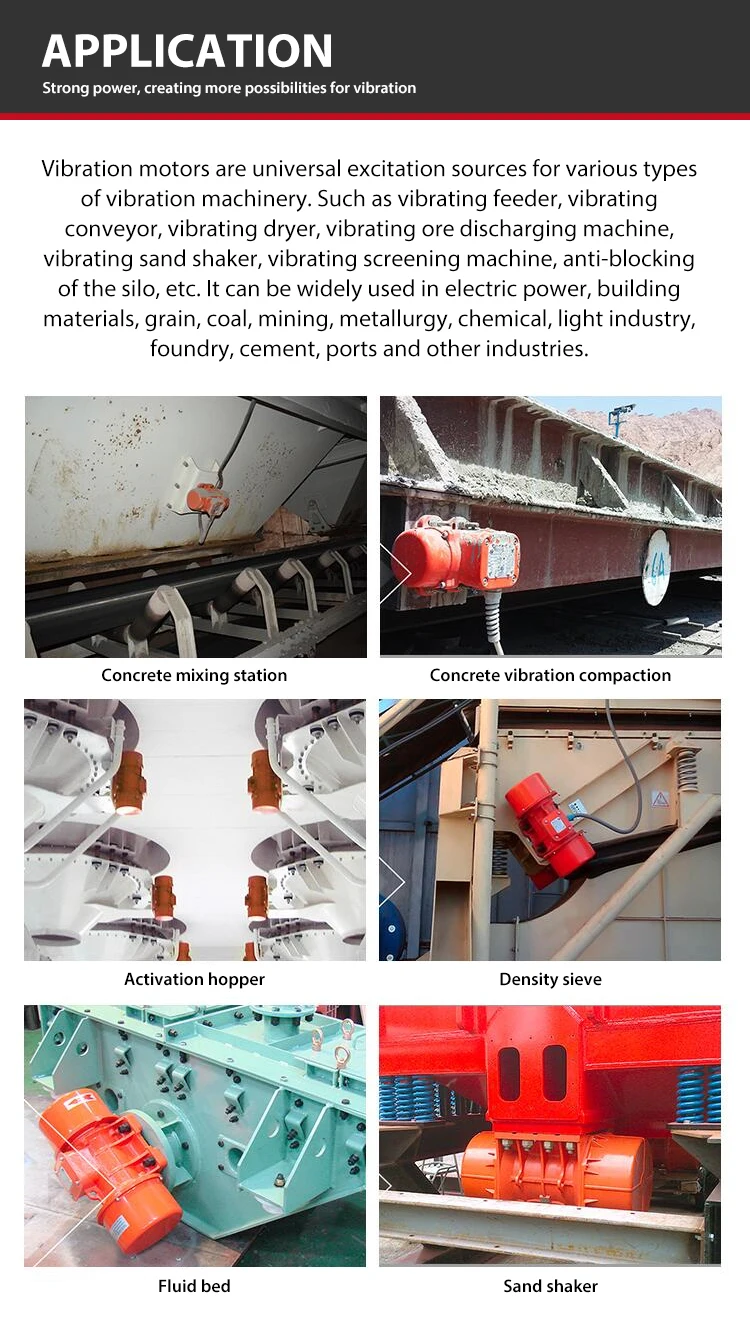

Vibration motors are universal excitation sources for various types of vibration machinery. Such as vibrating feeder, vibrating conveyor, vibrating dryer, vibrating ore discharging machine, vibrating sand shaker, vibrating screening machine, anti-blocking of the silo, etc. It can be widely used in electric power, building materials, grain, coal, mining, metallurgy, chemical, light industry, foundry, cement, ports and other industries.

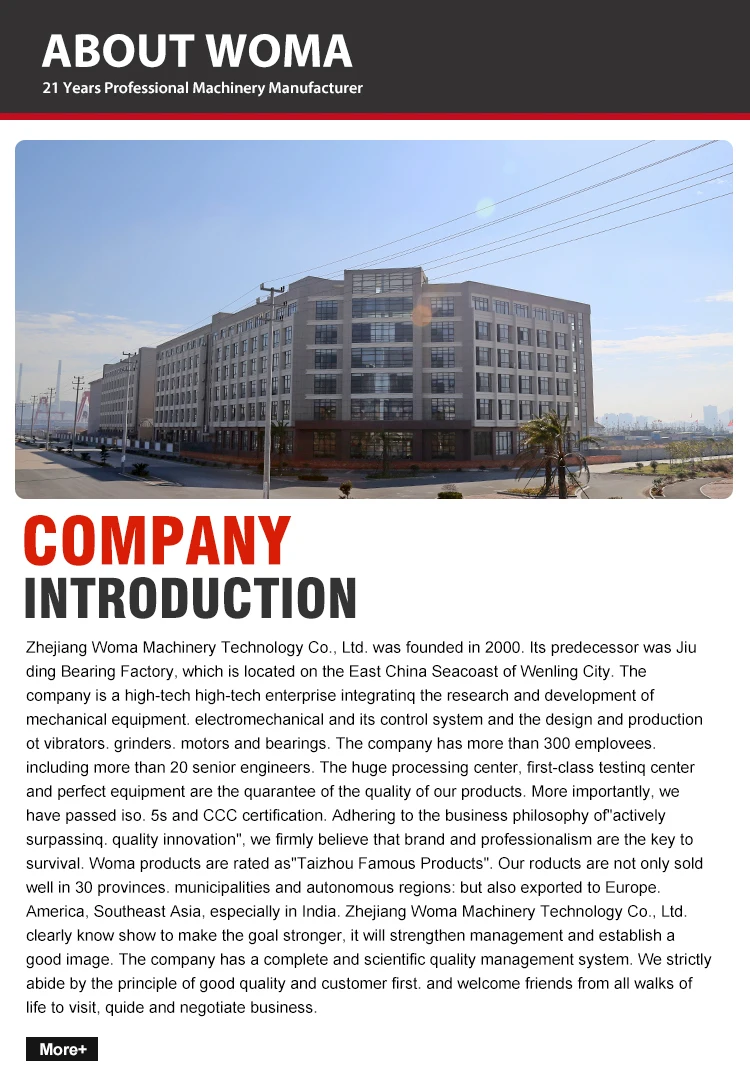

Zhejiang Woma Machinery Technology Co., Ltd. was founded in 2000. Its predecessor was Jiu ding Bearing Factory, which is located on the East China Seacoast of Wenling City. The company is a high-tech high-tech enterprise integrating the research and development of mechanical equipment, electromechanical and its control system and the design and production of vibrators. grinders. motors and bearings. The company has more than 300 employees. including more than 20 senior engineers. The huge processing center, first-class testing center and perfect equipment are the guarantee of the quality of our products. More importantly, we have passed ISO. 5S and CCC certification. Adhering to the business philosophy of"actively surpassing. quality innovation", we firmly believe that brand and professionalism are the key to survival. Woma products are rated as"Taizhou Famous Products". Our products are not only sold well in 30 provinces. municipalities and autonomous regions: but also exported to Europe. America, Southeast Asia, especially in India. Zhejiang Woma Machinery Technology Co., Ltd. clearly know show to make the goal stronger, it will strengthen management and establish a good image. The company has a complete and scientific quality management system. We strictly abide by the principle of good quality and customer first. and welcome friends from all walks of life to visit, guide and negotiate business.
