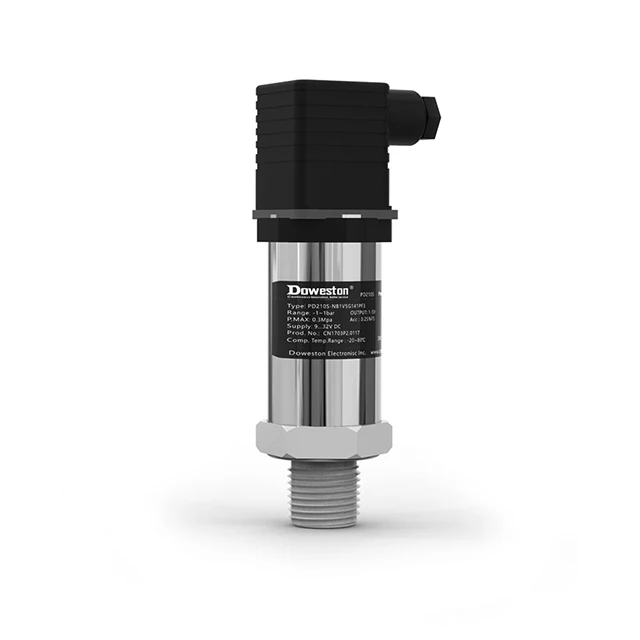

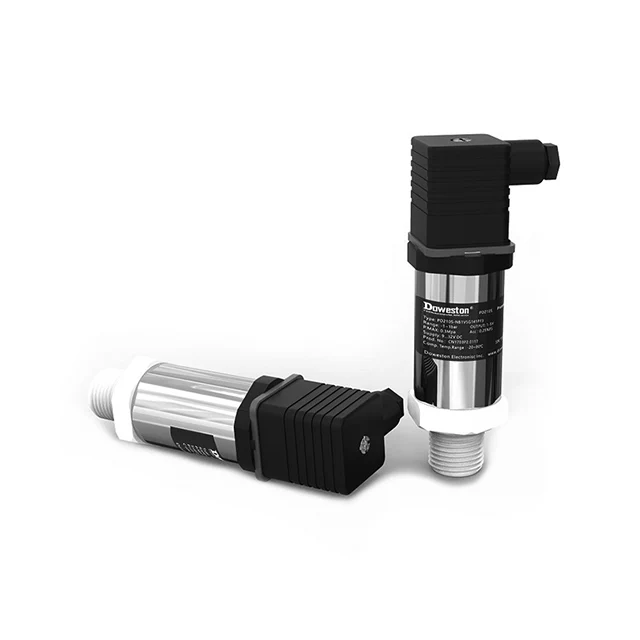

High Quality Stainless Steel External Corrosion Resistant pressure transmitter
- Category: >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600467978089):
Product Overview
Description
Recommend Products
Products Description

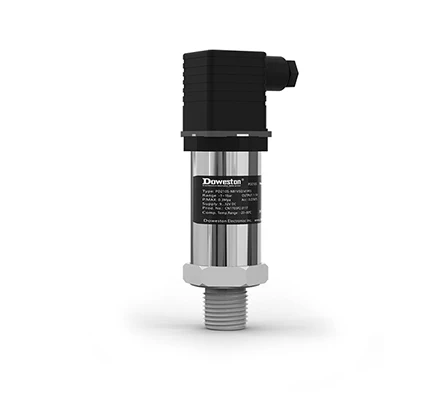

PD-210F series
Corrosion-resistant pressure transmitter
Corrosion-resistant pressure transmitter
It is the first choice for pressure measurement of conventional strong corrosive gas, liquid and steam
The PD-210F anticorrosive pressure transmitter combines the latest diffused silicon sensing elements, with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear standard current or voltage signals, with corrosion resistance, large range, and longevity Long, suitable for fluids with a certain degree of strong micro-corrosion, gas media, diversified information output, thread, flange and other connection methods to meet the needs of different working conditions.
The PD-210F anticorrosive pressure transmitter combines the latest diffused silicon sensing elements, with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear standard current or voltage signals, with corrosion resistance, large range, and longevity Long, suitable for fluids with a certain degree of strong micro-corrosion, gas media, diversified information output, thread, flange and other connection methods to meet the needs of different working conditions.
Performance characteristics
The PD-210F anticorrosive pressure transmitter can convert the physical pressure parameters of gas, liquid, etc., felt by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to provide indicating alarms, recorders, and regulators Wait for the secondary instrument to measure, indicate and adjust the process. It is widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil well, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -1-70MPa
■ Comprehensive accuracy: ±0.1%FS
■ Diaphragm material: stainless steel 316L(Covered with PP, PTFE)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc.
■ Process connection: thread, flange
■ Protective connection: Horsman connector, direct wiring, waterproof gland
■ Seal: Fluorine rubber
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -1-70MPa
■ Comprehensive accuracy: ±0.1%FS
■ Diaphragm material: stainless steel 316L(Covered with PP, PTFE)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc.
■ Process connection: thread, flange
■ Protective connection: Horsman connector, direct wiring, waterproof gland
■ Seal: Fluorine rubber
Technical parameter
Applicable medium | Dry gas, gas, liquid, strong slightly corrosive liquid, viscous liquid |
Measuring range | -1-70MPa |
Comprehensive accuracy | ±0.25%FS |
Repeat accuracy | ≤± 0.1%FS/year |
Zero temperature drift | ±0.02FS/℃ |
Input voltage | 12-36V DC |
Output | 4-20mA, 0-5V, 0-10V, etc. |
Operating temperature | -40-125℃ |
Overload pressure | 150%FS |
Burst pressure | 200%FS |
Ambient temperature | -40-80℃ |
Response time | ＜1ms (10...90%FS) |
Vibration resistance | ±20g 20-5000Hz |
Service life | ＞1*10^8 pressure cycles |
Liquid contact material | Stainless steel 316L (covered with PP, PTFE) |
shell material | Low copper aluminum alloy, stainless steel |
Protection level | Electrical part IP65 (optional IP68) |
Electrical connections | Terminals, Horsman connectors, |
Electrical protection | Overload/reverse phase protection |
seal | Fluorine rubber |
Installation method | Thread, flange |
weight | About 0.4kg |
Application areas:
■PD-210F anti-corrosion pressure transmitter is widely used in water plants, oil refineries, sewage treatment plants, construction, light industry, machinery and other industrial fields to realize the measurement of liquid, gas, and vapor pressure.
