DC5V 24V 36CH Pir Motion Sensor Smart Stair Light Controller Support 800pixels Digital Strip Automated Control Switch
- Category: >>>
- Supplier: Shenzhen Solar Sun Electronic Technology Co. Ltd.
Share on (1600467988336):
Product Overview
Description
32 Channel LED Controller with Motion Sensor for Light Strip Stair Dimming Light Indoor Motion Night light DC12V & 24V Flexible LED Strip for The Stair
Product description:
Product name: 32-channel stair sensor
Voltage: DC12V/DC24V
Power: ≤350w
Channel: 32
Sensors: 2
Operation settings:
-1-Long press the setting key for 5 seconds to enter the step number setting. Short press once to set one step of LED lighting. The controller has a corresponding blue indicator light, and the blue light will light up for each step.
-2-Short press the setting button once to adjust the speed of the LED. The speed has four gears for adjustment. The more red lights turn on, the faster the LED lights up.
-3-After the above two steps are completed, you need to press and hold the setting button for 5 seconds to automatically save the corresponding setting.
NOTE:

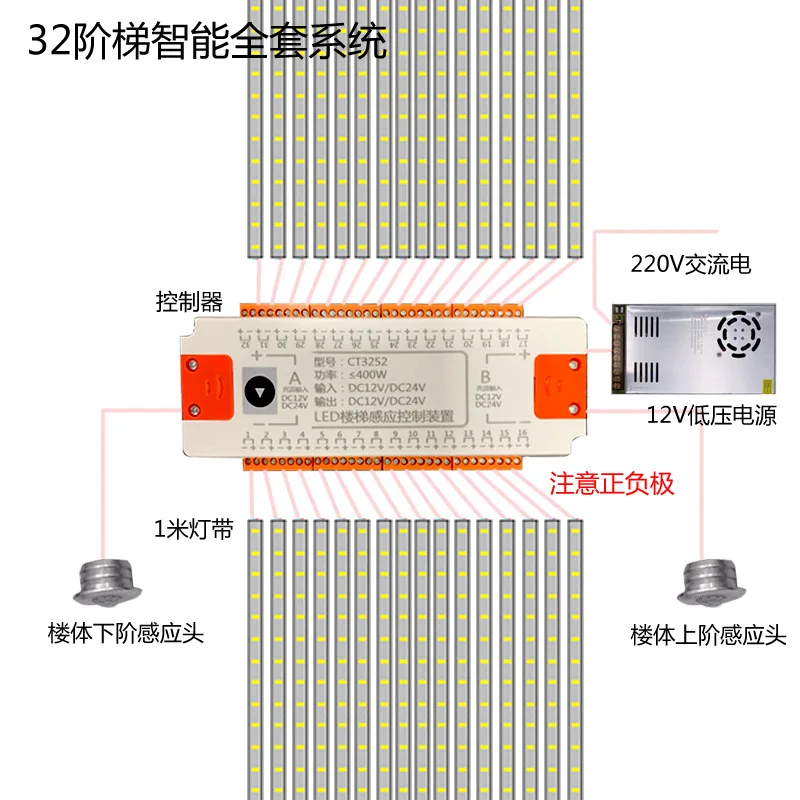

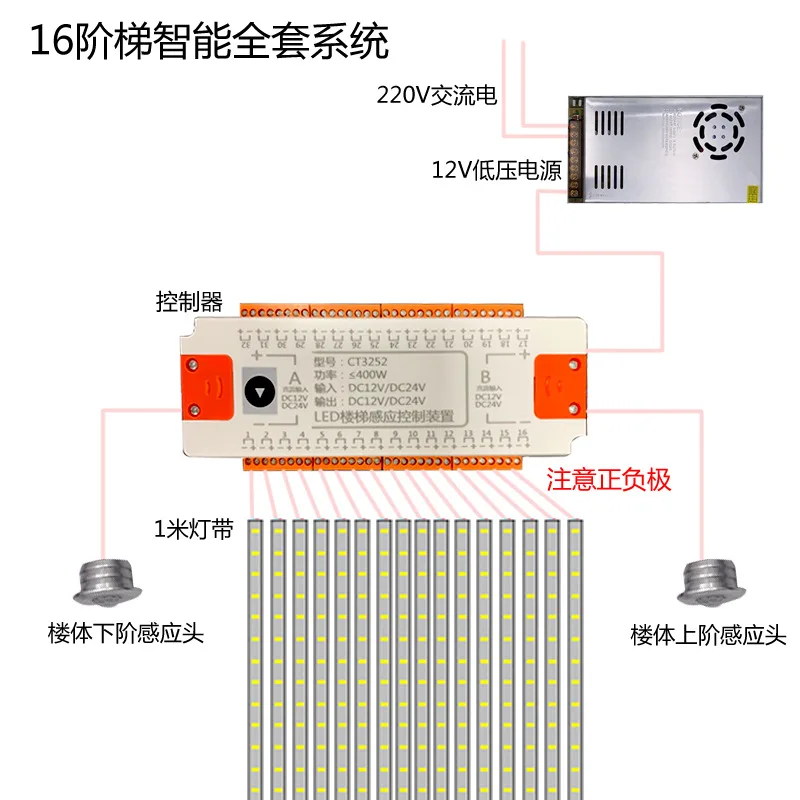

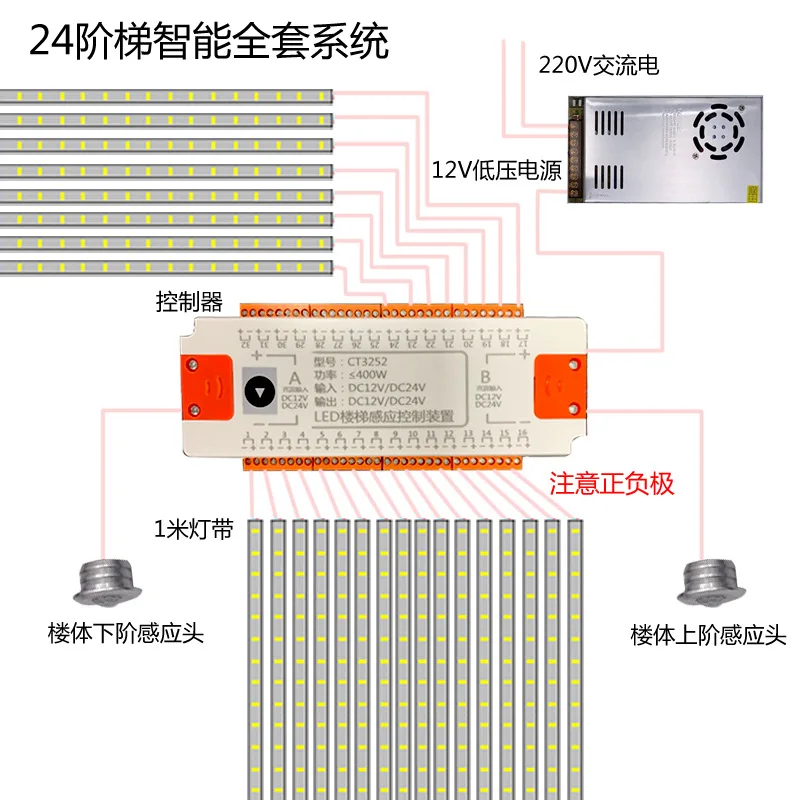

1-A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

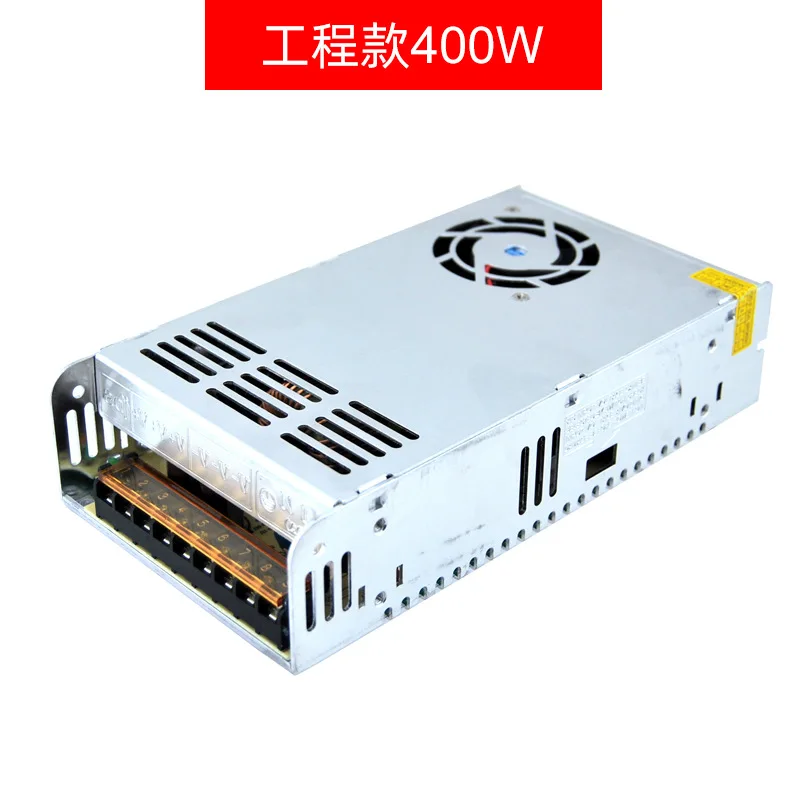

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
Important note: The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.
Product package:

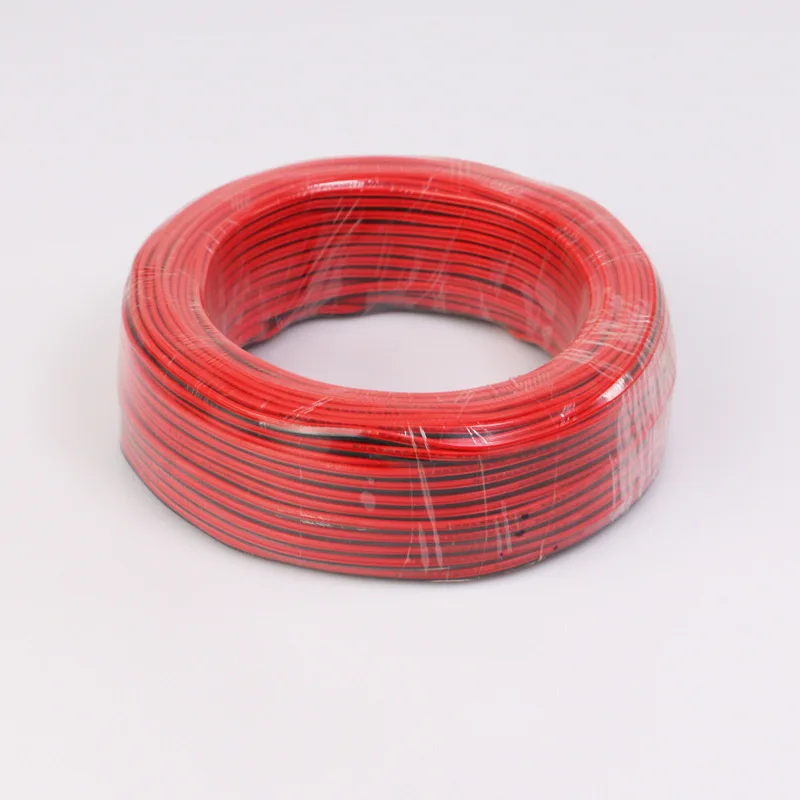

Only LED controller: 1pcs LED Controller + 2pcs sensor + 10Meters extension cord

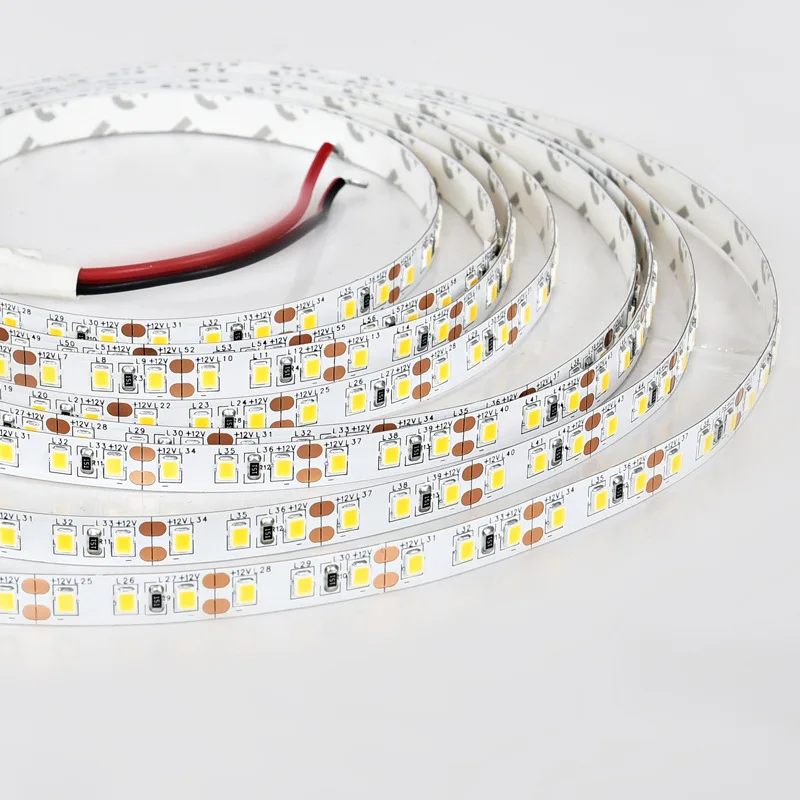

Only light strip: 1 * 5m warm white/cool white light strip (according to your choice)
24V cool white light belt: 1 * 5m 24V cool white light strip.
Only light strip: 1 * 5m warm white/cool white light strip (according to your choice)
24V cool white light belt: 1 * 5m 24V cool white light strip.
