NEMA connector for street light nema 5pin smart lamp socket
- Category: >>>
- Supplier: Shanghai Shuncom AIOT Co. Ltd.
Share on (1600468025263):
Product Overview
Description
Product Description

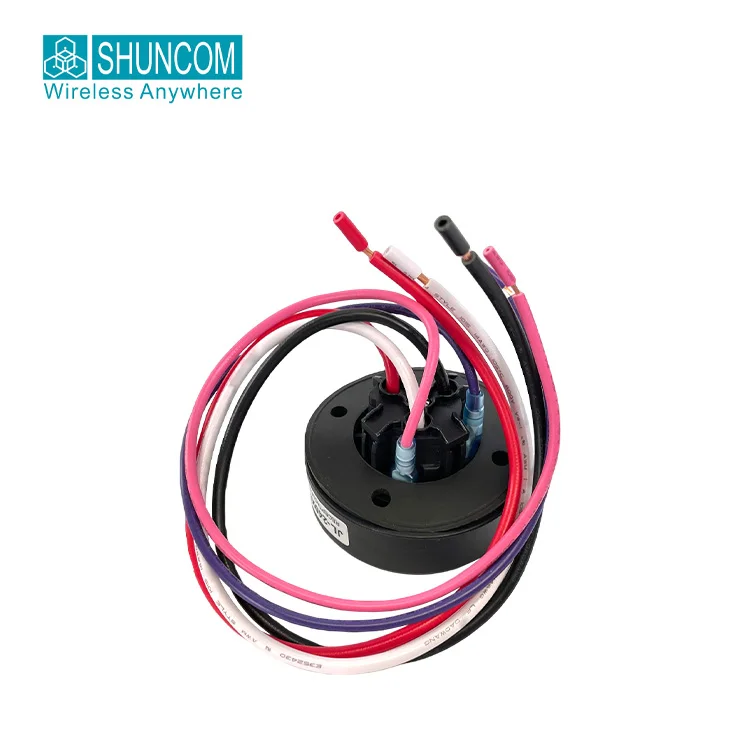

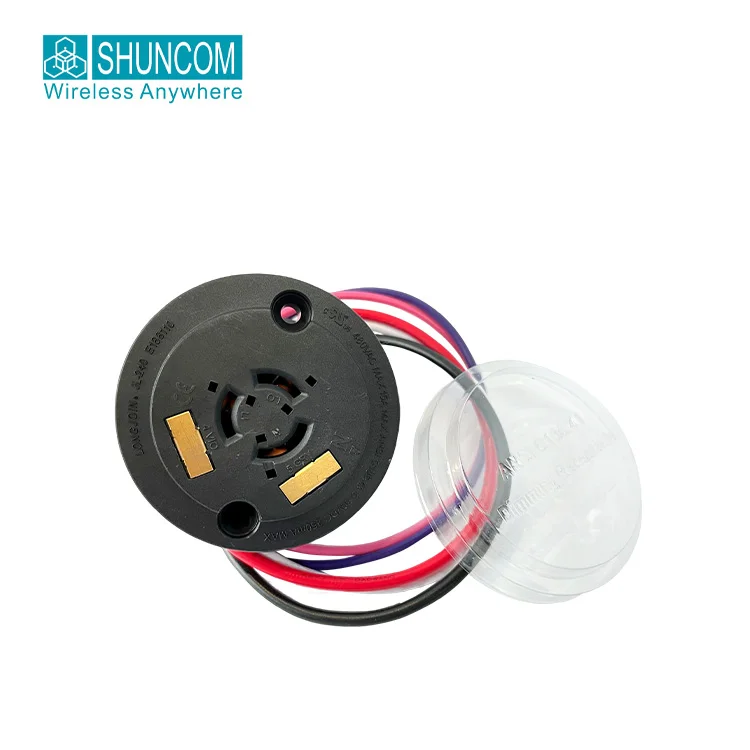

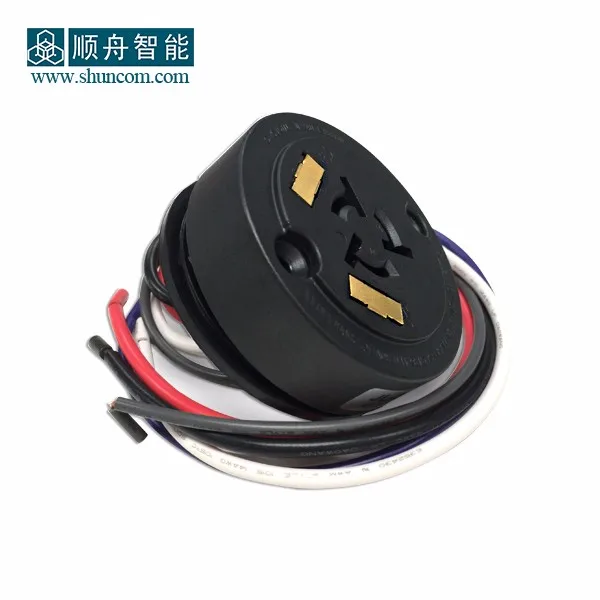

SZ10-N5 5pin NEMA receptacle
Conforms to ANSI C136.41;
2 gold-plated low voltage pads for connection with light controllers, 5pin wiring at rear back for signal connection;
360° Rotation limiting feature.
360° Rotation limiting feature.
Specification
Parameter | Value |
Applicable Voltage Range | AC 0-480V |
Power Loading | 15A max. |
Rated Frequency | 50/60Hz |
Signal Port Operating Load | DC 30V, 0.25A max. |
Dielectric Strength | AC 3000V, 1s |
Maximum Workload | 1000W 1800VA |

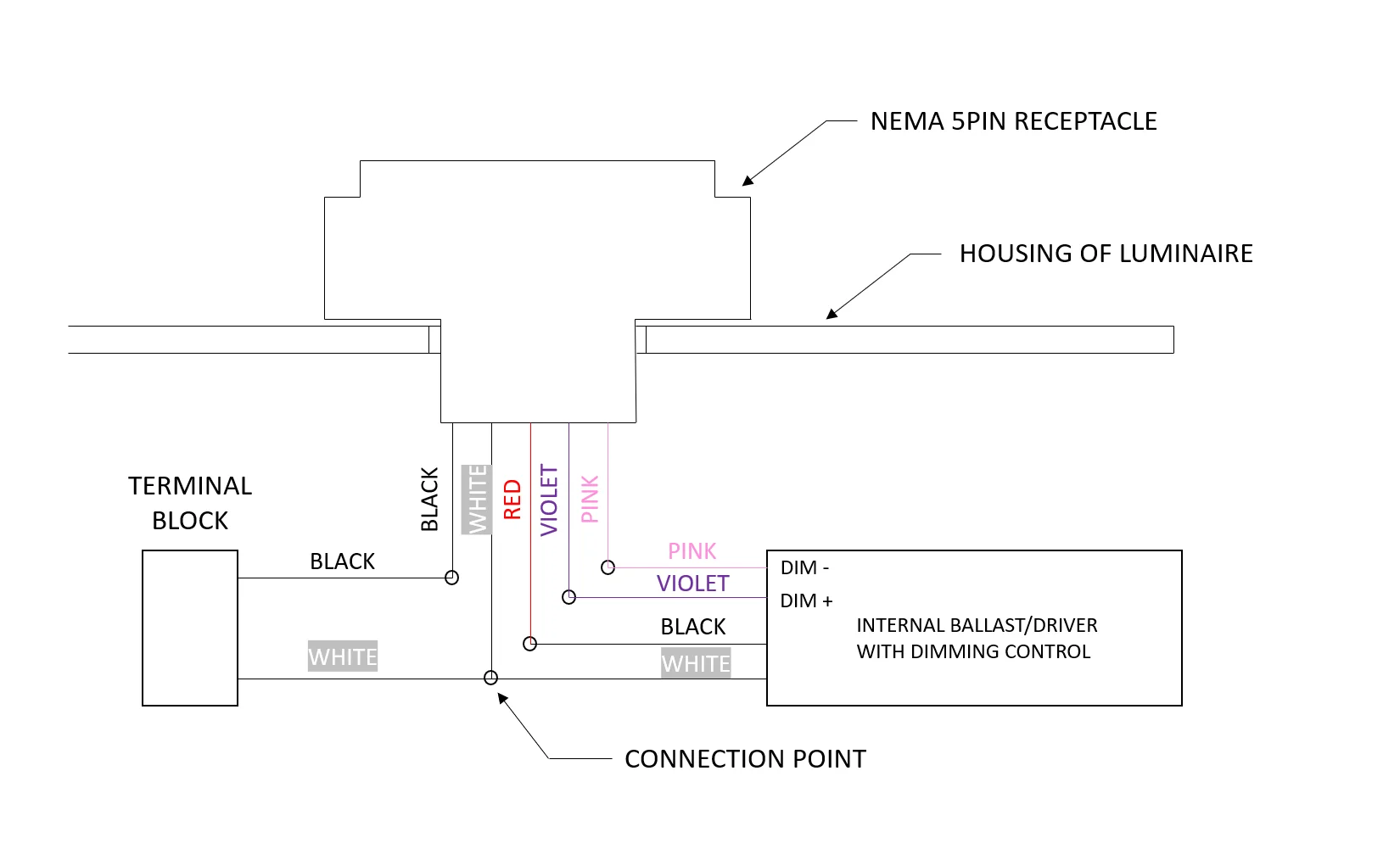

Installation
Application
FAQ
Q1. What is the MOQ, and can I place a sample order for the NEMA receptacles?
A: 10 pcs of samples are available to be ordered for quality checking, which is also the MOQ.
Q2. How to get a quotation?
A: Please let us know the product model, quantity and other requirements, we will then provide the quotation shortly.
A: Please let us know the product model, quantity and other requirements, we will then provide the quotation shortly.
Q3. Can I print my own Logo on the products?
A: Yes, the logo customization service is available. Please confirm details with us before you order.
A: Yes, the logo customization service is available. Please confirm details with us before you order.
