cvi to cvbs converter also support TVI AHD to VGA HD CVBS A2H
- Category: >>>
- Supplier: Shenzhen Brandoo Technology Co. Ltd.
Share on (1600468196681):
Product Overview
Description
Product Description
Features:

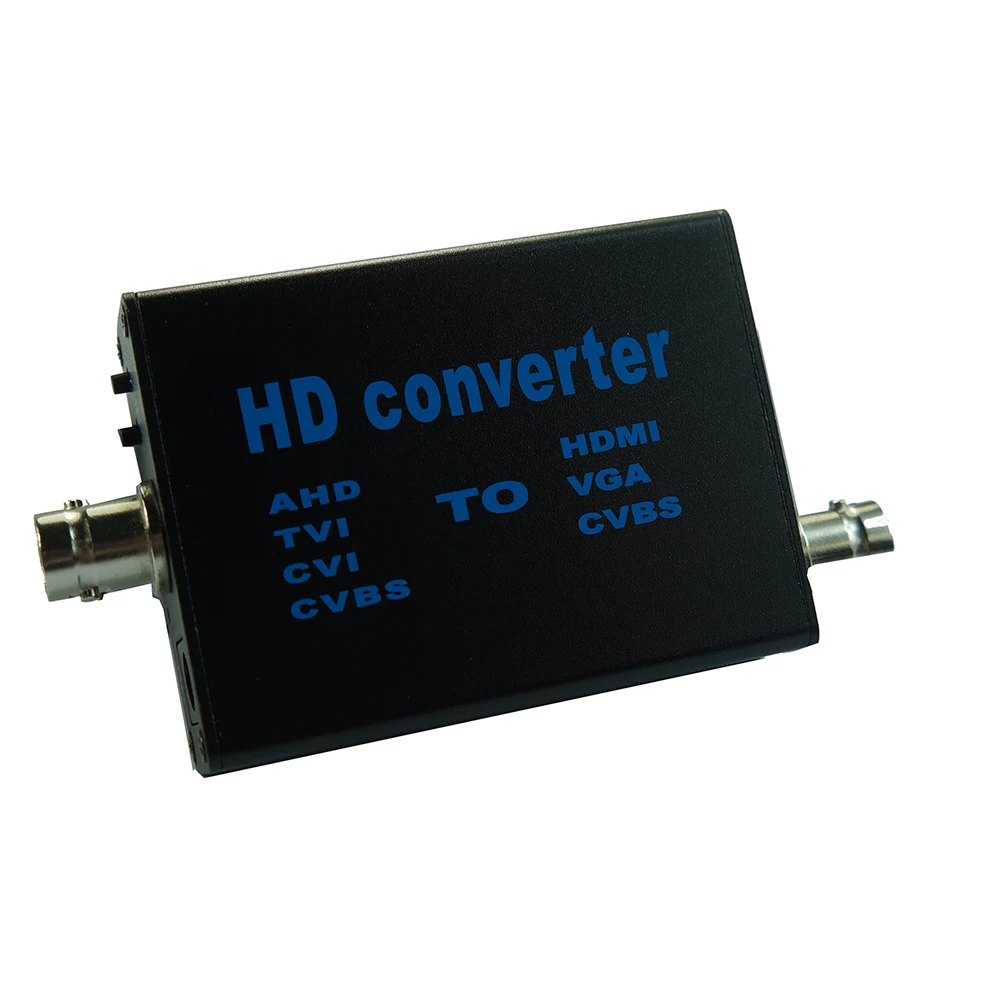

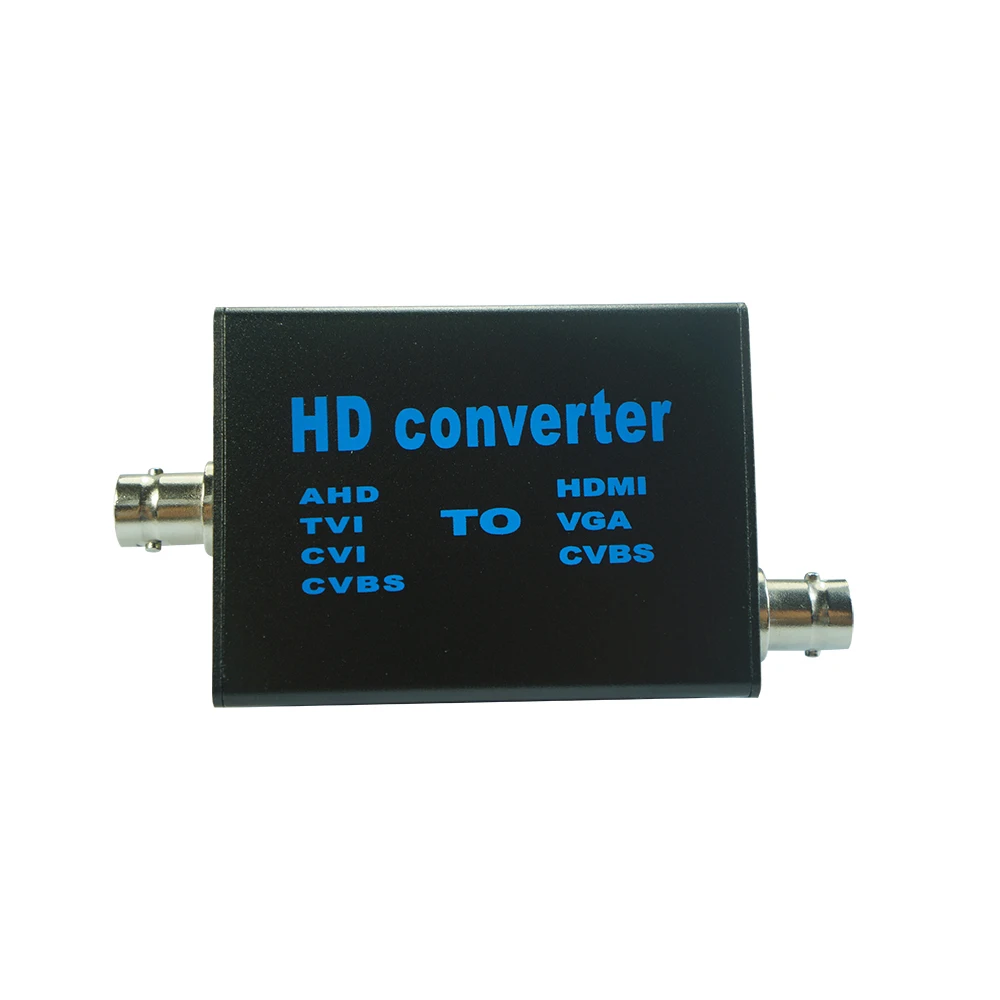

This is a 4 in 1 high definition video signal convertor, it convert AHD/TVI/CVI/CVBS signal to HD/VGA/CVBS signal. The convertor
will recognize input video signal automatically. it compatible with 1080P,960P,720P,480P signal input. The output HD signal
support 1080P and 720P. You can shift it by the button on convertor. MPS wide power 5V-20V design helps it widely used in
different working conditions.

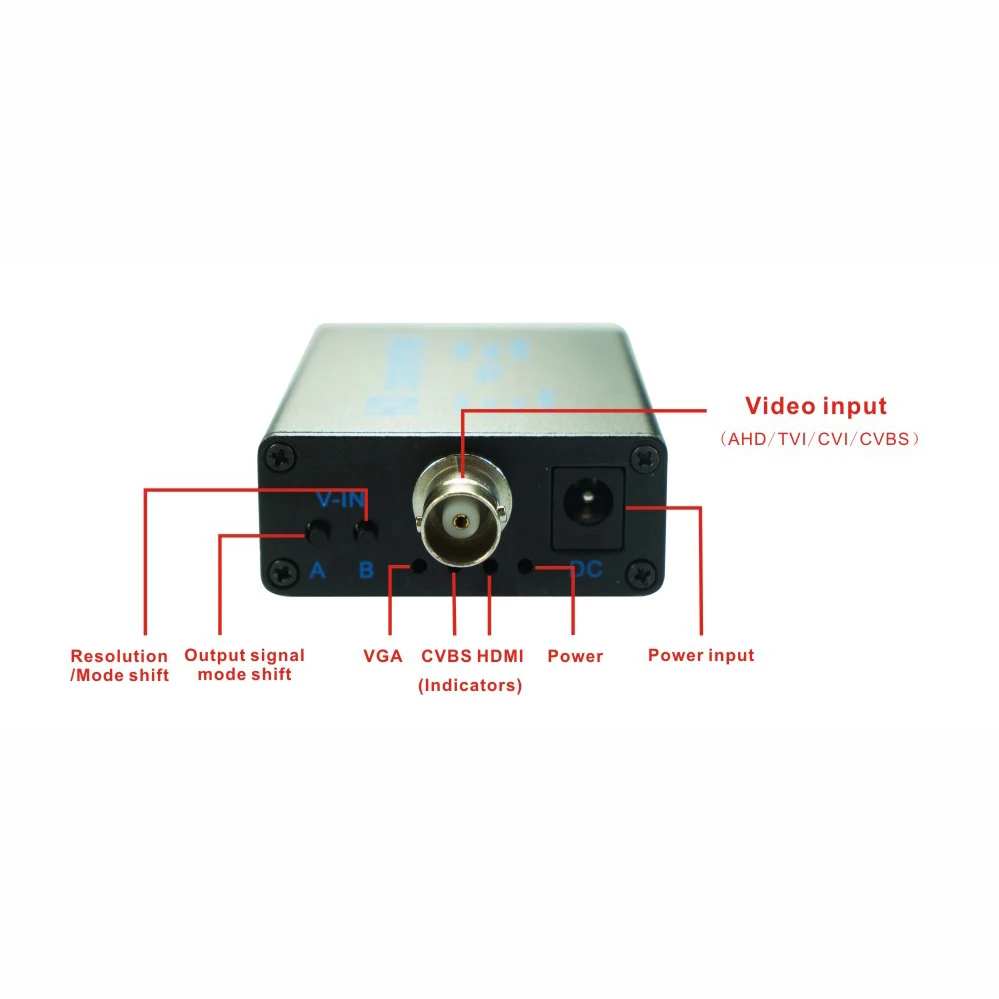

How to use:
1. Connect with original 12V power adapter to DC port, after power on, the RED light on;
2. V-IN connect with video signal input, the other side connect with the device which to receive converted video signal;

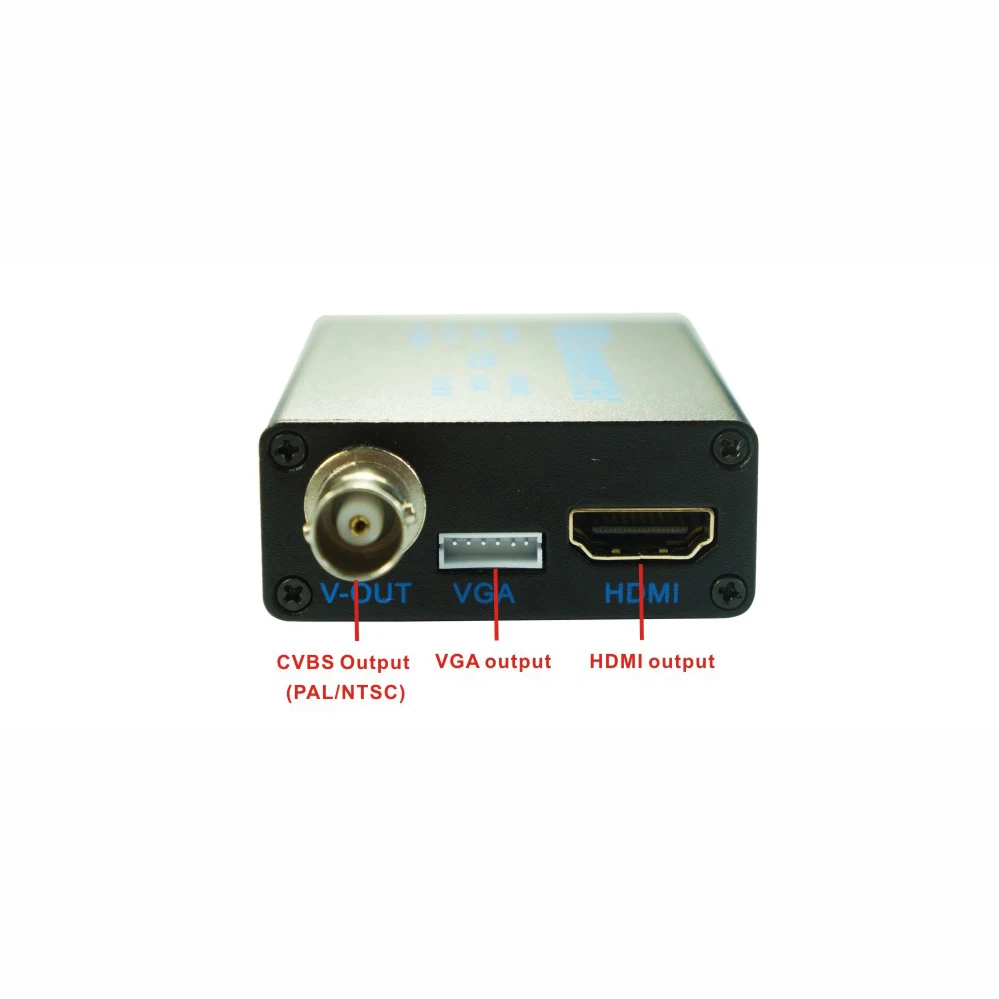

3. If you connect V-OUT/VGA/HD at the same time, press button A to shift different signal to display. The default output signal
type is HD.
4. When using HD output, press button B to shift Video resolution between 1080P or 720P.
5. When using CVBS output, press Button B to shift PAL/NTSC mode.
will recognize input video signal automatically. it compatible with 1080P,960P,720P,480P signal input. The output HD signal
support 1080P and 720P. You can shift it by the button on convertor. MPS wide power 5V-20V design helps it widely used in
different working conditions.
How to use:
1. Connect with original 12V power adapter to DC port, after power on, the RED light on;
2. V-IN connect with video signal input, the other side connect with the device which to receive converted video signal;
3. If you connect V-OUT/VGA/HD at the same time, press button A to shift different signal to display. The default output signal
type is HD.
4. When using HD output, press button B to shift Video resolution between 1080P or 720P.
5. When using CVBS output, press Button B to shift PAL/NTSC mode.
Specification
Power | DC 5V-20V |
Working Current | 150mAh |
Consumption | ≤2Wat |
Signal input | AHD/TVI/CVI/CVBS（1080P/960P/720P） |
Signal output | HD / VGA / CVBS(1080P/720P) |
Dimension | 66*53*21mm |
Net Weight | 73g |
Accessories | Convertor*1 12V Power adapter*1 Manual*1 （VGA module need buy extra） |

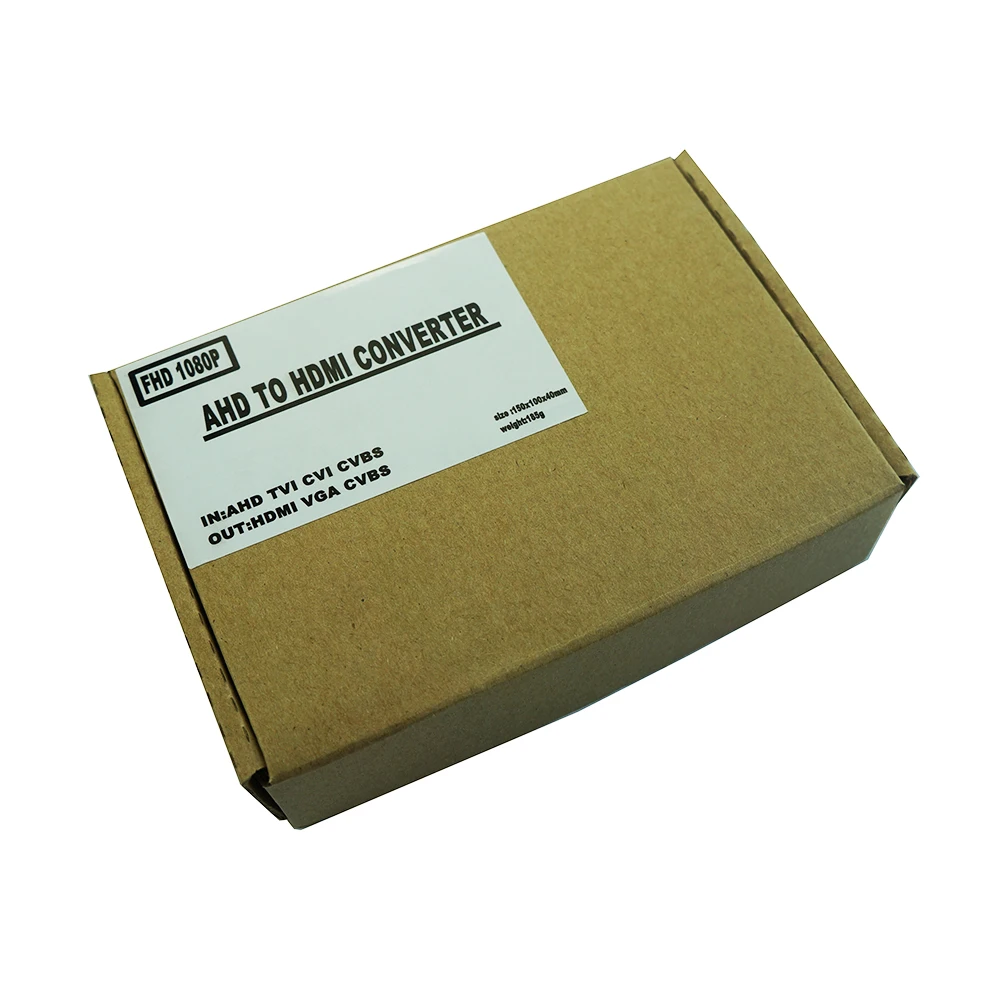

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Brandoo Co.,Limited was founded in Shenzhen in 2009,we mainly develop video recorder for CCTV and Car surveillance.
We have over 10 years experienced in overseas business and also have 5 years experienced in developing and producing. But we still a young team, so, we are great-hearted and brave to face any problem and troubles.
We always study from our customers, because we want to establish a long term cooperation ship with you. We are not only business partner, we hope we are good friend also when you know us. We also hopes that we can go better and better together!
We have over 10 years experienced in overseas business and also have 5 years experienced in developing and producing. But we still a young team, so, we are great-hearted and brave to face any problem and troubles.
We always study from our customers, because we want to establish a long term cooperation ship with you. We are not only business partner, we hope we are good friend also when you know us. We also hopes that we can go better and better together!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Eastern Europe(65.00%),Western Europe(15.00%),Northern Europe(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Motorcycle DVR,Motorcycle Camera,Mobile DVR,DVR Module,car black box
4. why should you buy from us not from other suppliers?
Focus on Mobile DVR and motorcycle DVR development and producing since 2009.
Key Supplier of Mobile DVR for Prague Police station and Fire station in Czech.
Cooperated supplier with BYD E-BUS
Full range CCTV Solution for different vehicles and train.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2013,sell to Eastern Europe(65.00%),Western Europe(15.00%),Northern Europe(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Motorcycle DVR,Motorcycle Camera,Mobile DVR,DVR Module,car black box
4. why should you buy from us not from other suppliers?
Focus on Mobile DVR and motorcycle DVR development and producing since 2009.
Key Supplier of Mobile DVR for Prague Police station and Fire station in Czech.
Cooperated supplier with BYD E-BUS
Full range CCTV Solution for different vehicles and train.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
