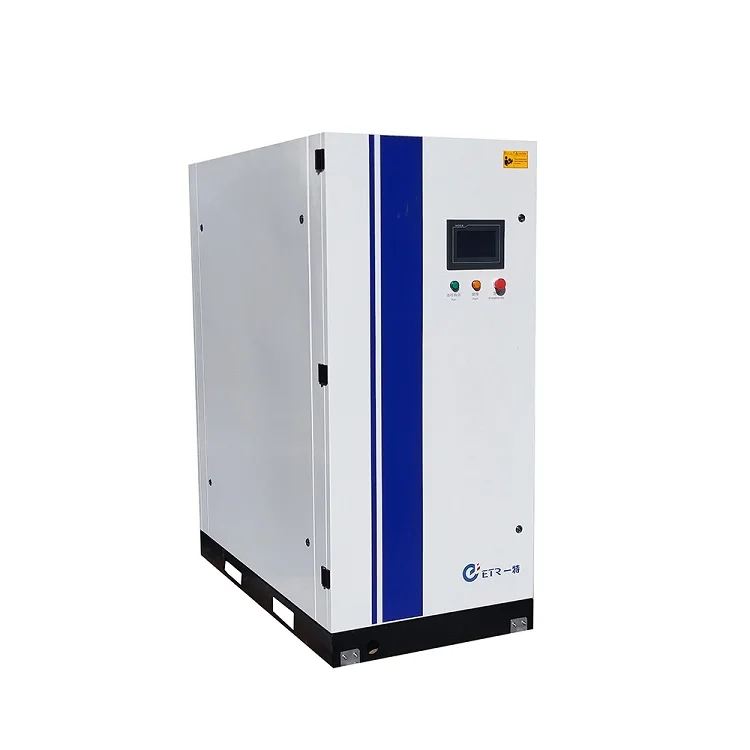

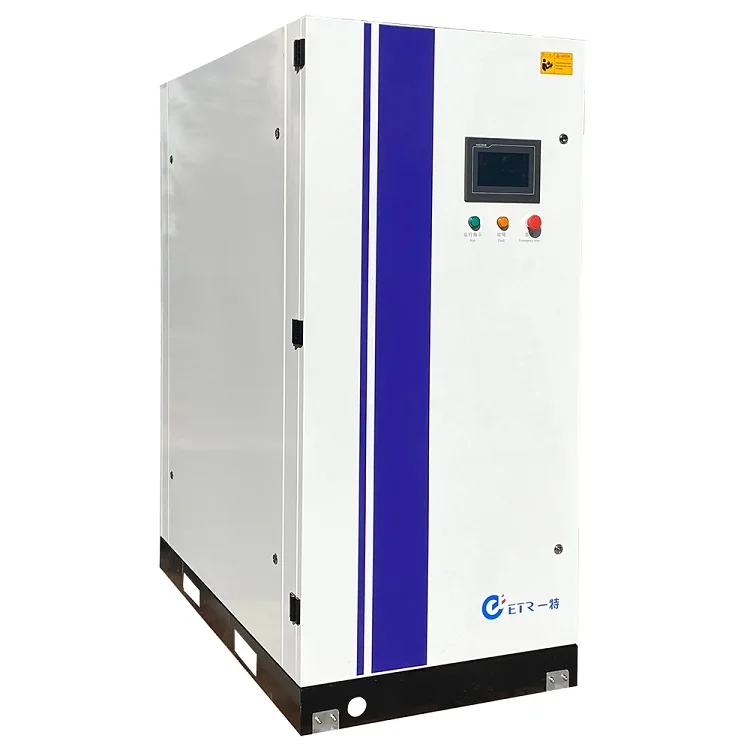

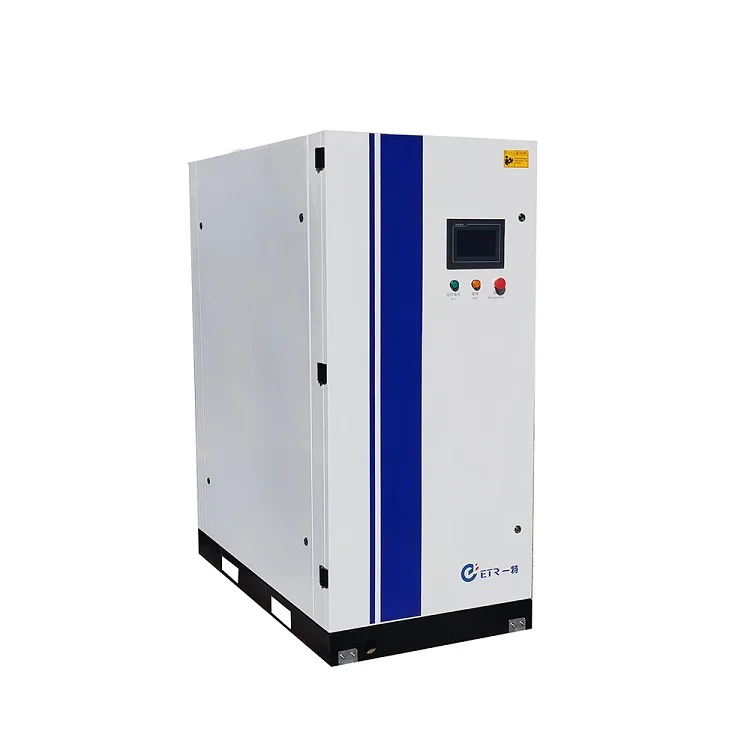

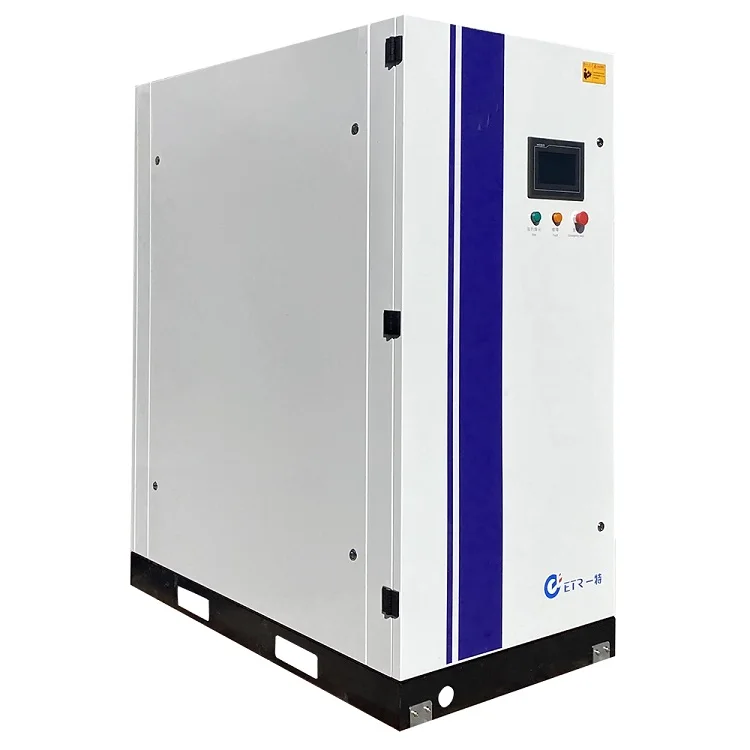

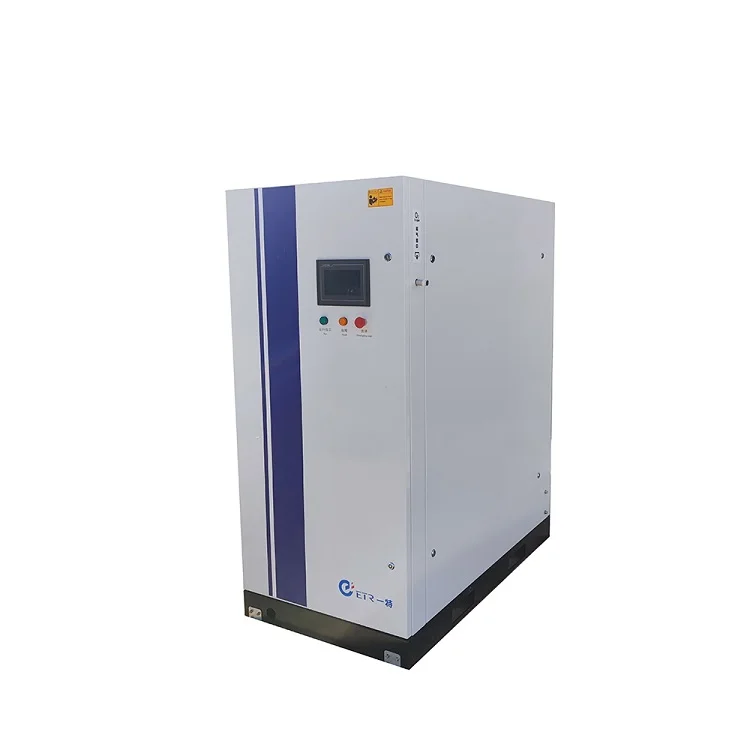

2022 ETR Energy Saving Compacted Oxygen Gas Generator Oxygen Plant Medical o2 Station
- Category: >>>
- Supplier: Hunan Eter Medical Co. Ltd.
Share on (1600468218892):
Product Overview
Description
2022 ETR Energy Saving Compacted Oxygen Gas Generator Oxygen Plant Medical o2 Station
Product Description
Advantage of Compacted Oxygen Gas Generator
(1) The main components are imported to ensure product quality;
(2) The oxygen production process is controlled by microcomputer, fully automatic operation, and the output of oxygen flow is adjustable;
(3) oil-free design, stable concentration, safe and reliable.
(4) Low concentration alarm to ensure oxygen quality.
(5) Using three-phase 380V low-voltage power supply, low noise and low energy consumption.
(6) It can be directly connected to the oxygen supply pipeline system of small medical institutions, which is convenient and flexible to use.
(7) Beautiful appearance, small footprint and less consumables
(8) Integrated oxygen plant system
Model of Compacted Oxygen Gas Generator
| Model | Oxygen Production | Motor Power (KW) | Size (mm) | Weight (KG) | Oxygen Purity | Noise Level (dB(A)) | Additional Tank | Machine Room (m2) |
| ETO-A20 | 1Nm3/h (20LPM) | 2.50 | 1600*750*1300 | 420 | 93%±3% | 60±3 | 300L/0.6Mpa | 10~12 |
| ETO-A30 | 2Nm3/h (30LPM) | 4.00 | 1600*750*1300 | 480 | 93%±3% | 62±3 | 600L/0.6Mpa | 10~12 |

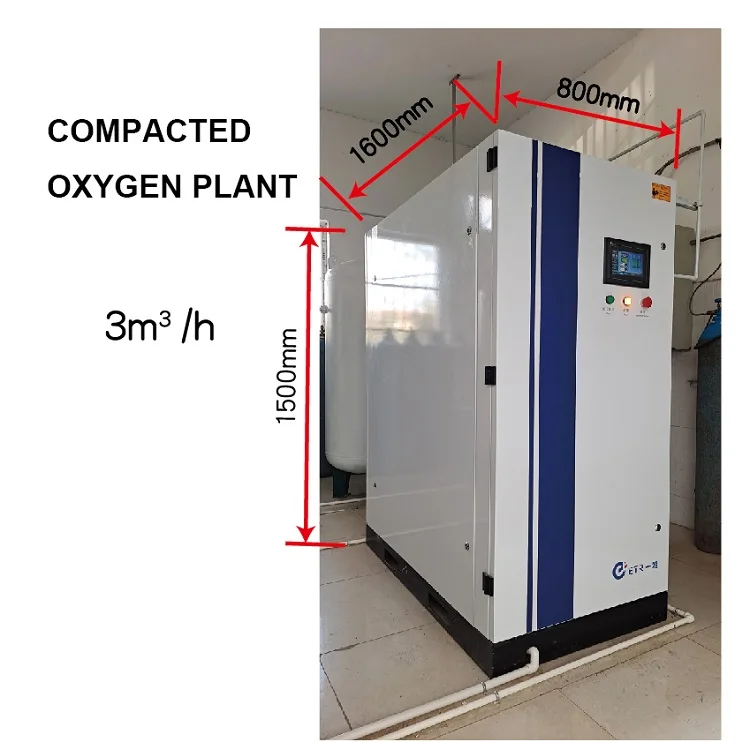

| ETO-A50 | 3Nm3/h (50LPM) | 6.00 | 1600*800*1500 | 550 | 93%±3% | 63±3 | 600L/0.6Mpa | 12~15 |
| ETO-A80 | 5Nm3/h (80LPM) | 10.00 | 1600*800*1920 | 750 | 93%±3% | 65±3 | 800L/0.6Mpa | 12~15 |
| Power Supply:380V/50Hz/3ph Oxygen Pressure :0.35-0.45(Mpa) | ||||||||

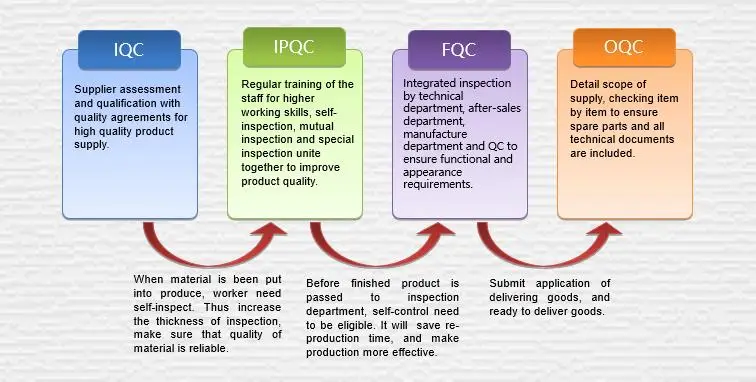

Quality Control
Our Services
1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)
Company Information
Packaging & Shipping
Our Services
1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)
FAQ
1. Are you manufacturer or trade company?
We are the manufacturer of Compacted Oxygen Gas Generator , founded in 2003.
2. What's the order Compacted Oxygen Gas Generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of Compacted Oxygen Gas Generator ?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours)
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application
6) Project Location:
