auto feeding vibrating knife cutting fabric seat cover sets with large size yizhou1630 1625
- Category: >>>
- Supplier: Jinan Yizhou Laser Technology Co. Ltd.
Share on (1600468237205):
Product Overview
Description
Product Description
Brief introduction:
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly.
foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
The YIZHOU Digital Cutting System is a high precision system what can realize through cutting, kiss cutting, milling, Conveyor system for each size, Optional for Electric Oscillating Tool, Pneumatic Oscillating Tool, CNC Router, V-Cut Tool, Kiss-Cut Tool, Driven Rotary Tool, CCD Camera Registration System, Autoloader, Projector, Nature Leather System
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly.
Application materials:
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cellfoam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Applicable industries:
It is quite suitable for sample making, short run and mass production in sign, advertising, printing and packaging.
Characteristics:
1. Blade: We use Swiss technology, patented design. The service life can reach 5 years, and the vibration frequency can reach 20,000 times/min. The vibration amplitude is within 1mm range.
2.Our custom-designed aluminum Vacuum table with thickness of 42.5mm, the levelness can reach 0.02mm.
3. Rails and racks: We use Original PMI rails and racks. 100,000 factory slip tests.
4. Our machine structure: 8mm thickness main tube welding+6mm thickness tube for structure side V Model stable
structure.And it adopts triangular structure welding. more stable.
5.limit: We use OMRON's, famous and best quality.
6. Motor and drive: our export standard is panasonic, famous and best quality.
7.Conveyor: The mesh belt we use is 4mm thick, cut-resistant felt, imported from Taiwan, and the price is 3-4 times higher than that of domestic ordinary ones
What we need to know from your side:
please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us!
1. What materials do you need to process? The size and thickness?
2. What is your business scope? Are you an end user or distributor?
please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us!
1. What materials do you need to process? The size and thickness?
2. What is your business scope? Are you an end user or distributor?
Technical Parameters
Model | YZ1625 |
Working size | 1600*2500mm |
Max.cutting speed | 0-1500mm/s |
Cutting depth | ≤50mm（according to material） |
Cutting head | EOT/DRT/CTT/VCT/POT |
Materials fixed method | Section vacuum |
Transmission | HIWIN/PMI linear rail+rack gears |
Cables | High flexible line with UL certificate |
Safety sensor | In fared light |
Motor&driver | Panasonic A6 series C/D axis:100W;X:400W,Y:750W |
Conveyor felt | 4mm thickness diamond jointed imported |
Working table | 42.5mm thickness aluminum honeycomb table |
Min.circle | 3mm |
Controller | RUIDA 6584G main board with touch screen panel |
Symmetrical cutting error | 0.01mm |
Machine body | 8mm+6mm thickness steel tube welding |
Table level | Left-right side:0.01mm front-back side:0.02mm |
air pressure supply | 0-0.3MPA |
Repeatability positioning accuracy | ±0.01mm |
Working power supply | AC380V/50HZ 60HZ THREE PHASE |
Cable | 8-10 square meters |
Vacuum power | 9KW |
Total power | <=14KW |
Operating temperature | 0°C-40°C |
Humidity | 5%-95% |
Support format | DXF,PLT,AI ETC. support AUTOCAD,CORELDRAW,PGM,BOKE,GERBER, ETC |

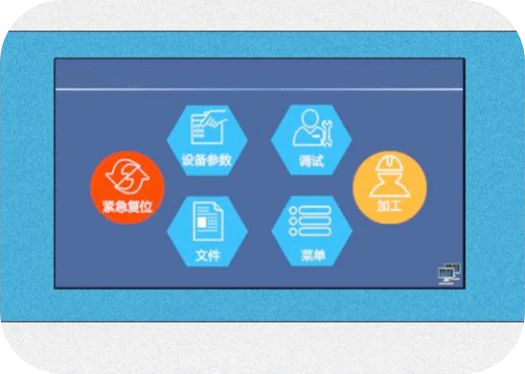

Support Multi language.
With USB or WLAN Communication port
With USB or WLAN Communication port

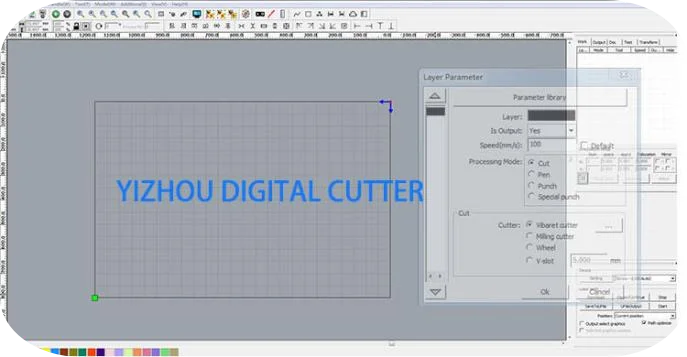

Simple Control Software
RDworks software ,support multi-language
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.

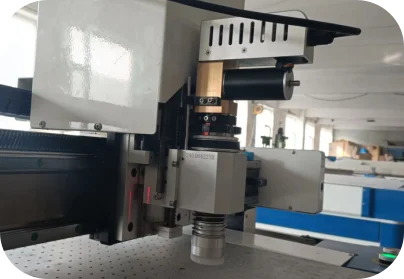

Patent design,improve the knife installation, Much easier. NSK bearing. Inner Lubrication system. Reduce the noise and heat for
electricial control card.Knife vibratingUp-down 1mm
electricial control card.Knife vibratingUp-down 1mm

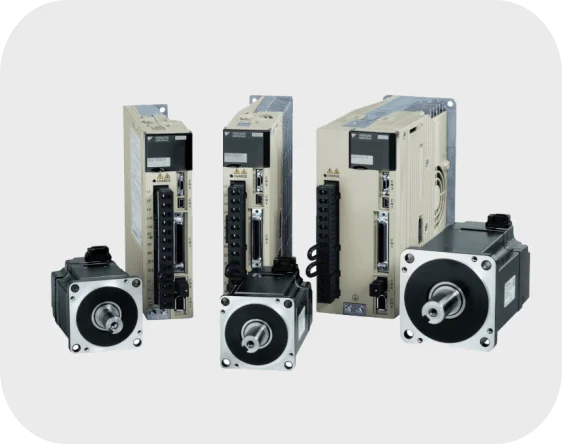

Panasonic A6 Series:
Cutting head turning:100W
Xyaxis:750W
famous and best quality.

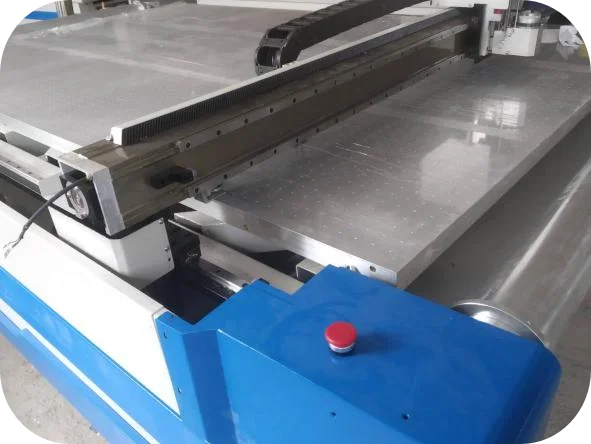

42.5mm Thickness Aluminiuim vacuum Table
Left and right Flat level:0.02mm
Frong and back flat level:0.01mm
Left and right Flat level:0.02mm
Frong and back flat level:0.01mm

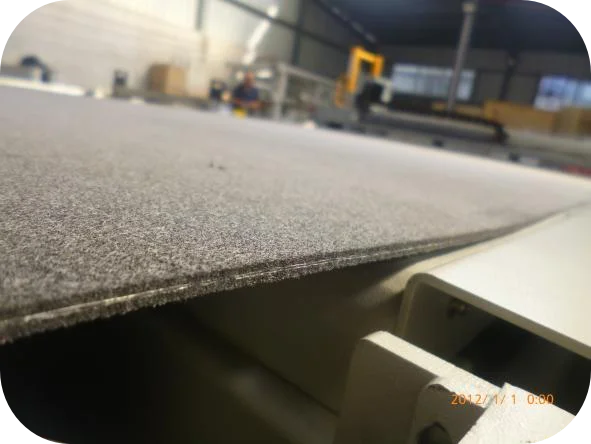

4mm thickness
Diamond Joint connector

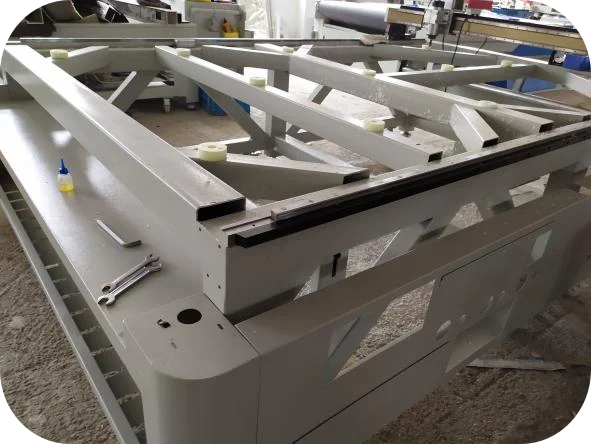

8mm thickness main tube welding+6mm thickness tube for structure side
V Model stable structure
V Model stable structure

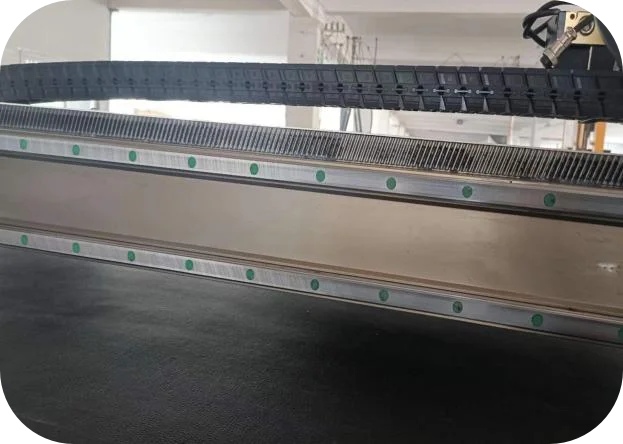

HIWIN/PMI linear rail+rack gears
More stable and high precision for machine moving
More stable and high precision for machine moving

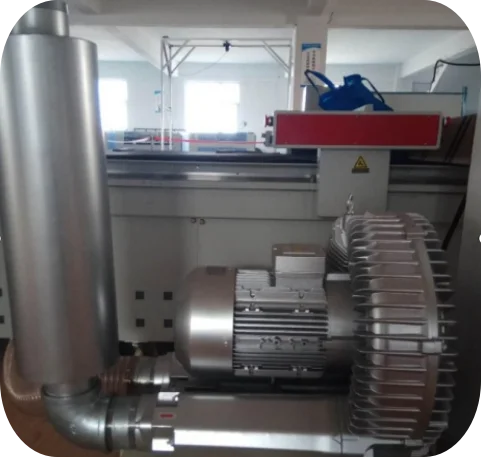

Support 220V 380V voltage.
Power:9KW
Power:9KW

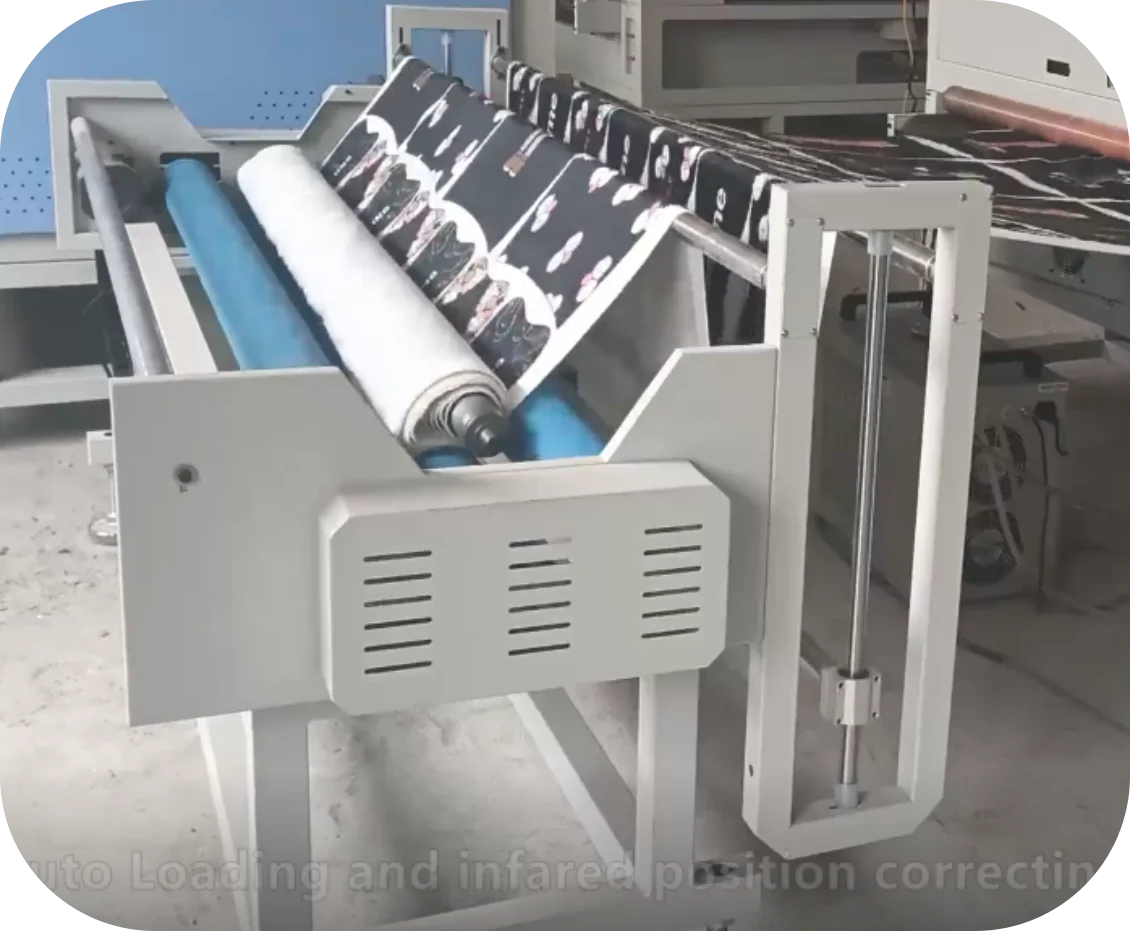

1. max.weight loading for roll:150KGS
2.Max.diameter for roll: 80cm
3.with infared sensor to control edge of roll fabric
4.loading materials adapt to the machine working.
2.Max.diameter for roll: 80cm
3.with infared sensor to control edge of roll fabric
4.loading materials adapt to the machine working.

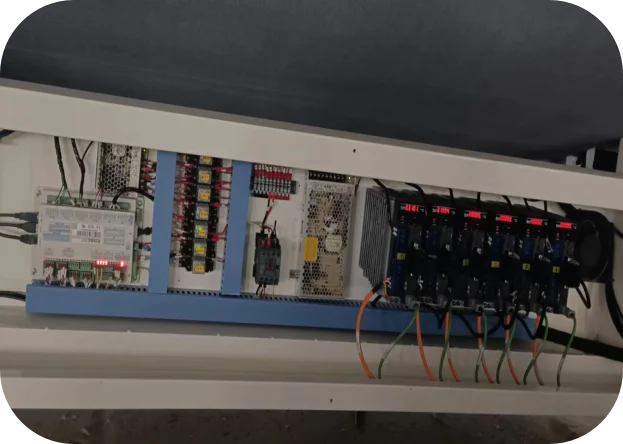

High flexible line with UL certificate
Keep machine running stable. Reduce most of problems when running.
Keep machine running stable. Reduce most of problems when running.

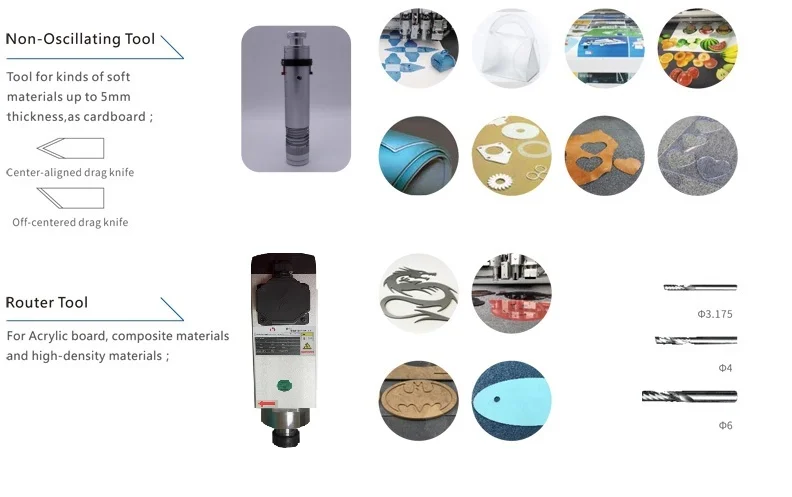

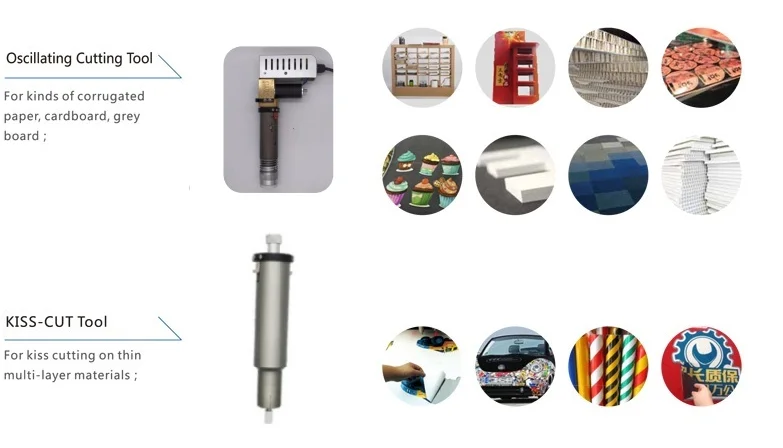

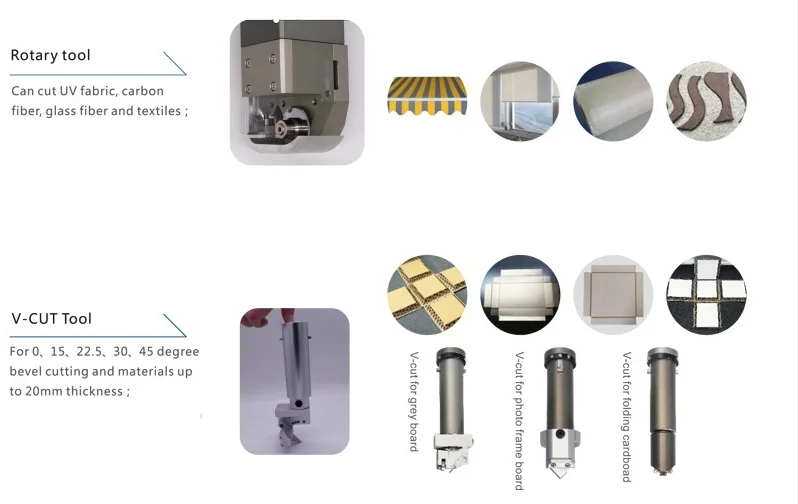

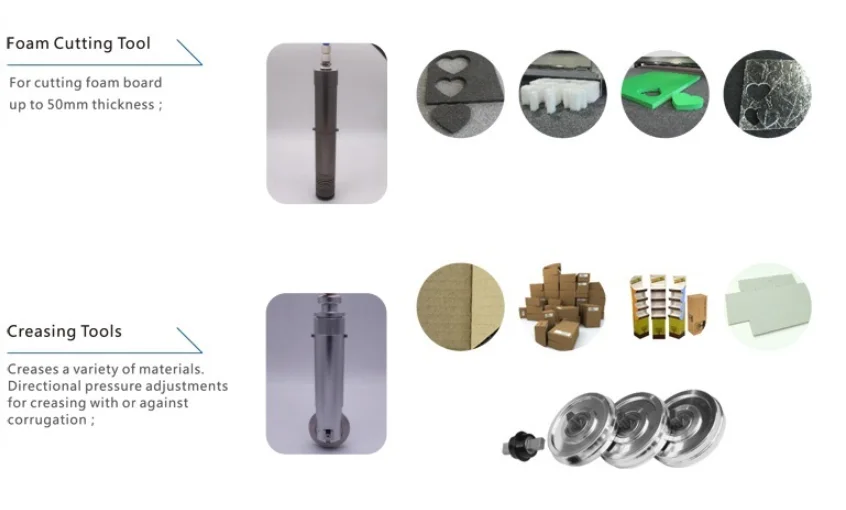

Optional Cutting Tools and Samples
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Customer

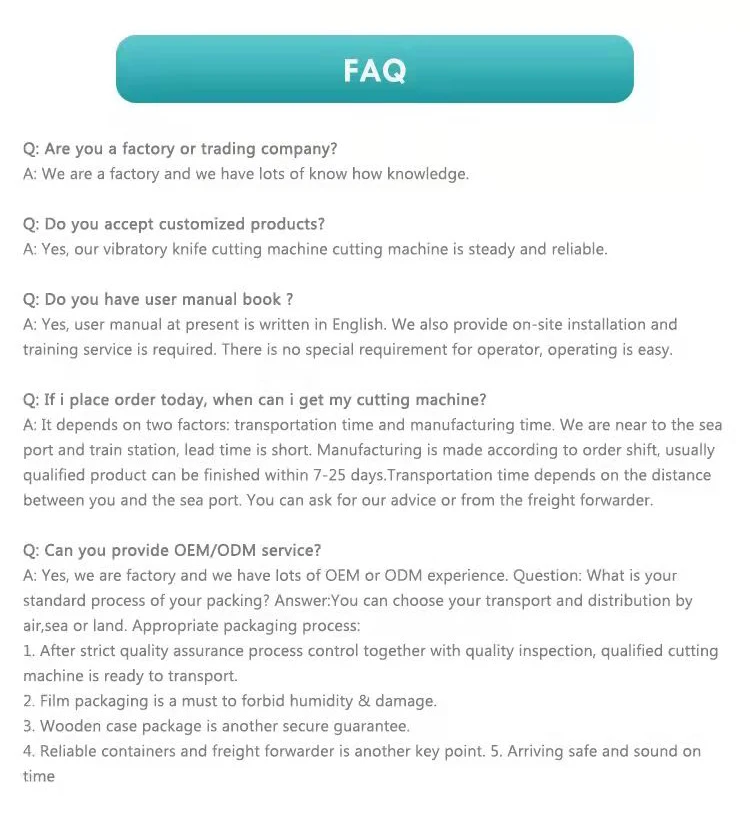

FAQ
