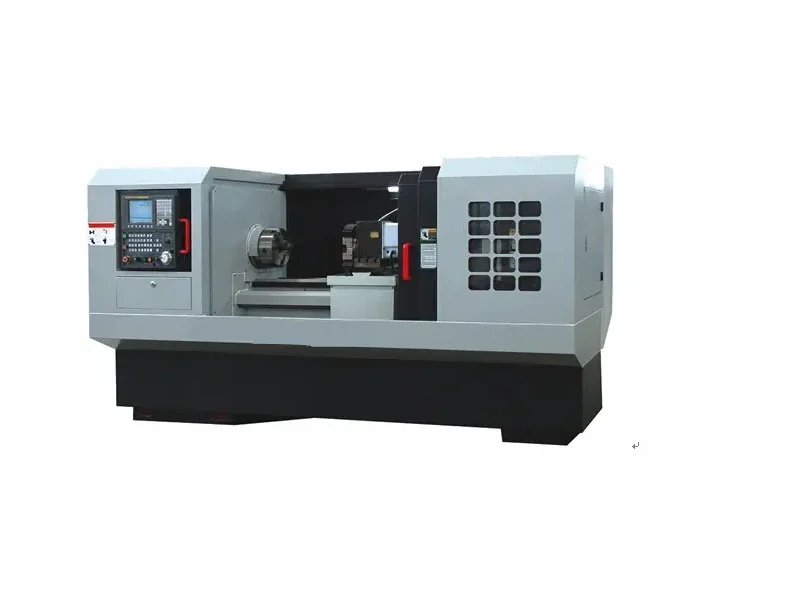

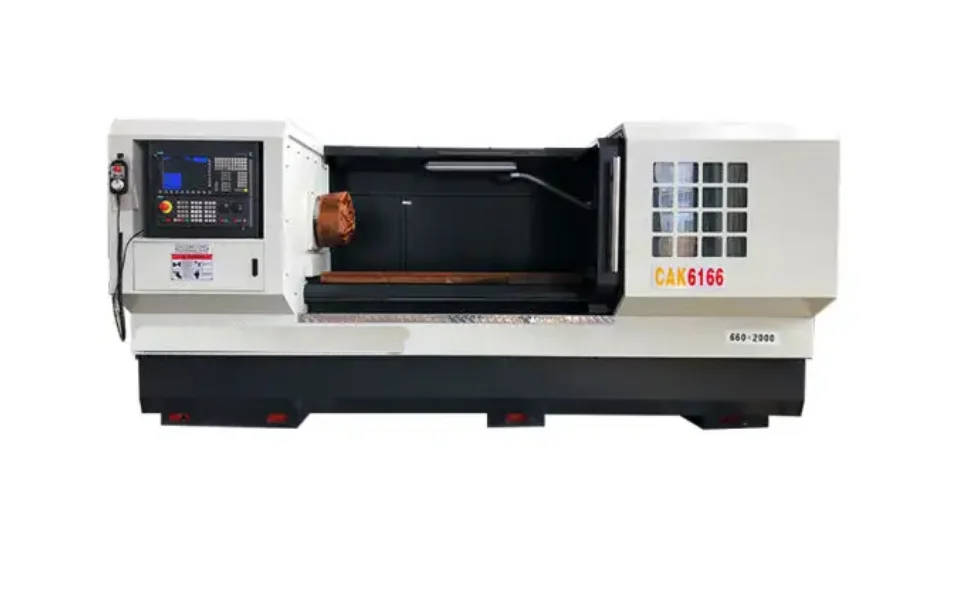

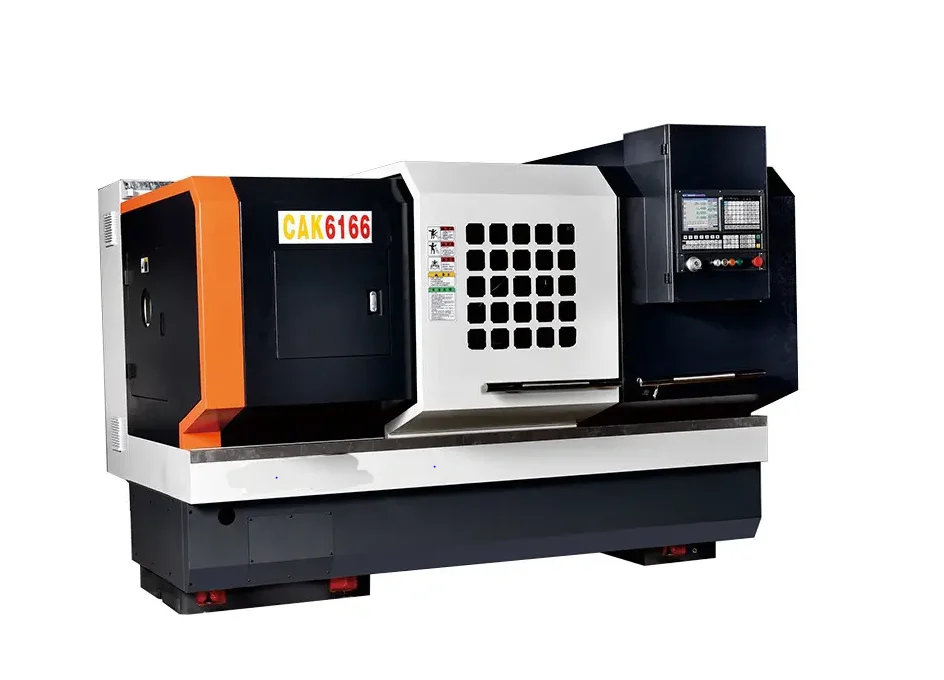

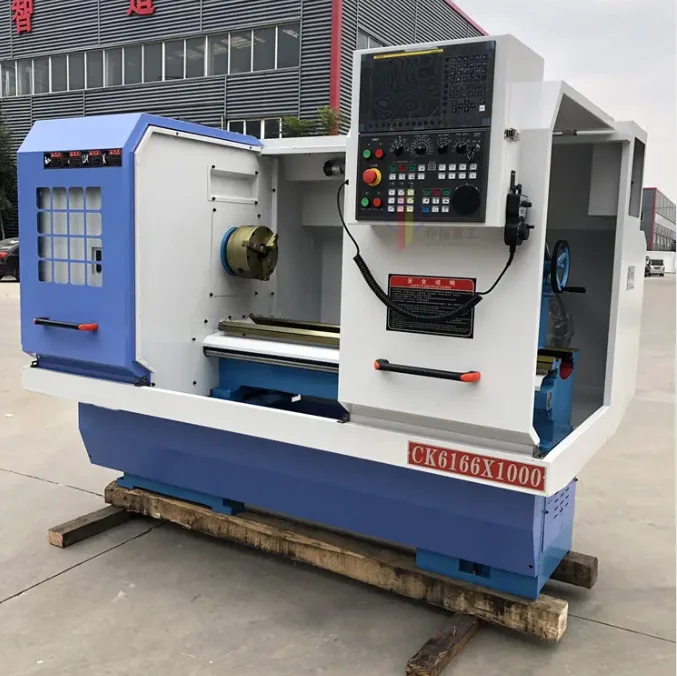

New cnc lathe for alloy wheels CAK6166 teach cnc lathes horizontal turning
- Category: >>>
- Supplier: Shanghai Ants Machine Equipment Co. Ltd.
Share on (1600468244734):
Product Overview
Description
SPECIFICATIONS | Units | CAK6166 CAK6166B CAK6166C |
Swing over bed | mm | 660 |
Swing over cross slide | mm | 380 |
Distance between centers | mm | 750/1000/1500/2000/3000 |
Spindle bore | mm | 52,(80 for B),[105 for C] |
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
Spindle nose type | - | C6,(D8 for B),[D8 for C] |
Spindle speed steps | - | Manual 3 steps (Optional: stepless) |
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) |

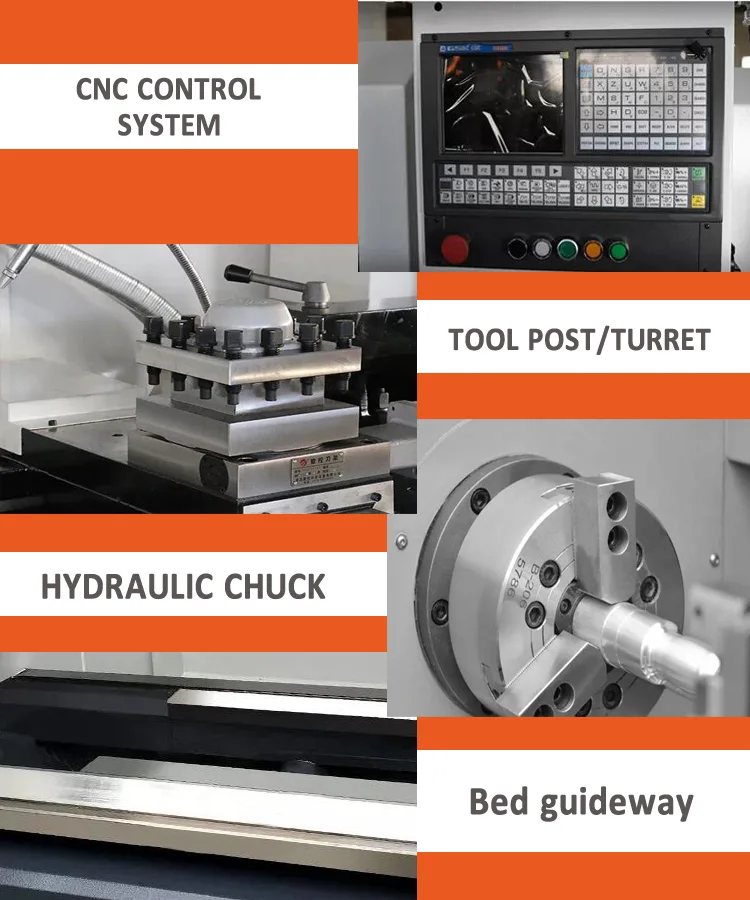

Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 330 |
Z axis travel | mm | 750/1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 11 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 2650 |
Weight for 1000 | kg | 2750 |
Weight for 1500 | kg | 2850 |
Weight for 2000 | kg | 3350 |
Weight for 3000 | kg | 4150 |
Dimension for 750 | mm | 2550x1750x1850 |
Dimension for 1000 | mm | 2750x1750x1850 |
Dimension for 1500 | mm | 3250x1750x1850 |
Dimension for 2000 | mm | 3700x1750x1850 |
Dimension for 3000 | mm | 4710x1750x1850 |
