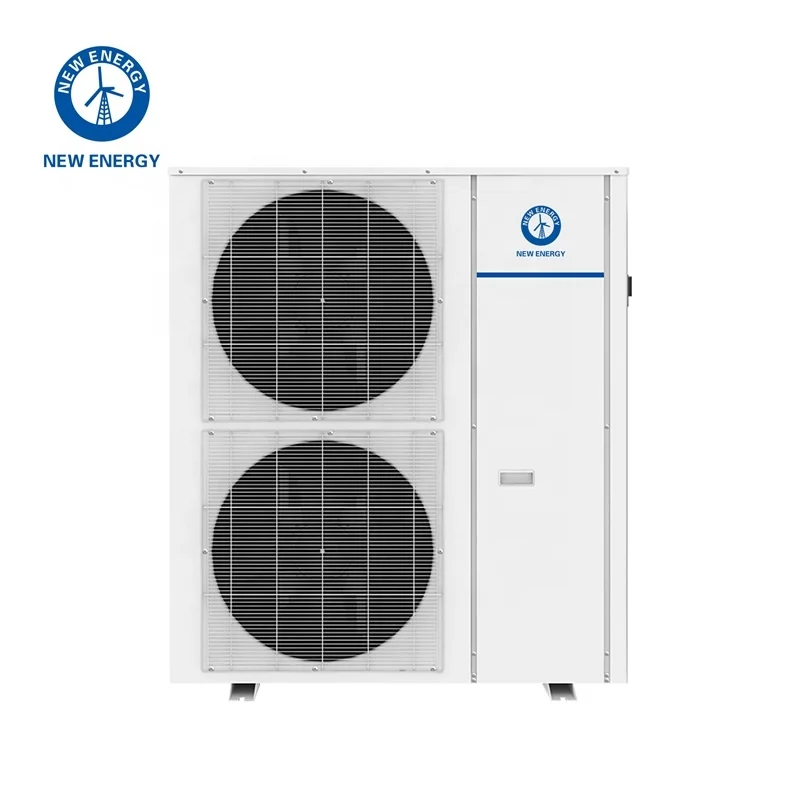

Factory price R410A Full DC Inverter low ambient air source heat pump 8KW 16KW 22KW 28KW heating and cooling water heater
- Category: >>>
- Supplier: Guangdong New Energy Technology Development Co. Ltd.
Share on (1600468259172):
Product Overview
Description
Why choose NEWNTIDE?

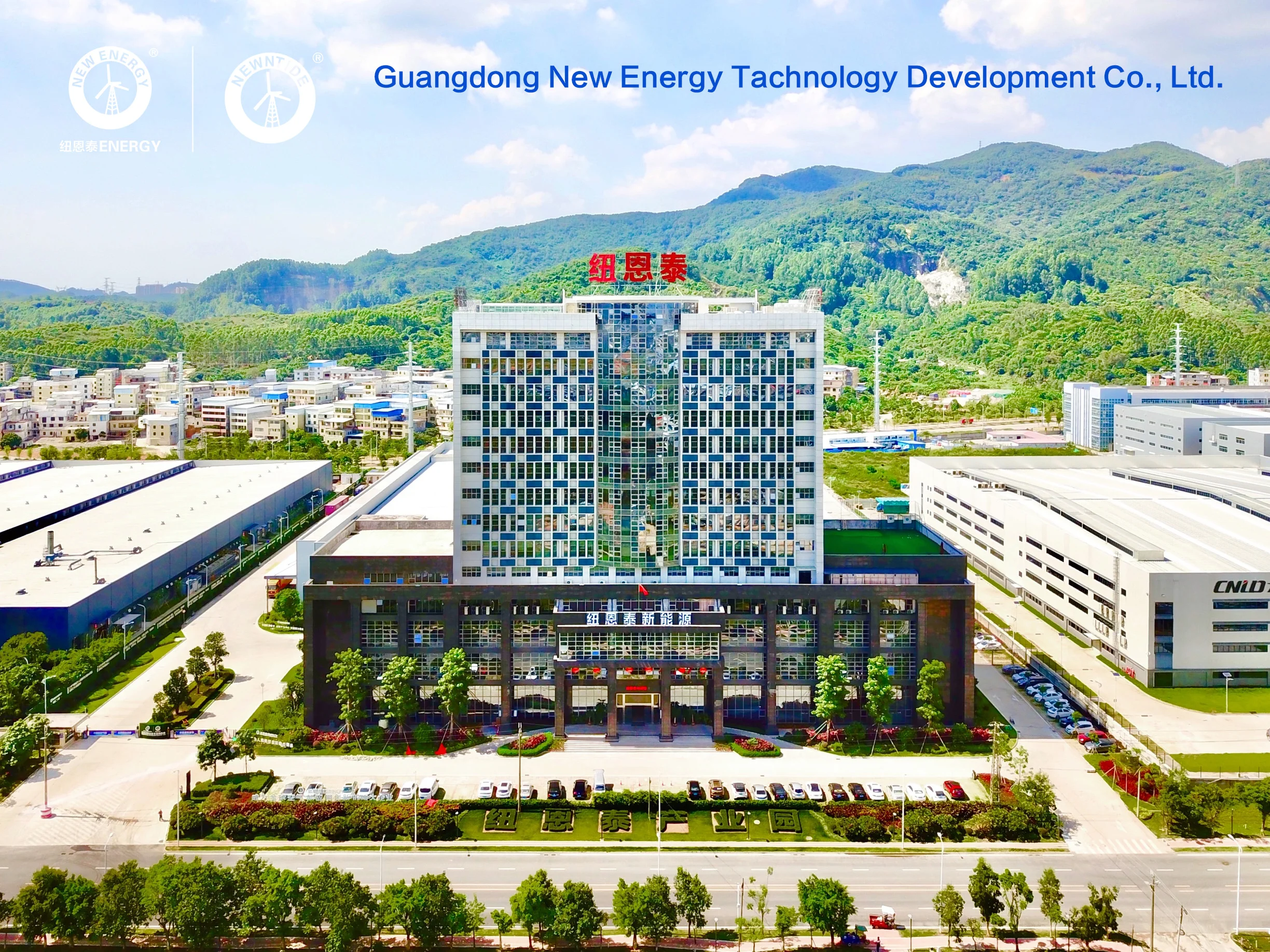

Guangdong New Energy Technology Development Co., Ltd. is a professional and leading heat pump manufacturer established in 2003. As the specialist of Swimming Pool Heat Pumps, House Heating and Cooling Heat Pumps and Heat Pump Water Heaters in China, NEWNTIDE has been focusing on the heat pump industry for over 18 years.

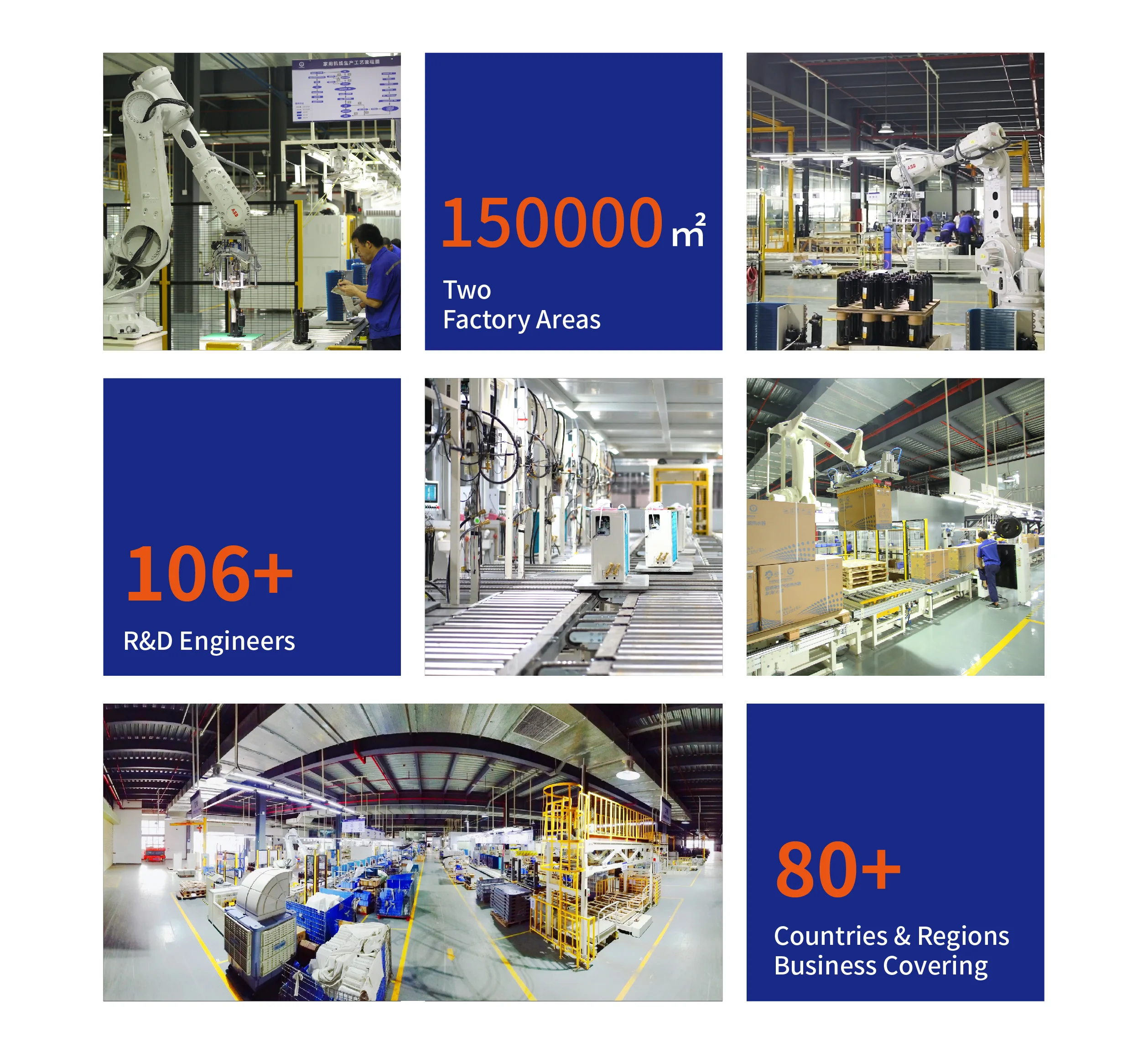

NEWNTIDE has 2 production bases with 13 automatic production lines, 16 international labs with Intertek, SGS, Kiwa certificated and 44 advanced material test machines. The total production capacity is over 2 million sets per year. Also, NEWNTIDE has built up a complete heat pump industrial chain with its own main component factories, such as the sheet metal, finned-tube heat exchanger and water tank factories. Meanwhile, NEWNTIDE is the strategic partner of Mitsubishi and Emerson (Copeland).
NEWNTIDE owns the first world-class academician workstation of heat pump research for the Chinese Academy of Engineering. It has two research institutes, China Heat Pump Research Center and China Heat Pump Training College, which have become the largest incubation centers of innovative technologies for the new energy industry in Asia. As one of the member companies who participated in drafting the Chinese national standards of air source heat pump, has always been focusing on the latest heat pump technologies. During the past 18 years, NEWNTIDE has acquired over 1100 national and international patents for heat pump.
We strive for outstanding quality in our products and customer service. Enjoy your living spaces more with NEWNTIDE!
NEWNTIDE has 2 production bases with 13 automatic production lines, 16 international labs with Intertek, SGS, Kiwa certificated and 44 advanced material test machines. The total production capacity is over 2 million sets per year. Also, NEWNTIDE has built up a complete heat pump industrial chain with its own main component factories, such as the sheet metal, finned-tube heat exchanger and water tank factories. Meanwhile, NEWNTIDE is the strategic partner of Mitsubishi and Emerson (Copeland).
NEWNTIDE owns the first world-class academician workstation of heat pump research for the Chinese Academy of Engineering. It has two research institutes, China Heat Pump Research Center and China Heat Pump Training College, which have become the largest incubation centers of innovative technologies for the new energy industry in Asia. As one of the member companies who participated in drafting the Chinese national standards of air source heat pump, has always been focusing on the latest heat pump technologies. During the past 18 years, NEWNTIDE has acquired over 1100 national and international patents for heat pump.
We strive for outstanding quality in our products and customer service. Enjoy your living spaces more with NEWNTIDE!

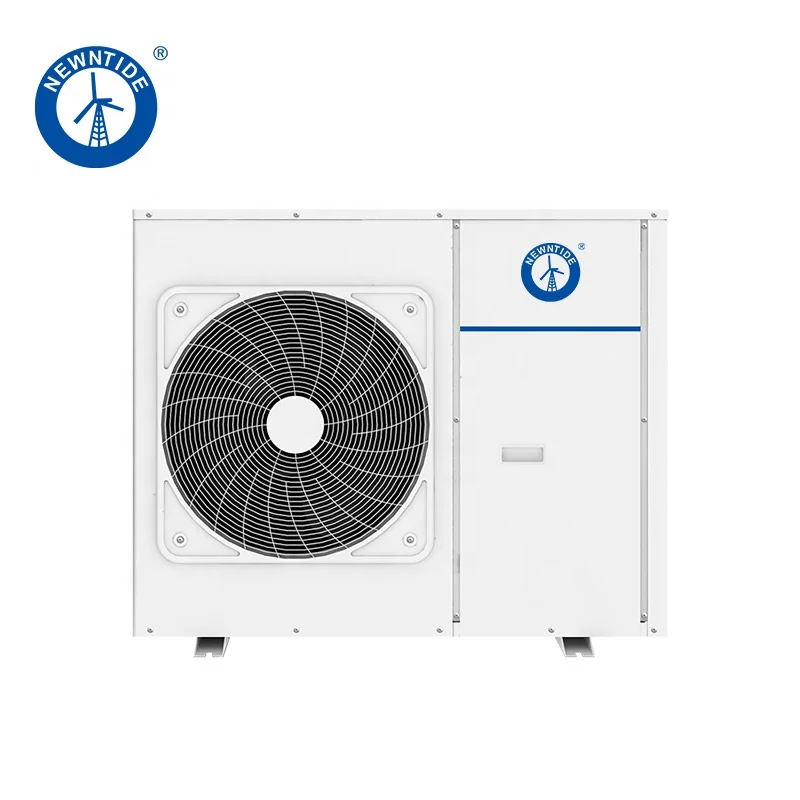

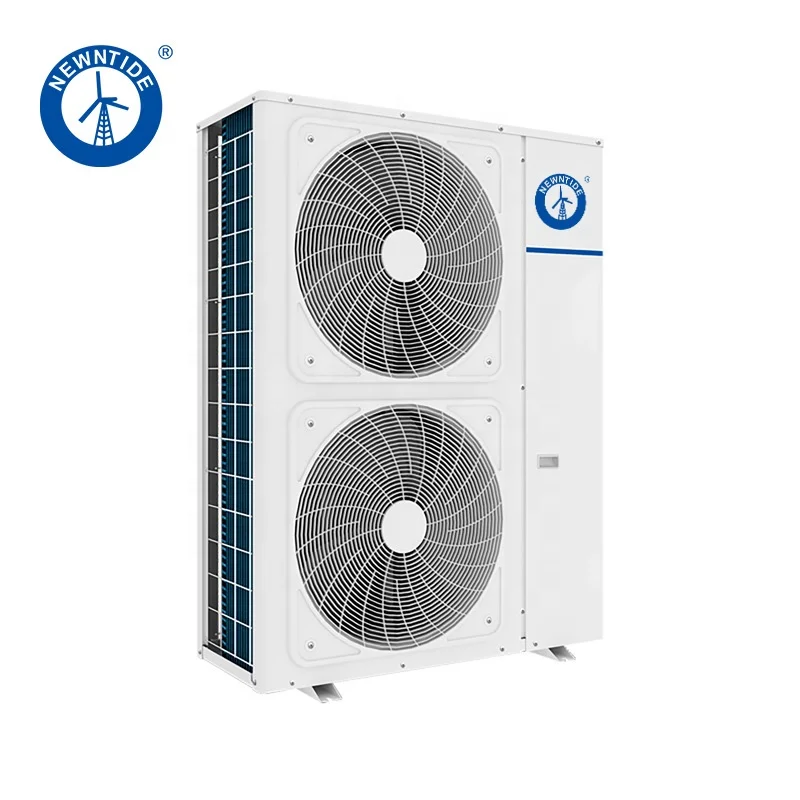

Factory price R410A Full DC Inverter low ambient air source heat pump 8KW 16KW 22KW 28KW heating and cooling water heater

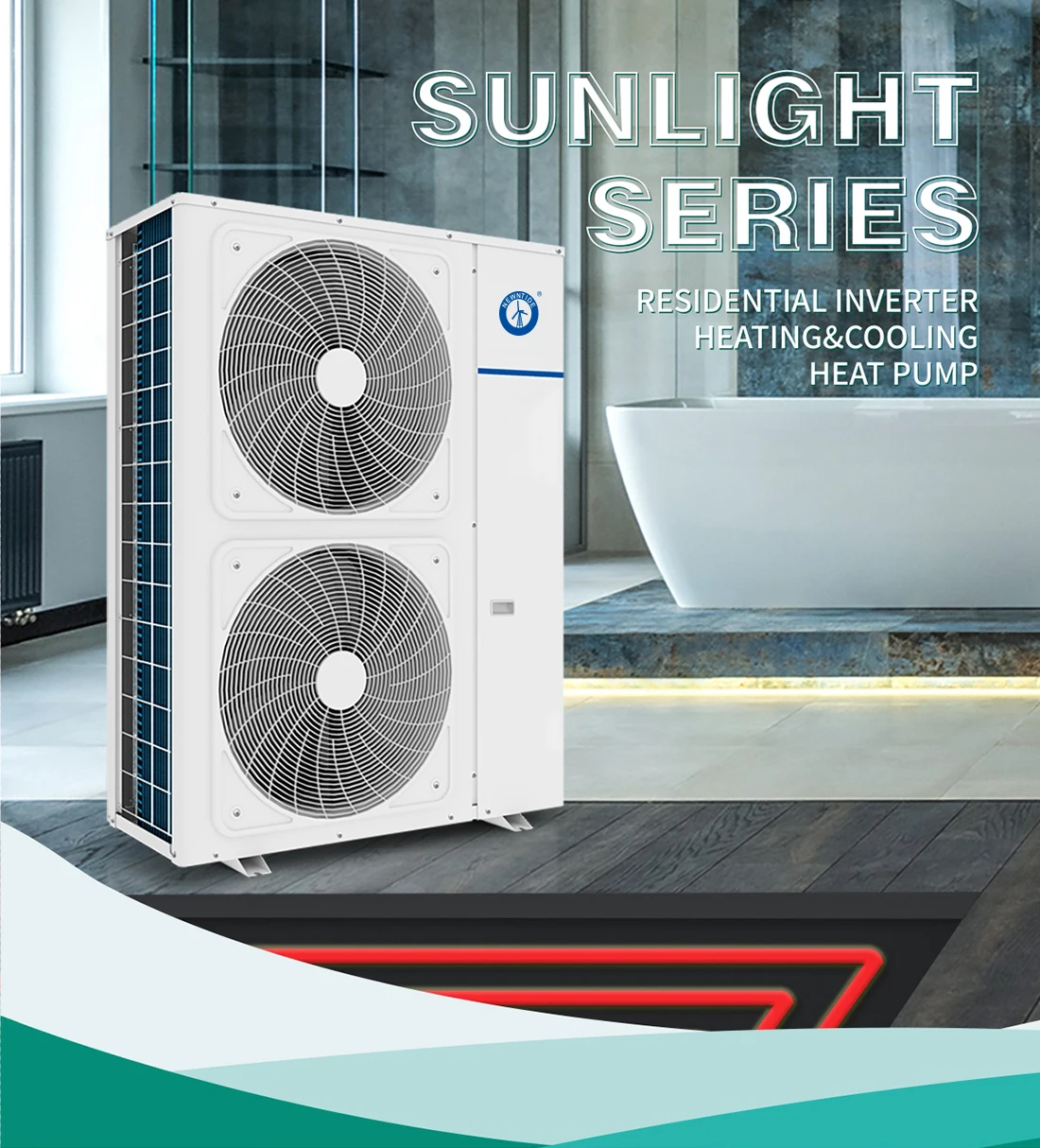

Inverter Heating and Cooling Heat Pump - Sunlight Series | ||||||||
Not only does we offer optimum energy-efficient advanced inverter technology heat pumps, we can also provide a total solution for domestic heating cooling and hot water supply. | ||||||||
Product Details

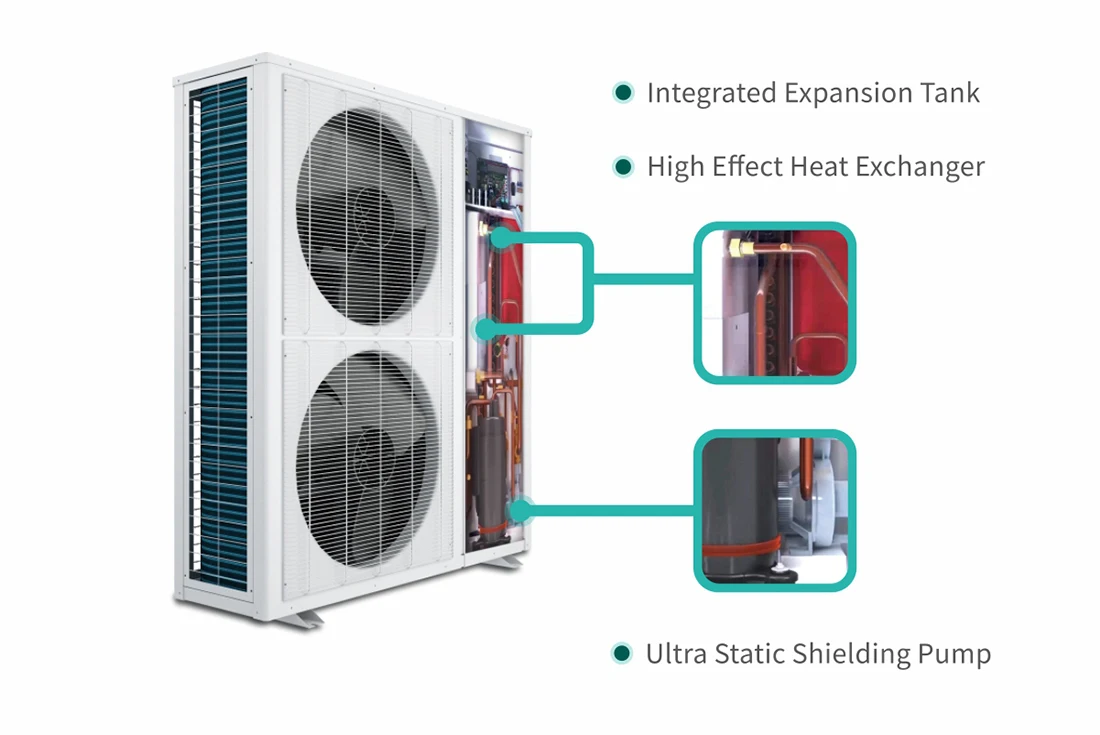

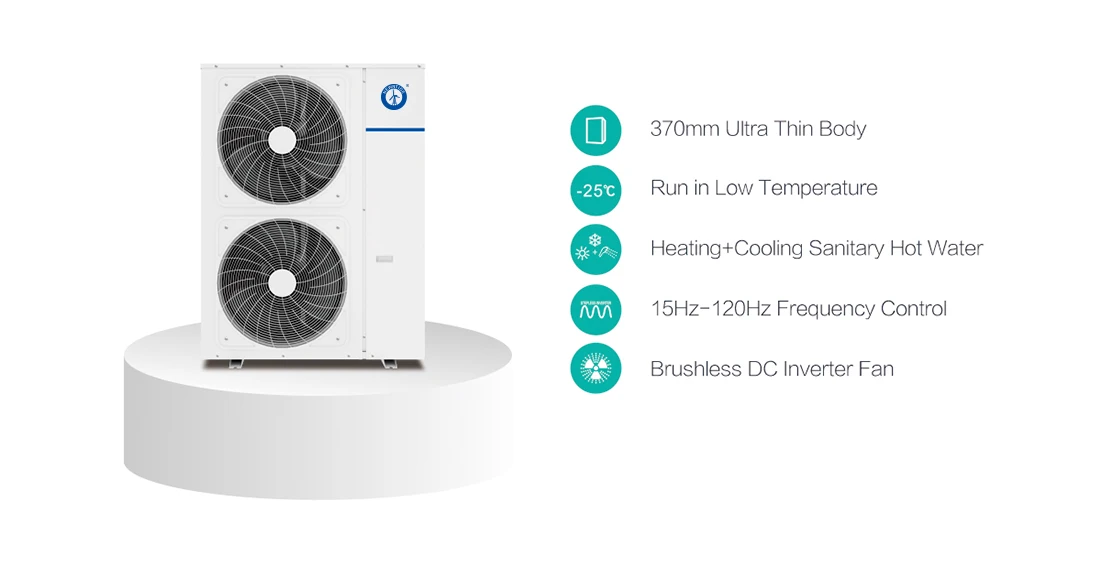

● ULTRA THIN BODY
Integrated expansion tank, silent circulating pump and high efficent heat exchanger make the installation much more easy.

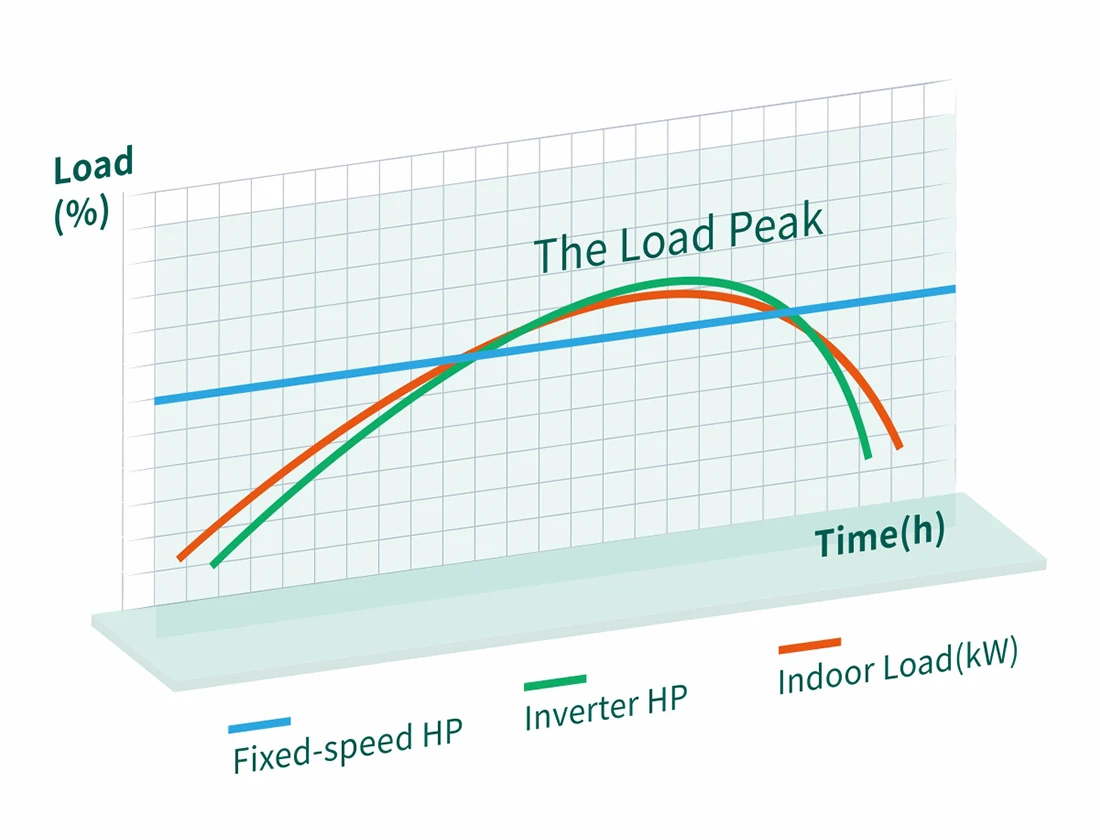

● 15HZ~120HZ Stepless DC Inverter Technology
Energy consumption is lower than 3kW/h per night.

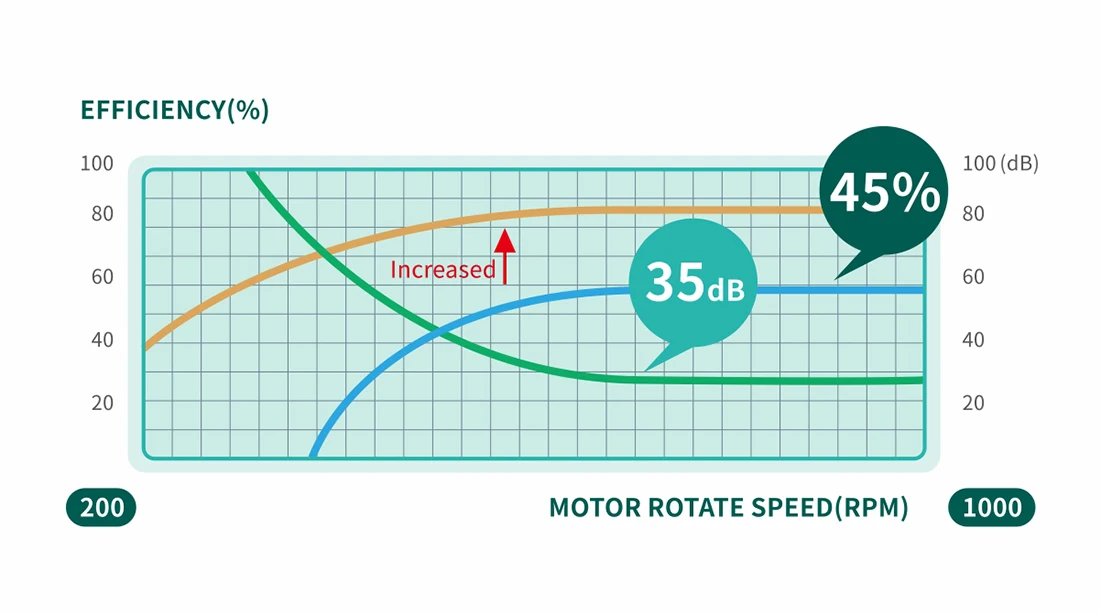

● Brushless DC Inberter Fan Motor
Fan motor speed increased 45% and super silence of 35dB.

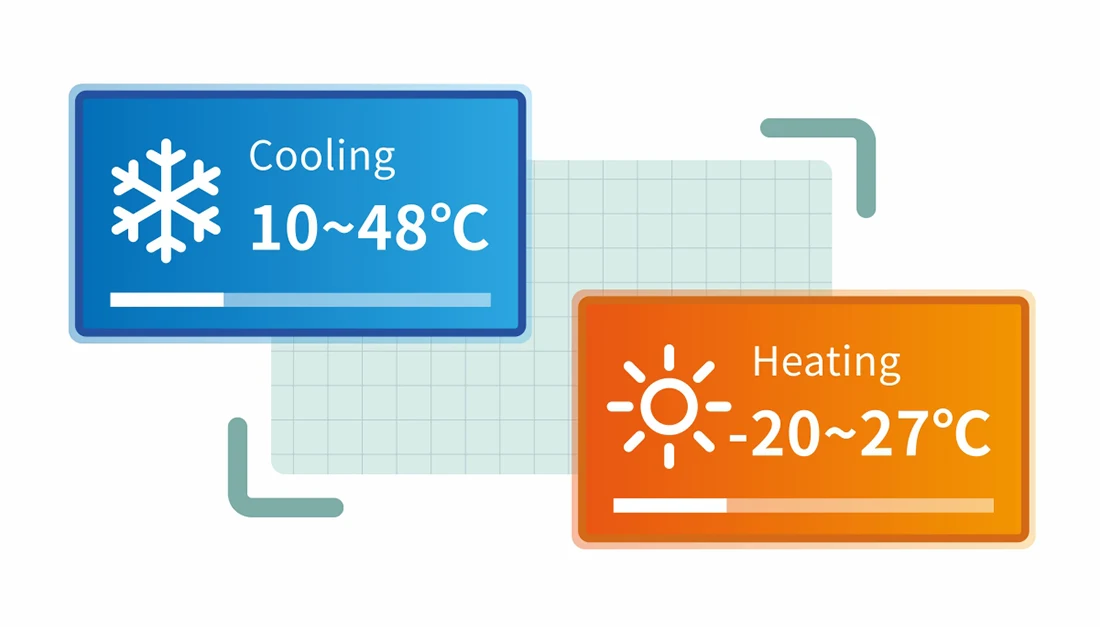

● Working in Ultra Low Temprature
Inverter compressor can run in ultra low temperature stably.

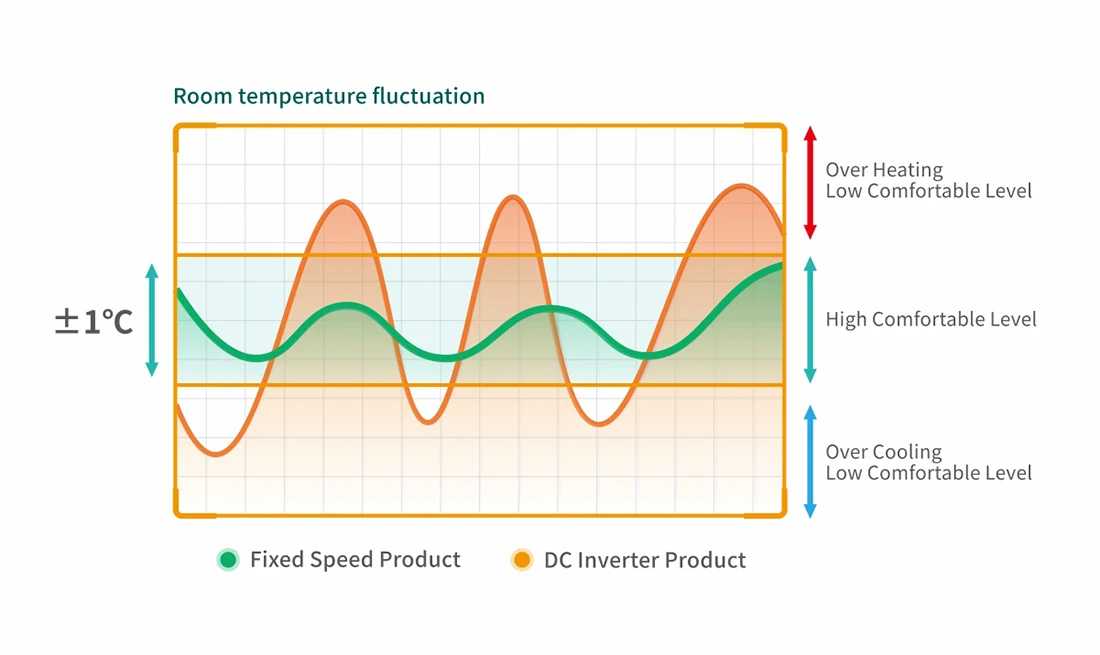

● ±1℃ Adaptive Thermostat Technology
Small temperature fluctuation makes the room more comfortable.

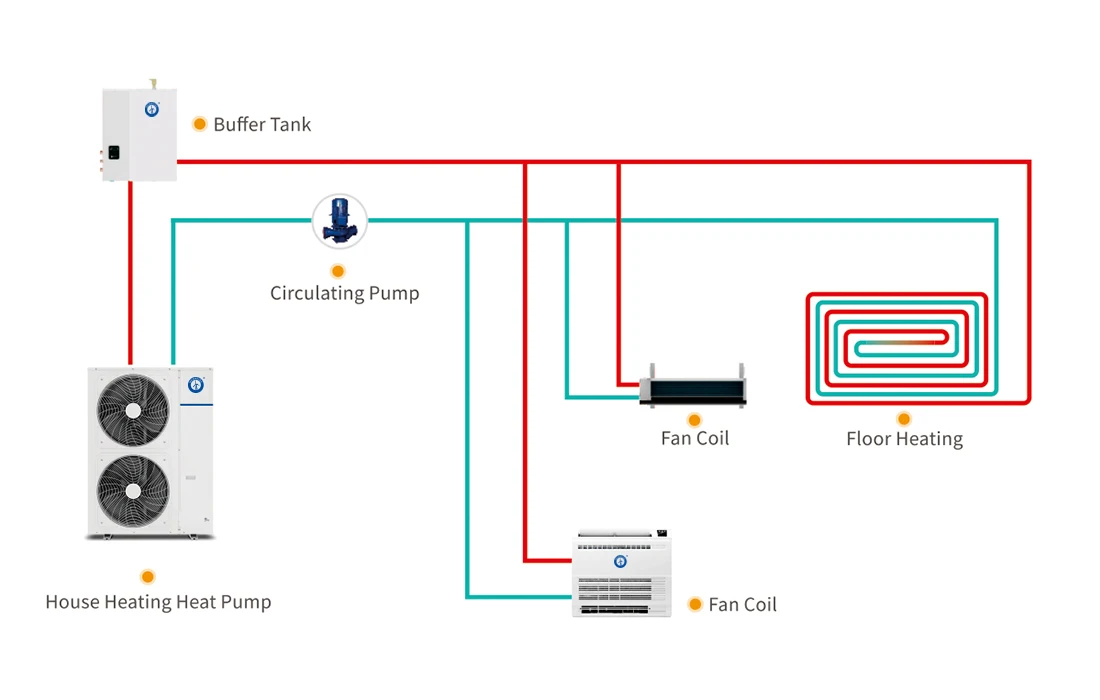

● CONNECTION DIAGRAM FOR HEATING AND COOLING SOLUTION
Product Parameters
Model:NE-F | 85HCR3INV | 140HCR3INV | 165HCR3INV | 225HCR3INV | ||||
Power Supply(V/Ph/Hz） | 220-240V/1Ph/50Hz | |||||||
Operation Range(℃） | -25~43 | |||||||
Max.Outlet Water Temp(℃） | 55 | |||||||
Ambient Temperature:(DB/WB)7℃/6℃;Water Inlet/Outlet Temperature:30/35℃ | ||||||||
Heating Capacity(kW) | 2.11~8.45 | 3.5~14 | 4.2~16.8 | 5.62~22.5 | ||||
Power Input(kW) | 0.31~2.5 | 0.522~4.18 | 0.626~5.06 | 0.838~7.03 | ||||
COP | 6.8~3.38 | 6.705~3.35 | 6.709~3.32 | 6.706~3.2 | ||||
Ambient Temperature:(DB/WB)7℃/6℃;Water Inlet/Outlet Temperature:40/35℃ | ||||||||
Heating Capacity(kW) | 1.96~7.85 | 3.25~13 | 3.91~15.62 | 5.38~20.7 | ||||
Power Input(kW) | 0.37~2.65 | 0.614~4.41 | 0.739~5.29 | 1.02~7.02 | ||||
COP | 5.29~2.96 | 5.29~2.95 | 5.29~2.95 | 5.29~2.95 | ||||
Ambient Temperature:(DB/WB)35℃/-;Water Inlet/Outlet Temperature:12/7℃ | ||||||||
Cooling Capacity(kW) | 1.87~7.5 | 3.12~12.5 | 3.75~15 | 5.1~20 | ||||
Power Input(kW) | 0.322~2.56 | 0.537~4.3 | 0.646~5.26 | 0.879~7.14 | ||||
EER | 5.807~2.93 | 5.81~2.9 | 5.805~2.85 | 5.802~2.8 | ||||
Ambient Temperature:(DB/WB)20℃/15℃;Water temperature from 15℃ to 55℃ | ||||||||
Heating Capacity(kW) | 10.1 | 16.8 | 20 | 27.5 | ||||
Power Input(kW) | 2.4 | 4 | 4.87 | 6.71 | ||||
COP | 4.2 | 4.2 | 4.1 | 4.1 | ||||
Max. Power Input(KW) | 3.25 | 5.4 | 6.5 | 9.28 | ||||
Max. Running Current（A） | 14.8 | 24.5 | 29.5 | 42.2 | ||||
Water Flow Volume（m³/h） | 1.29 | 2.15 | 2.58 | 3.44 | ||||
Sound Pressure at 1m dB(A) | ≤50 | ≤50 | ≤50 | ≤55 | ||||
Refrigerant Type | R410A | |||||||
Water Pressure Drop(kPa) | 45 | 45 | 45 | 55 | ||||
Water Pipe Connection (inlet/outlet) | G1"(Female) | G1"(Female) | G1"(Female) | G1-1/2"(Female) | ||||
Net Dimensions(L*W*H)(mm) | 1110*385*915 | 1110*385*1300 | 1110*385*1300 | 1211*568*1496 | ||||
Net weight(kg) | 84 | 118 | 119 | 154 | ||||
Build-in Water Pump & Buff Tank | Yes | Yes | Yes | No | ||||
Notice | The above data is for reference only,the specific data is subject to actual product. | |||||||
Model: NE-F | 225HCR3TINV | 280HCR3TINV | ||
Power Supply (V/Ph/Hz) | 380-415V/3Ph/50Hz | |||
Operation Temp. Range (℃) | -25~43 | |||
Max. Outlet Water Temp. (℃) | 55 | 60 | ||
Ambient Temperature:(DB/WB)7℃/6℃;Water Inlet/Outlet Temperature:30/35℃ | 52 | 188 | ||
Heating Capacity(kW) | 5.62~22.5 | 7~28.1 | ||
Power Input(kW) | 0.838~7.03 | 1.04~8.46 | ||
COP | 6.706~3.2 | 6.731~3.32 | ||
Ambient Temperature:(DB/WB)7℃/6℃;Water Inlet/Outlet Temperature:40/35℃ | ||||
Heating Capacity(kW) | 5.38~20.7 | 6.69~25.76 | ||
Power Input(kW) | 1.02~7.02 | 1.264~8.73 | ||
COP | 5.29~2.95 | 5.29~2.95 | ||
Ambient Temperature:(DB/WB)35℃/-;Water Inlet/Outlet Temperature:12/7℃ | ||||
Heating Capacity(kW) | 5.1~20 | 6.25~25 | ||
Power Input(kW) | 0.879~7.14 | 1.07~8.92 | ||
COP | 5.802~2.8 | 5.84~2.8 | ||
Ambient Temperature:(DB/WB)20℃/15℃;Water temperature from 15℃ to 55℃ | ||||
Heating Capacity(kW) | 27.5 | 27.5 | ||
Power Input(kW) | 6.71 | 6.71 | ||
COP | 4.1 | 4.1 | ||
Max. Power Input(KW) | 9.28 | 9.28 | ||
Max. Running Current（A） | 42.2 | 16.6 | ||
Water Flow Volume（m³/h） | 3.44 | 3.44 | ||
Sound Pressure at 1m dB(A) | ≤55 | ≤60 | ||
Refrigerant Type | R410A | |||
Water Pressure Drop(kPa) | 55 | 60 | ||
Water Pipe Connection (inlet/outlet) | G1-1/2"(Female) | G1-1/2"(Female) | ||
Net Dimensions(L*W*H)(mm) | 1211*568*1496 | 1211*568*1496 | ||
Net weight(kg) | 154 | 154 | ||
Build-in Water Pump & Buff Tank | No | No | ||
Notice | The above data is for reference only,the specific data is subject to actual product. | |||
Packing & Delivery
Project Solution

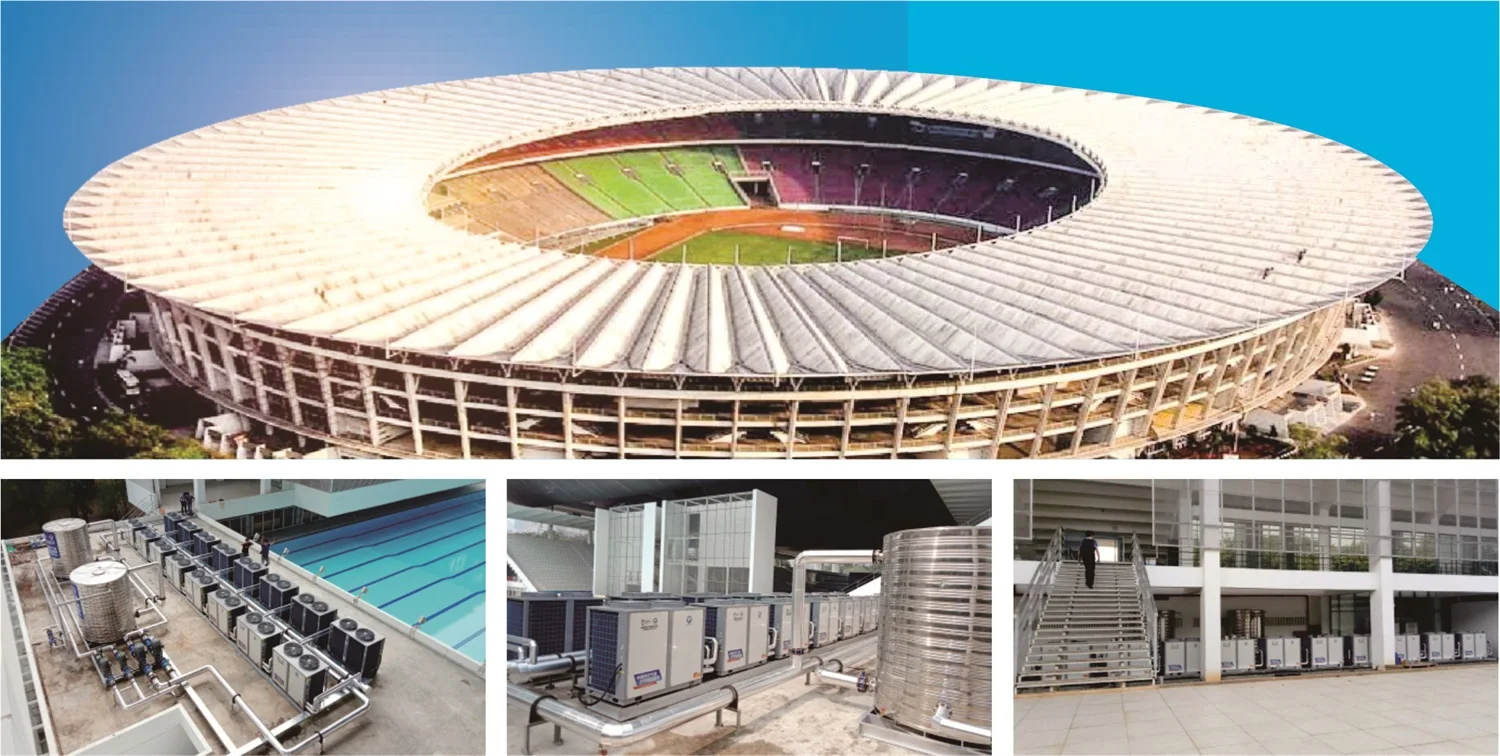

Swimming Pool Project for the 18th Asian Games in Indonesia
NEWNTIDE was the official partner of the 18th Asian Games and the Exclusive Supplier of Air Source Heat Pump, its products were widely used in Jakarta Asian Games venues and Asian Games Village to provide hot water, heating and cooling services.

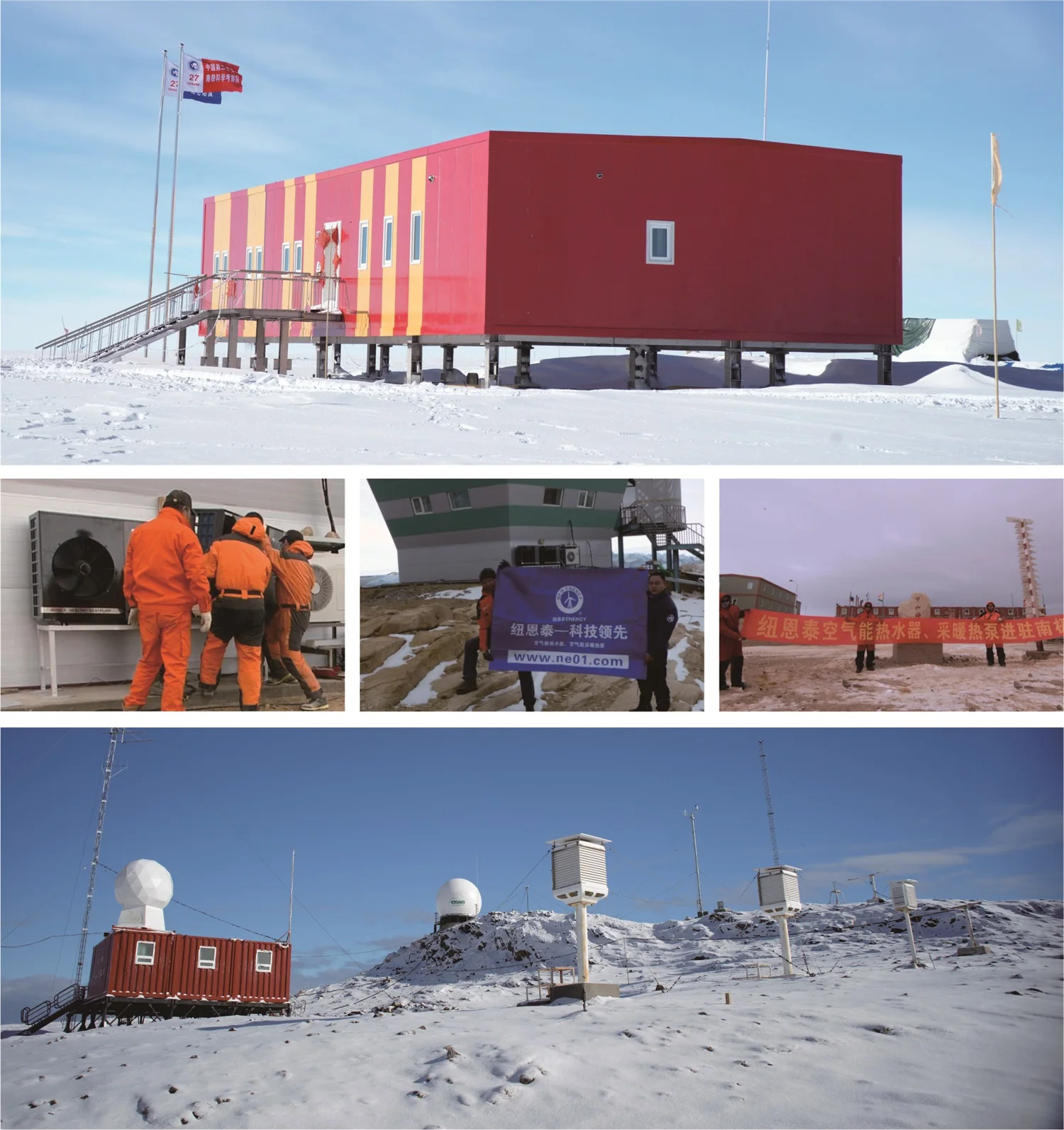

The Project in the Arctic and the Antarctic Area
NEWNTIDE’s heat pump water heater, heat pump for house cooling&heating and commercial heat pump become the authorized heat pump products for China Antarctic&Arctic Expedition Team.
FAQ
Q: How many years have your company been in heat pump industry?
A: We are the NO.1 heat pump exporter in China.
We NEWNTIDE has full experience in the field of heat pumps for more than 17 years. NEWNTIDE has kept growing rapidly during these years since it was established. In 2019, our turn over reached an amount of 101 million US dollars and in the same year NEWNTIDE was loaded on the China's New OTC market.
Q: Do you accept OEM & ODM?
A: Yes. We can produce NEWNTIDE standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, NEWNTIDE will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer NEWNTIDE's own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance.
A: We are the NO.1 heat pump exporter in China.
We NEWNTIDE has full experience in the field of heat pumps for more than 17 years. NEWNTIDE has kept growing rapidly during these years since it was established. In 2019, our turn over reached an amount of 101 million US dollars and in the same year NEWNTIDE was loaded on the China's New OTC market.
Q: Do you accept OEM & ODM?
A: Yes. We can produce NEWNTIDE standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, NEWNTIDE will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer NEWNTIDE's own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance.
Payment>= 5000USD, 30% T/T in advance ,balance before shippment.
AIibaba trade assurance payment available.
L/C Payment available only with 1 millon+ USD dealing amount.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
AIibaba trade assurance payment available.
L/C Payment available only with 1 millon+ USD dealing amount.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
