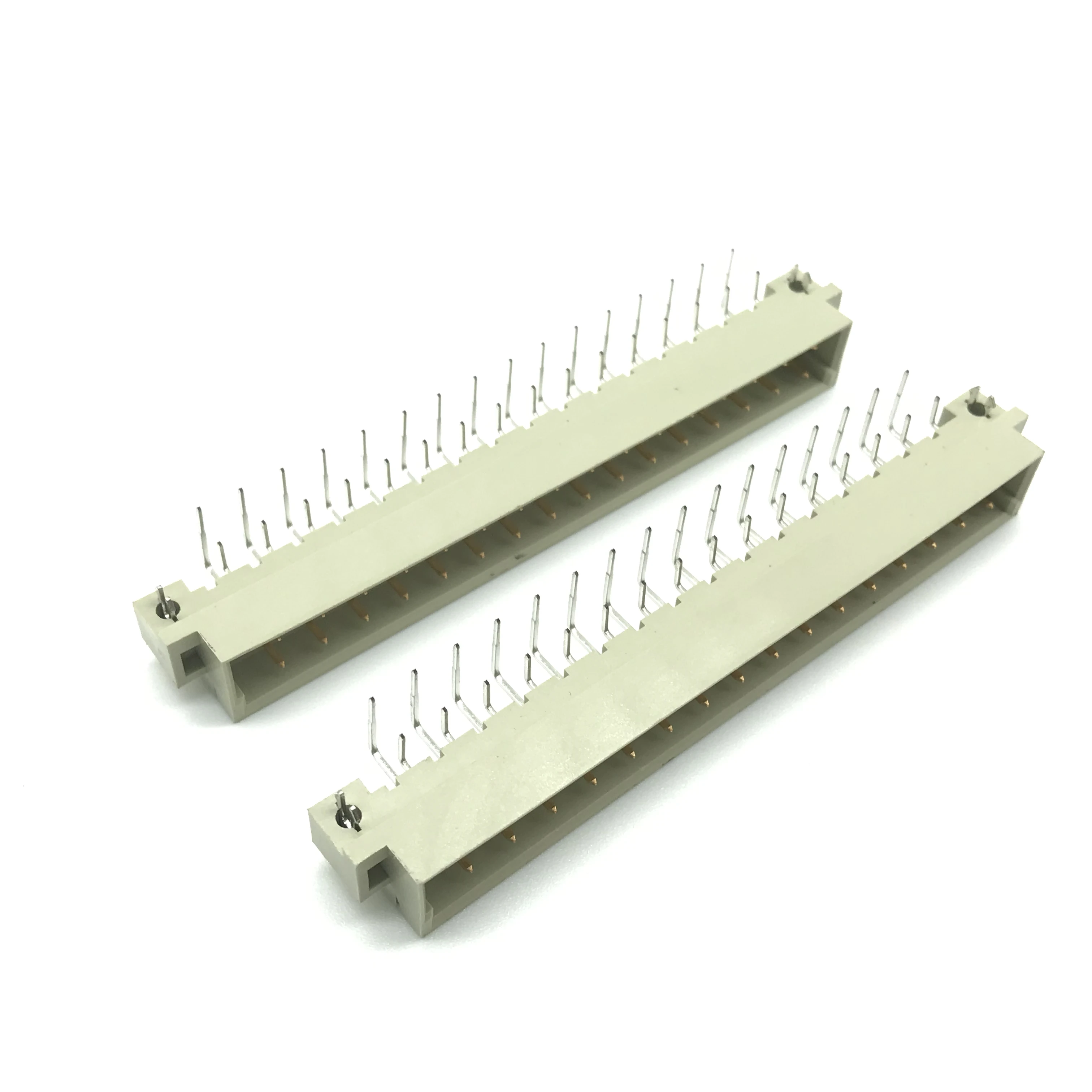

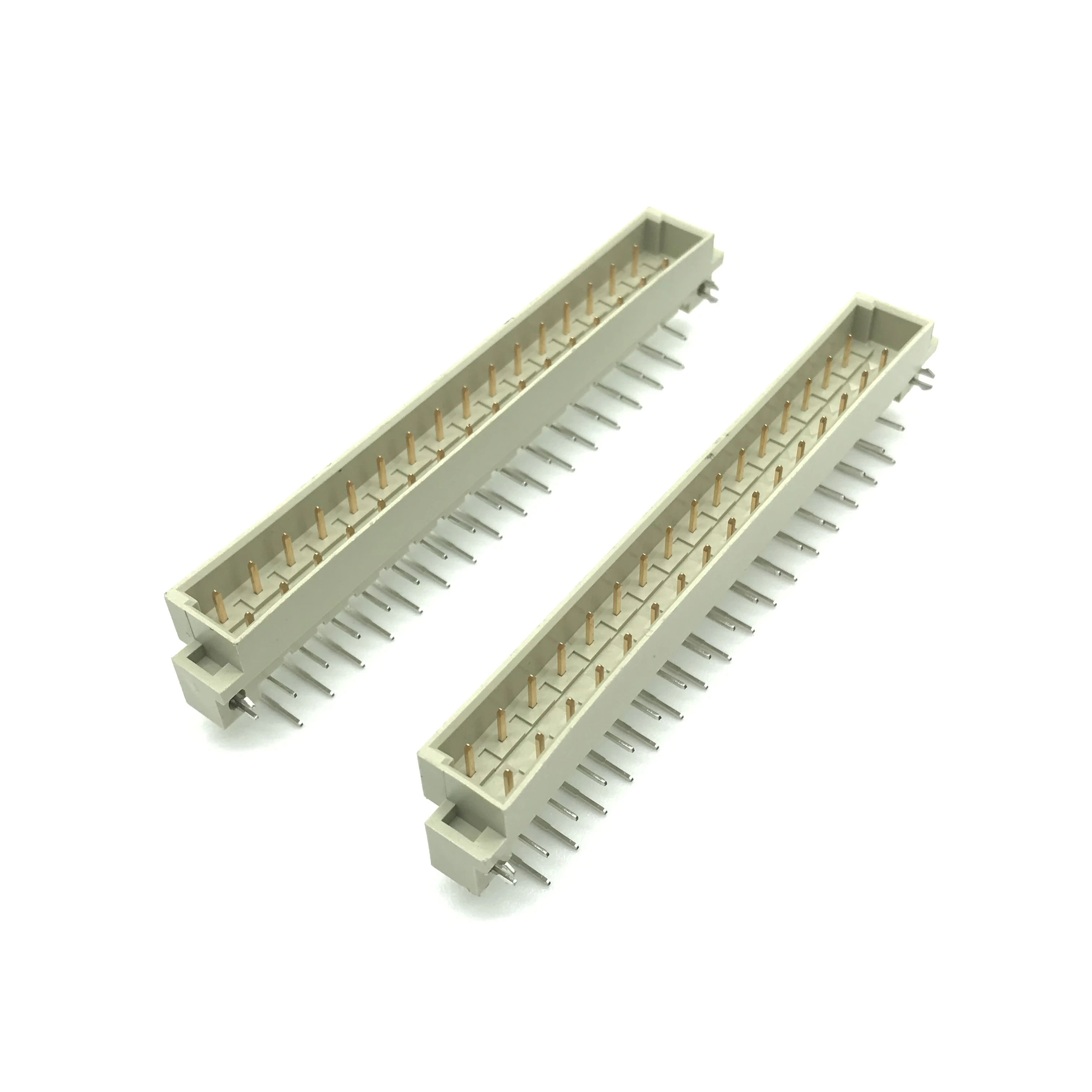

Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket
Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket

Euro Card Connector 5.08mm pitch High Current Right angle male with harpoon 32P DIN 41612 eurocard electronic socket

Share on (1600468273073):


Price:

Quantity:


Product Overview

Description



Product Paramenters


Rated Current
6.0AMP
Contact Resistance
20mΩ Max
Withstand Voltage
1000V AC/DC
Insulation Resistance
1000MΩ Min
Operation Temperature
-55°c to +125°c
Contact Material
Bronze
Contact Plating
Au Over Ni
Insulator Material
Polyester(UL94V-0)
Standard
PBT
Max.Processing Temp
180°C for 30-60 seconds
(200°C for 5 seconds)

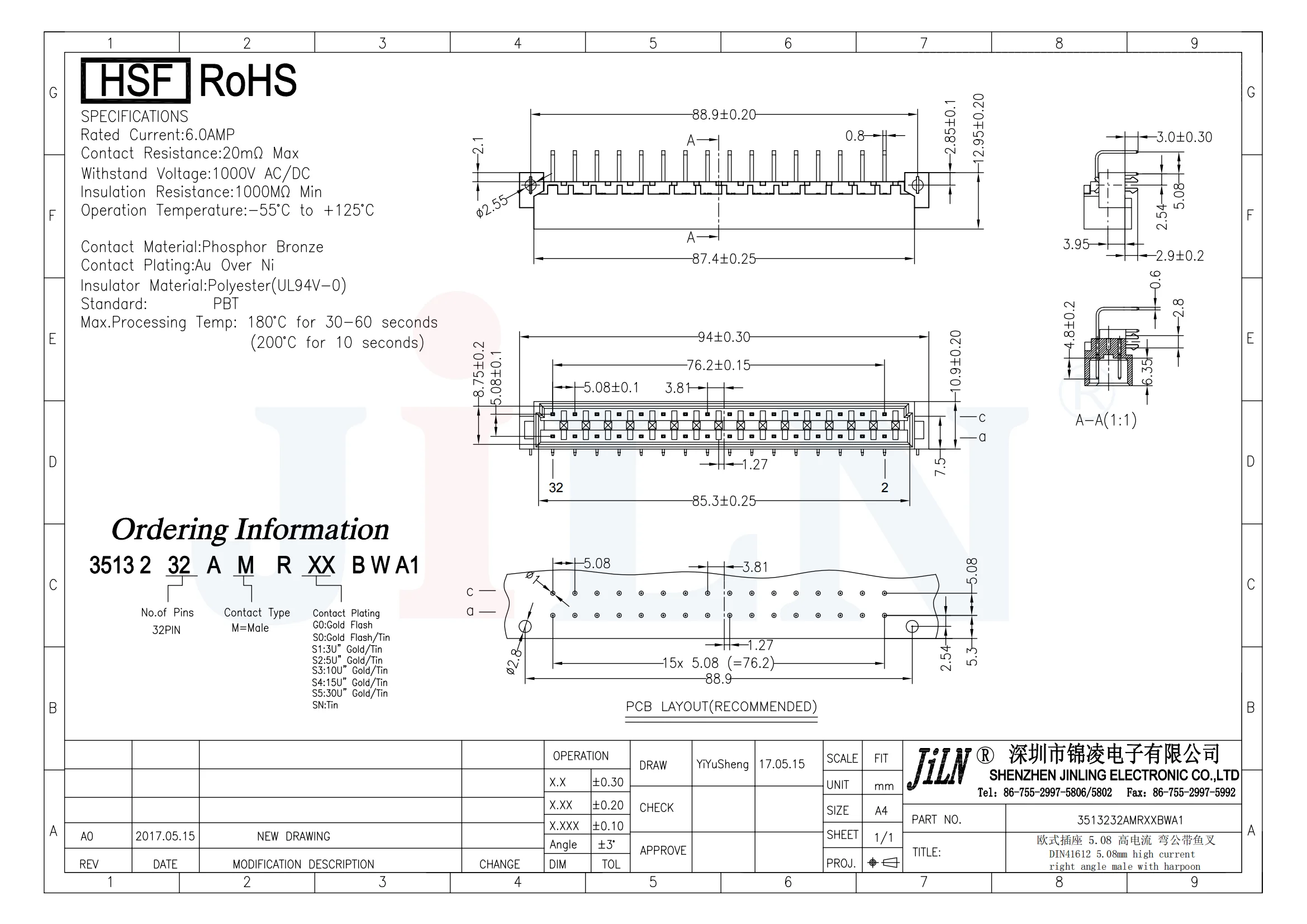

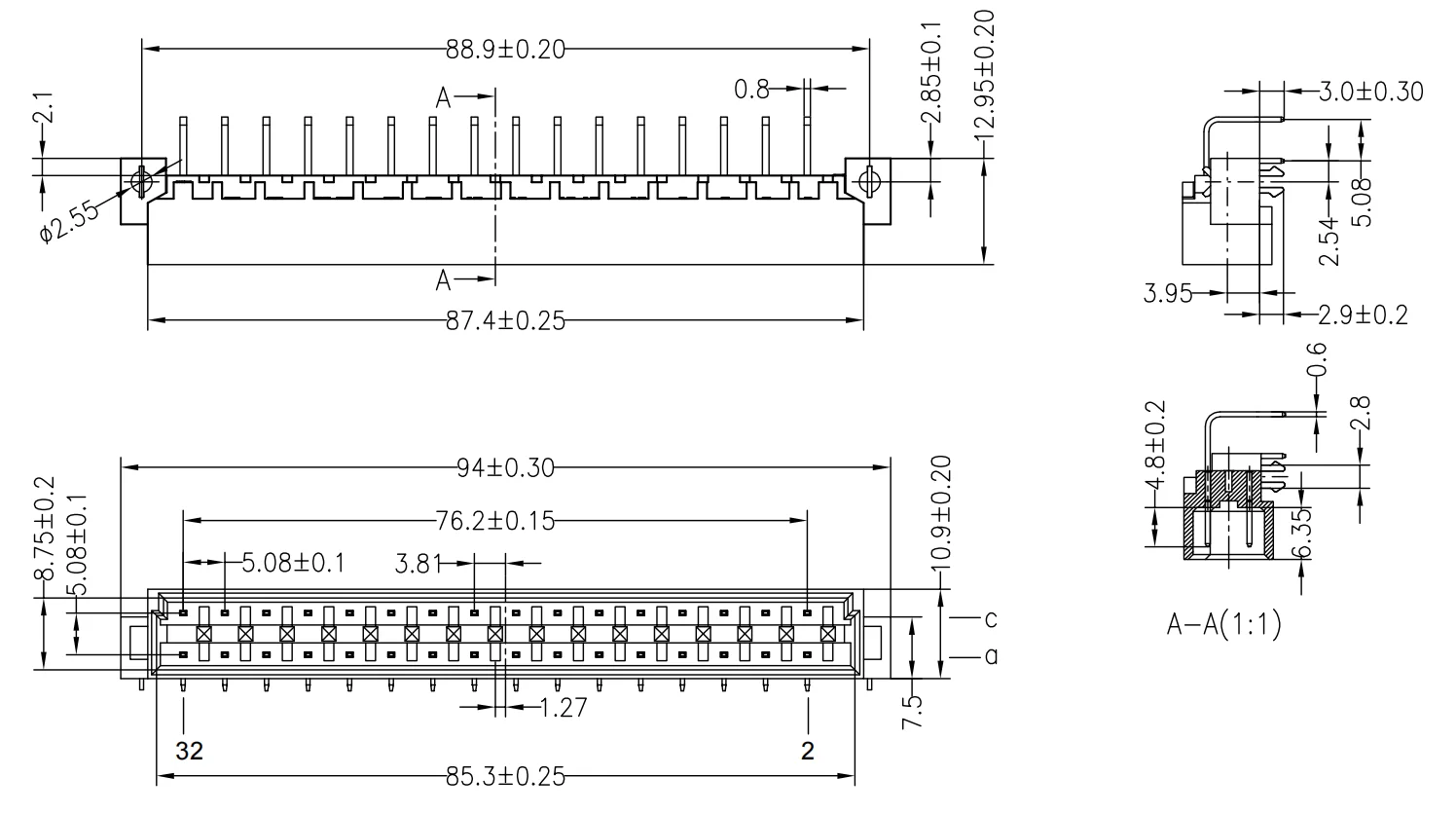

Engineering Drawing
