Product Overview
Description

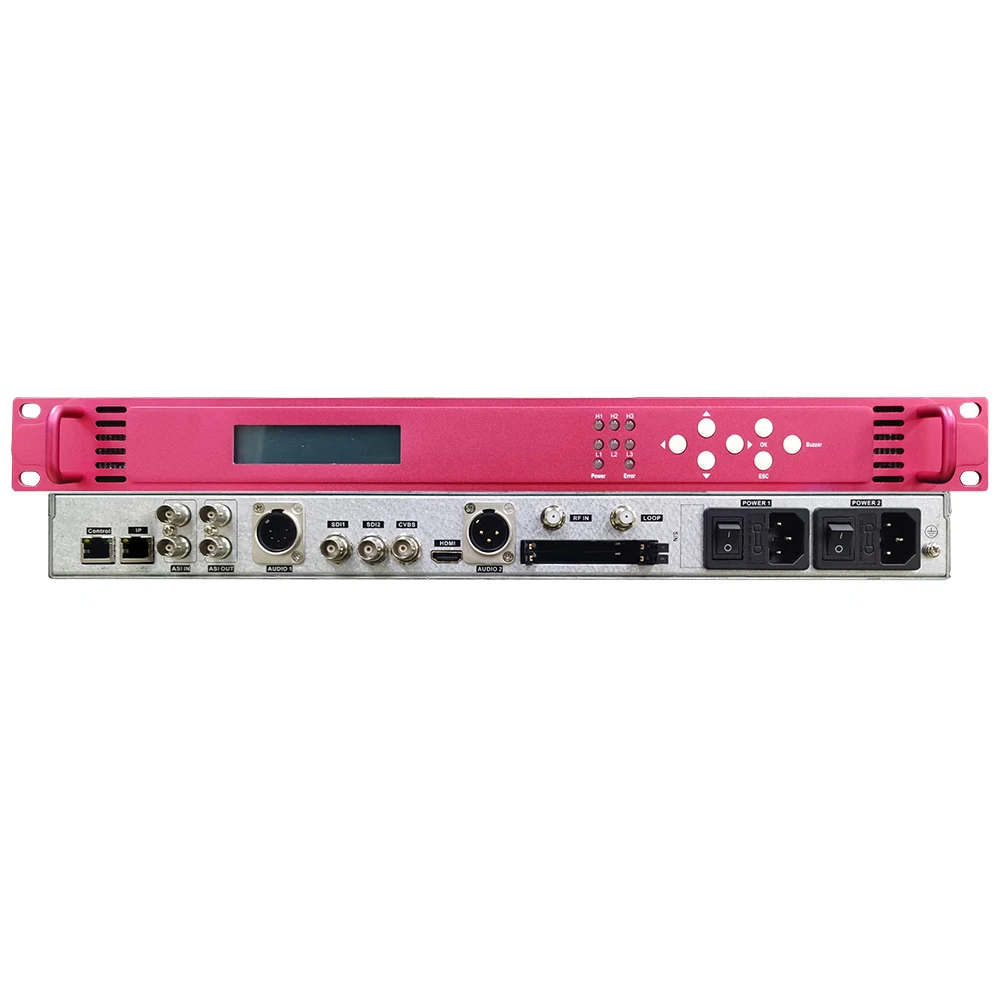

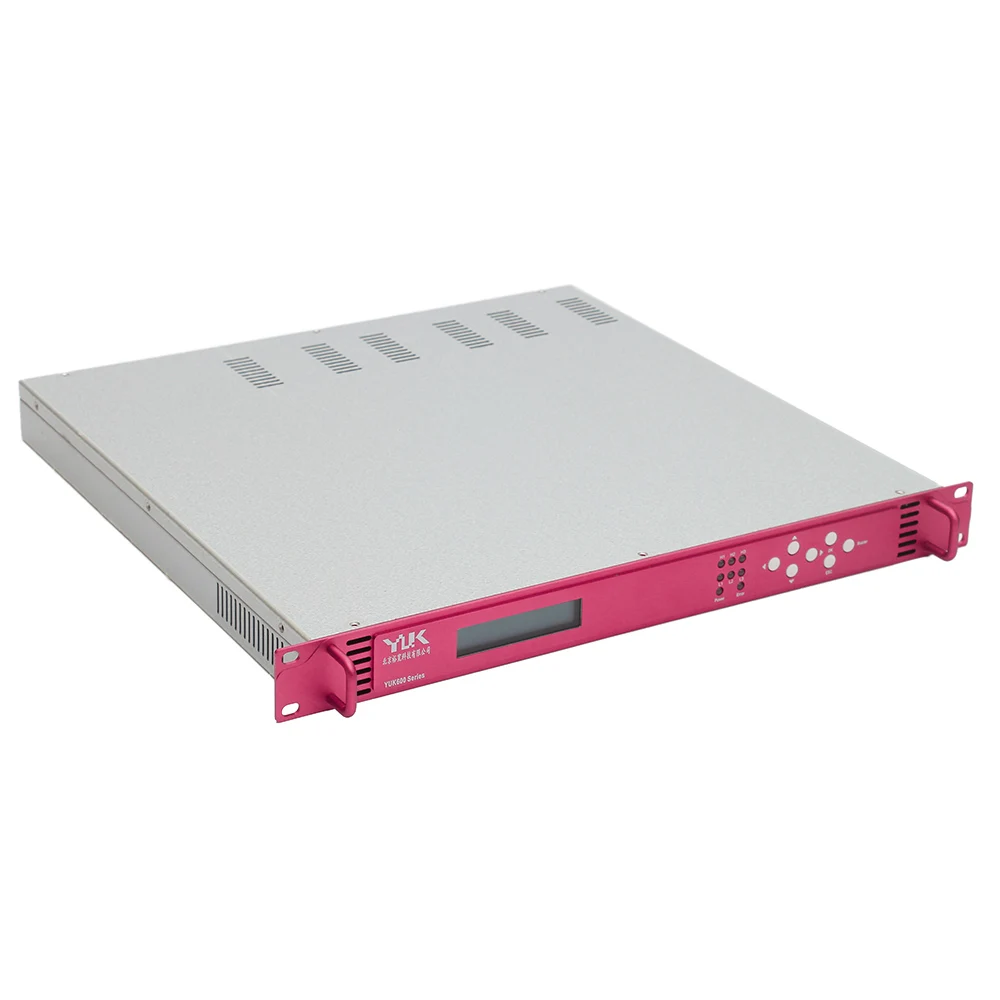

YUK2300
ISDB-T Full HD 1080P IRD HDM I CVBS SDI Output ASI/IP Input/Output Digital TV broadcasting Equipment
Product Overview
YUK2300 integrated receiver decoder supports H.265/H.264/MPEG-2/AVS+ decoding. It is widely used in the satellite, cable and terrestrial TV network with different tuner frontend DVB-S2/S, DVB-C and DVB-T2/T, DTMB.
It supports RF/ASI/IP input, single channel HD-MI/HD/SD-SDI/ Genlock/CVBS/analog stereo/AES/ASI/IP output. The device supports multiple resolutions of 1080P/ 1080I/ 720P/ 576I/ 480I and multiple audio of DRA/AAC/MPEG etc.
It supports RF/ASI/IP input, single channel HD-MI/HD/SD-SDI/ Genlock/CVBS/analog stereo/AES/ASI/IP output. The device supports multiple resolutions of 1080P/ 1080I/ 720P/ 576I/ 480I and multiple audio of DRA/AAC/MPEG etc.
Product Feature
* Support multiple input DVB-S2/S, DVB-C and DVB-T2/T, DTMB,IP,ASI
* Multiple output, HD-MI/SD/HD-SDI/Analog stereo/ASI/IP output/Genlock/CVBS
* Support H.265/H.264/MPEG-2/AVS+ decoding
* Twoindependent CAM cards, descrambling two different signals
* Support BISS-1and BISS-E decryption
* Support DRA/AAC/MPEG
* Compatible with HD/SD signals
* Resolution can be automatically identified or manually set
* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD
* Web network management based on B/S
* Support signal input strength, signal to noise ratio (SNR) dynamic display
* Multiple output, HD-MI/SD/HD-SDI/Analog stereo/ASI/IP output/Genlock/CVBS
* Support H.265/H.264/MPEG-2/AVS+ decoding
* Twoindependent CAM cards, descrambling two different signals
* Support BISS-1and BISS-E decryption
* Support DRA/AAC/MPEG
* Compatible with HD/SD signals
* Resolution can be automatically identified or manually set
* Friendly user interface and easy-to-operate menu system, all operating functions can be completed on the LCD
* Web network management based on B/S
* Support signal input strength, signal to noise ratio (SNR) dynamic display
Specification
RF Input(DVB-S/S2) | ||
Standard | DVB-S/S2 | |
Input | 2×RF input, 75Ω | |
Input Frequency | 950~2150MHz | |
Input Level | -25~ -65 dbm | |
Symbol Rate | 1~ 45Msps | |
FEC | All ratios compatible with standards | |
LNB Power Supply | 13V/18V/turn off, 22KHz | |
Constellation | QPSK, 8PSK | |
Roll-off Factor | 0. 2, 0.25, 0.35 | |
RF Input(DVB-C) | ||
Standard | DVB-C | |
Input | 2×RF input, 75Ω | |
Input Frequency | 48~862MHz | |
Input Level | 45~75dbuV | |
Modulation Mode | 16/32/64/128/256QAM | |
RF Input(DVB-T/T2) | ||
Standard | DVB-T/T2 | |
Input | 2×RF input, 75Ω | |
Input Frequency | 44~1002MHz | |
Input Level | -25~ -100 dbm | |
Modulation | DVB-T：QPSK/16-QAM/64-QAM DVB-T2：QaPSK, 16QAM, 64QAM, 256QAM | |
Bandwidth | 6MHz/7MHz/8MHz | |
Carrier Mode | DVB-T：2K/8K DVB-T2：1K, 2K，4K，8K，16K，32K | |
Guard Interval | DVB-T：1/4，1/8，1/16，1/32 DVB-T2：1/4，5/32，1/8，5/64，1/16，1/32，1/64，1/128 | |
FEC | DVB-T：1/4，1/8，1/16，1/32 DVB-T2：1/2，3/5，2/3，3/4，4/5，5/6 | |
RF Input(DMB-T) | ||
Standard | DMB-T | |
Input | 2×RF input, 75Ω | |
Input Frequency | 146MHz~862MHz | |
Bandwidth | 6MHz/7MHz/8MHz | |
ASI Input/Output | ||
ASI Input Connector | 2×BNC, 75Ω | |
ASI Output Connector | 2×BNC, 75Ω | |
Executive Standard | DVB-ASI, EN50083-9 | |
Output Bitrate | ≤200Mb/s | |
TS Over IP | ||
Connector | 2×RJ45, 10/100/1000 Base-T | |
Effective Bitrate | 600Mb/s | |
Frame Length | (1-7)×188 adjustable bytes | |
Transfer Protocol | UDP/RTP, Unicast, Multicast | |
HD-MI Output | ||
Connector | 1×HD-MI | |
Resolution and Frame Rate | 1080p59.94/1080p50/1080i60/1080i50/ 720p60/720p50/576p/576i/480p/480i | |
Embedded Audio | 1 channels stereo | |
Data Video Decoder | ||
Standard | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ 10 bit, 4:2:0 | |
Data Audio Decoder | ||
Standard | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
HD/SD-SDI Output | ||
Connector | 2×BNC,75Ω | |
SD-SDI Output | SMPTE 259M, 270 Mb/s (10bit) | |
HD-SDI Output | SMPTE 292M, 1.485 Gbit/s (20bit) | |
Output Level | 800mV+-20 p-p | |
Audio Output | ||
Connector | 1-ch analog stereo audio and 1-ch AES/EBU | |
Audio Output Mode | Left, Right, Dual Mono, Stereo | |
Local and Remote Management | ||
Connector | 1×RJ45, 10/100/1000 Base-T | |
Remote Control | HTTP Web | |
Local Control | HTTP Web | |
Equipment Upgrade | IP | |
Physical Specifications | ||
Dimension(L×W×H) | 450mm×350mm×44mm | |
Weight | Net weight 5KG | |
Power | AC 90V～250V，50/60Hz | |
Power Consumption | 24W (excluding LNB power supply) | |
Temperature Range | 0 ~ 45℃(operation), -10 ~ 60℃(storage) | |
Humidity | 10 ~ 90% (Non-condensing) | |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
